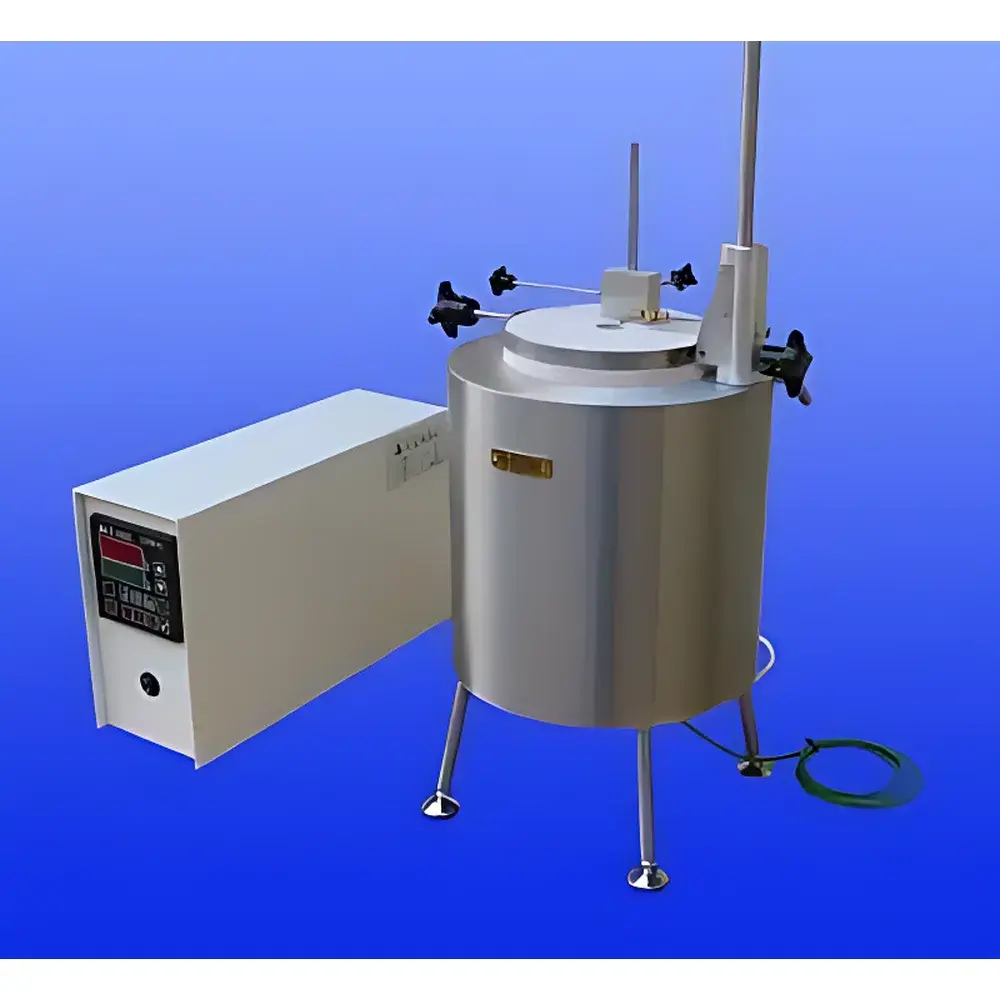

Setchkin Hot Air Furnace for Combustibility and Ignitability Testing
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Setchkin |
| Pricing | Available Upon Request |
Overview
The Setchkin Hot Air Furnace is a precision-engineered thermal test chamber designed specifically for standardized combustibility and ignitability evaluation of solid materials under controlled laboratory conditions. It operates on the principle of convective heat transfer via forced hot air circulation, enabling reproducible exposure of test specimens to defined temperature profiles. This furnace is engineered to meet the stringent thermal stability and temperature uniformity requirements specified in ASTM E136 (“Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C”) and ASTM D1929 (“Standard Test Method for Determining Ignition Temperature of Plastics”). Its primary function is to assess whether a material sustains combustion when exposed to elevated temperatures in ambient air—critical for classifying non-combustible building materials (per IBC and NFPA 255) and establishing thermal ignition thresholds for polymeric and composite substrates.
Key Features
- Temperature range from ambient to 750 °C with ±2 °C accuracy across the working zone, verified per ASTM E136 calibration protocols;
- Forced-air convection system ensuring radial and axial temperature uniformity ≤±3 °C within the 100 mm × 100 mm test zone;
- Dual-zone heating architecture: independent control of furnace chamber and specimen support pedestal to minimize thermal gradient effects during low-temperature smoldering assessments;
- Integrated thermocouple ports (Type K, 0.5 mm diameter) positioned per ASTM E136 Figure 1 for real-time monitoring at specimen surface and furnace centerline;
- Refractory-lined stainless-steel chamber with inert ceramic fiber insulation, rated for continuous operation at 750 °C and compliant with OSHA 1910.106 fire-resistant enclosure requirements;
- Programmable ramp-and-soak controller supporting multi-step thermal profiles for extended smoldering or autoignition kinetics studies.
Sample Compatibility & Compliance
The furnace accommodates standard specimen geometries defined in ASTM E136 (50 mm × 50 mm × 50 mm cubes) and ASTM D1929 (10 mm × 10 mm × 3 mm slabs), with optional fixtures for irregular or fibrous samples. All hardware—including specimen holders, thermocouple brackets, and airflow baffles—is constructed from high-purity alumina and Inconel 600 to prevent catalytic interference or oxidation-induced artifacts. The system supports full traceability documentation aligned with GLP (Good Laboratory Practice) and ISO/IEC 17025:2017 requirements. Test reports generated using this furnace are accepted by AHJs (Authorities Having Jurisdiction), UL, FM Global, and ICC-ES for code compliance submissions related to ASTM E84, E119, and NFPA 285 wall assembly evaluations.
Software & Data Management
Control and data acquisition are managed via a dedicated Windows-based interface compliant with FDA 21 CFR Part 11. The software provides audit-trail logging for all operator actions, setpoint changes, and calibration events; user access levels are role-defined (Operator, Supervisor, Administrator). Real-time temperature curves (furnace setpoint, chamber center, specimen surface) are recorded at 1 Hz resolution and exported in CSV or PDF format with embedded metadata (test ID, operator, date/time, environmental conditions). Raw data files include digital signatures and checksum verification to ensure integrity for regulatory submission or third-party review.
Applications
- Classification of mineral wool, gypsum board, cementitious composites, and metal-clad panels per ASTM E136 “non-combustible” criteria;
- Determination of critical ignition temperature (CIT) and spontaneous ignition temperature (SIT) of thermoplastics, elastomers, and carbon-fiber-reinforced polymers;
- Low-temperature smoldering behavior analysis of upholstered furniture foams and textile laminates (per UL 1040 and NFPA 260);
- Pre-screening of intumescent coatings and fire-retardant additives prior to full-scale room-corner tests;
- Thermal stability assessment of battery separator films and cathode active materials under inert or air atmospheres.
FAQ
What standards does the Setchkin Hot Air Furnace explicitly support?
ASTM E136, ASTM D1929, ISO 1182 (Non-combustibility), and UL 94 HB classification testing protocols.
Is the furnace suitable for oxygen-controlled environments?
No—it is configured for ambient air operation only; optional nitrogen purge kits are available for inert-atmosphere adaptation upon request.
How is temperature uniformity validated?
Per ASTM E136 Section 7.2, using a 9-point thermocouple mapping procedure conducted annually or after maintenance.
Can the system be integrated into a LIMS environment?
Yes—via OPC UA or Modbus TCP interfaces for automated data ingestion into enterprise laboratory information management systems.
What safety certifications does the unit carry?
CE marking (EMC & LVD directives), UL 61010-1 listing, and conformity with ANSI Z21.11.2 for laboratory thermal equipment.
