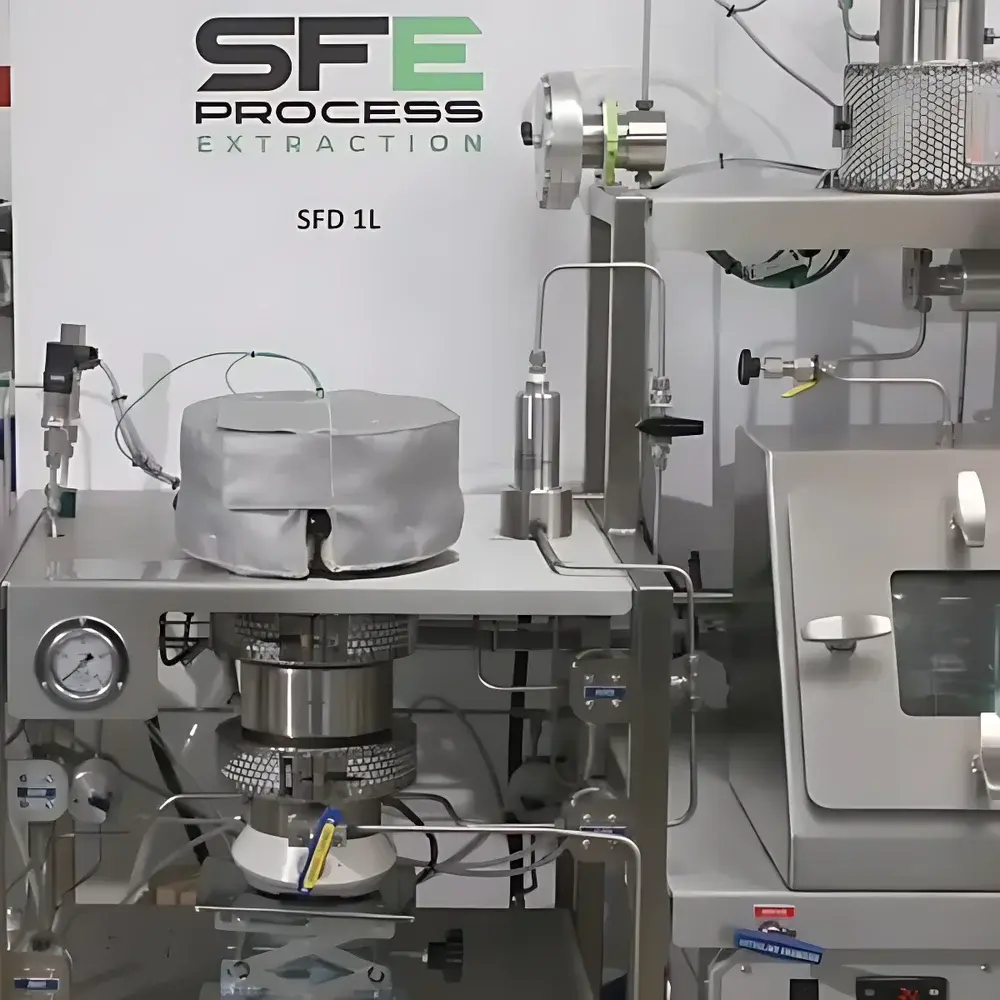

SFE PROCESS SFD 1L Supercritical Drying System for Aerogel Synthesis

Overview

The SFE PROCESS SFD 1L Supercritical Drying System is a precision-engineered platform designed exclusively for the preparation of high-integrity aerogels via supercritical fluid drying (SCFD) using carbon dioxide (CO₂) as the processing medium. Unlike conventional thermal or vacuum drying methods, SCFD eliminates capillary stress during solvent removal by transitioning the pore-filling liquid—typically ethanol or acetone—through its supercritical state, where distinct liquid–gas phase boundaries vanish and interfacial tension approaches zero. This thermodynamic condition enables complete desolvation without collapse of the delicate nanoscale network architecture inherent to wet gels. The system operates within a rigorously sealed 1 L stainless-steel autoclave rated to 1000 bar, enabling precise control over pressure (700–1000 bar) and temperature (up to 150 °C), ensuring reproducible access to the CO₂ critical point (31.1 °C, 73.8 bar) and extended supercritical process windows required for low-density, high-surface-area aerogel synthesis.

Key Features

• Single-channel, fully integrated supercritical drying architecture with 1 L extraction vessel fabricated from ASTM A182 F22 alloy steel, qualified for cyclic operation at ≥1000 bar
• High-fidelity PLC-based control system with real-time logging of pressure, temperature, mass flow, and CO₂ consumption; compliant with IEC 61131-3 programming standards
• On-board CO₂ recovery loop achieving >90% mass recovery efficiency, minimizing operational cost and environmental footprint per batch
• Integrated gravimetric solvent recovery module with ±1 g resolution, enabling quantitative tracking of solvent displacement kinetics during depressurization
• Redundant safety architecture including rupture discs, pressure transducer cross-checking, emergency venting valves, and SIL-2 certified interlock logic per IEC 61511
• Thermally insulated reaction chamber with PID-controlled heating jacket and dual-stage cooling capacity for controlled ramp/soak/depressurization profiles

Sample Compatibility & Compliance

The SFD 1L accommodates hydrophilic and hydrophobic sol–gel precursors—including silica, alumina, titania, cellulose, and polymer-derived gels—provided they are compatible with CO₂ and co-solvents such as methanol or ethanol. Sample loading is performed under inert atmosphere (N₂ purge) to prevent oxidation or premature condensation. The system meets mechanical design requirements of PED 2014/68/EU and ASME BPVC Section VIII Div. 3 for high-pressure equipment. All pressure-retaining components carry CE marking and are traceable to EN 13445-3 material certification. For regulated laboratories, audit trails generated by the PLC system support GLP/GMP documentation requirements, and time-stamped event logs comply with FDA 21 CFR Part 11 principles when paired with validated user access controls.

Software & Data Management

Control and monitoring are executed via a dedicated HMI interface running on an embedded industrial PC. Process parameters—including setpoints, actual values, alarms, and valve actuation status—are logged at user-configurable intervals (100 ms to 10 s) and stored in CSV- and SQLite-compatible formats. Exported datasets include synchronized pressure–temperature–mass trajectories essential for kinetic modeling of solvent diffusion and phase transition dynamics. Optional OPC UA server integration enables seamless data exchange with LIMS or MES platforms. Firmware updates follow ISO/IEC 17025-aligned change control procedures, with version history and validation reports available upon request.

Applications

• Synthesis of low-density (95%) silica and metal oxide aerogels for thermal insulation, catalysis, and sensor substrates
• Stabilization of bio-based hydrogels (e.g., chitosan, alginate) into mechanically robust xerogel–aerogel hybrids without denaturation
• Preparation of nanostructured battery electrode scaffolds preserving conductive network integrity during binder-free drying
• Development of pharmaceutical porous carriers with controlled release profiles, avoiding thermal degradation of active ingredients
• Materials science research into structure–property relationships of mesoporous frameworks under defined supercritical exposure histories

FAQ

What solvents are compatible with the SFD 1L system?

Ethanol, methanol, acetone, and isopropanol are routinely used as gel solvents; compatibility with chlorinated or fluorinated co-solvents requires prior consultation and pressure–temperature phase diagram validation.
Can the system be operated with gases other than CO₂?

The SFD 1L is optimized for CO₂ due to its favorable critical properties and non-toxicity; operation with N₂, N₂O, or ethane is technically feasible but requires hardware requalification and is not covered under standard warranty or service agreements.
Is remote monitoring supported?

Yes—via optional Ethernet/IP or Modbus TCP gateway modules, enabling secure read-only access to live process variables and historical trends through authenticated web interfaces.
What maintenance intervals are recommended?

O-rings and pressure transducer calibration require verification every 500 operating hours or annually, whichever occurs first; full system hydrostatic retest is mandated every 5 years per PED requirements.
Does the system meet ISO/IEC 17025 calibration traceability standards?

All factory-installed sensors are supplied with UKAS-accredited calibration certificates; field recalibration services are available through SFE PROCESS-certified partners with documented uncertainty budgets.
