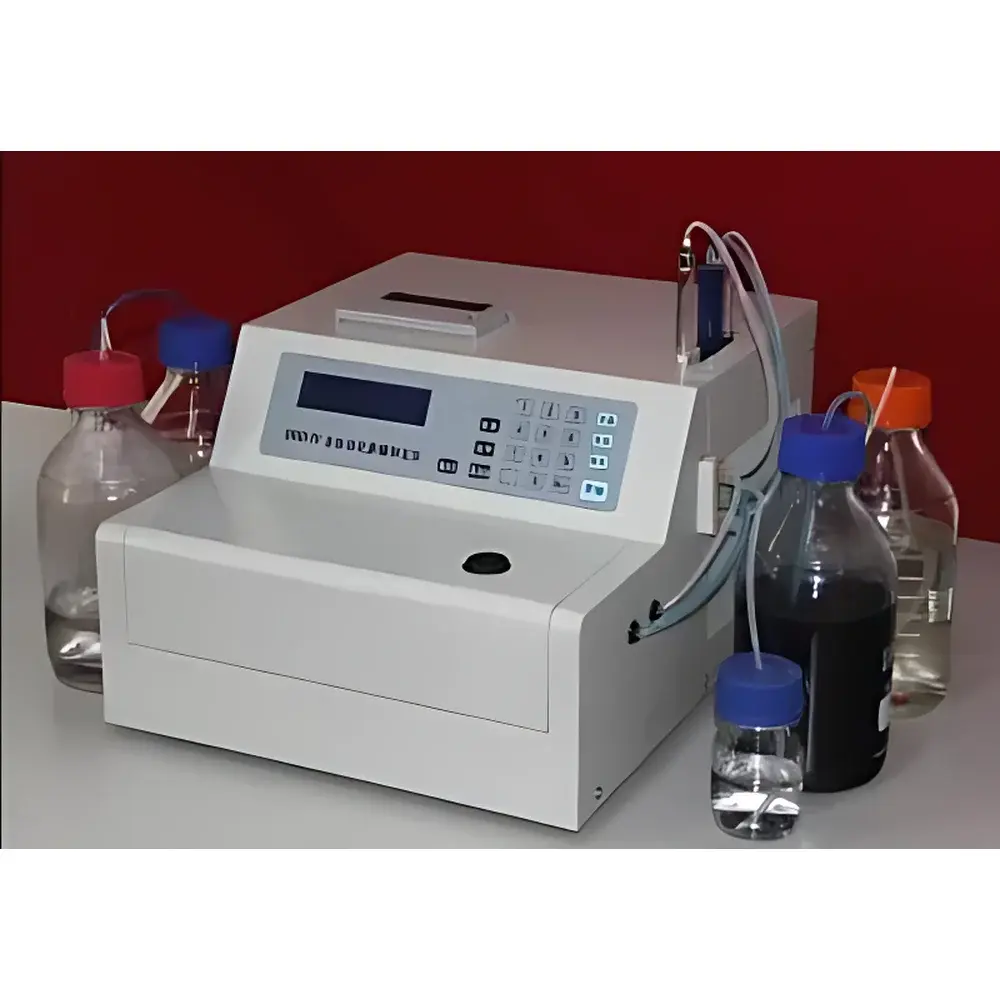

SGD-IV Fully Automated Reducing Sugar Analyzer

Overview

The SGD-IV Fully Automated Reducing Sugar Analyzer is an engineered solution for high-throughput, trace-level quantification of reducing sugars in complex biological and industrial matrices. It operates on the classical Fehling’s titration principle—oxidation of reducing sugars (e.g., glucose, maltose, fructose) by alkaline copper(II) tartrate under controlled thermal conditions—followed by photometric endpoint detection using complementary colorimetry. Unlike conventional manual or semi-automated methods, the SGD-IV integrates microcomputer-controlled reagent delivery, thermally stabilized reaction kinetics, and real-time optical monitoring to eliminate subjective endpoint judgment. This architecture ensures compliance with ISO 5765 (determination of reducing sugars in starch hydrolysates) and aligns with USP analytical instrument qualification requirements for automated systems used in regulated environments.

Key Features

• Automated reagent priming and bubble elimination for both Fehling’s A and B solutions—eliminating manual calibration drift and operator-induced variability.
• Thermally regulated reaction chamber maintaining ±0.5 °C stability during titration, ensuring reproducible redox kinetics across batch runs.
• High-sensitivity complementary photometry system with dual-wavelength LED detection (620 nm reference / 450 nm assay), optimized for low-concentration glucose-equivalent quantification (LOD: 0.01% w/v).
• Integrated LCD interface with intuitive menu navigation, real-time progress visualization, and automatic result calculation—including % w/v, mg/mL, and molar equivalents—based on user-defined standard curves or single-point calibration.
• Rugged mechanical design compliant with IEC 61000-4 electromagnetic immunity standards, enabling stable operation in fermentation control rooms and QC laboratories with variable electrical loads.

Sample Compatibility & Compliance

The SGD-IV accepts clarified liquid samples (filtrate, centrifugate, or dialysate) with minimal pretreatment—ideal for fermentation broths, enzymatic hydrolysates, syrup concentrates, and botanical extracts. Sample volume requirement is ≤ 1.0 mL per analysis. The system supports method validation per ICH Q2(R2) guidelines, including specificity, linearity (R² ≥ 0.999 over 0.01–1.00% w/v), precision (RSD ≤ 1.8% at 0.1% w/v glucose), and robustness testing across pH 4.5–8.5. Instrument firmware includes audit trail logging (per FDA 21 CFR Part 11 Annex 11 requirements) with user authentication, timestamped event records, and non-editable result export (CSV/PDF). It meets GLP/GMP documentation needs for pharmaceutical fermentation monitoring and food additive certification workflows.

Software & Data Management

Data acquisition and reporting are managed via embedded firmware—not external PC software—ensuring deterministic timing and eliminating OS-level interference. Each assay generates a timestamped record containing raw absorbance traces, titrant volume consumed, calculated concentration, operator ID, and environmental temperature. Results are stored locally (≥ 10,000 assays) and exportable via USB 2.0 to networked LIMS or ERP systems. Calibration history, maintenance logs, and error codes are retained separately for regulatory review. Optional RS-232/485 serial interface enables integration into SCADA-based bioprocess control architectures for real-time sugar depletion trending during fed-batch cultivation.

Applications

• Microbial Fermentation: Online monitoring of glucose/fructose depletion in Corynebacterium glutamicum (glutamic acid), Bacillus subtilis (inosine), Aspergillus niger (citric acid), and Xanthomonas campestris (xanthan gum) fermentations.
• Biopharmaceutical Manufacturing: In-process control of penicillin G, cephalosporin C, and streptomycin fermentations where carbon source exhaustion directly correlates with antibiotic yield and byproduct formation.
• Starch & Sweetener Industry: Quality assurance of dextrose equivalent (DE) values in corn syrup, high-maltose syrups, and isomaltulose batches; verification of enzymatic hydrolysis completeness in glucose syrup production.
• Food & Beverage QA/QC: Compliance testing for honey adulteration (C4/C3 sugar profiling support), fruit juice authenticity (sucrose inversion ratio), and confectionery matrix consistency (reducing sugar limits per Codex Alimentarius STAN 192-1995).

FAQ

Does the SGD-IV require daily recalibration?
No—system stability allows weekly calibration verification using NIST-traceable glucose standards; full recalibration is recommended only after reagent cartridge replacement or maintenance service.
Can it analyze turbid or colored samples without pre-treatment?
Clarification (0.45 µm filtration or centrifugation at 10,000 × g for 5 min) is required to avoid optical interference; however, the instrument compensates for mild background absorbance via dual-wavelength correction.
Is the method compatible with ISO 15512 and AOAC Official Method 982.25?
Yes—the underlying Fehling’s titration chemistry and endpoint detection protocol are fully aligned with both standards; validation reports are available upon request.
What maintenance intervals are recommended?
Reagent tubing replacement every 6 months, reaction cell cleaning after every 200 assays, and annual verification of photometric linearity and thermal stability per manufacturer SOP.
Does it support multi-point calibration curves?
Yes—up to 8-point non-linear (quadratic) or linear calibration curves can be stored and recalled per application profile.
