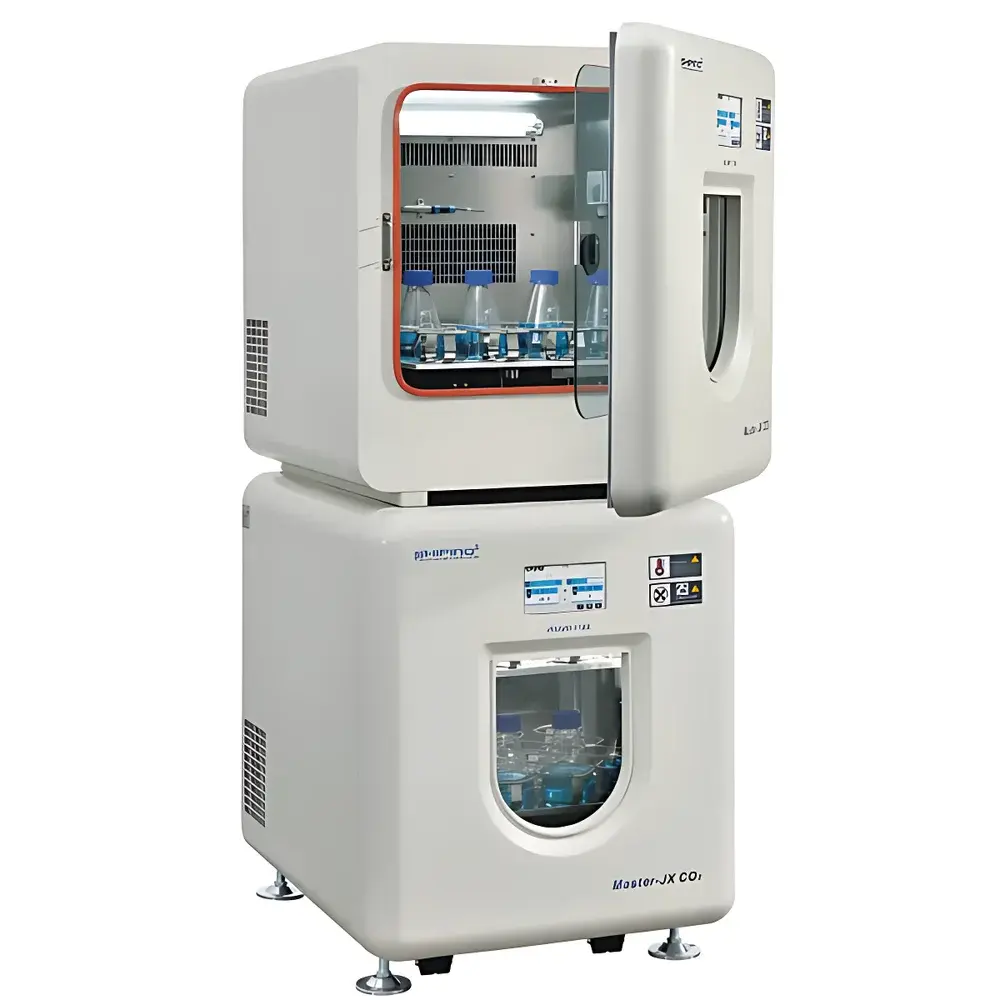

Shanghai Shiping Master-JX 2022R CO₂-Regulated Orbital Shaker Incubator
| Brand | Shanghai Shiping |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Instrument Type | CO₂-Controlled Temperature-Regulated Orbital Shaker Incubator |
| Model | Master-JX 2022R |
| Timing Range | 0–9999 min |
| Oscillation Frequency | 0–300 rpm |
| Orbit Diameter | 25 mm (Φ25 mm) |
| Temperature Range | 4–60 °C |
| Number of Shaking Platforms | 1 |
| CO₂ Control Range | 0–20% |
| CO₂ Sensing | Imported NDIR Infrared Sensor |
| CO₂ Accuracy | ±0.3% |
| CO₂ Stability | ±0.1% |
| Temperature Uniformity | ≤±0.5 °C (at 37 °C) |
| Temperature Accuracy | ±0.1 °C |
| Internal Volume | 170 L |
| Platform Dimensions | 480 × 440 mm |
| Max Load Capacity | 250 mL × 20, or 500 mL × 16, or 1000 mL × 9, or 2000 mL × 5, or 5000 mL × 4 |
| Power | Heating 800 W / Cooling 150 W / Motor 250 W |
| Noise Level | <45 dB(A) |
| Net Weight | 218 kg |

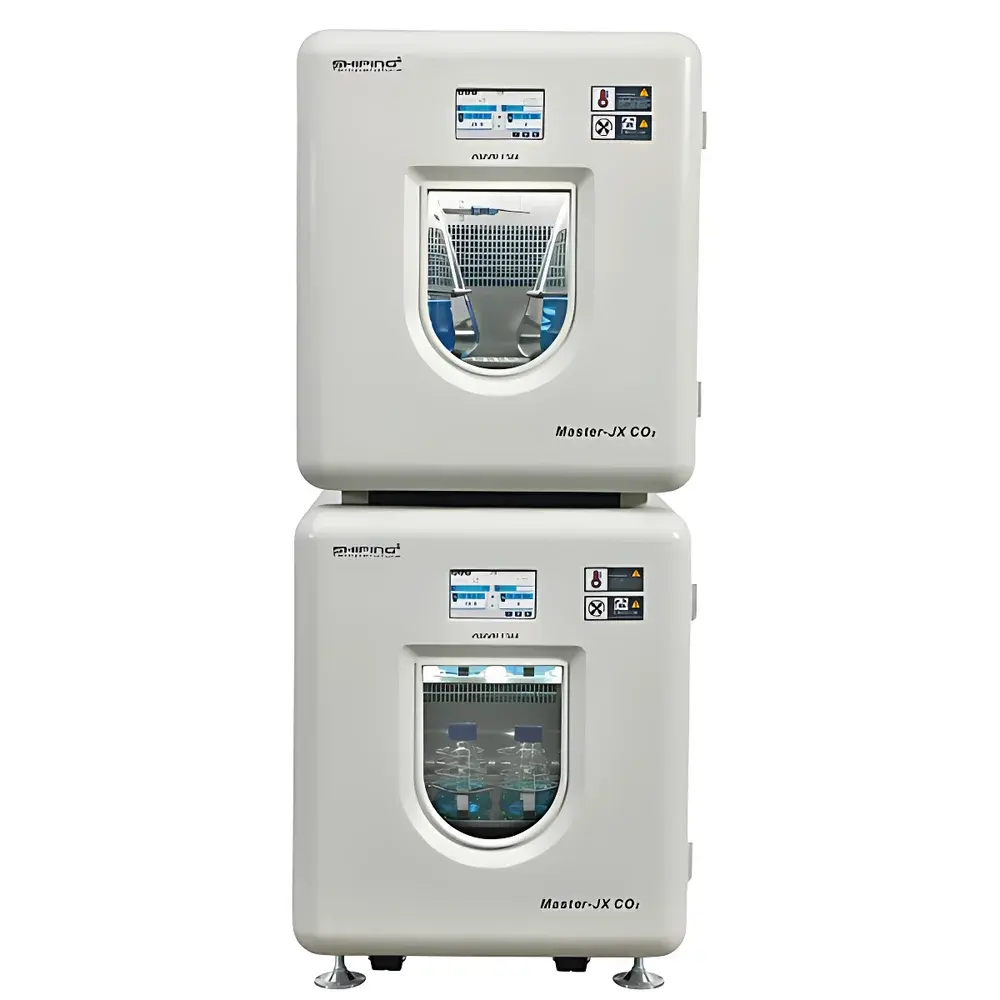

| Stackable Units | Up to 2 units |
| Compliance | GMP-aligned design, FDA 21 CFR Part 11-ready data logging, ISO 13485-informed mechanical architecture |
Overview
The Shanghai Shiping Master-JX 2022R CO₂-Regulated Orbital Shaker Incubator is an integrated life science platform engineered for simultaneous control of temperature, CO₂ concentration, and orbital agitation under sterile conditions. It operates on the principle of forced-air convection combined with precision infrared-based CO₂ monitoring and closed-loop PID regulation—enabling stable maintenance of physiological gas composition (0–20% CO₂), thermal uniformity (±0.5 °C at 37 °C), and reproducible mechanical stimulation (0–300 rpm, Φ25 mm orbit). Designed specifically for suspension culture of mammalian, hybridoma, insect, and plant cells—as well as recombinant protein expression—the system supports both dynamic growth and static incubation modes within a single chamber. Its structural architecture conforms to cleanroom-grade engineering standards: full SUS304 stainless steel interior with radiused corners, HEPA-filtered gas inlet (0.2 µm), UV sterilization capability, and fully sealed drive mechanics to prevent microbial ingress or condensation-related failure.
Key Features
- Single-axis balanced orbital drive mechanism (patented): eliminates mechanical friction, ensures noise-free operation (<45 dB(A)), long-term positional fidelity, and energy efficiency.
- True-color 7-inch capacitive touchscreen interface with glove-compatible operation, bilingual (English/Chinese) firmware, and real-time multi-parameter visualization.
- GMP-aligned access control: three-tier user permission levels, screen lock function, audit-trail-enabled operation logs, and USB-exportable datasets (up to 15 million records or >5 years’ history).
- Intelligent climate management: variable-frequency compressor cooling, fuzzy logic PID temperature control, and optimized air circulation eliminating thermal stratification.
- Modular expandability: optional active humidification (external stainless water reservoir + heating element), programmable lighting (white/UV), gas blending port (N₂/O₂/air), and remote monitoring via Ethernet/WiFi.
- Enhanced ergonomics: side-hinged double-glazed door with integrated work surface extension; platform slides fully forward on stainless rails for unobstructed vial access.
- Robust safety architecture: triple-layer protection including overcurrent cutoff, backup runtime persistence during controller fault, and independent overtemperature cutout.
Sample Compatibility & Compliance
The Master-JX 2022R accommodates standard laboratory vessels ranging from 250 mL Erlenmeyer flasks to 5 L bioreactor bottles, with maximum loading configurations validated per ISO 20387 Annex B for biobanking workflows. Its chamber geometry (580 × 520 × 565 mm internal) supports universal clamping systems—including optional adhesive silicone mats—for secure retention of irregular or low-profile containers without hardware interference. All wetted surfaces comply with USP Class VI biocompatibility requirements. The unit’s design intent aligns with ISO 13485:2016 manufacturing controls and incorporates features supporting GLP/GMP documentation: electronic signature-capable parameter locking, timestamped event logging, and traceable calibration metadata storage. CO₂ sensing employs factory-calibrated NDIR technology meeting ASTM D6159 specifications for gas-phase quantification accuracy.
Software & Data Management
Embedded firmware implements FDA 21 CFR Part 11-compliant data governance protocols—including electronic signatures, role-based authentication, and immutable audit trails. All operational parameters (temperature setpoint, CO₂ target, RPM, timer status) are logged at user-defined intervals and retained locally in non-volatile memory. Historical data export is supported via USB mass storage mode in CSV format compatible with LIMS integration. Real-time trend visualization includes overlay plots for temperature deviation, CO₂ drift, and motor current draw—enabling predictive maintenance assessment. Optional Ethernet module enables SNMP-based network monitoring and centralized fleet management through third-party SCADA platforms.
Applications
This instrument serves critical roles across academic research, biopharmaceutical process development, and diagnostic assay validation. Primary use cases include: high-yield transient transfection cultures requiring precise O₂/CO₂ exchange; serum-free suspension expansion of CHO and HEK293 lines; microbial consortia studies under controlled atmospheric tension; and enzymatic reaction kinetics where mixing homogeneity directly impacts turnover rate. Its dual-mode capability (shaking + static incubation) allows sequential protocol execution—e.g., initial attachment phase followed by agitation-induced proliferation—without sample transfer. The system also supports specialized workflows such as light-regulated phytochrome studies (with optional LED array), anaerobic adaptation experiments (via external gas manifold), and humidity-sensitive primary tissue explants.
FAQ
What CO₂ sensing technology does the Master-JX 2022R employ?
It uses a factory-calibrated, imported non-dispersive infrared (NDIR) sensor with automatic baseline compensation and drift correction algorithms.
Can the shaker operate safely at 4 °C with CO₂ enabled?
Yes—its variable-frequency refrigeration system maintains stable sub-ambient temperatures while preserving CO₂ setpoint integrity, even at environmental ambient down to −18 °C.
Is the data logging compliant with regulatory submission requirements?
All stored records include digital signatures, tamper-evident timestamps, and hierarchical access logs—fully aligned with ALCOA+ principles for audit readiness.
How is contamination prevented during extended runs?
HEPA filtration of incoming gas, UV-C irradiation cycles between operations, seamless stainless chamber construction, and fully encapsulated drive components collectively mitigate biofilm formation and particulate accumulation.
Does the unit support IQ/OQ/PQ validation documentation?
Optional 3Q qualification packages—including test protocols, raw data templates, and traceable calibration certificates—are available upon request for regulated environments.
