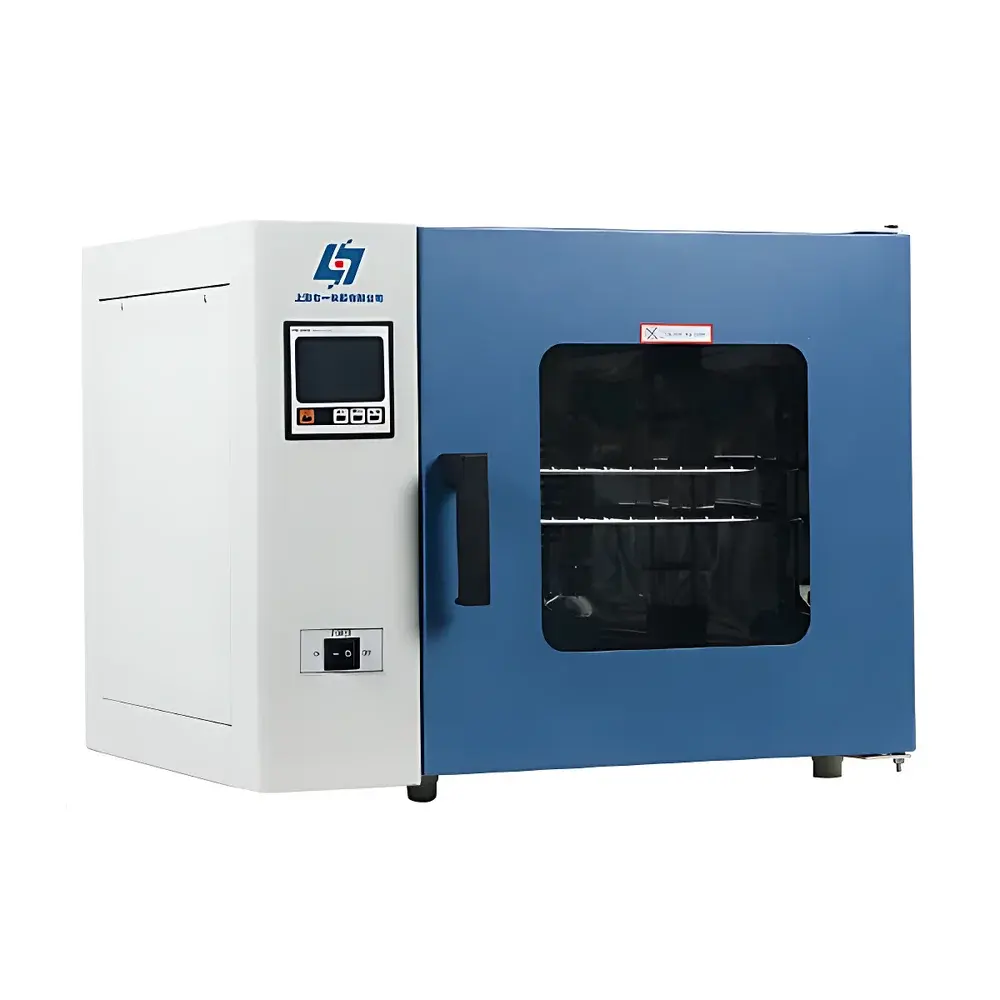

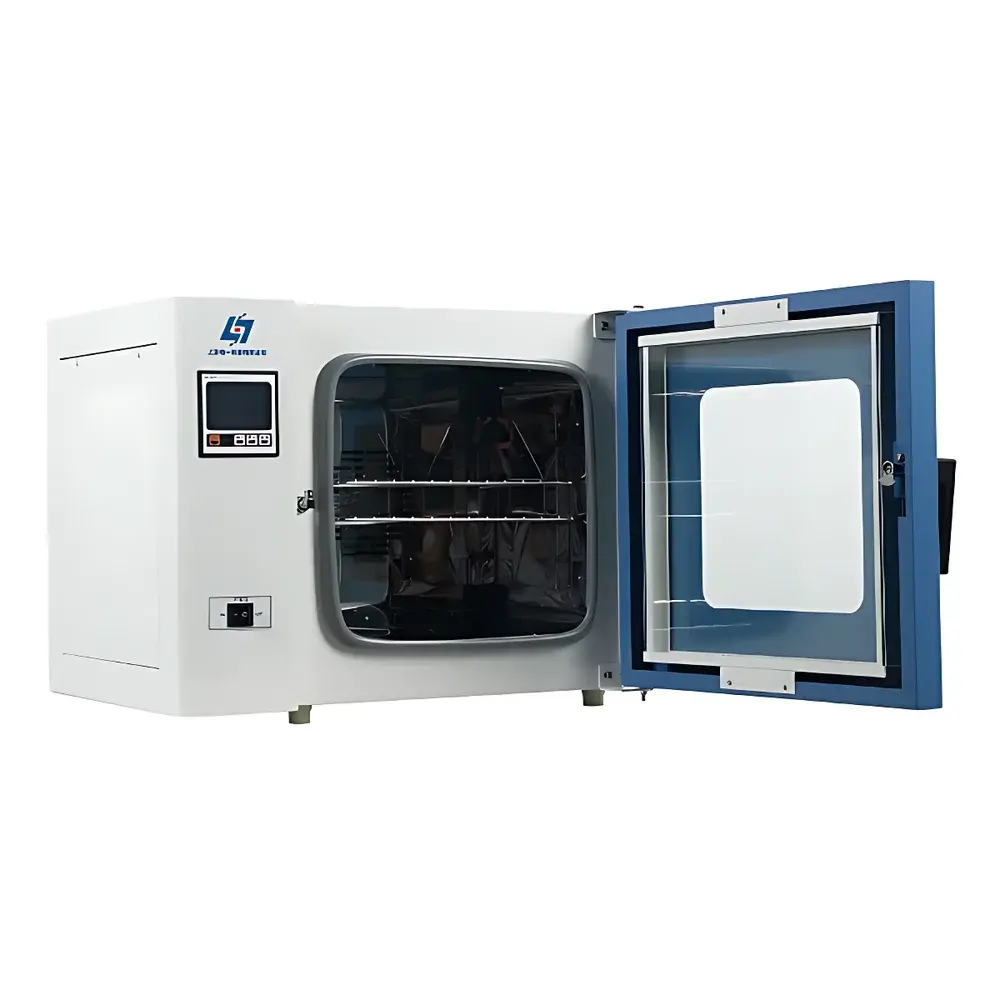

Shanghai Youyi DHG-9053A Precision Forced-Air Drying Oven

Overview

The Shanghai Youyi DHG-9053A is a precision forced-air drying oven engineered for consistent thermal processing in regulated laboratory and industrial quality control environments. It operates on the principle of convection-driven heat transfer, utilizing an optimized rear-mounted air circulation system with adjustable inlet and exhaust ports to ensure uniform temperature distribution across the working chamber. Designed to meet GB/T 30435–2013 — the Chinese national standard for electric heating drying ovens — the DHG-9053A delivers stable thermal performance under both static and dynamic load conditions. Its operational range spans from ambient +20°C to 280°C, supporting applications including moisture removal, pre- and post-weighing sample conditioning, polymer curing, sterilization validation, and residual solvent evaporation. The unit features a microprocessor-based PID temperature controller with real-time monitoring, programmable timing, and dual-stage overtemperature protection — ensuring compliance with fundamental safety requirements for unattended operation in GLP- and GMP-aligned workflows.

Key Features

• Intelligent microcomputer PID temperature control system with 0.1°C resolution and ±1°C fluctuation tolerance (measured at steady state, no-load, 20°C ambient)
• Forced-air convection architecture with rear-mounted blower and symmetrical duct design, achieving ±2.5% temperature uniformity at 100°C (per GB/T 30435–2013 test protocol)
• Double-layer tempered glass observation window with silicone-sealed frame for real-time visual monitoring without thermal disruption
• Mirror-finish SUS304 stainless steel interior chamber and adjustable chrome-plated wire shelves (2 standard trays included)
• Durable cold-rolled steel exterior with electrostatic epoxy-polyester powder coating for corrosion resistance and mechanical robustness
• High-temperature silicone door gasket ensuring long-term sealing integrity and thermal efficiency over repeated thermal cycling
• Auto-recovery function preserving set parameters after power interruption or system reset
• Independent mechanical overtemperature cutoff (optional) meeting IEC 61000-4-2 immunity standards for fail-safe thermal shutdown

Sample Compatibility & Compliance

The DHG-9053A accommodates a broad spectrum of sample types, including but not limited to biological specimens (e.g., tissue sections, filter papers), pharmaceutical excipients, polymer pellets, ceramic precursors, metal coatings, and electronic components. Its stainless steel chamber resists oxidation and chemical residue buildup during repeated exposure to organic solvents, acids, or alkaline vapors — provided appropriate ventilation protocols are followed. The unit complies with GB/T 30435–2013 for performance verification and supports traceable calibration per ISO/IEC 17025 requirements when used with accredited reference thermometers. While not inherently 21 CFR Part 11 compliant, its optional RS485 interface enables integration into validated data acquisition systems when paired with audit-trail-capable software platforms.

Software & Data Management

The DHG-9053A operates via an embedded LCD menu interface supporting multi-parameter display: setpoint temperature, real-time chamber temperature, elapsed time, and remaining hold duration. Optional connectivity modules extend functionality: an RS485 port (with Modbus RTU protocol support) permits bidirectional communication with SCADA or LIMS systems; an embedded thermal printer provides hard-copy temperature logs with timestamped entries; and a dedicated inert gas inlet port — fitted with a calibrated rotameter — allows controlled nitrogen or argon purging for oxygen-sensitive processes. All optional accessories are CE-marked and supplied with calibration certificates traceable to NIM (National Institute of Metrology, China).

Applications

• Moisture content determination per ASTM D2298 and ISO 1183 in plastics, composites, and food matrices
• Baking and annealing of thin-film substrates prior to SEM or XRD analysis
• Pre-drying of volumetric glassware and analytical filters in QC laboratories
• Thermal aging studies of elastomers and adhesives under accelerated conditions
• Residual solvent removal from API intermediates in non-GMP pilot-scale synthesis
• Heat treatment of calibration standards and reference materials before gravimetric analysis
• Stabilization of hygroscopic reagents such as lithium aluminum hydride or sodium borohydride

FAQ

What is the maximum allowable operating temperature for continuous use?
The DHG-9053A is rated for continuous operation up to 280°C. For extended dwell times above 250°C, periodic verification of door seal integrity and chamber emissivity is recommended.
Can this oven be calibrated internally using user-accessible procedures?
Yes — the controller supports offset calibration via built-in adjustment mode using a NIST-traceable Class A PT100 probe. Full calibration reports require external dry-block calibrators per ISO/IEC 17025 guidelines.
Is the internal chamber volume verified per ISO 17025 or ASTM E2207?
Chamber dimensions are factory-measured and documented; volumetric accuracy is ±1.5% of nominal 50 L capacity. Independent volumetric certification is available upon request.
Does the unit support multi-step temperature ramping?
Not natively — the base model supports single-setpoint operation with timer hold. Multi-segment programming requires the optional programmable controller module (P/N: SHYY-PC-01).
Are replacement shelves and gaskets available as spare parts?
Yes — all consumables and wear components, including SUS304 shelves, silicone door gaskets, and fan assemblies, are stocked and shipped globally with OEM part numbers and material certifications.
