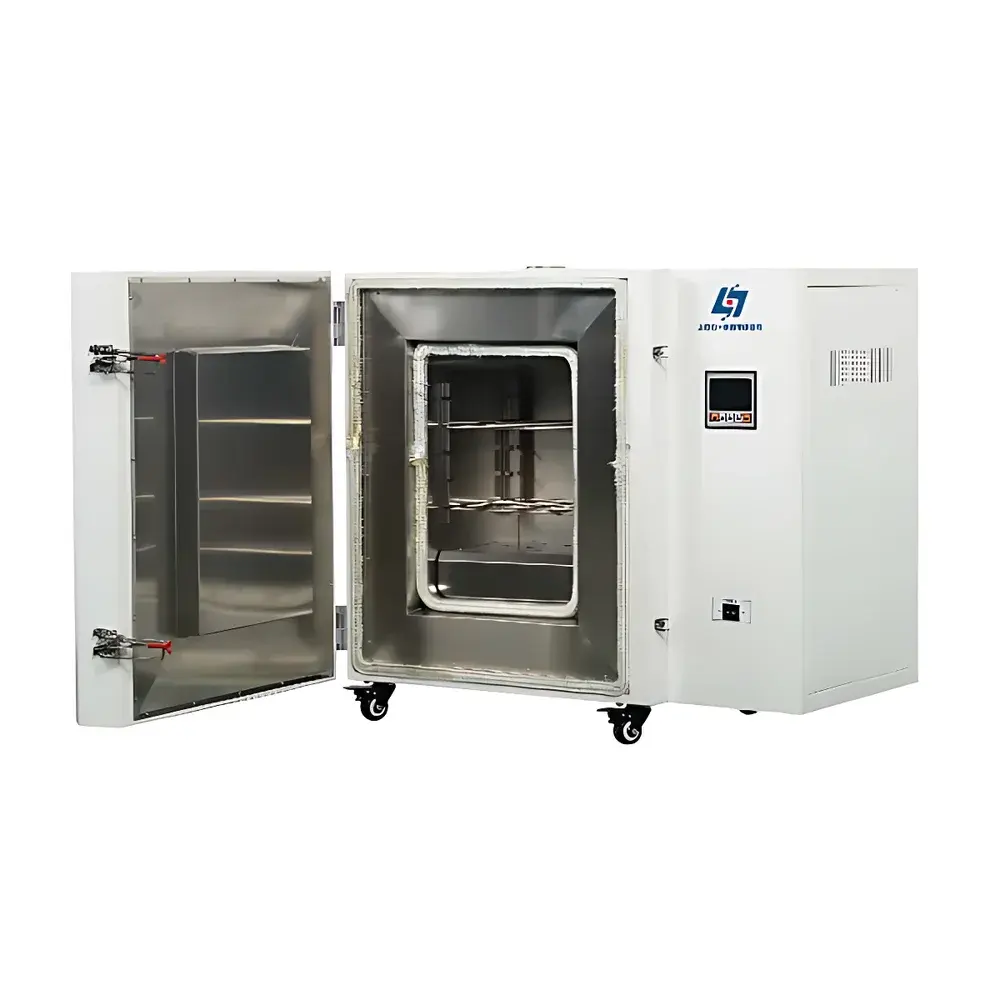

Shanghai Youyi DHG-9149AH High-Temperature Forced-Air Drying Oven

Overview

The Shanghai Youyi DHG-9149AH is a precision-engineered high-temperature forced-air drying oven designed for demanding thermal processing applications in research laboratories, quality control environments, and industrial R&D facilities. Operating within a calibrated temperature range of RT+20°C to 600°C, the unit employs a robust convection-based heating architecture—comprising electric resistance heaters, a multi-blade centrifugal circulation fan, and optimized airflow ducting—to ensure rapid thermal response and stable setpoint maintenance. Its chamber is constructed from mirror-finish SUS304 stainless steel, offering corrosion resistance and ease of cleaning, while high-density ceramic fiber insulation minimizes thermal loss and improves energy efficiency. The oven complies with fundamental safety and performance expectations for Class II laboratory thermal equipment under IEC 61010-1 and meets structural requirements for continuous operation at elevated temperatures per ISO 17025-accredited calibration practices.

Key Features

• Microprocessor-based PID temperature controller with 4.3-inch backlit LCD interface—displaying real-time chamber temperature, setpoint, elapsed time, and remaining hold duration;
• Intelligent self-diagnostic startup sequence that detects sensor integrity, heater continuity, and fan rotation prior to operation;
• Power-loss recovery function preserving user-defined parameters—including temperature setpoint, timer value, and PID tuning coefficients—ensuring process continuity after unexpected outages;
• Premix preheating chamber design: ambient air is drawn through dedicated intake ducts, heated externally, then delivered uniformly into the working chamber via tangential nozzles to minimize thermal stratification;
• Ceramic rope door gasket rated for continuous service up to 650°C, providing reliable sealing integrity and long-term resistance to thermal degradation;
• Adjustable stainless steel shelving system with press-fit hinge locks—supports up to nine trays (two standard, seven optional) with load capacity of 15 kg per shelf;
• RS485 communication port (optional) enabling integration into centralized lab monitoring systems using Modbus RTU protocol;
• Optional inert gas purge interface with calibrated float-type flowmeter (0–10 L/min range), facilitating oxygen-sensitive annealing or oxidation-controlled thermal treatments.

Sample Compatibility & Compliance

The DHG-9149AH accommodates a broad spectrum of sample types—including metal alloys, ceramic precursors, polymer composites, catalyst substrates, and electronic components—without risk of contamination or cross-reactivity. Its stainless steel chamber and absence of organic interior coatings eliminate outgassing concerns during high-temperature holds. The oven supports GLP/GMP-aligned workflows through traceable temperature validation: users may perform IQ/OQ/PQ protocols using NIST-traceable PT100 probes and third-party calibration certificates. While not intrinsically explosion-proof, optional inert gas purging enables safe processing of pyrophoric materials under nitrogen or argon atmospheres, aligning with OSHA 1910.120 and NFPA 45 guidelines for hazardous material handling. All electrical components conform to CE marking requirements for low-voltage directive (LVD) and electromagnetic compatibility (EMC).

Software & Data Management

When equipped with the optional RS485 interface and proprietary data acquisition software, the DHG-9149AH supports automated logging of temperature profiles at user-defined intervals (1–60 sec resolution). Raw datasets are exported in CSV format compatible with MATLAB, Python (Pandas), or LIMS platforms. Audit trails record operator ID, parameter changes, alarm events, and calibration history—meeting FDA 21 CFR Part 11 requirements when deployed with electronic signature modules. Optional embedded thermal printer provides hard-copy output of cycle reports including start/stop timestamps, peak deviation values, and pass/fail status against predefined uniformity tolerances.

Applications

• Thermal aging studies of aerospace-grade polymers and composites per ASTM D3045;
• Pre-sintering and binder burnout of powder metallurgy green parts;
• Heat treatment of tool steels and high-speed alloys prior to quenching;
• Drying and conditioning of hygroscopic reference standards for moisture analysis;
• Accelerated stability testing of pharmaceutical excipients under ICH Q1A(R2) conditions;
• Residual solvent removal from coated optical components and MEMS devices;
• Calibration of thermocouples and RTDs in accredited metrology labs.

FAQ

What is the maximum continuous operating temperature of the DHG-9149AH?
The chamber is rated for uninterrupted operation at 600°C, validated under load-free conditions per manufacturer’s thermal mapping protocol.
Does the oven support programmable ramp-soak cycles?
Yes—when paired with the optional intelligent program controller (part #IPC-DHG), it executes up to 30 segments with independent rate, dwell, and repeat settings.
Can the temperature uniformity be verified across the full volume?
Yes—uniformity testing per ISO 17025 Annex A.3 recommends nine-point mapping (center + eight corners) using calibrated Class A PT100 sensors; typical results show ≤±2.5% deviation at 100°C and ≤±3.0% at 500°C.
Is the unit suitable for use in cleanroom environments?
While not ISO Class 5 certified, its sealed construction, zero-oil fan drive, and non-shedding interior surfaces allow deployment in ISO Class 7–8 cleanrooms when installed with HEPA-filtered make-up air.
What safety protections are built into the control system?
Dual independent overtemperature safeguards: primary PID loop with configurable alarm threshold, plus a hardware-based independent limit controller (optional) cutting power if chamber exceeds user-set safety cutoff by >5°C.
