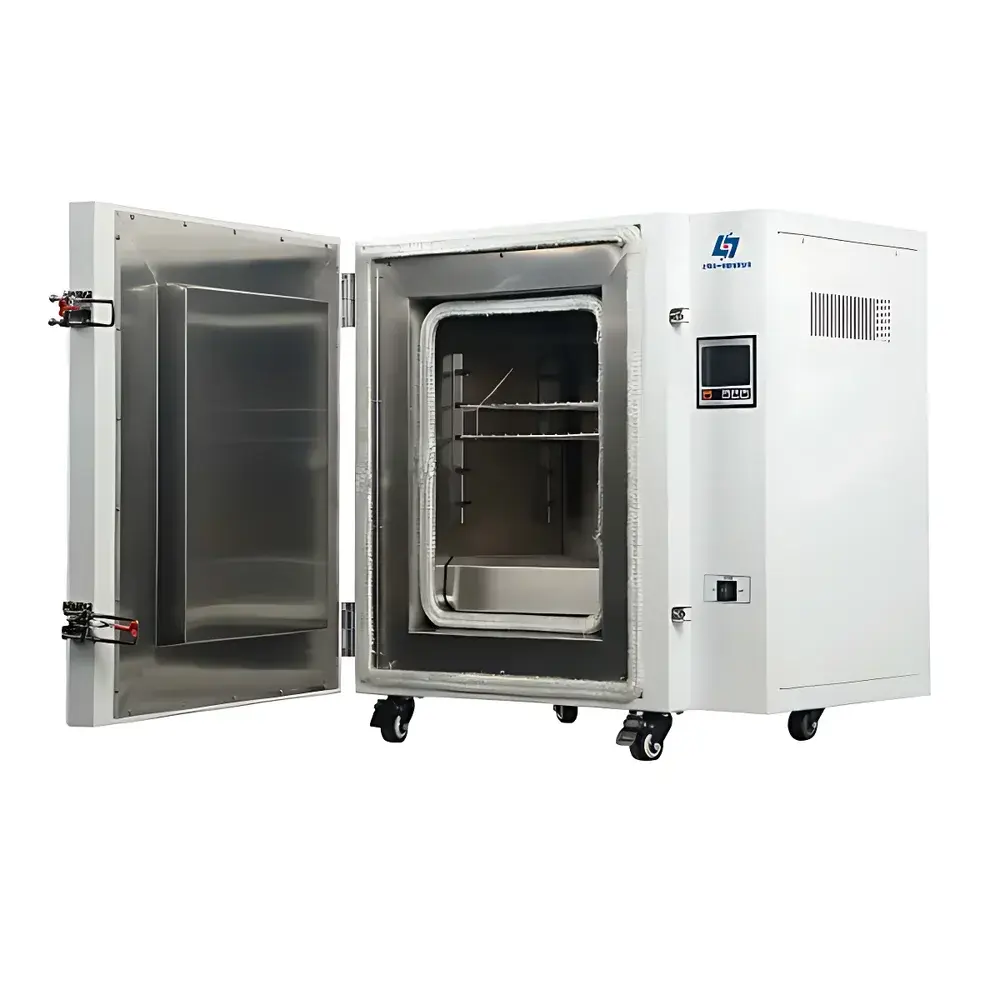

Shanghai Youyi DHG-9248A High-Temperature Forced-Air Drying Oven (400 °C)

Overview

The Shanghai Youyi DHG-9248A is a high-precision forced-air drying oven engineered for industrial and laboratory applications requiring sustained thermal treatment up to 400 °C. Operating on the principle of convection-based heat transfer, it utilizes a high-efficiency centrifugal blower system to circulate preheated air uniformly throughout the stainless-steel working chamber. This design ensures rapid thermal equilibration and exceptional spatial temperature uniformity—critical for processes such as polymer curing, metal oxide annealing, catalyst activation, moisture loss analysis (ASTM E121-22), and residual solvent removal in pharmaceutical intermediates. The unit complies with fundamental safety and performance expectations outlined in IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and incorporates structural features aligned with GLP-compliant thermal validation practices.

Key Features

• Microprocessor-based temperature controller with 4.3-inch LCD interface, supporting setpoint programming, real-time monitoring, timer function (1–9999 minutes), power modulation, and auto-tuning PID algorithm for stable thermal regulation.
• Pre-heating chamber design directs thermally homogenized airflow directly into the working space, minimizing thermal gradients during ramp-up and improving repeatability across consecutive cycles.
• Double-layer ceramic fiber door gasket rated for continuous operation at 400 °C, offering superior sealing integrity, low thermal conductivity, and long-term resistance to oxidation and compression set.
• Insulated cavity construction using high-density glass fiber insulation between outer cold-rolled steel housing (electrostatically powder-coated) and inner mirror-finish SUS304 stainless steel chamber—reducing standby heat loss by >35% compared to standard mineral wool configurations.
• Adjustable stainless-steel shelving system with spring-loaded, tool-free height positioning and reinforced load-bearing capacity (up to 15 kg per shelf).
• Independent over-temperature cut-off circuit (optional) compliant with EN 60519-1 safety standards for industrial heating equipment—automatically de-energizes heating elements if sensor feedback exceeds user-defined threshold.

Sample Compatibility & Compliance

The DHG-9248A accommodates diverse sample forms—including crucibles, petri dishes, aluminum trays, quartz boats, and standard ASTM G151-compliant exposure panels—within its 225 L chamber. Its robust stainless-steel interior resists corrosion from acidic vapors, halogenated solvents, and alkaline residues encountered during thermal gravimetric preparation or ash content determination (AOAC 923.03, ISO 2171). All electrical components meet IP20 ingress protection requirements; wiring conforms to UL 1030 and GB/T 5226.1-2019 standards. Optional RS485 communication interface supports Modbus RTU protocol for integration into centralized lab infrastructure management systems adhering to FDA 21 CFR Part 11 data integrity guidelines when paired with validated software.

Software & Data Management

While the base configuration operates via standalone front-panel control, optional accessories enable traceable data acquisition and remote supervision. The RS485 interface (with included PC software) permits time-stamped logging of chamber temperature, setpoint, elapsed time, and alarm events at configurable intervals (1–60 s resolution). When used with an external thermal validation recorder (e.g., Ellab TrackSense Pro), the oven supports IQ/OQ documentation for GMP environments. An embedded thermal printer option provides immediate hard-copy output of cycle parameters and deviation alerts—supporting audit-ready records per ISO/IEC 17025 clause 7.8.2.

Applications

• Thermal aging studies of elastomers and composites per ASTM D573 and ISO 188.
• Drying and conditioning of filter media, ceramic substrates, and battery electrode coatings prior to SEM/EDS analysis.
• Residual moisture determination in APIs and excipients (USP <921> Loss on Drying).
• Heat treatment of calibration standards (e.g., NIST SRM 1484) and reference materials before gravimetric analysis.
• Curing of epoxy encapsulants and silicone adhesives in electronics manufacturing.
• Pre-conditioning of soil and sediment samples prior to organic carbon quantification (ISO 10694).

FAQ

What is the maximum recommended continuous operating temperature?
The DHG-9248A is rated for continuous operation at 400 °C. Sustained use above this limit may accelerate degradation of insulation, gaskets, and sensor accuracy—and void warranty coverage.

Is the temperature uniformity specification validated under loaded or unloaded conditions?
The stated ±2.5 % uniformity is measured per ISO 15389 Annex B using nine calibrated PT100 probes at 100 °C in an empty chamber. Load-dependent variation should be assessed separately during user qualification (IQ/OQ).

Can the oven be integrated into a LIMS or MES environment?
Yes—via the optional RS485 port and provided Modbus-compatible driver, enabling bidirectional communication with laboratory information management systems supporting industry-standard protocols.

Are calibration certificates available for purchase?
Factory-calibrated NIST-traceable certificates (including as-found/as-left data for chamber sensors) are available upon request and comply with ISO/IEC 17025 requirements when performed by accredited third-party labs.

Does the unit support programmable multi-step thermal profiles?
The standard controller does not include multi-segment ramp-soak functionality. However, the optional intelligent program controller (add-on module) enables up to 30 segments with independent rate, dwell, and loop settings—suitable for complex thermal cycling protocols.
