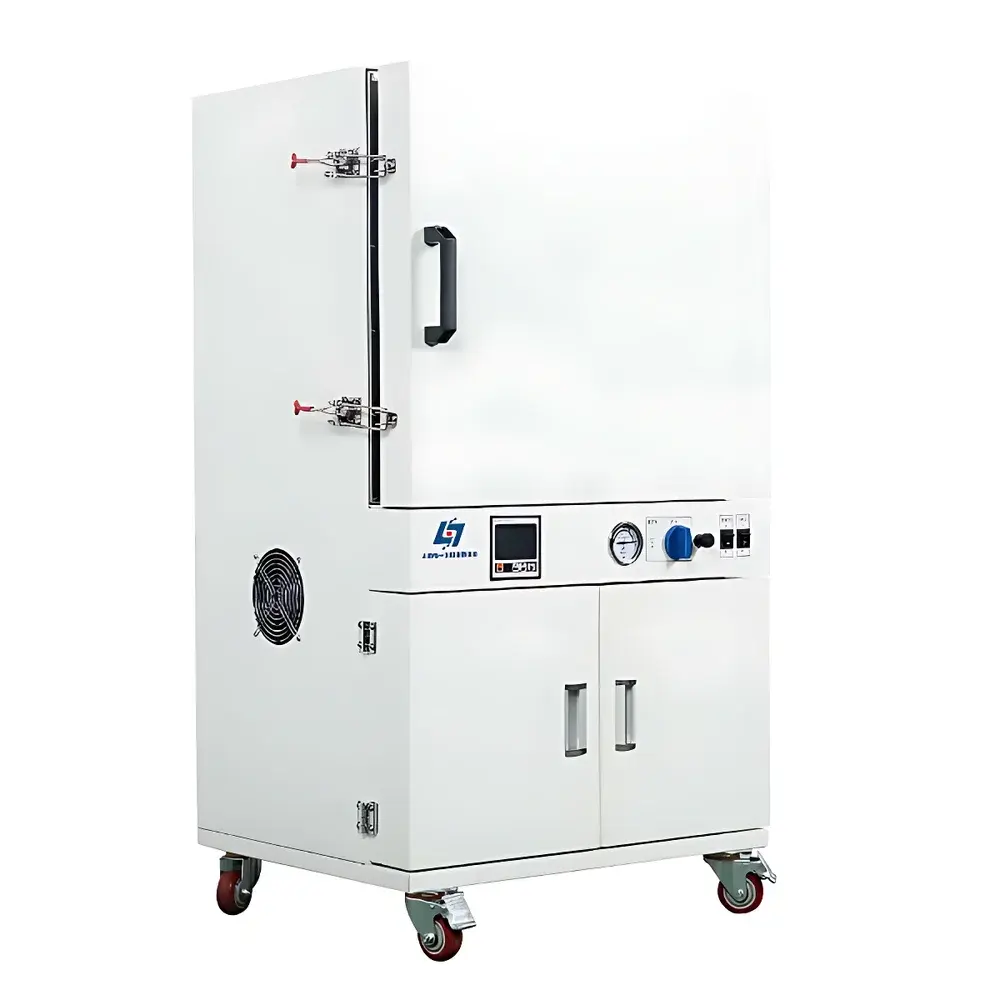

Shanghai Youyi GZF-6030AL High-Temperature Vacuum Drying Oven

Overview

The Shanghai Youyi GZF-6030AL High-Temperature Vacuum Drying Oven is an engineered solution for controlled thermal processing under reduced-pressure environments. Designed around the fundamental principle of vacuum-assisted thermal desorption, this oven eliminates convective heat transfer and lowers the boiling point of volatile components—enabling precise, oxygen-free drying, baking, sterilization, and degassing of thermally sensitive, oxidation-prone, or structurally complex samples. Its operational envelope spans from ambient +10°C to 400°C, with a certified ultimate vacuum level of ≤133 Pa, making it suitable for applications where inert-atmosphere processing (e.g., nitrogen-purged cycles) or complete oxygen exclusion is required to prevent decomposition, oxidation, or pyrolysis. The unit complies with core mechanical and electrical safety standards applicable to Class II laboratory ovens (IEC 61010-1), and its construction supports routine use in GLP-compliant laboratories conducting stability studies, extractables/leachables preparation, or pre-analytical sample conditioning.

Key Features

• Microprocessor-based PID temperature controller with programmable ramp-soak profiles, real-time deviation monitoring, and dual-stage overtemperature protection (independent hardware limiter + software alarm)
• 4.3-inch high-contrast LCD display showing setpoint, actual chamber temperature, elapsed time, remaining time, and vacuum status simultaneously
• Seamless 304 stainless steel interior chamber with radius-rounded corners for uniform heat distribution and ease of cleaning; cold-rolled steel exterior with electrostatic epoxy powder coating
• High-integrity silicone door gasket with adjustable clamping mechanism ensuring consistent vacuum integrity across repeated thermal cycles
• Aluminum heating shelves fabricated via precision stamping—resistant to scaling up to 400°C, optimized for rapid thermal response and minimal thermal mass
• Integrated vacuum interface compatible with external two-stage rotary vane pumps (2 L/s or 4 L/s); optional digital vacuum gauge with auto-hold pressure control
• Power-fail recovery function preserving all active parameters and timer states during unexpected shutdowns

Sample Compatibility & Compliance

The GZF-6030AL accommodates diverse sample formats including glassware (vials, flasks, Petri dishes), ceramic crucibles, metal substrates, polymer films, pharmaceutical powders, catalyst pellets, and multi-layered electronic assemblies. Its oxygen-free operation meets critical requirements for ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) and ISO 12780–2 (Determination of moisture content—Vacuum oven method). When configured with optional inert gas inlet valves and flow meters, the system supports nitrogen or argon purging per USP and ICH Q5C guidelines for biopharmaceutical stability testing. All electrical components conform to CE marking requirements (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), and the enclosure satisfies IP20 ingress protection classification.

Software & Data Management

While the base model operates via embedded firmware without external PC connectivity, optional upgrades include a programmable logic controller (PLC) module supporting up to 32 segment temperature/vacuum profiles with timestamped event logging. Data output is available via RS-485 Modbus RTU protocol for integration into centralized Lab Information Management Systems (LIMS) or SCADA platforms. Audit trails—including operator ID, parameter changes, alarm triggers, and cycle completion timestamps—are retained onboard for ≥30 days and exportable via USB flash drive. The system supports 21 CFR Part 11–compliant user access levels (admin/operator/auditor) when deployed with validated third-party data acquisition software.

Applications

• Drying heat-labile biological reagents (e.g., enzymes, antibodies, lyophilized intermediates) without denaturation
• Removing residual solvents from synthesized organic compounds or polymer precursors under inert atmosphere
• Sterilizing heat-resistant glassware and stainless-steel tools prior to aseptic processing
• Conditioning reference standards and certified reference materials (CRMs) per ISO Guide 35 protocols
• Accelerated aging studies of battery electrode coatings, OLED encapsulation layers, or aerospace composites
• Pre-treatment of MEMS devices and microfluidic chips to eliminate trapped moisture before hermetic sealing

FAQ

What vacuum level is achievable with the standard configuration?
The GZF-6030AL achieves ≤133 Pa using a compatible 2 L/s rotary vane pump; performance may vary depending on chamber load, seal integrity, and ambient humidity.
Can the oven operate continuously at 400°C under vacuum?
Yes—the 304 stainless steel chamber, high-temp silicone gasket, and reinforced heating elements are rated for sustained operation at 400°C under vacuum conditions.
Is validation documentation (IQ/OQ/PQ) available?
Factory-supplied test certificates cover temperature uniformity (±1°C), vacuum decay rate (<5 Pa/min at 133 Pa), and controller accuracy (±0.3°C at 200°C); full qualification support is provided upon request.
How many shelf positions are included, and are additional shelves available?
Two adjustable 304 stainless steel shelves are standard; up to four shelves can be installed, with custom spacing options available.
Does the system meet electromagnetic compatibility requirements for shared lab environments?
Yes—the unit is CE-certified and includes built-in EMI filtering to minimize interference with adjacent analytical instrumentation such as HPLC detectors or mass spectrometers.
