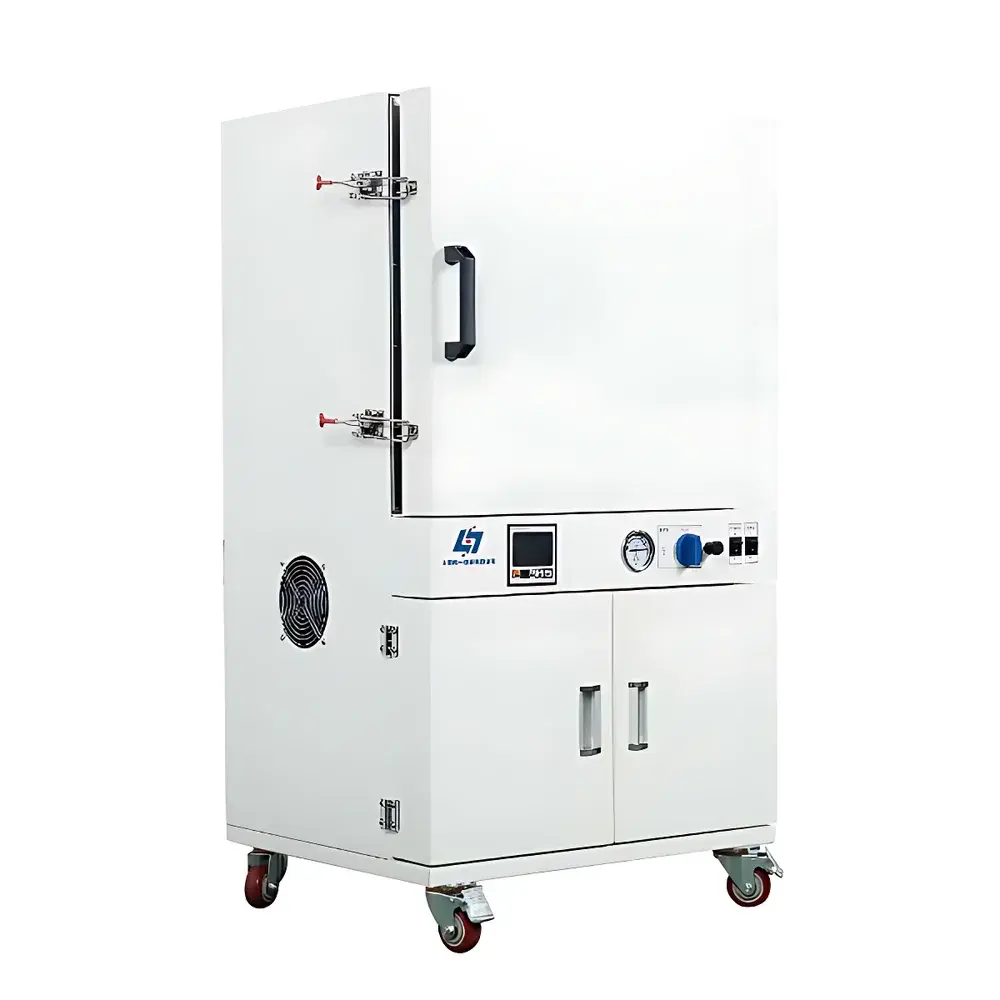

Shanghai Youyi GZF-6030CL High-Temperature Vacuum Drying Oven (30 L, up to 600 °C)

Overview

The Shanghai Youyi GZF-6030CL is a precision-engineered high-temperature vacuum drying oven designed for demanding thermal processing under controlled low-pressure and inert-atmosphere conditions. Operating on the principle of vacuum-assisted thermal desorption, it eliminates convective heat transfer and reduces solvent boiling points—enabling rapid, uniform, and oxidation-free drying of thermally sensitive, hygroscopic, or chemically reactive materials. Unlike conventional forced-air ovens, this unit maintains stable vacuum integrity across its full operational temperature range (RT+10 °C to 600 °C), making it suitable for applications requiring strict oxygen exclusion—such as catalyst activation, ceramic sintering pre-treatment, lithium battery electrode drying, and residual solvent removal from polymer precursors. Its robust construction integrates a double-walled cold-rolled steel exterior with electrostatic powder coating and a seamless 304 stainless steel interior chamber, ensuring long-term corrosion resistance and vacuum compatibility at elevated temperatures.

Key Features

• Microprocessor-based PID temperature controller with 0.1 °C resolution and ±1 °C uniformity across the 30 L working chamber;
• Dual-stage safety architecture: independent over-temperature cut-off circuit plus power-loss data retention with auto-recovery function;
• 4.3-inch backlit LCD interface supporting multi-parameter real-time display (setpoint, actual temperature, vacuum level, elapsed time) and intuitive menu navigation;

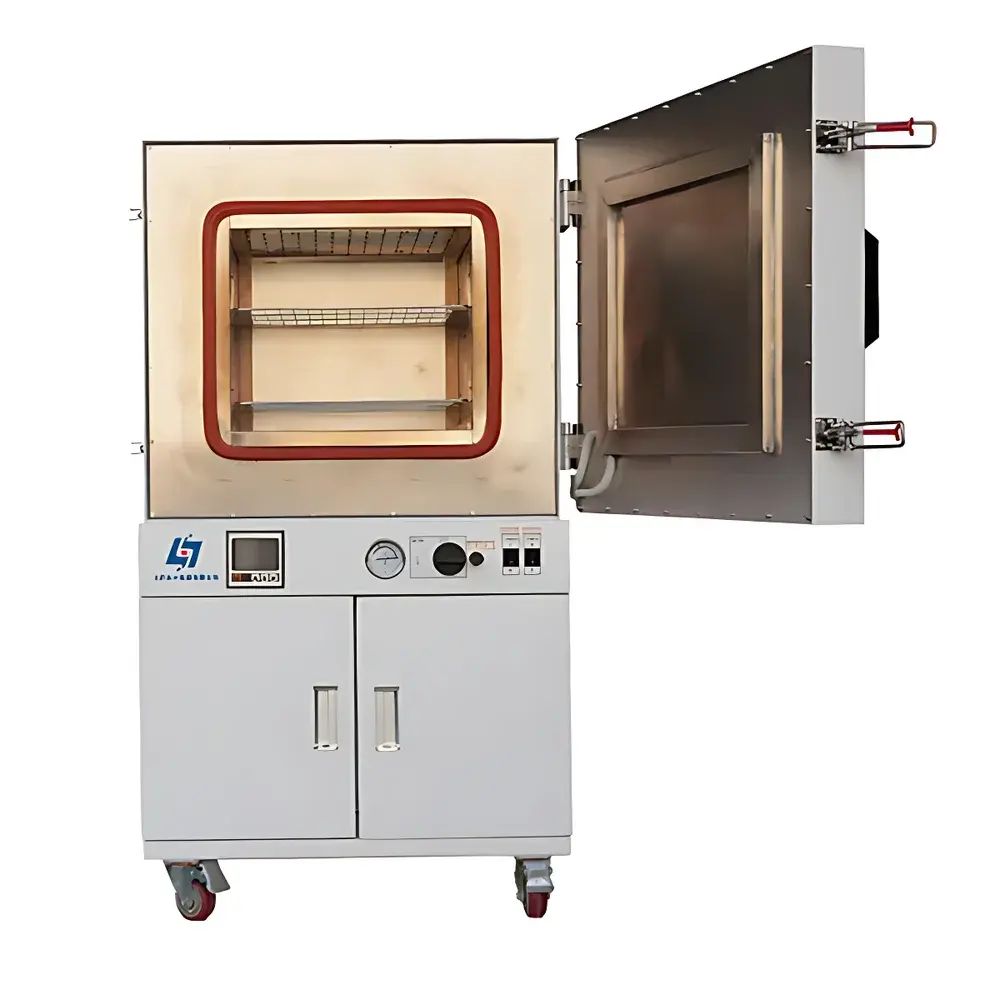

• High-integrity vacuum sealing system featuring molded silicone gasket with adjustable door torque mechanism, validated to maintain ≤133 Pa at 600 °C;
• Optimized thermal design with aluminum heating plates (surface-treated for oxidation resistance) and directional radiant heating to minimize thermal gradients;
• Standard configuration includes two load-bearing 304 stainless steel trays; optional tray configurations support customized sample loading protocols;
• Modular auxiliary porting for integration with inert gas purging (N₂/Ar), vacuum monitoring systems, and external vacuum pumps (2 L/s or 4 L/s oil-free diaphragm types recommended).

Sample Compatibility & Compliance

The GZF-6030CL accommodates diverse sample geometries—including powders, granules, thin-film substrates, porous ceramics, metal foams, and glassware—without risk of displacement or surface degradation caused by airflow. Its oxygen-free operation conforms to ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) and supports GLP-compliant workflows when paired with audit-trail-capable controllers (optional programmable module). For pharmaceutical drying validation, the system meets baseline requirements for USP (Sterilization and Sterility Assurance) and ICH Q5C (Stability Testing of Biotechnological/Biological Products) when operated within defined vacuum and temperature profiles. All internal surfaces comply with ISO 15223-1 for medical device labeling and are non-shedding per USP particulate matter standards.

Software & Data Management

While the base model features embedded firmware with local data logging (temperature/vacuum/time stamps stored in non-volatile memory), the optional programmable controller adds Ethernet/RS485 connectivity, CSV export capability, and configurable alarm thresholds. When deployed in regulated environments, the upgraded controller supports 21 CFR Part 11-compliant user authentication, electronic signatures, and immutable audit trails—including operator ID, parameter changes, and event timestamps. Data synchronization with LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager) is achievable via OPC UA or MODBUS TCP protocols. Vacuum stabilization routines can be scripted to hold pressure within ±5 Pa tolerance during critical desorption phases.

Applications

• Drying of moisture- and oxygen-sensitive active pharmaceutical ingredients (APIs) prior to lyophilization or tablet compression;
• Thermal conditioning of metal-organic frameworks (MOFs) and zeolites to preserve microporosity and surface area;
• Pre-baking of semiconductor wafers and MEMS devices to remove trace organics without interfacial oxidation;
• Post-synthesis treatment of nanomaterials (e.g., graphene oxide, transition metal dichalcogenides) where ambient annealing induces defect formation;
• Residual solvent extraction from battery cathode slurries (e.g., NMP, DMF) under nitrogen blanket to prevent transition-metal reduction;
• Accelerated aging studies of polymeric encapsulants used in photovoltaic modules per IEC 61215 standards.

FAQ

What vacuum level is guaranteed at maximum operating temperature?
The chamber maintains ≤133 Pa at 600 °C when equipped with the standard silicone seal and properly maintained vacuum pump (2 L/s minimum pumping speed recommended).
Can this oven be used for inert-gas purging instead of vacuum?
Yes—via optional inert gas inlet valve and mass flow controller, enabling continuous N₂ or Ar purge mode for processes requiring atmospheric pressure but oxygen exclusion.
Is the interior chamber passivated for ultra-high-purity applications?
The 304 stainless steel chamber is electropolished and passivated per ASTM A967, achieving Ra ≤ 0.4 µm surface roughness and Cr/Fe ratio >1.2 per XPS analysis.
Does the system include vacuum pump and gas supply hardware?
No—the vacuum pump, inert gas regulator, and associated tubing are optional accessories selected based on process throughput and contamination sensitivity requirements.
How is temperature uniformity verified across the working volume?
Uniformity is validated using nine calibrated PT100 sensors placed at standardized locations (per ISO 17025-accredited calibration protocol), with results documented in the factory test report supplied with each unit.
