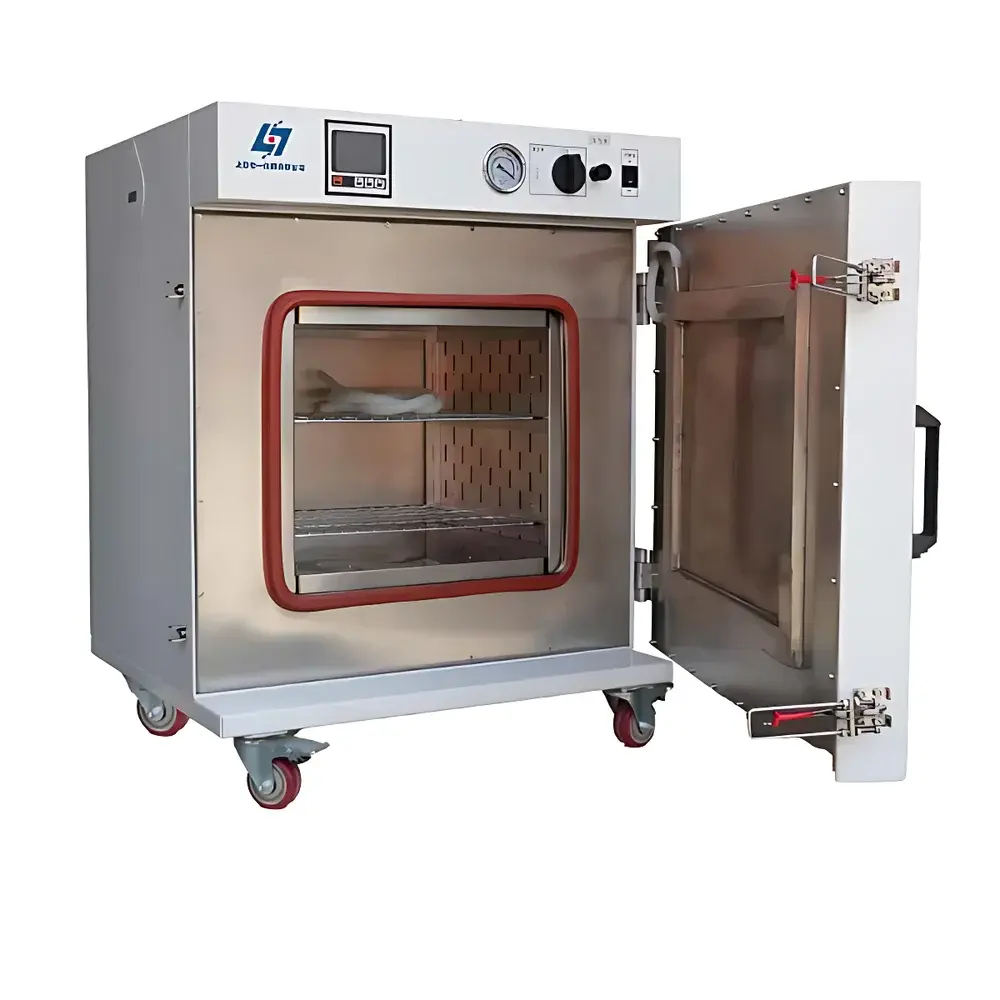

Shanghai Youyi GZF-6090A High-Temperature Vacuum Drying Oven

Overview

The Shanghai Youyi GZF-6090A High-Temperature Vacuum Drying Oven is an engineered solution for controlled thermal processing under reduced-pressure environments. Designed around the fundamental principle of vacuum-assisted thermal desorption, it enables precise moisture and solvent removal from thermally sensitive, oxidation-prone, or compositionally complex samples—without degradation, decomposition, or surface oxidation. Unlike conventional convection ovens, this unit operates by lowering the partial pressure of volatile components within the chamber, thereby reducing their boiling points and accelerating evaporation kinetics at significantly lower bulk temperatures. Its maximum operating temperature of 400°C—combined with a stable vacuum level ≤133 Pa—makes it suitable for applications requiring both high thermal energy and atmospheric exclusion, such as pre-sintering of ceramic precursors, residual solvent removal from polymer composites, and inert-atmosphere annealing of battery electrode materials.

Key Features

• Stainless steel 304 chamber construction ensures long-term corrosion resistance, thermal stability, and compatibility with repeated vacuum cycling and aggressive cleaning protocols.
• Microprocessor-controlled PID temperature regulation delivers ±1°C uniformity across the full 450 L working volume, with 0.1°C resolution and programmable ramp/soak profiles (optional multi-segment programming).
• Integrated silicone door gasket with adjustable compression mechanism maintains consistent vacuum integrity; door seal performance validated per ISO 2859-1 sampling standards for leak rate <5 × 10⁻³ mbar·L/s.
• Electric heating elements embedded in aluminum隔板 (aluminum heat-distribution plates) provide rapid thermal response and minimized axial temperature gradients—critical for reproducible drying of layered or stacked samples.
• 4.3-inch backlit TFT LCD interface supports multilingual menu navigation (English default), real-time parameter monitoring (chamber temp, setpoint, elapsed time, vacuum status), and configurable alarm thresholds.
• Dual safety architecture includes independent mechanical over-temperature cutoff, EEPROM-based parameter retention during power interruption, and auto-restart functionality upon grid recovery—fully compliant with IEC 61000-4-29 voltage dip immunity requirements.

Sample Compatibility & Compliance

The GZF-6090A accommodates diverse sample formats including powders, granules, thin-film substrates, porous ceramics, pharmaceutical tablets, and assembled microelectromechanical systems (MEMS). Its oxygen-free operation eliminates oxidative pathways—making it ideal for handling lithium-ion cathode precursors (e.g., NMC, LFP), metal-organic frameworks (MOFs), and air-sensitive organometallic catalysts. The system conforms to core laboratory safety and quality standards: UL 61010-1 (Electrical Safety), EN 60529 (IP20 enclosure rating), and ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens). Optional configurations support GLP/GMP workflows via audit-trail-capable data logging (21 CFR Part 11 compliant when paired with certified software), inert gas purging (N₂ or Ar), and vacuum-integrated condensate trapping via external gas–liquid separator.

Software & Data Management

While the base model features standalone microcontroller operation, optional digital upgrades include RS485 Modbus RTU connectivity for integration into centralized lab management systems (LIMS) or SCADA platforms. The programmable controller supports up to five user-defined temperature–vacuum–time sequences, each with up to ten segments—including hold, ramp, and dwell functions. All operational logs (temperature history, vacuum trace, alarm events, door-open duration) are timestamped and exportable via USB flash drive in CSV format. For regulated environments, the optional SHYY-DataLink™ software package provides electronic signature capability, role-based access control, and automated report generation aligned with ISO/IEC 17025 documentation requirements.

Applications

• Pre-drying of high-purity oxide powders prior to sintering (e.g., Al₂O₃, ZrO₂, TiO₂) to eliminate hydroxyl groups without grain coarsening.
• Residual solvent extraction from solvent-cast polymer films used in flexible electronics and biomedical scaffolds.
• Dehydration of hygroscopic reagents (e.g., anhydrous MgSO₄, LiAlH₄) under inert atmosphere for synthetic chemistry workflows.
• Thermal conditioning of calibration standards (e.g., NIST SRM 1921b) where trace moisture content must be quantitatively controlled.
• Post-cleaning drying of precision optical components and vacuum-compatible instrumentation parts to prevent watermark formation or interfacial delamination.

FAQ

What vacuum level is achievable with the standard configuration?
The built-in vacuum gauge and sealing architecture support a base pressure of ≤133 Pa (1 Torr) under static conditions; ultimate vacuum may vary slightly depending on chamber load, outgassing rate, and ambient humidity.
Is the oven compatible with inert gas backfilling?
Yes—optional inert gas inlet valve with integrated mass flow controller (0–10 L/min N₂/Ar) enables controlled purge cycles and maintenance of low-oxygen atmospheres during heating and cooling phases.
Can the unit be integrated into a larger automation system?
Via optional RS485 interface and Modbus protocol support, the oven can exchange status data and accept remote setpoint commands from PLCs or laboratory orchestration platforms.
What is the maximum allowable load weight on the shelves?
Each 304 stainless steel shelf is rated for 15 kg distributed load; total shelf capacity is 60 kg across four tiers, assuming even weight distribution and no overhang beyond shelf edges.
Does the system meet electromagnetic compatibility (EMC) requirements for shared lab environments?
Yes—the unit complies with EN 61326-1:2021 for laboratory equipment, including radiated emission limits (Class B) and immunity to electrostatic discharge (±8 kV contact), fast transients (±2 kV), and conducted RF disturbances (3 Vrms, 150 kHz–80 MHz).
