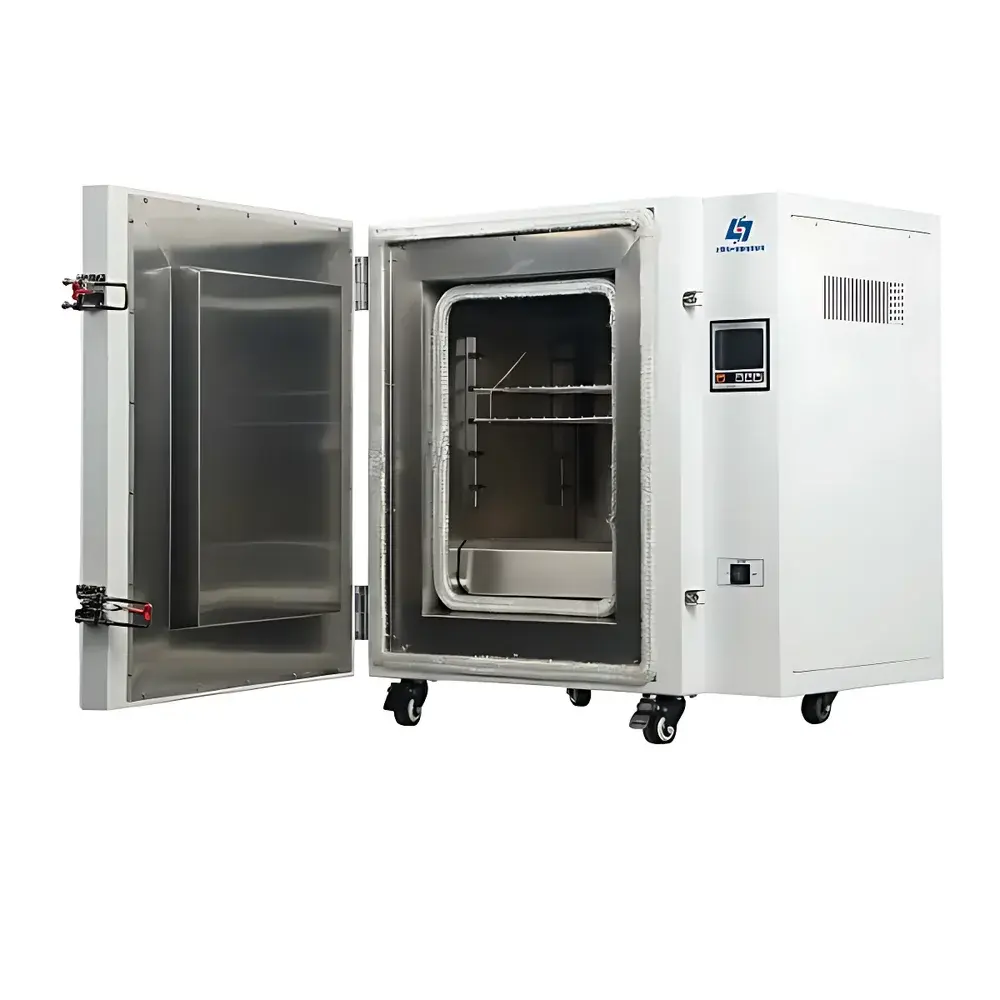

Shanghai Youyi DHG-9308A High-Temperature Forced-Air Drying Oven (400 °C)

Overview

The Shanghai Youyi DHG-9308A is a high-temperature forced-air drying oven engineered for precision thermal processing in industrial R&D laboratories, quality control environments, and production support settings. Operating across a validated temperature range from ambient +20 °C up to 400 °C, it employs resistive heating elements coupled with a dynamically balanced multi-blade centrifugal circulation system to achieve rapid thermal ramping and stable equilibrium conditions. Unlike natural-convection ovens, the DHG-9308A utilizes active air movement—optimized via adjustable inlet/outlet dampers and pre-heated air injection through an integrated preheat cavity—to minimize vertical and horizontal thermal gradients. This architecture ensures compliance with ISO 17025-referenced thermal uniformity requirements (±2.5% at 100 °C, empty load), making it suitable for applications demanding reproducible heat exposure, including polymer curing, metal oxide pre-firing, catalyst activation, and residual solvent removal in pharmaceutical intermediates.

Key Features

• Microprocessor-based temperature controller with 4.3-inch full-color TFT LCD interface, supporting programmable ramp/soak profiles, PID auto-tuning, and power suppression to mitigate overshoot during startup.
• Robust chamber construction featuring mirror-polished SUS304 stainless steel interior, cold-rolled steel exterior with electrostatic epoxy coating, and ≥100 mm thick high-density glass fiber insulation for low thermal leakage.
• Dual-layer ceramic fiber rope door gasket rated for continuous operation at 400 °C, ensuring long-term sealing integrity and resistance to thermal degradation.
• Preheat cavity design directs fully mixed, pre-warmed air directly into the working chamber—reducing stabilization time by up to 35% compared to conventional ducted systems.
• Independent over-temperature cut-off circuit (optional) compliant with IEC 61000-4-2 and UL 61010-1 safety standards; automatically interrupts heating if user-defined limit is exceeded.
• Modular accessory compatibility including RS485 Modbus RTU interface (with included PC software for data logging and audit trail generation), embedded thermal printer (for GLP-compliant hardcopy records), and calibrated test port kits (25 mm or 50 mm diameter).

Sample Compatibility & Compliance

The DHG-9308A accommodates standard laboratory ware (e.g., porcelain crucibles, alumina boats, stainless steel trays) and industrial fixtures up to 300 L volume. Its stainless steel chamber resists oxidation and acidic fume corrosion common in thermal decomposition workflows. The unit meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and electrical safety (EN 61010-1). While not inherently 21 CFR Part 11–compliant, optional RS485 + software configuration supports electronic record retention, user-level access control, and time-stamped event logs—enabling alignment with GLP and GMP documentation expectations where local regulatory interpretation permits.

Software & Data Management

The optional RS485 communication module enables bidirectional integration with LIMS or SCADA platforms using standard Modbus RTU protocol. Bundled Windows-compatible software provides real-time monitoring, configurable alarm thresholds, CSV export of timestamped temperature histories, and automated report generation—including min/max/mean deviation statistics per cycle. All logged data includes operator ID, session start/end timestamps, and firmware revision—supporting traceability in regulated environments. Printer output delivers thermally stable paper records with embedded calibration certificate references.

Applications

• Thermal aging studies of elastomers, composites, and adhesives per ASTM D573 and ISO 188.
• Moisture content determination in ceramics, minerals, and battery electrode materials (in accordance with ISO 5725 validation guidelines).
• Curing of powder coatings and epoxy resins under controlled ramp-hold-cool cycles.
• Pre-conditioning of reference standards prior to gravimetric analysis or XRD sample preparation.
• Stabilization of platinum resistance thermometers (PRTs) and thermocouple wire assemblies before calibration.
• Residual solvent evaporation from API batches in non-GMP pilot-scale manufacturing.

FAQ

What is the maximum continuous operating temperature?
The DHG-9308A is rated for continuous operation at 400 °C, verified per manufacturer thermal mapping protocols conducted at three load conditions (empty, half-load, full-load) using NIST-traceable Class A PT100 sensors.
Is the oven suitable for inert atmosphere processing?
No—it is configured for ambient air operation only. For nitrogen or argon purging, custom modifications including gas inlet/outlet ports and pressure-relief valves must be specified at order stage.
Can temperature uniformity be independently verified?
Yes. The unit ships with a factory-generated thermal uniformity report (per ISO 17025-accredited internal procedure), and users may perform requalification using calibrated multi-point data loggers aligned with ISO/IEC 17025 Clause 6.4.3.
Does the controller support multiple user profiles with role-based permissions?
The base controller does not include user authentication; however, the optional PC software supports multi-user login with password-protected access levels (operator, supervisor, administrator) and activity logging.
What maintenance intervals are recommended for sustained 400 °C operation?
Fan bearings and door gaskets should be inspected every 500 operational hours; insulation integrity and heater continuity testing are advised annually or after any thermal shock event exceeding 150 °C/min ramp rate.
