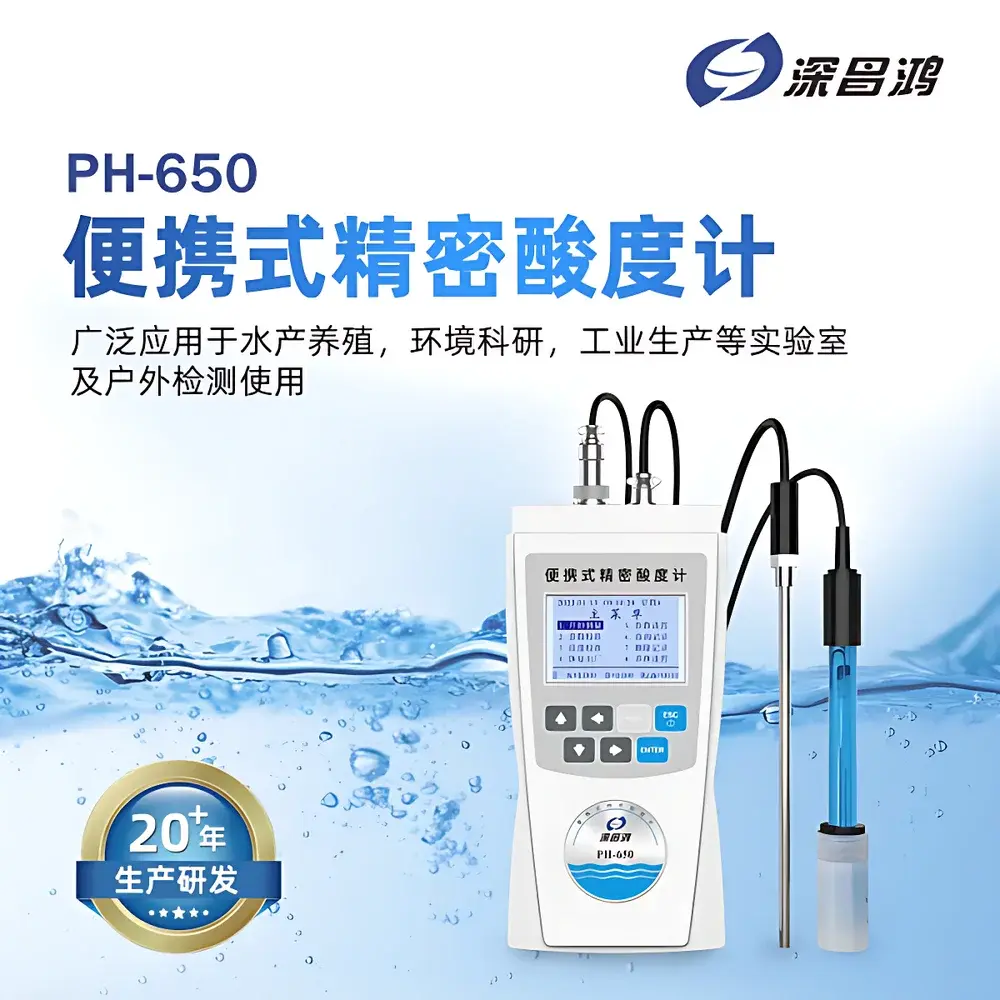

Shenchanghong PH-650 Portable pH Meter

Overview

The Shenchanghong PH-650 Portable pH Meter is an engineered electrochemical measurement instrument designed for field-deployable, high-fidelity pH and mV analysis in environmental monitoring, water quality assessment, food safety inspection, and educational laboratory applications. It operates on the fundamental principle of potentiometric measurement: the potential difference between a pH-sensitive glass electrode and a stable reference electrode is converted into a pH value using the Nernst equation (E = E⁰ − (2.303RT/F)·pH), with real-time temperature compensation applied digitally to correct for thermal drift. The device integrates a built-in temperature sensor (Pt1000 or equivalent thermistor) and employs digital temperature compensation algorithms to eliminate nonlinearity inherent in analog thermistor-based systems—ensuring consistent accuracy across its full 0.0–99.9 °C operational range. Its microcontroller unit (MCU)-driven architecture supports robust signal conditioning, including adaptive digital filtering to suppress electromagnetic interference and stabilize readings under variable environmental conditions.

Key Features

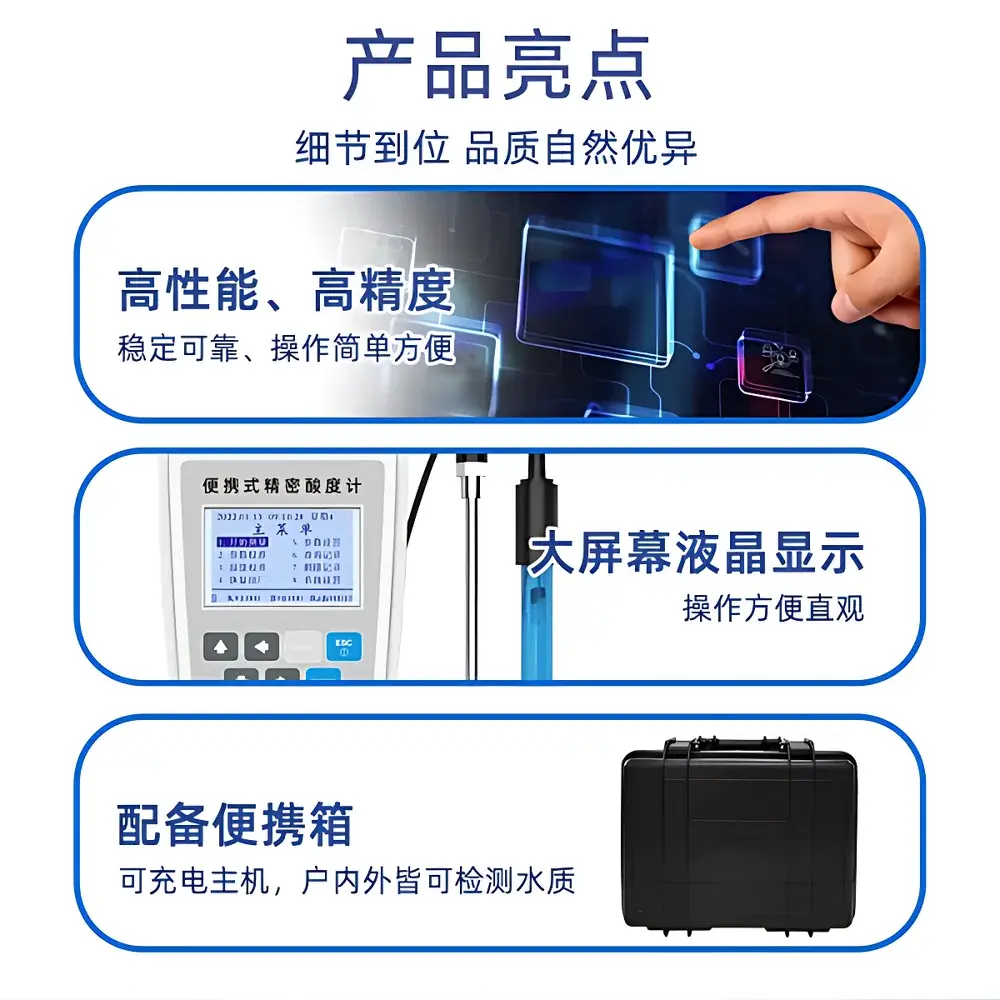

• High-resolution display: Backlit LCD with Chinese/English bilingual interface and intuitive hierarchical menu navigation
• Precision measurement: 0.01 pH resolution and ±0.03 pH accuracy at 25 °C, validated per national metrological standards (JJG 1107–2015)
• Triple-point calibration: Supports up to three buffer points (e.g., pH 4.01, 7.00, 10.01) with automatic recognition of NIST-traceable Chinese buffer formulations
• Intelligent auto-lock function: Freezes display when measurement stability threshold (±0.01 pH over 3 s) is met, reducing operator interpretation error
• Data integrity assurance: Non-volatile memory retains up to 999 timestamped measurements (date/time format: YYYY-MM-DD HH:MM:SS) with power-loss protection
• Digital connectivity: USB-C port enables direct data export to Windows/macOS systems via included software; supports CSV export for LIMS integration
• Industrial-grade durability: IP65-rated enclosure resists dust ingress and low-pressure water jets; corrosion-resistant housing suitable for humid or outdoor deployment
• Energy-efficient operation: High-capacity rechargeable lithium-ion battery provides ≥20 hours of continuous use per charge (typical), with low-power sleep mode activation after 10 minutes of inactivity

Sample Compatibility & Compliance

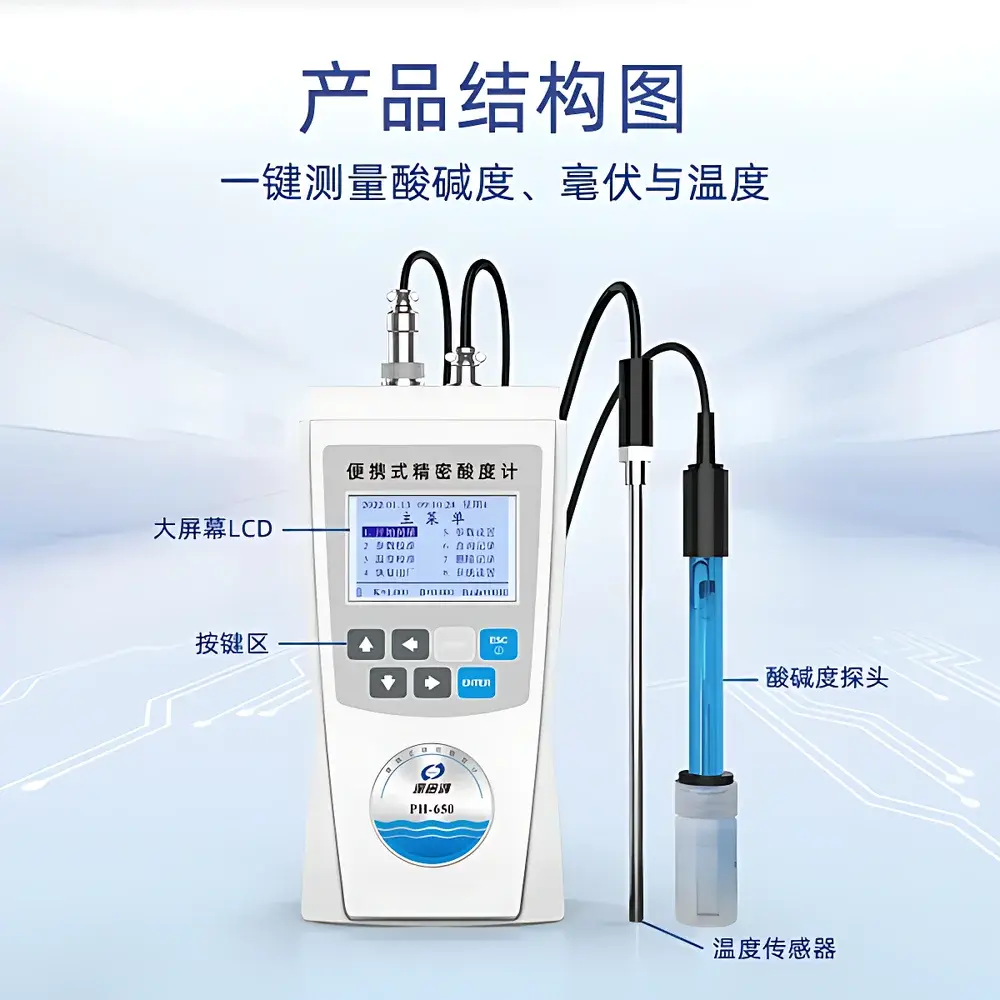

The PH-650 is compatible with standard single-junction pH composite electrodes (e.g., E201-C type), featuring a rugged polymeric body and Ag/AgCl reference system optimized for aqueous samples with conductivity >100 µS/cm. It accommodates liquid, semi-solid (slurries, gels), and surface-moisture measurements when paired with appropriate electrode configurations. All calibrations are traceable to China’s national standard buffer solutions (GB/T 23776–2018), which align with NIST SRM 186, 469, and 722 reference materials. The instrument meets Class II installation category requirements per IEC 61010-1 for electrical safety and complies with electromagnetic compatibility (EMC) limits defined in GB/T 18268.21–2010. While not certified for FDA 21 CFR Part 11 environments out-of-the-box, audit trails and user-access controls can be implemented via optional firmware upgrade for GLP/GMP-aligned workflows.

Software & Data Management

The bundled PC software (Windows 10/11, macOS 12+) enables bidirectional communication: downloading stored datasets, generating calibration reports with slope/mV offset diagnostics, and exporting time-series plots. Each record includes metadata such as calibration ID, electrode serial number (if entered manually), ambient temperature, and operator ID. Data files adhere to ISO/IEC 17025-compliant formatting—supporting traceability in accredited testing laboratories. Firmware updates are delivered via signed binary packages with SHA-256 checksum verification to ensure integrity. No cloud synchronization is performed; all data remains local unless explicitly exported by the user.

Applications

• Environmental fieldwork: River, lake, and wastewater pH profiling with GPS-tagged logging (when used with external GNSS module)
• Food & beverage QC: Rapid acidity checks in dairy, brewing, juice processing, and fermentation tanks
• Aquaculture management: Real-time pond and hatchery water monitoring to maintain optimal species-specific pH windows
• Educational labs: Undergraduate electrochemistry experiments emphasizing Nernstian behavior, junction potential, and temperature effects
• Pharmaceutical water systems: USP compliant conductivity-pH correlation checks during purified water validation
• Soil slurry analysis: With optional solid-contact electrode adapter for agricultural extension services

FAQ

What buffer standards does the PH-650 recognize automatically?
It identifies Chinese national standard buffers (pH 4.01, 6.86, 9.18 at 25 °C) conforming to GB/T 23776–2018, which are metrologically aligned with NIST SRMs.
Is electrode calibration required before every measurement session?
Calibration frequency depends on application criticality; daily calibration is recommended for regulatory reporting, while weekly verification suffices for routine field screening if drift remains within ±0.05 pH.
Can the PH-650 measure ORP (redox potential)?
Yes—it supports mV mode with ±2000 mV range and 0.1 mV resolution, enabling quantitative redox assessments using platinum or gold indicator electrodes.
Does the device support GLP audit trails?
Basic timestamped data export is provided; full GLP compliance (user authentication, electronic signatures, change logs) requires custom firmware configuration and documented SOP implementation.
What is the expected service life of the E201-C electrode under typical use?
With proper storage (in 3 mol/L KCl solution) and routine cleaning, the electrode maintains ±0.05 pH accuracy for 12–18 months in moderate-use settings (≤5 measurements/day).
