Shenkai SKY1003-IV Fully Automated Mini Kinematic Viscosity Tester
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SKY1003-IV |
| Kinematic Viscosity Range | 0.5–10,000 mm²/s |
| Temperature Control Range | 20–100 °C |
| Temperature Stability | ±0.01 °C |
| Timing Resolution | 0.01 s |
| Sample Volume | ~10 mL |
| Cleaning Solvent Consumption | 10–15 mL per cycle |

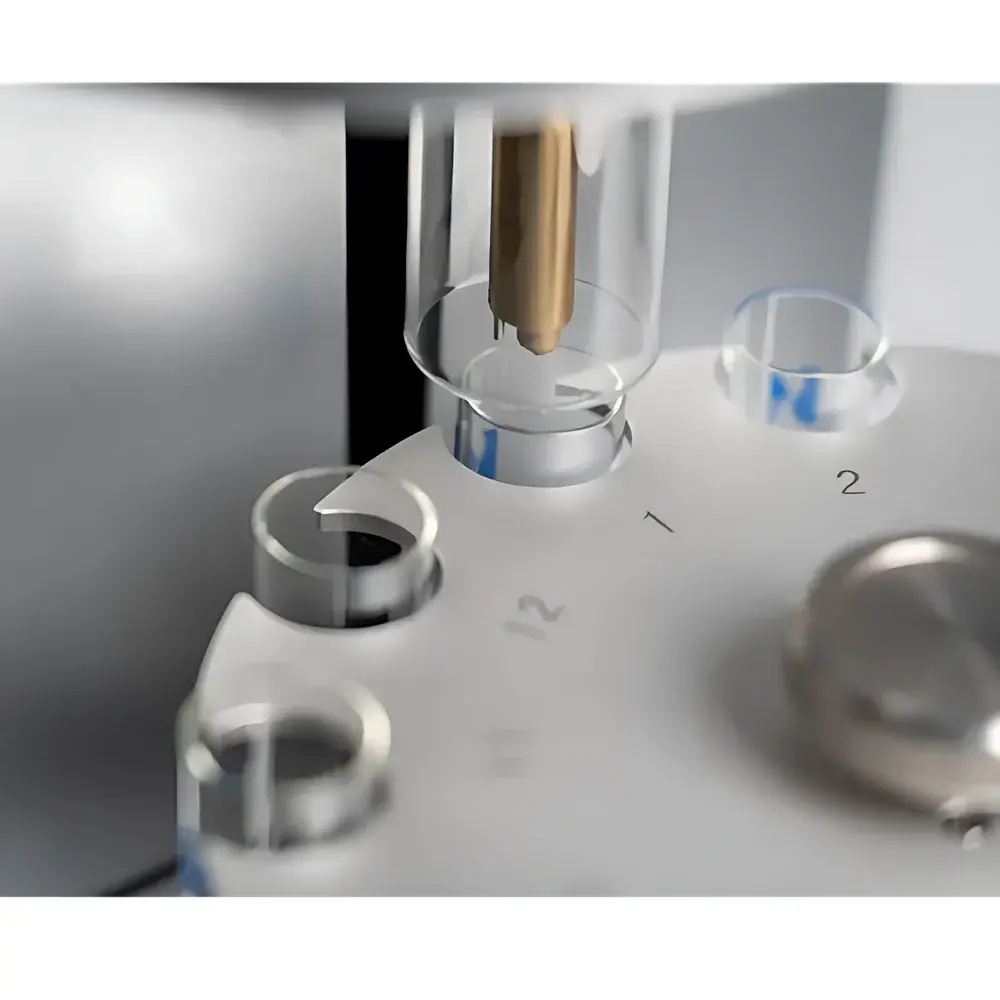

| Auto-sampler Capacity | 12 positions |
| Bath Volume | 2.5 L |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Dimensions (W×D×H) | 400 × 510 × 710 mm |
| Net Weight | 60 kg (incl. bath medium) |
Overview
The Shenkai SKY1003-IV Fully Automated Mini Kinematic Viscosity Tester is an engineered solution for precise, high-throughput kinematic viscosity determination of petroleum-based fluids in accordance with ASTM D445, ISO 3104, GB/T 265, and other internationally recognized standards. It operates on the capillary viscometry principle—specifically employing a modified Ubbelohde-type viscometer—to measure the time required for a fixed volume of liquid to flow under gravity through a calibrated capillary tube at a tightly controlled temperature. The instrument’s miniaturized architecture integrates thermal regulation, automated fluid handling, and intelligent timing into a compact footprint, making it suitable for QC laboratories, refinery process labs, and R&D facilities where space efficiency and repeatability are critical. Its design eliminates manual intervention across the entire workflow: sample aspiration, preheating (for waxy or heavy oils), thermostatic equilibration, efflux time measurement, solvent rinsing, and air-drying of the viscometer—enabling unattended operation for up to 12 samples.
Key Features
- iSKvator™ automation platform: fully coordinated sequence of sample loading, temperature conditioning, viscosity measurement, dual-solvent cleaning, and nitrogen-free air drying—no operator presence required during routine runs.
- NTC thermistor-based temperature sensing: immune to optical interference from sample color, turbidity, or ambient lighting; ensures consistent thermal monitoring for both transparent and opaque petroleum products.

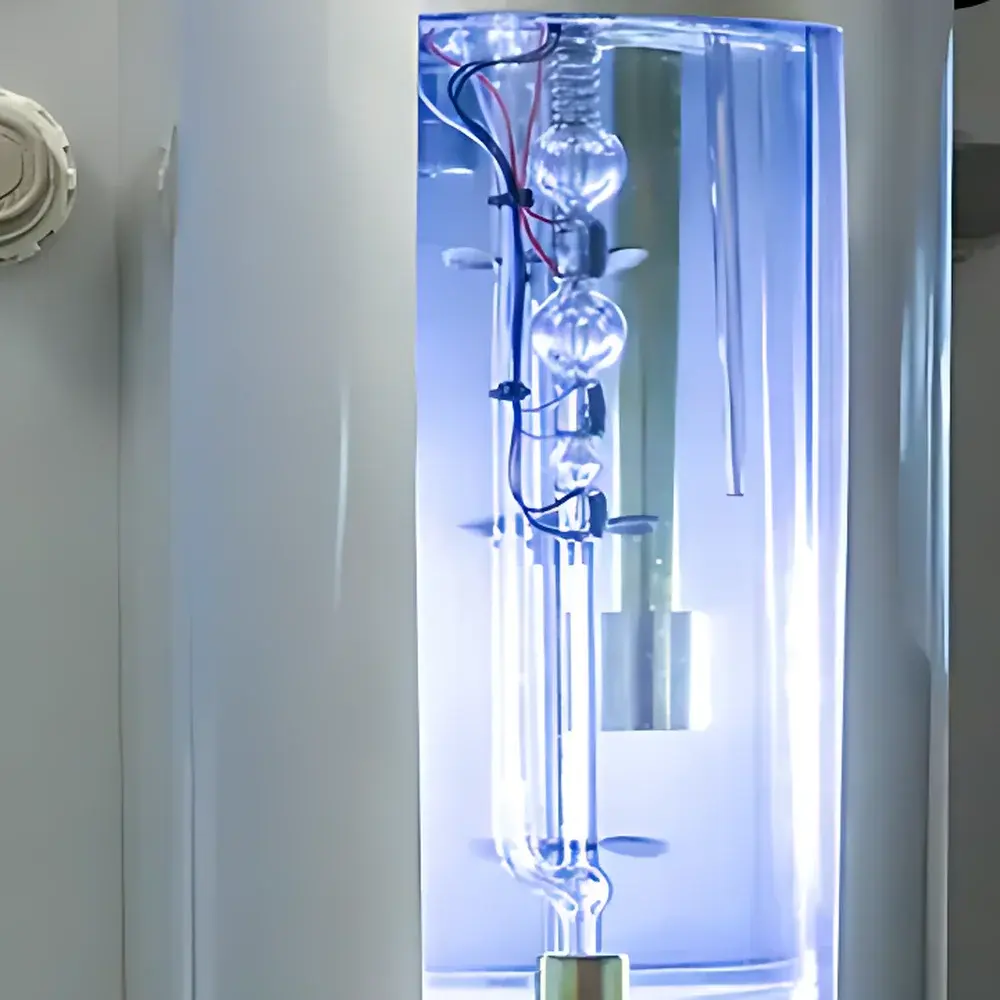

- Proprietary modified Ubbelohde viscometers: individually calibrated with 100-fold dynamic range per capillary, supporting seamless coverage from low-viscosity naphthas (0.5 mm²/s) to highly viscous bitumens and residual fuels (up to 10,000 mm²/s).
- Dual-solvent programmable cleaning system: enables user-defined solvent sequences and dwell times, compatible with chlorinated, aromatic, and polar solvents—validated for aggressive cleaning of carbonaceous deposits and wax residues.
- Integrated preheating module: independently adjustable up to 95 °C for conditioned introduction of high-pour-point or paraffinic samples into the恒温 bath, minimizing thermal shock and improving measurement reproducibility.
- Corrosion-resistant fluid path: wetted components constructed from chemically inert materials (e.g., PTFE, borosilicate glass, stainless steel 316), rated for long-term exposure to common hydrocarbon solvents and acid-wash reagents.
- Compact bath design: 2.5 L silicone oil reservoir with ±0.01 °C stability over 20–100 °C range; optional chiller integration available for sub-ambient control down to 8 °C below ambient.
Sample Compatibility & Compliance
The SKY1003-IV accommodates a broad spectrum of petroleum-derived materials—including crude oils, distillate fuels (diesel, jet fuel), lubricating base stocks, finished engine oils, transmission fluids, hydraulic fluids, additives, and in-service oils—regardless of transparency or chromaticity. Its NTC-based thermal detection and gravity-driven capillary flow mechanism eliminate reliance on optical detection, enabling reliable measurements for dark crudes, asphaltene-rich residuals, and heavily dyed formulations. The system complies with ASTM D445 (Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids), ASTM D446 (Specifications for Glass Capillary Kinematic Viscometers), ISO 3104 and ISO 3105 (Petroleum products — Determination of kinematic viscosity), IP 71, and national standards GB/T 265 and GB/T 30515. All thermal and timing subsystems are traceable to NIST-certified references, and audit trails meet GLP and GMP documentation requirements per FDA 21 CFR Part 11 when configured with electronic signature support.
Software & Data Management
The embedded Windows-based control software provides full method configuration, real-time parameter monitoring, and comprehensive data governance. Users may define custom test templates—including variable preheat durations, multi-step cleaning protocols, and conditional pass/fail logic based on replicate consistency. Each viscometer is digitally registered with its unique calibration constants; temperature calibration routines verify bath uniformity at multiple setpoints. The software automatically computes viscosity index (VI) per ASTM D2270 and reports kinematic viscosity with uncertainty estimation aligned with ISO/IEC 17025 guidance. Experimental metadata—including operator ID, timestamp, ambient conditions, and maintenance logs—is embedded in every result file. Native RS232 interfaces support bidirectional communication with LIMS platforms using ASTM E1384 or HL7-compliant message structures; raw efflux times, temperature profiles, and QC flags are exportable in CSV, XML, or PDF formats with digital signature capability.
Applications
- Refinery quality assurance: rapid verification of cut-point viscosity specifications for naphtha, kerosene, gas oil, and vacuum residue streams.
- Lubricant formulation and batch release: monitoring viscosity grade compliance (e.g., SAE J300, ISO VG classes) and oxidation-induced thickening in used oil analysis.
- Fuel specification testing: verifying ASTM D975 (diesel), D1655 (jet fuel), and D396 (fuel oil) kinematic viscosity limits.
- Research on viscosity modifiers: evaluating shear stability and thermal degradation of polymer-based VI improvers under accelerated aging protocols.
- Condition monitoring labs: trending viscosity drift in turbine, gear, and hydraulic oils as an early indicator of contamination, oxidation, or additive depletion.
- Third-party certification labs: accredited testing per ISO/IEC 17025, supporting API licensing, OEM approvals, and customs clearance documentation.
FAQ
What standards does the SKY1003-IV validate against?
ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71, GB/T 265, and GB/T 30515—all implemented via hardware-level timing accuracy (0.01 s) and thermal stability (±0.01 °C).
Can it handle waxy or high-pour-point samples without clogging?
Yes—the integrated preheating module raises sample temperature up to 95 °C prior to injection, ensuring complete melt and homogeneous flow before capillary entry.
How is calibration traceability maintained?
Each viscometer includes a certified calibration certificate with reference to NIST-traceable standard oils; software supports periodic recalibration with user-loaded reference values and automatic correction factor application.
Is remote monitoring or integration with enterprise systems supported?
Dual RS232 ports enable simultaneous connection to a local PC and central LIMS; OPC UA and Modbus TCP gateways are available as optional add-ons for Industry 4.0 environments.
What safety protections are built into the system?
Hardware-enforced safeguards include low-bath-level cutoff, overtemperature shutdown (>105 °C), solvent reservoir depletion alert, and door-interlock activation during active heating or cleaning cycles.
