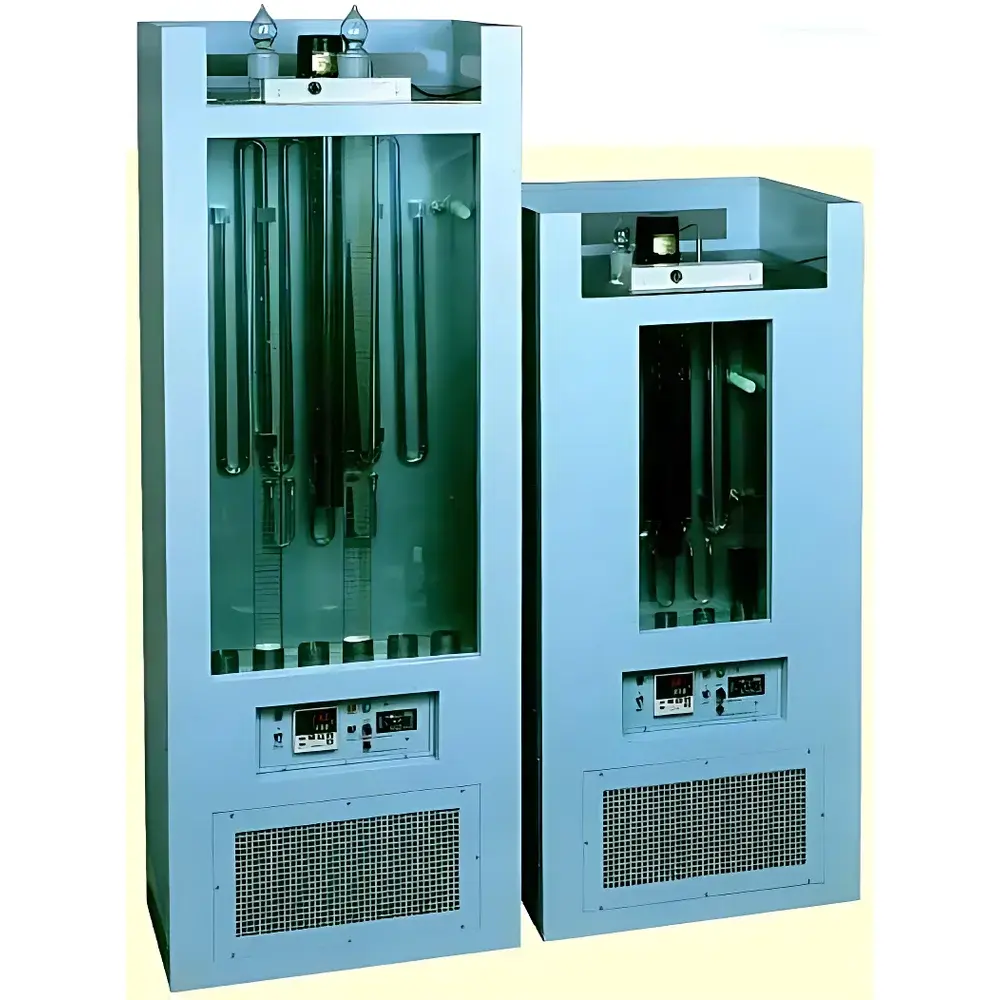

Shibayama SSTY-TEA Density Gradient Column System

Overview

The Shibayama SSTY-TEA Density Gradient Column System is a precision-engineered instrument for the gravimetric determination of solid material density using the density gradient column method—a hydrostatic equilibrium technique grounded in Archimedean principles. In this method, a stable, linear vertical density gradient is established within a thermostatically controlled column using immiscible solvent mixtures. Solid samples are introduced and allowed to equilibrate; their suspended position corresponds directly to the local liquid density, which is interpolated from calibrated reference spheres. The SSTY-TEA implements this classical methodology with modern automation and thermal stability enhancements—specifically designed for laboratories requiring traceable, high-reproducibility density measurements across heterogeneous solid forms including polymeric films, synthetic and natural fibers, resin pellets, and injection-molded components. Its architecture conforms to internationally recognized test standards, including ASTM D1505 (Standard Test Method for Density of Plastics by the Density-Gradient Technique), ISO 1183-1 (Plastics — Methods of Determination of Density — Part 1: Immersion Method, Liquid Pyknometer Method and Titration Method), JIS K 7112 (Testing Methods for Density of Plastics), and JIS K 0061 (General Rules for Density Gradient Column Method).

Key Features

• Automated density gradient fluid preparation system mounted atop the temperature-controlled chamber—comprising a dual-syringe pump and programmable mixing controller to generate reproducible, linear density gradients without manual layering.
• Motorized constant-speed sample elevator with programmable descent/ascent profiles—minimizes mechanical disturbance to the gradient column and extends usable gradient lifetime by ≥2–3× compared to manual insertion methods.
• Integrated refrigerated circulation system maintaining column temperature stability within ±0.1 °C over extended measurement cycles (up to 72 h), critical for minimizing thermal convection and ensuring gradient integrity.
• Traceable Group A certified reference spheres calibrated to ±0.0002 g/cm³ (NIST-traceable calibration certificate provided), manufactured in accordance with Shibayama’s 30-year metrological heritage in density metrology.
• Modular column assembly with borosilicate glass gradient tube (1,200 mm length, 25 mm ID), adjustable support frame, and optical alignment guides for precise sphere positioning and digital image-based depth registration.

Sample Compatibility & Compliance

The SSTY-TEA accommodates diverse physical morphologies without requiring dissolution or phase change: thin films (≥10 µm thickness), rigid sheets (up to 50 mm × 50 mm), granules (0.5–5 mm diameter), staple or filamentous fibers (natural cotton, wool, polyester, aramid), and compression-molded thermoplastic or thermoset specimens. All sample handling protocols align with GLP-compliant documentation requirements. System validation supports IQ/OQ documentation packages and satisfies audit readiness for ISO/IEC 17025-accredited testing laboratories. Full compliance with ASTM D1505 Annex A1 (precision statements), ISO 1183-1 Clause 6 (accuracy requirements), and JIS K 0061 Section 4 (gradient stability criteria) is verified during factory acceptance testing.

Software & Data Management

The system operates via a dedicated Windows-based control interface supporting automated gradient generation scheduling, elevator motion sequencing, real-time temperature logging (with dual Pt100 sensors), and digital image capture of sphere settling positions. All measurement data—including gradient slope coefficients, interpolated sample densities, uncertainty budgets (Type A and Type B components per GUM), and calibration certificate metadata—are exported in CSV and PDF formats compliant with FDA 21 CFR Part 11 requirements (electronic signatures, audit trail, user access controls). Raw image files are time-stamped and stored with embedded EXIF metadata for full traceability.

Applications

• Density profiling of ultra-high-molecular-weight polyethylene (UHMWPE) and crosslinked polyolefins where conventional pycnometry yields inconsistent results due to surface porosity or trapped air.
• Fiber density characterization for textile quality assurance—enabling discrimination between polymorphic crystalline phases (e.g., α vs. β PVDF) and detecting plasticizer uptake in regenerated cellulose.
• In-process density verification of polyolefin copolymers (e.g., ethylene-propylene rubber) to correlate with comonomer content and branching density.
• Reference density assignment for certified reference materials (CRMs) used in interlaboratory comparison studies under ISO Guide 34 and ISO/IEC 17034 frameworks.
• Long-term stability monitoring of aged polymer specimens in accelerated weathering programs, where density shifts reflect oxidative chain scission or crosslinking.

FAQ

What density range does the SSTY-TEA support?
The system achieves a typical operational density gradient range of 0.800–1.400 g/cm³, extendable to 0.700–1.800 g/cm³ using alternative solvent pairs (e.g., methanol/chloroform or tetrachloroethylene/cyclohexane), subject to safety and compatibility review.
Is operator training included with installation?
Yes—Shibayama provides on-site commissioning and a two-day technical workshop covering gradient theory, SOP development, uncertainty evaluation, and preventive maintenance procedures, documented per ISO/IEC 17025 Clause 6.2.5.
Can the system be integrated into a LIMS environment?
The control software supports OPC UA connectivity and configurable REST API endpoints for bidirectional data exchange with laboratory information management systems, including structured transmission of measurement metadata and calibration status flags.
How often must the reference spheres be recalibrated?
Annual recalibration is recommended under routine use; however, Shibayama’s calibration certificate includes stability data demonstrating ≤±0.0001 g/cm³ drift over 18 months when stored per ISO 10012 guidelines.
Does the system meet requirements for pharmaceutical excipient density testing?
While not specifically validated for USP <616>, the SSTY-TEA satisfies the fundamental accuracy, traceability, and documentation requirements outlined in ICH Q5C and USP General Chapter <1210> for physicochemical characterization of solid dosage form components.
