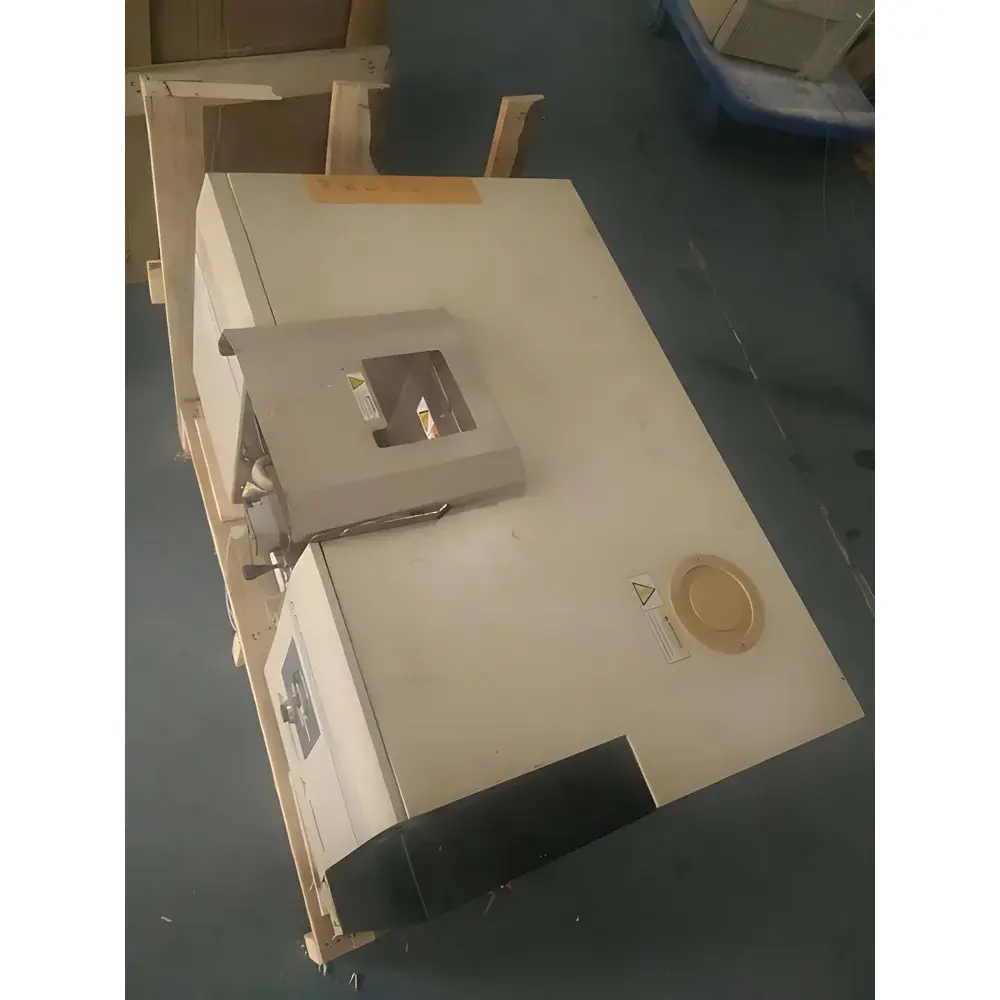

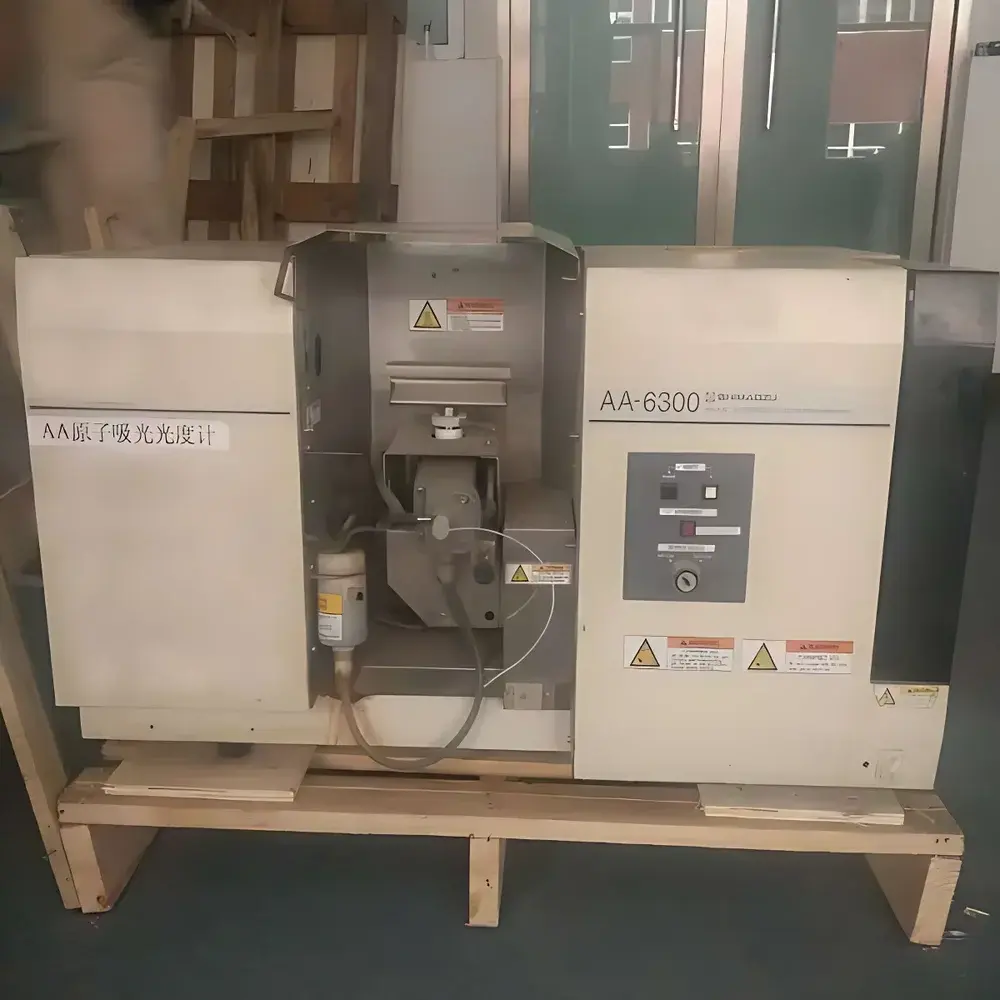

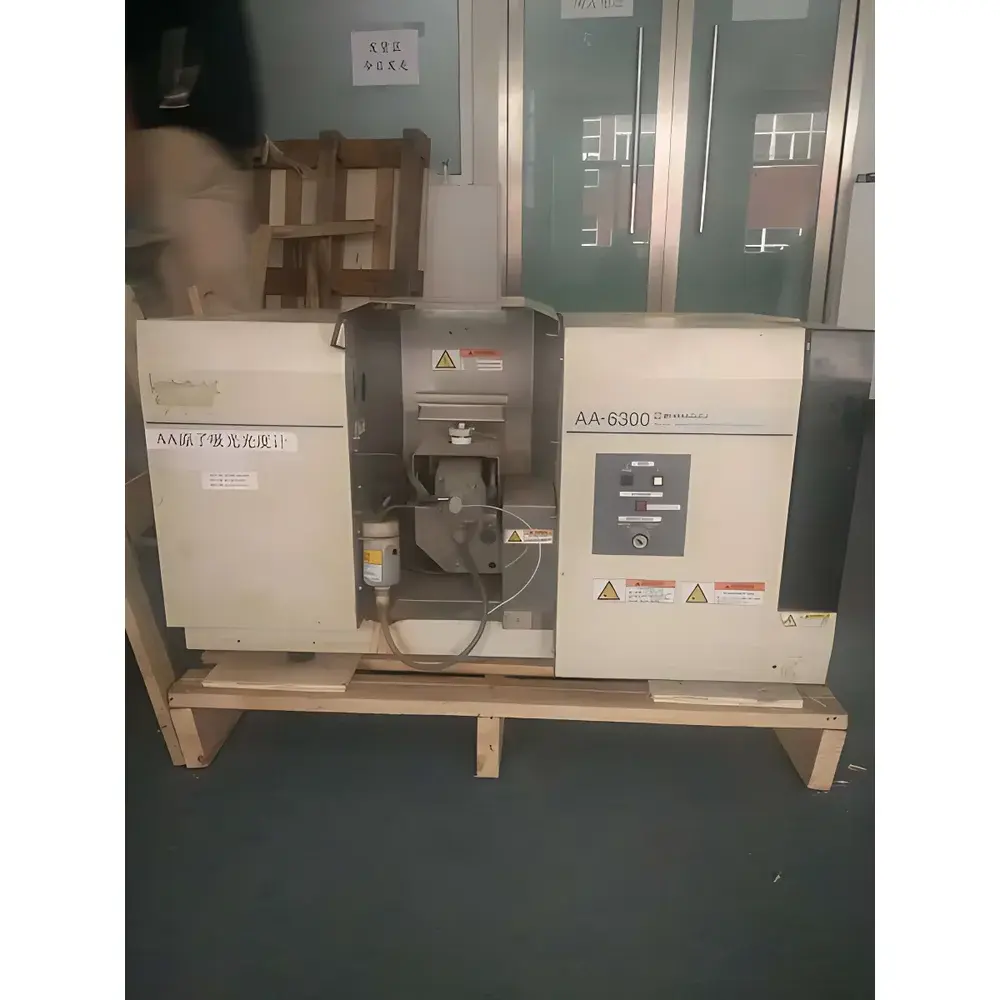

Shimadzu AA-6300 Atomic Absorption Spectrophotometer — Rental Program

Overview

The Shimadzu AA-6300 Atomic Absorption Spectrophotometer is a high-performance, dual-atomization analytical instrument engineered for trace elemental quantification in environmental, pharmaceutical, clinical, and industrial laboratories. Utilizing the fundamental principle of atomic absorption spectroscopy—where ground-state atoms in a vaporized sample absorb characteristic radiation emitted by a hollow cathode lamp—the AA-6300 delivers exceptional sensitivity and selectivity across a broad spectral range (185–900 nm). Its optical architecture features an astigmatism-corrected Czerny-Turner monochromator with a 298 mm focal length and 1800 lines/mm grating blazed at 250 nm, ensuring high throughput and spectral resolution. The system supports both flame and graphite furnace atomization modes, with fully automated switching and motorized burner head height adjustment—enabling rapid method transition without manual realignment. This design minimizes operator intervention while maintaining measurement consistency critical for regulatory-compliant workflows.

Key Features

• Dual-atomization platform: Seamless, software-controlled switching between air-acetylene flame and electrothermal graphite furnace atomizers
• Intelligent optical path management: Optical dual-beam mode for flame analysis; electronic dual-beam compensation for graphite furnace measurements
• Comprehensive background correction: Simultaneous implementation of fast self-reversal (BGC-SR) and deuterium lamp (BGC-D₂) methods across the full 185–900 nm range
• Automated detector selection: Integrated photomultiplier tube (PMT) for UV–visible wavelengths and silicon photodiode for near-IR detection, with automatic switchover based on set wavelength
• Precision mechanical control: Motor-driven burner head positioning ensures reproducible flame geometry and optimal nebulization efficiency
• Robust thermal management: Graphite furnace temperature programming with ramp rates up to 2000 °C/s and hold stability within ±1 °C

Sample Compatibility & Compliance

The AA-6300 accommodates aqueous solutions, digested biological tissues, acid-leached soil extracts, and diluted industrial effluents. It meets core requirements for trace metal analysis under ASTM E1717 (Standard Practice for Determination of Metals in Water by Graphite Furnace Atomic Absorption Spectrometry), ISO 11171 (Calibration of Liquid Particle Counters), and USP <731> (Heavy Metals). Data acquisition and storage support audit-trail functionality aligned with GLP and GMP frameworks. While the instrument itself does not include FDA 21 CFR Part 11–compliant electronic signatures, its data export protocols (ASCII, CSV, XML) are compatible with validated LIMS and ELN systems implementing such controls.

Software & Data Management

Operation is managed via Shimadzu’s dedicated AA-Series software (v3.x or later), providing method development wizards, multi-point calibration curves (linear, quadratic, cubic), drift correction algorithms, and peak area/intensity integration with baseline subtraction. All measurement parameters—including lamp current, slit width, integration time, and furnace temperature program—are stored with timestamped metadata. Raw spectral scans and quantitative reports can be exported in vendor-neutral formats for secondary analysis or regulatory submission. Instrument diagnostics logs—including lamp energy monitoring, gas pressure verification, and detector gain history—are retained for preventive maintenance scheduling and compliance review.

Applications

• Environmental testing: Quantification of Pb, Cd, As, Cr, and Ni in drinking water per EPA Method 200.9 and ISO 17294-2
• Pharmaceutical quality control: Heavy metals screening in active pharmaceutical ingredients (APIs) and excipients per ICH Q2(R2) and USP <232>/<233>
• Clinical toxicology: Blood lead level (BLL) determination using graphite furnace AAS with Zeeman background correction
• Food safety: Detection of Cu, Zn, Fe, and Mn in fortified cereals and dairy products per AOAC 984.27
• Geological analysis: Rare earth element profiling in rock digests following fusion-based sample preparation

FAQ

Is the AA-6300 rental unit certified for ISO/IEC 17025-compliant laboratories?
The instrument is supplied with factory calibration documentation and operational qualification (OQ) records. Full ISO/IEC 17025 compliance requires site-specific performance verification (PV) conducted by the lessee’s qualified personnel or third-party metrology provider.
What consumables and spare parts are included in the rental agreement?
Standard consumables—including hollow cathode lamps, graphite tubes, autosampler cups, and nebulizer capillaries—are available for separate procurement. Critical spares (e.g., PMT assemblies, grating mounts) are maintained in regional service depots for expedited replacement.
Can the AA-6300 be integrated into an existing laboratory information management system (LIMS)?
Yes—via ASCII/CSV data export or optional RS-232/Ethernet communication modules. Shimadzu provides API documentation for custom middleware integration supporting ASTM E1384 and HL7 standards.
What is the minimum rental term, and is early termination permitted?
The standard minimum term is six months. Early termination is allowable per contractual clause 7.2, subject to a prorated restocking fee and return verification assessment.
Does the rental package include application support for method development?
Yes—Shimadzu-certified application scientists provide remote method optimization guidance and on-site training (up to two days) as part of the initial deployment phase.
