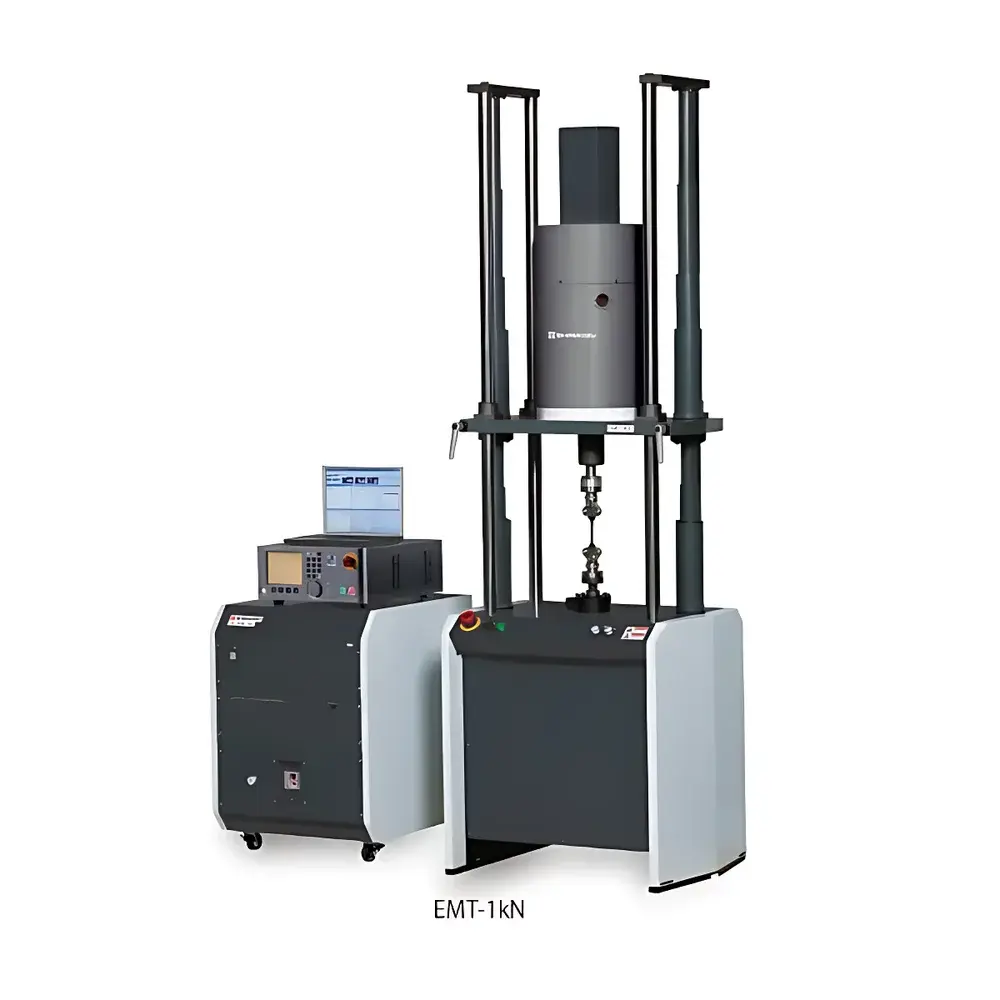

Shimadzu EMT Series Electromagnetic Dynamic Fatigue Testing System

Overview

The Shimadzu EMT Series Electromagnetic Dynamic Fatigue Testing System is a high-performance, closed-loop controlled fatigue testing platform engineered for precision dynamic mechanical characterization under cyclic loading conditions. Unlike hydraulic or servo-mechanical systems, the EMT leverages electromagnetic actuation—delivering exceptional frequency response, zero fluid contamination risk, and minimal maintenance requirements. Its core architecture integrates a high-stiffness load frame with an air-cooled electromagnetic actuator, enabling stable operation across a broad frequency spectrum (0–200 Hz) while maintaining sub-micron displacement resolution and high force fidelity. Designed specifically for R&D laboratories and quality control environments where cleanliness, repeatability, and rapid test turnaround are critical—such as polymer science, elastomer development, biomedical device validation, and electronic component reliability assessment—the EMT system supports both high-cycle fatigue (HCF) and low-cycle fatigue (LCF) protocols in accordance with ASTM E466, ISO 1099, and JIS Z 2275.

Key Features

• Electromagnetic actuation technology ensures fast response time (<1 ms), eliminating hysteresis and fluid compressibility effects inherent in hydraulic systems.
• High-rigidity load frame engineered to suppress structural resonance up to 200 Hz—enabling stable execution of ±20 µm amplitude cycles at maximum frequency without frame-induced signal distortion.
• Dual-stroke configurations available: ±30 mm for high-frequency, high-precision applications; ±50 mm for large-deformation testing of elastomers, foams, and soft biomaterials.
• Motor-driven crosshead adjustment provides precise initial specimen alignment and accommodates variable gauge lengths without manual intervention.
• Load accuracy certified to ±0.5% of reading or ±0.02% of full-scale (5 kN), traceable to national metrological standards, supporting GLP-compliant data integrity.
• Integrated environmental compatibility: oil-free, quiet operation suitable for cleanroom installations and shared laboratory spaces.

Sample Compatibility & Compliance

The EMT Series accommodates a wide range of specimen geometries—including tension-compression coupons, notched bars, wire specimens, and miniaturized components—via standardized grips and custom fixture interfaces. It supports standard test configurations per ASTM D3479 (tensile fatigue of plastics), ISO 6892-1 (metallic materials), and ISO 13314 (compression fatigue of cellular materials). All hardware and firmware comply with IEC 61000-6-2/6-4 for electromagnetic compatibility (EMC), and mechanical safety conforms to ISO 12100 and EN 60204-1. Optional integration with temperature-controlled chambers (−70°C to +300°C) extends applicability to thermo-mechanical fatigue studies.

Software & Data Management

Control and analysis are executed via Shimadzu’s proprietary TRAPEZIUM X software—a Windows-based platform compliant with FDA 21 CFR Part 11 requirements. The software provides real-time waveform monitoring, automatic cycle counting, S–N curve generation, and statistical life prediction (Weibull analysis). Audit trails record all user actions, parameter changes, and calibration events with time-stamped, non-erasable logs. Data export supports CSV, Excel, and universal binary formats (e.g., HDF5) for third-party post-processing in MATLAB or Python-based analytics pipelines. Remote monitoring and multi-user role management are supported through secure LAN/WAN deployment.

Applications

• High-frequency fatigue evaluation of thermoplastic elastomers and silicone rubbers used in medical seals and wearable devices.
• Resonance-free cyclic testing of microelectronics interconnects and solder joints under thermal-mechanical stress.
• Long-term durability assessment of polymer matrix composites in aerospace prototyping.
• Biomechanical fatigue of hydrogels, tissue-engineered scaffolds, and orthopedic fixation devices under physiological loading waveforms.
• Material property mapping across strain rate regimes—from quasi-static to 200 Hz—for constitutive model validation.

FAQ

What distinguishes electromagnetic actuation from hydraulic or servo-mechanical alternatives?

Electromagnetic systems offer superior bandwidth, zero fluid leakage risk, no warm-up delay, and inherently linear force-displacement behavior—critical for high-fidelity spectral analysis and phase-sensitive measurements.
Can the EMT Series perform tests under elevated or sub-zero temperatures?

Yes—when coupled with Shimadzu’s optional environmental chambers, the system maintains force and displacement accuracy across −70°C to +300°C, with active thermal compensation algorithms embedded in TRAPEZIUM X.
Is the system compatible with third-party sensors such as extensometers or acoustic emission transducers?

The EMT features analog/digital I/O ports and IEEE 1451.4 TEDS support, enabling plug-and-play integration with industry-standard displacement, strain, and AE sensors.
How is calibration traceability maintained over time?

Each system ships with NIST-traceable load cell and displacement sensor certificates; annual recalibration services include full metrological verification and firmware update validation per ISO/IEC 17025 accredited procedures.
Does the software support automated pass/fail decision logic for production QC workflows?

Yes—TRAPEZIUM X allows user-defined acceptance criteria (e.g., stiffness decay >15%, cycle count <1E6), triggering automatic test termination and report generation with digital signature authentication.
