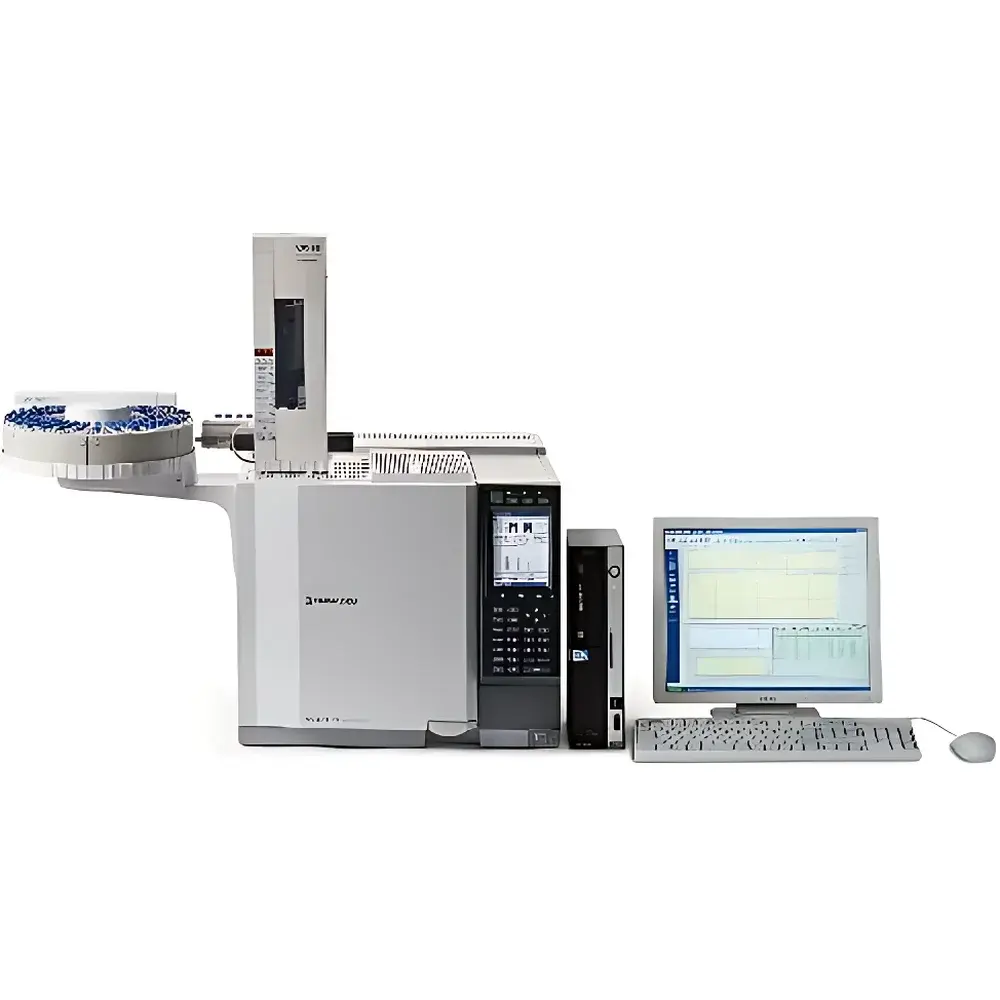

Shimadzu GC-2010 Pro Gas Chromatograph

Overview

The Shimadzu GC-2010 Pro is a high-performance, general-purpose laboratory gas chromatograph engineered for precision, reproducibility, and operational flexibility in regulated and research environments. Based on the proven architecture of the GC-2010 Plus platform, it employs capillary column separation with advanced pneumatic control and thermal management systems to deliver robust retention time stability and quantitative accuracy. Its core measurement principle relies on differential partitioning of volatile and semi-volatile analytes between a mobile phase (inert carrier gas) and a stationary phase coated inside fused-silica capillary columns, followed by detection via selective physicochemical response mechanisms (e.g., ionization, thermal conductivity, electron capture). Designed for compliance-critical workflows, the system supports method development, routine QC/QA, environmental monitoring, pharmaceutical impurity profiling, and food safety testing — all within a single, modular platform.

Key Features

• Dual-Jet Rapid Oven Cooling System: Achieves oven cooldown from 450 °C to 50 °C in ≤3.4 minutes, minimizing cycle time between injections and enhancing throughput without compromising thermal equilibration integrity.
• High-Fidelity Pneumatic Control: Independent, digitally regulated pressure and flow control across up to seven programmable segments per channel; supports constant linear velocity (CLV) mode for method transfer and rapid optimization of separation conditions.
• Advanced Column Flow Management: Enables precise carrier gas delivery across narrow-bore capillaries (e.g., 0.10–0.25 mm ID), facilitating fast GC methods while maintaining resolution and peak symmetry.
• Modular Detector & Injector Architecture: Accommodates up to three injector units and four detectors simultaneously, with hot-swappable configuration support. Compatible injector types include split/splitless (SPL), direct (WBI), cold-on-column (OCI), and programmable temperature vaporizer (PTV).
• Multi-Detector Compatibility: Supports FID, TCD, ECD, FPD, and FTD — each optimized for specific compound classes (hydrocarbons, permanent gases, halogenated organics, sulfur/phosphorus compounds, and nitrogen-containing species).
• Enhanced Flow Path Technologies: Integrates backflush, heart-cutting (MDGC), detector splitting, and detector switching capabilities to resolve co-eluting peaks, eliminate late-eluting interferences, and maximize signal-to-noise ratios in complex matrices.

Sample Compatibility & Compliance

The GC-2010 Pro handles liquid, gaseous, and solid samples following appropriate preparation (e.g., solvent extraction, derivatization, headspace equilibration, purge-and-trap, or thermal desorption). It meets essential requirements for GLP and GMP-compliant laboratories through hardware-level audit trail readiness and software-enforced user access controls. When operated with LabSolutions LE under validated configurations, the system supports 21 CFR Part 11 compliance via electronic signatures, secure data archiving, and immutable acquisition logs. Method parameters adhere to ASTM D3699 (gasoline analysis), ISO 10301 (volatile organic compounds), USP (chromatography), and EPA Methods 502.2, 8021B, and 8270D.

Software & Data Management

LabSolutions LE is a dedicated, intuitive chromatography data system (CDS) designed specifically for Shimadzu GC platforms. It provides integrated instrument control, real-time data acquisition, automated peak integration, calibration curve generation, and report templating — all within a single interface. The software supports concurrent control of up to two GC hosts (e.g., GC-2010 Pro + GC-2014C) and peripheral devices including AOC-20i/s autosamplers, HS-10/20 headspace samplers, and AOC-5000/6000 multi-purpose injectors. Data files conform to AIA/CDF standards, enabling seamless export to LIMS or third-party statistical analysis tools. Audit trail functionality records all parameter changes, injection events, and user actions with timestamps and operator IDs.

Applications

• Environmental analysis: VOCs in water/soil (EPA 524/8260), pesticide residues in crops (AOAC 2007.01), PCBs in sediments.
• Pharmaceutical quality control: Residual solvents (ICH Q3C), assay purity, genotoxic impurity screening.
• Food and flavor chemistry: Fatty acid methyl esters (FAMEs), aroma volatiles, ethanol quantification, adulterant detection.
• Petrochemical testing: Hydrocarbon type analysis (HTA), simulated distillation (ASTM D2887), sulfur speciation.
• Forensic toxicology: Blood alcohol, drug metabolites, accelerants in arson investigation.

FAQ

Does the GC-2010 Pro support unattended overnight operation?
Yes — when configured with an autosampler (e.g., AOC-20i/s or AOC-5000) and scheduled methods in LabSolutions LE, the system executes fully automated sequences with leak detection, pressure validation, and thermal shutdown safeguards.
Can I upgrade an existing GC-2010 Plus to GC-2010 Pro specifications?
Hardware upgrades are not supported; the GC-2010 Pro incorporates redesigned cooling hardware, enhanced electronics, and firmware-level optimizations that are not retrofittable to earlier models.
Is constant linear velocity (CLV) control available for all detector types?
CLV mode is implemented at the oven and inlet level and functions independently of detector selection — it applies uniformly across FID, TCD, ECD, FPD, and FTD configurations.
What validation documentation is provided with the instrument?
Shimadzu supplies Factory Acceptance Test (FAT) reports, IQ/OQ protocols (user-executable), and electronic copies of regulatory compliance statements covering electromagnetic compatibility (EMC), electrical safety (IEC 61010-1), and RoHS/REACH conformity.
How does the dual-jet cooling system impact column lifetime?
Rapid thermal cycling is mitigated by intelligent ramp/soak logic and inert gas purging during cooldown, preventing thermal shock to stationary phases — column longevity remains consistent with standard GC operating practices.
