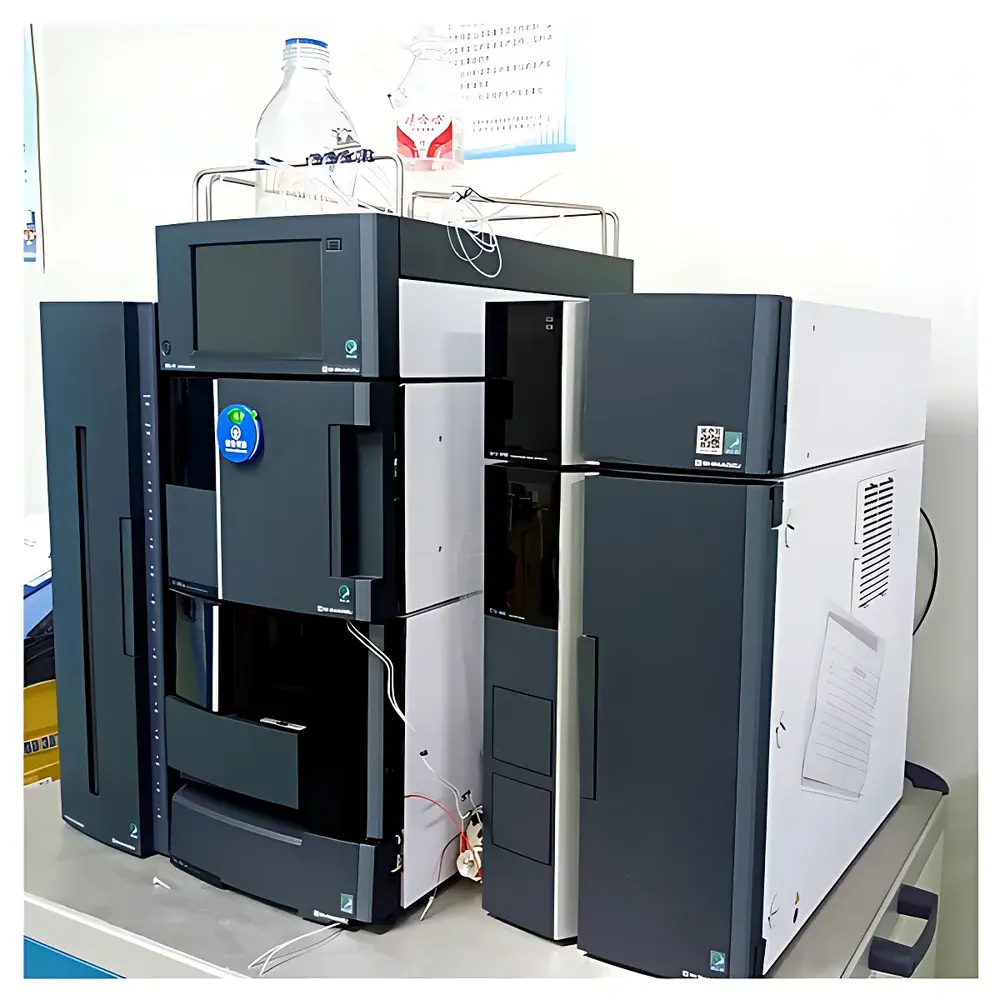

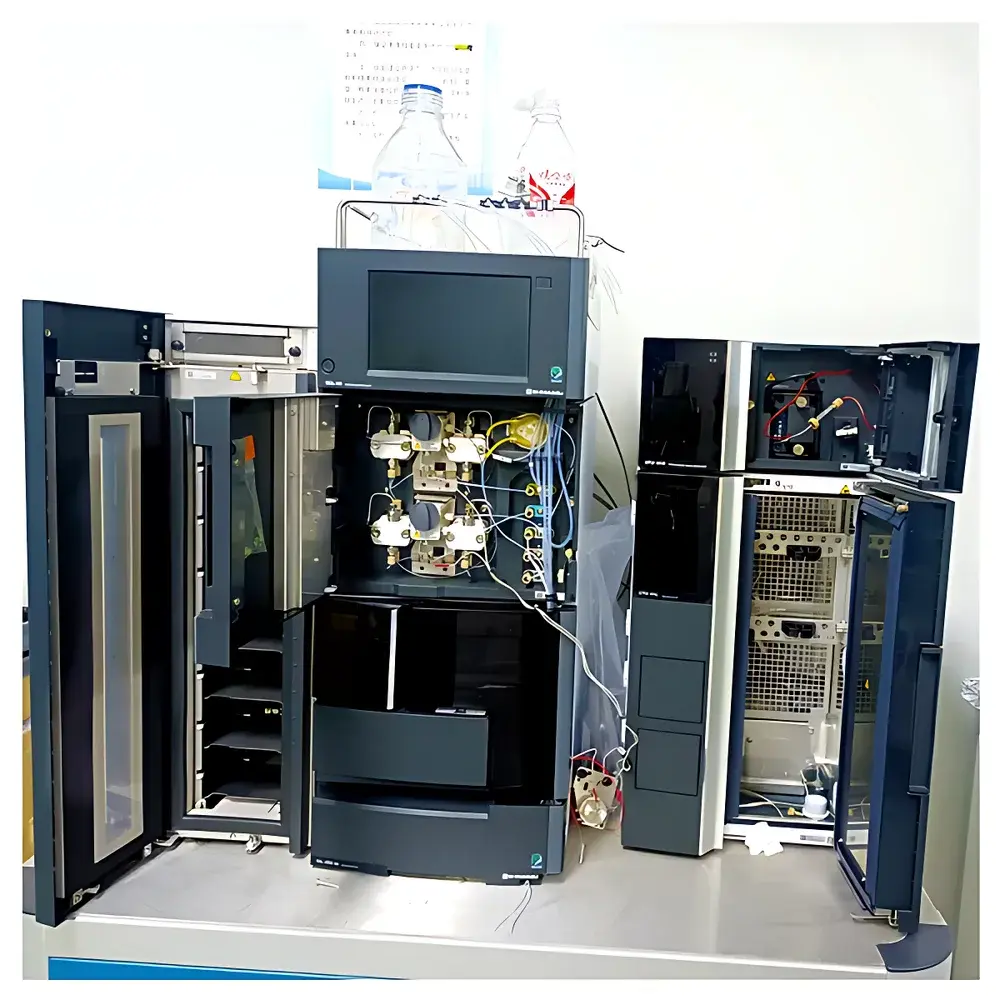

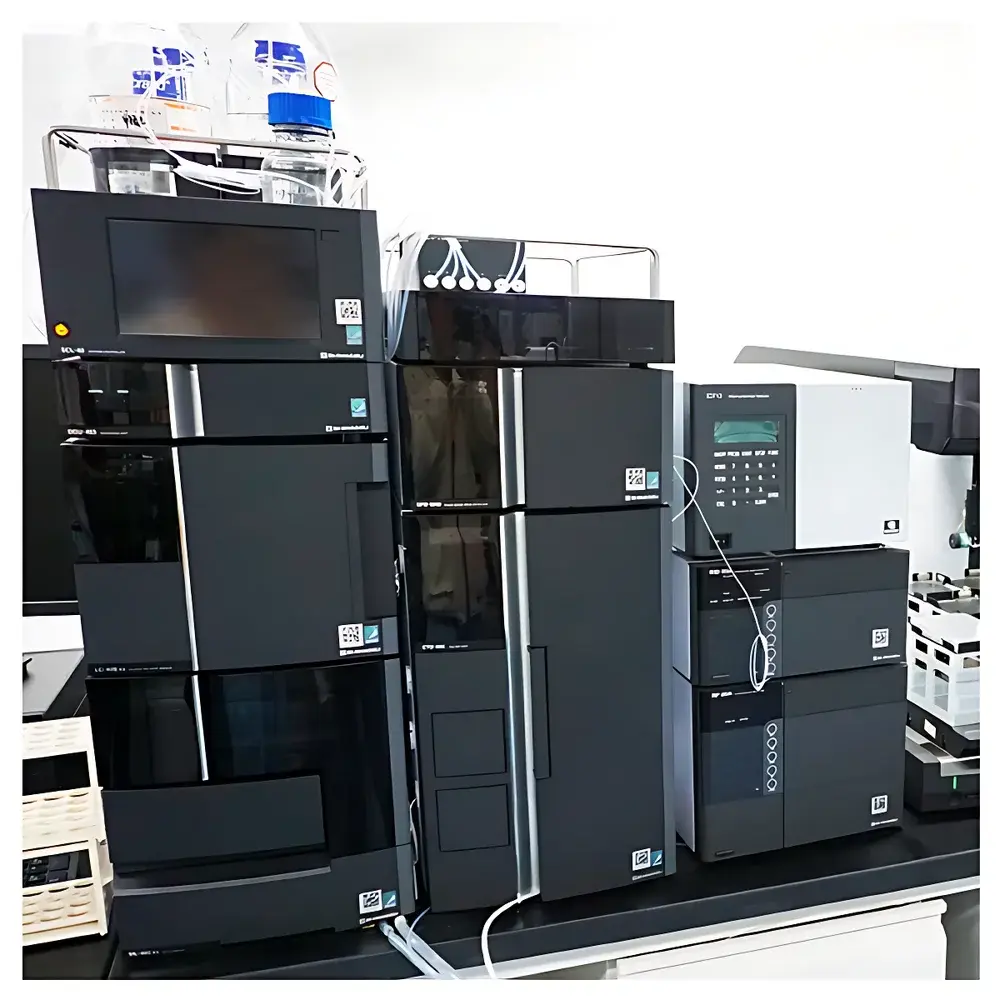

Shimadzu Nexera LC-40 Series Ultra-High Performance Liquid Chromatograph

Overview

The Shimadzu Nexera LC-40 Series is an integrated ultra-high performance liquid chromatography (UHPLC) platform engineered for precision, robustness, and operational continuity in regulated and research-intensive laboratories. Built upon Shimadzu’s fourth-generation Nexera architecture, the LC-40 system employs high-pressure gradient pumping (up to 130 MPa), low-dispersion fluidic pathways, and thermally stabilized optical detection to deliver sub-2 µm particle column compatibility, reduced analysis time, and enhanced peak resolution. Its modular design supports both reversed-phase and HILIC separations, with seamless integration of UV-Vis absorbance (SPD-40/SPD-40V), diode array (SPD-M40), and optional mass spectrometry interfaces. The system operates under a unified control framework—LabSolutions™ CS—enabling method-driven workflows, electronic lab notebook (ELN) synchronization, and full traceability from sample injection to report generation.

Key Features

• Triple-zone temperature control across pump, autosampler, and detector compartments ensures thermal stability critical for retention time reproducibility (<0.02 min RSD over 24 h).
• Integrated binary gradient pump (LC-40) with real-time pressure monitoring and self-diagnostic algorithms enables automatic error detection, solvent priming recovery, and flow recalibration without manual intervention.
• SIL-40 series autosampler featuring dual-needle technology achieves injection cycle times as low as 8 seconds, with carryover <0.005% (tested with caffeine in acetonitrile/water) and quantitative precision ≤0.2% RSD at 1 µL injections.
• MPM-40 solvent manager with capacitive level sensors provides continuous monitoring of mobile phase volume, automatic low-solvent alerts, and intelligent solvent switching logic to prevent air bubble formation.
• CTO-40 column oven incorporates active pre-heating of inlet tubing, dynamic pressure compensation, and embedded RFID reader for consumable tracking—automatically logging column ID, usage count, and pressure history into LabSolutions CS.
• SCL-40 system controller with 10.1-inch capacitive touchscreen supports one-touch purge, baseline diagnostics, and method validation checks; remote access via secure HTTPS interface compliant with enterprise IT policies.

Sample Compatibility & Compliance

The LC-40 platform accommodates diverse sample matrices—including biological fluids (plasma, urine), environmental extracts (PAHs, pesticides), pharmaceutical formulations (APIs, excipients), and polymer leachables—without hardware modification. All modules meet IEC 61010-1 safety standards and electromagnetic compatibility (EMC) requirements per EN 61326-1. For GxP environments, LabSolutions CS supports 21 CFR Part 11 compliance through role-based user authentication, electronic signatures, immutable audit trails, and automated backup of raw data, methods, and instrument logs. System suitability testing (SST) reports align with USP and EP 2.2.46 criteria, including tailing factor, resolution, and %RSD of replicate injections.

Software & Data Management

LabSolutions CS serves as the central analytical data management system, supporting multi-instrument aggregation, customizable report templates (PDF/CSV/XML), and integration with LIMS via ASTM E1384-compliant APIs. Raw chromatograms are stored in vendor-neutral ANDI format (.cdf), while processed results adhere to AnIML 1.0 metadata schema. The software includes predictive column health analytics—leveraging historical backpressure, asymmetry, and peak width trends—to generate maintenance alerts and estimate remaining column lifetime. All data operations—including reprocessing, integration parameter changes, and calibration updates—are timestamped, user-annotated, and version-controlled.

Applications

• Pharmaceutical QC/QA: Forced degradation studies, stability-indicating assays, and dissolution profile comparisons per ICH Q5C guidelines.
• Clinical Research: Quantitative bioanalysis of small-molecule drugs and metabolites in human plasma using protein precipitation or SPE sample prep.
• Environmental Monitoring: Multi-residue analysis of organophosphates, neonicotinoids, and PFAS compounds in water and soil extracts.
• Food Safety: Detection of mycotoxins (aflatoxin B1, ochratoxin A) and veterinary drug residues (tetracyclines, sulfonamides) at EU MRL levels.
• Academic & Method Development Labs: Rapid scouting of gradient conditions, column screening, and method transfer validation between UHPLC and conventional HPLC platforms.

FAQ

Does the LC-40 support post-column derivatization modules?
Yes—the system features two auxiliary solvent channels (via MPM-40) and programmable valve sequencing to integrate online derivatization reactors (e.g., o-phthalaldehyde for amino acids) with precise temperature and reaction time control.
Can LabSolutions CS be deployed on a virtualized Windows Server environment?
Yes—LabSolutions CS 5.92+ supports VMware vSphere 7.0+ and Microsoft Hyper-V with validated configurations for high-availability clusters and load-balanced client access.
Is the SPD-M40 DAD compatible with spectral library matching for unknown identification?
Yes—it supports NIST/EPA/NIH spectral libraries and enables peak purity assessment via peak tracking, target spectrum extraction, and spectral correlation scoring (Pearson coefficient ≥0.995 required for match confirmation).
What is the maximum number of columns supported in the CTO-40 column switcher configuration?
The CTO-40 can accommodate up to six columns simultaneously using the optional 6-port/2-position switching valve, enabling fully automated method development and multi-dimensional LC workflows.
How does the system handle mobile phase degassing during long unattended runs?
The LC-40 pump head integrates vacuum-assisted online degassing with real-time dissolved gas monitoring; system software triggers automatic solvent recirculation and pressure stabilization if dissolved oxygen exceeds 0.5 ppm threshold.
