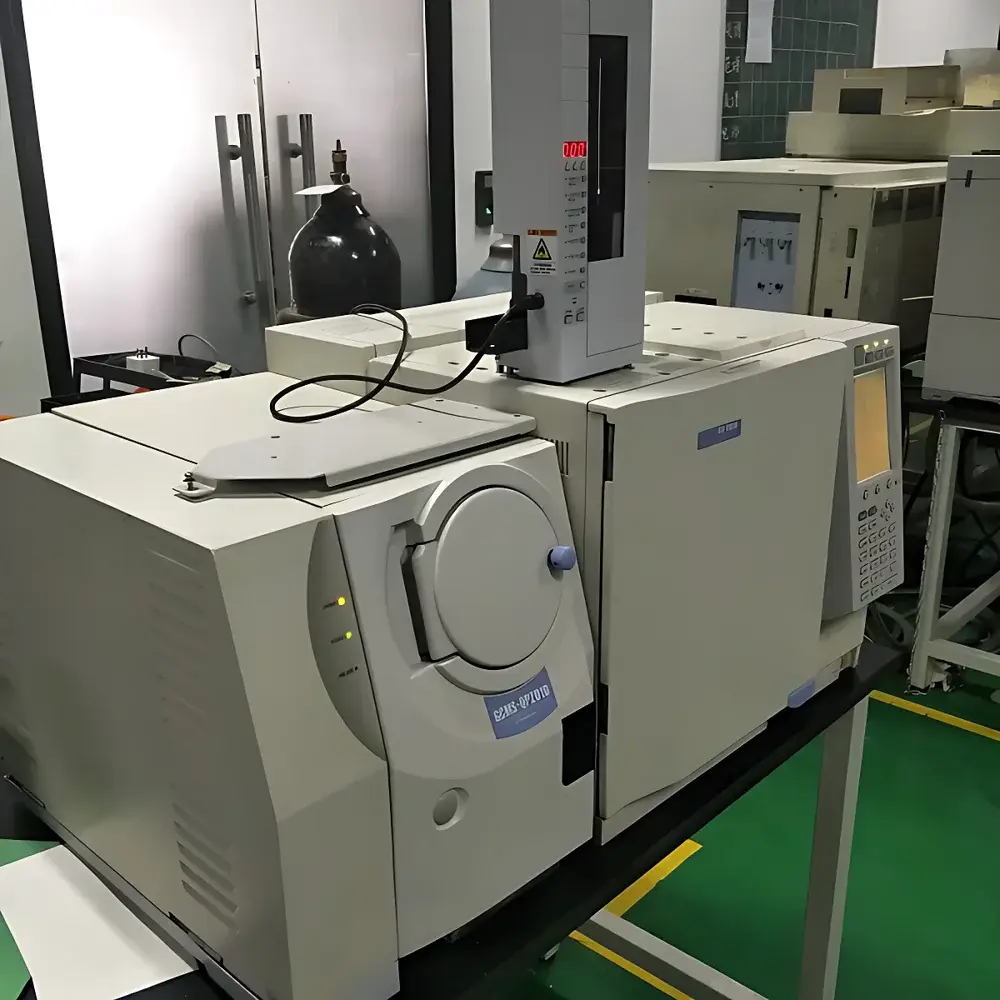

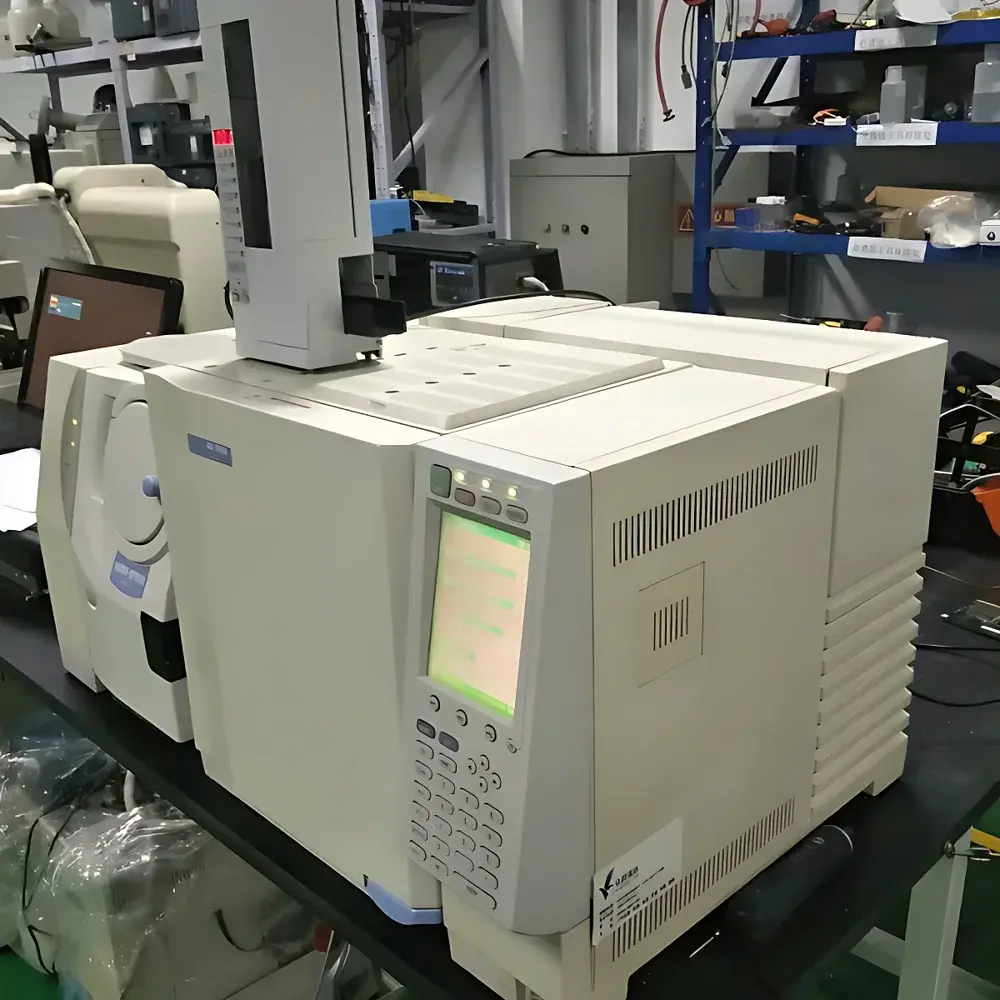

Shimadzu QP2010 Gas Chromatography-Mass Spectrometry (GC-MS) System – Rental & Technical Support Service
| Brand | Kyocera |
|---|---|
| Origin | Beijing, China |
| Supplier Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | Zl-QP2010 |
| Rental Rate | USD 1,550/month (approx.) |
Overview
The Shimadzu QP2010 is a benchtop gas chromatography-mass spectrometry (GC-MS) system engineered for robust qualitative and quantitative analysis of volatile and semi-volatile organic compounds. As a legacy-generation quadrupole mass spectrometer coupled with the GC-2010 Plus gas chromatograph, it operates on electron ionization (EI) and optional chemical ionization (CI) modes, delivering reliable spectral acquisition at unit mass resolution (m/Δm ≥ 1,000, FWHM). The system features a high-sensitivity ion source, optimized vacuum architecture with dual-stage turbomolecular pumping, and a temperature-controlled quadrupole mass filter designed for stable mass calibration over extended duty cycles. Its analytical utility spans environmental monitoring (e.g., EPA Method 8270), food safety residue screening, forensic toxicology, and polymer additive identification—particularly where method transfer from legacy GC-MS platforms or cost-sensitive access to validated workflows is required.
Key Features
- Integrated GC-2010 Plus platform with rapid oven cooling (≤ 3.5 min from 300 °C to 50 °C) and Advanced Flow Technology (AFT) for precise carrier gas control and backflush capability
- High-efficiency EI ion source with low-noise electron multiplier detector, enabling sub-pg-level detection limits for target analytes under standard operating conditions
- Quadrupole mass analyzer with mass range 1.5–1,050 u and scan speed up to 10,000 u/sec, supporting both full-scan and selected ion monitoring (SIM) acquisition
- Comprehensive hardware diagnostics and real-time vacuum monitoring via GCMSsolution software interface
- Modular design facilitating field-serviceable components including inlet liners, septa, column nuts, and ion source assemblies
Sample Compatibility & Compliance
The QP2010 accommodates standard 0.1–0.53 mm ID fused-silica capillary columns and supports common GC inlet configurations (split/splitless, PTV, and direct injection). It complies with foundational analytical standards including ASTM D5845 (determination of oxygenates in gasoline), ISO 16000-6 (indoor air VOC analysis), and USP <621> chromatographic system suitability requirements. While not natively 21 CFR Part 11 compliant, its data acquisition and reporting functions can be operated within validated laboratory environments adhering to GLP and GMP principles when paired with appropriate procedural controls and audit-trail documentation protocols.
Software & Data Management
Controlled by GCMSsolution v2.7x (or later compatible versions), the system provides intuitive method development tools, automated tune and calibration routines, spectral library search (NIST/EPA/WHO), and customizable report templates. Raw data files (.qgd) are stored in vendor-proprietary format but exportable to universal formats (e.g., .cdf, .txt) for third-party processing. All rental units include licensed software with concurrent user access, remote diagnostic support, and version-controlled firmware updates aligned with Shimadzu’s legacy support roadmap.
Applications
- Environmental testing: PAHs, PCBs, chlorinated pesticides, and phthalate esters in soil, water, and air samples
- Food and beverage analysis: Mycotoxin screening, flavor compound profiling, and adulterant detection
- Pharmaceutical R&D: Residual solvent quantification per ICH Q3C guidelines
- Forensic chemistry: Drug metabolite identification and toxicological screening in biological matrices
- Academic research: Method development, teaching laboratories, and short-term project-based instrumentation access
FAQ
What is included in the rental package?
A fully calibrated, functionally verified QP2010 system—including GC-2010 Plus, QP2010 mass spectrometer, GCMSsolution software license, standard consumables (column, septa, liner), and installation qualification (IQ) documentation.
Is preventive maintenance covered during the lease term?
Yes. Scheduled quarterly maintenance visits, component-level diagnostics, vacuum system integrity checks, and performance verification tests are included at no additional cost.
Can the instrument be upgraded or reconfigured during the rental period?
Hardware modifications (e.g., CI source addition, autosampler integration) require prior technical assessment and contractual amendment; software upgrades are provided as part of routine support.
What happens if the instrument requires unscheduled repair?
All repairs—including parts replacement, labor, and loaner instrument provisioning (subject to availability)—are covered under the service agreement without downtime penalties.
How is data security and system validation handled?
Instrument configuration logs, calibration records, and audit trails are maintained per client-defined SOPs; raw data ownership remains with the lessee, and no data is transmitted to third parties without explicit authorization.
