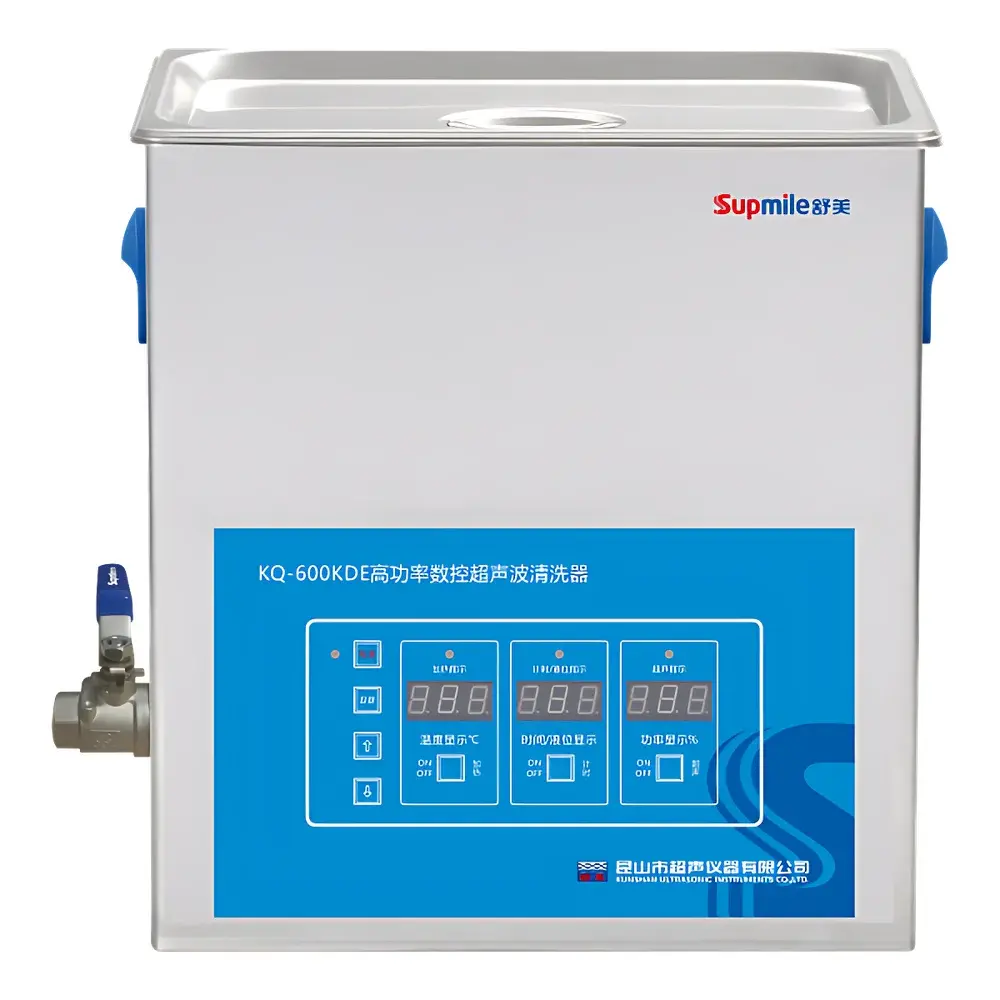

Shumei KQ-600KDE Benchtop High-Power Digital Ultrasonic Cleaner

Overview

The Shumei KQ-600KDE is a benchtop high-power digital ultrasonic cleaner engineered for consistent, repeatable cleaning of precision components, laboratory glassware, optical parts, medical instruments, and electronic assemblies. It operates on the principle of acoustic cavitation—where high-frequency sound waves (40 kHz) generate microscopic implosions in the cleaning solution, effectively dislodging particulate contaminants, organic residues, and thin oxide layers from surfaces without mechanical abrasion. Its 600 W nominal ultrasonic output—delivered via optimized piezoelectric transducers bonded to the stainless steel tank base—ensures rapid energy transfer and uniform field distribution across the full 15 L working volume. Designed for integration into QC labs, R&D facilities, and regulated manufacturing environments, the unit meets baseline structural and operational requirements for ISO/IEC 17025-compliant sample preparation workflows and supports GLP-aligned documentation practices through deterministic parameter logging.

Key Features

• Microprocessor-controlled operation with intuitive digital interface for independent adjustment of ultrasonic power (40–100%), heating temperature (ambient to 80 °C), and cycle duration (1–480 minutes)
• Robust 304 stainless steel tank and housing construction, resistant to corrosion from aqueous and mild solvent-based cleaning solutions
• Integrated safety architecture including automatic shutdown upon low liquid level detection, over-temperature condition, over-current draw, or open-circuit transducer failure
• Dual-function digital display showing both setpoints and real-time values for temperature, power percentage, elapsed time, and water level status
• High-efficiency transducer array with 100 W per element rating and broadband impedance matching for stable acoustic output under variable load conditions
• Sound-dampening hinged lid to reduce ambient noise emission and minimize solvent evaporation during heated cycles
• Manual inlet and drain valves with ergonomic handles for controlled fluid handling; compatible with deionized water, alkaline detergents, and low-toxicity solvents

Sample Compatibility & Compliance

The KQ-600KDE accommodates a wide range of sample geometries and material classes—including borosilicate glassware (vials, cuvettes, pipettes), stainless steel surgical tools, aluminum heat sinks, silicon wafers, and ceramic substrates—provided they are chemically compatible with the selected cleaning medium. The unit complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards). While not certified to UL or CE for standalone medical device reprocessing, its design aligns with ASTM D2603 (standard practice for ultrasonic cleaning verification) and supports validation protocols required under FDA 21 CFR Part 820 for cleaning process qualification. Optional calibration certificates for temperature and timer accuracy are available upon request for audit readiness.

Software & Data Management

This model operates via embedded firmware without external PC dependency. All user-defined parameters—including power level, temperature setpoint, and timer value—are retained in non-volatile memory after power cycling. The system logs operational events (e.g., activation timestamp, fault codes, shutdown cause) internally for up to 50 cycles, accessible via diagnostic mode. While no proprietary software suite is bundled, the digital interface enables traceable manual entry into laboratory notebooks or LIMS-compatible spreadsheets. For GxP environments, users may implement supplemental audit trails using third-party environmental monitoring systems interfaced via RS-232 (optional add-on module).

Applications

• Routine cleaning of HPLC vials, GC autosampler trays, and spectrophotometer cells prior to quantitative analysis
• Pre-sterilization preparation of reusable surgical instruments in hospital central supply departments
• Removal of flux residue and particulate debris from PCB assemblies in electronics manufacturing QA labs
• Surface decontamination of catalyst-coated reactor components in catalysis research
• Preparation of TEM grids and SEM stubs requiring sub-micron particulate removal
• Supporting ASTM E1912 (standard guide for ultrasonic cleaning of metal parts) and ISO 15753 (cleaning validation for medical devices)

FAQ

Is the KQ-600KDE suitable for cleaning delicate optics or MEMS devices?
Yes—when operated at reduced power (40–60%) and with low-surface-tension, low-foaming aqueous cleaners, it has been validated for cleaning fused silica lenses and silicon-based microstructures without inducing surface pitting or coating delamination.
Can this unit be used with flammable solvents?
No. The KQ-600KDE is rated for aqueous and polar solvent use only. Flammable or chlorinated solvents require explosion-proof ultrasonic systems with intrinsically safe transducers and sealed electrical compartments.
What maintenance is required for long-term reliability?
Transducer performance should be verified annually via acoustic output mapping; tank integrity inspections for weld seam corrosion are recommended every 24 months. Replace the silicone gasket on the drain valve if leakage is observed after repeated thermal cycling.
Does the unit support remote monitoring or data export?
Not natively. However, an optional RS-232 communication module (part #KQ-RS232-KIT) enables serial connection to SCADA or LabVIEW for automated parameter logging and alarm notification.
How does the low-water-level protection function?
A capacitive sensor array embedded in the tank bottom detects dielectric changes corresponding to fluid height. If the level falls below the minimum operational threshold (≈40 mm), the system halts ultrasonic output and heating within 2 seconds and displays “LO” on the main screen.
