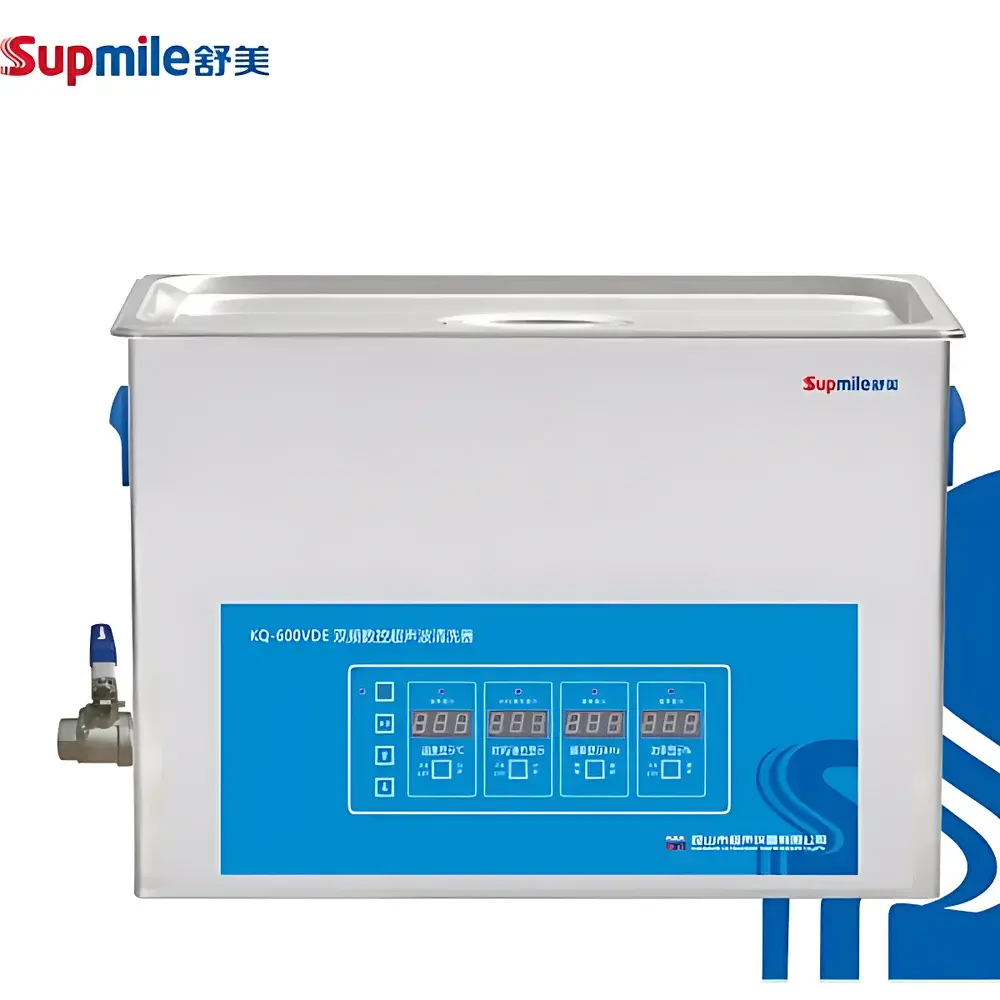

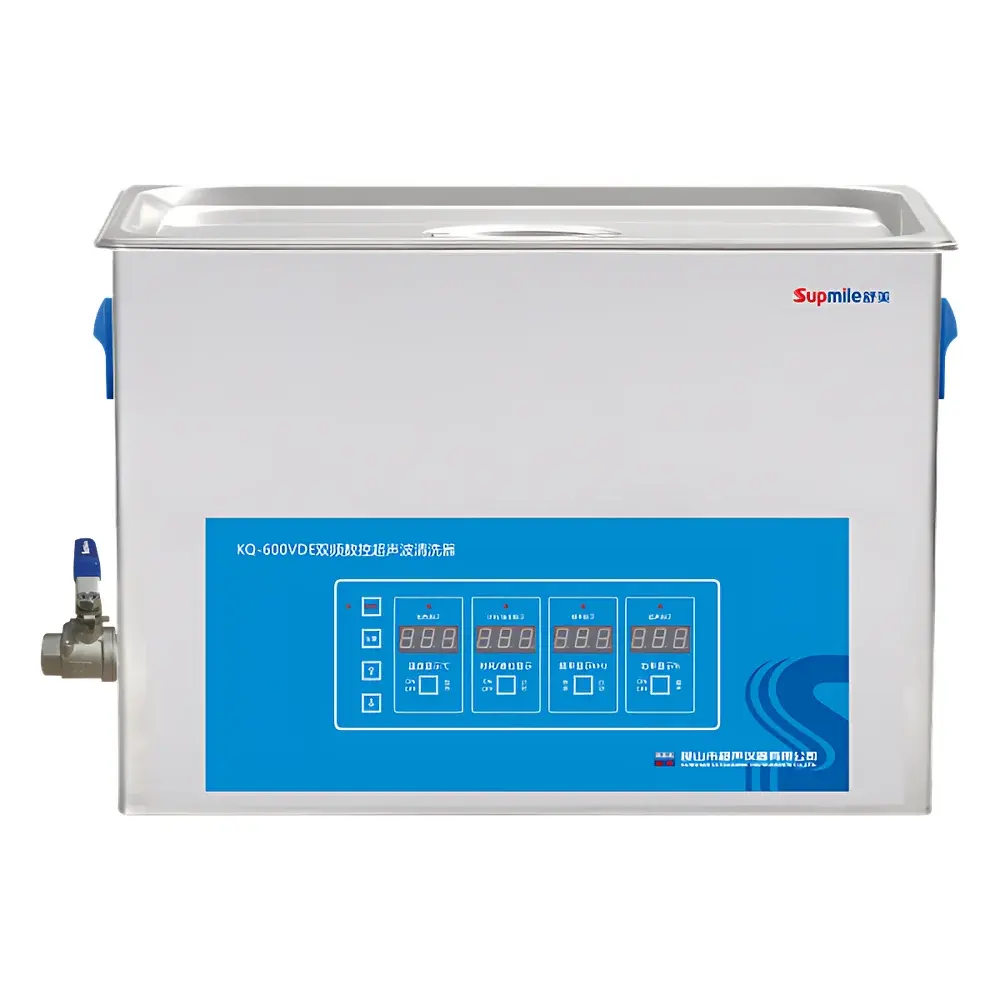

Shumei KQ-600VDE Dual-Frequency Digital Ultrasonic Cleaner

Overview

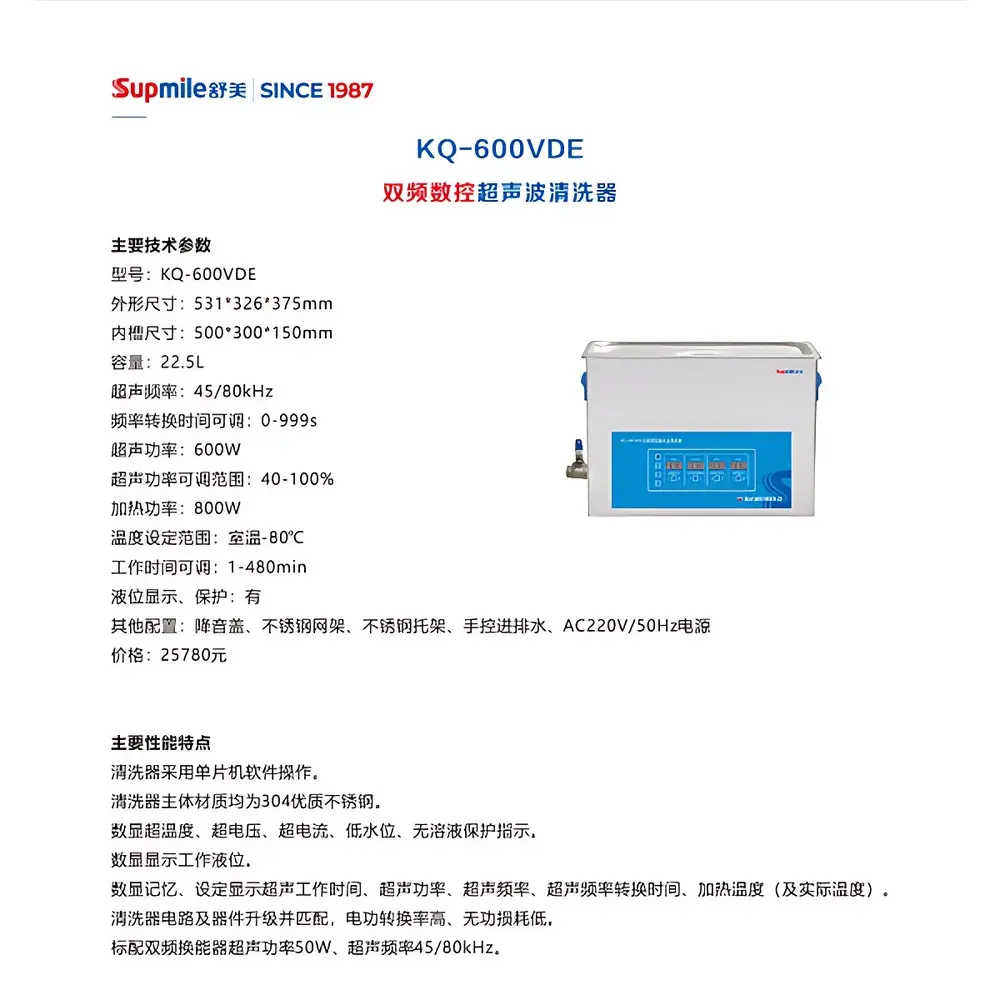

The Shumei KQ-600VDE Dual-Frequency Digital Ultrasonic Cleaner is an engineered solution for precision cleaning of laboratory glassware, optical components, semiconductor wafers, medical instruments, and precision mechanical parts. It operates on the principle of acoustic cavitation—generating controlled micro-bubbles in liquid media through high-frequency sound waves (45 kHz and 80 kHz), which collapse violently to dislodge particulate contaminants, organic residues, and biofilms from surfaces without mechanical abrasion. The dual-frequency capability enables optimization across diverse sample geometries and soil types: lower-frequency (45 kHz) cavitation delivers higher energy per bubble for robust removal of tenacious particles, while higher-frequency (80 kHz) operation produces finer, more uniformly distributed bubbles ideal for delicate substrates and sub-micron contamination. Designed for continuous-duty laboratory environments, the unit features a monolithic 304 stainless steel tank (500 × 300 × 150 mm internal), full digital microcontroller-based operation, and integrated thermal and electrical safety interlocks compliant with IEC 61010-1 requirements for laboratory equipment.

Key Features

• Dual-frequency ultrasonic generation (45 kHz and 80 kHz) with user-selectable switching intervals (0–999 s) to adapt cleaning dynamics to sample composition and contamination profile.
• 600 W total ultrasonic power output, continuously adjustable from 40% to 100%, enabling reproducible energy delivery across validation protocols.
• Integrated heating system (800 W) with precise temperature control from ambient to 80 °C, supporting aqueous and solvent-based cleaning chemistries requiring thermal activation.
• Full digital LED interface displaying real-time parameters: ultrasonic power level, active frequency, elapsed/remaining time, set and actual bath temperature, and liquid level status.
• Comprehensive safety architecture including low-level liquid detection, over-temperature cutoff, over-voltage and over-current monitoring, and automatic shutdown upon fault condition detection.
• Acoustically damped lid included as standard to reduce airborne noise emission and minimize solvent evaporation during extended cycles.
• Manual inlet and drain valves for flexible integration into lab utility infrastructure; compatible with deionized water, ethanol, isopropanol, and alkaline or acidic aqueous detergents.

Sample Compatibility & Compliance

The KQ-600VDE accommodates a broad range of sample formats—including beakers, flasks, Petri dishes, pipette tips, surgical tools, MEMS devices, and PCB assemblies—within its 22.5 L working volume. Its non-aggressive, non-contact cleaning mechanism preserves dimensional integrity and surface finish of sensitive optics, coated lenses, and thin-film substrates. The unit meets structural and electrical safety requirements outlined in IEC 61010-1:2010 (Edition 3) for measurement, control, and laboratory equipment. While not certified to ISO 13485 or FDA 21 CFR Part 11, its programmable parameters, digital logging capability (via optional RS232/USB interface), and repeatable cycle execution support alignment with GLP and GMP documentation practices when integrated into validated cleaning SOPs.

Software & Data Management

The embedded microcontroller provides deterministic timing and parameter retention across power cycles. All operational settings—including frequency selection, power percentage, temperature setpoint, timer duration, and frequency-switching interval—are stored in non-volatile memory and recalled at startup. Optional communication modules (RS232 or USB-to-serial) enable remote parameter configuration and timestamped cycle logging for audit trails. Data export supports CSV formatting for integration with LIMS or quality management systems. No proprietary software installation is required; terminal emulation or custom scripts can retrieve real-time status and historical run logs.

Applications

• Cleaning of HPLC vials, GC autosampler trays, and chromatography columns prior to analytical use.
• Removal of photoresist residues and etch byproducts from silicon wafers and photomasks in microfabrication labs.
• Decontamination of reusable surgical instruments and endoscopic components in biomedical research settings.
• Preparation of TEM grids and AFM cantilevers by eliminating hydrocarbon adsorbates and particulates.
• Surface preparation of metal coupons prior to corrosion testing or coating adhesion evaluation (ASTM D3359, ISO 2409).
• Routine maintenance of quartz cuvettes, optical filters, and laser optics in spectroscopy and photonics laboratories.

FAQ

Is the KQ-600VDE suitable for cleaning delicate MEMS devices?

Yes—the 80 kHz mode generates finer cavitation bubbles with reduced implosion energy, minimizing risk of mechanical damage to microstructures while maintaining effective particle removal.
Can the unit operate continuously for extended periods?

It is rated for intermittent duty cycles up to 480 minutes; for unattended overnight operation, ensure proper ventilation, stable power supply, and adherence to liquid level safety thresholds.
Does it support validation documentation for regulated environments?

While the base unit lacks built-in electronic signature or audit trail functionality, its digital parameter retention, timer accuracy (<±0.5%), and optional data logging enable integration into IQ/OQ/PQ protocols when paired with external verification tools.
What cleaning solutions are compatible with the stainless steel tank?

Aqueous alkaline detergents (e.g., Alconox®, Liquinox®), ethanol, isopropanol, and mild acidic solutions (pH ≥2) are compatible; avoid halogenated solvents and strong oxidizers (e.g., nitric acid >10%) to preserve tank integrity.
Is the heating function independent of ultrasonic activation?

Yes—temperature control operates independently; users may heat the bath without sonication for pre-wetting or solvent conditioning, or activate both simultaneously for thermally enhanced cleaning.
