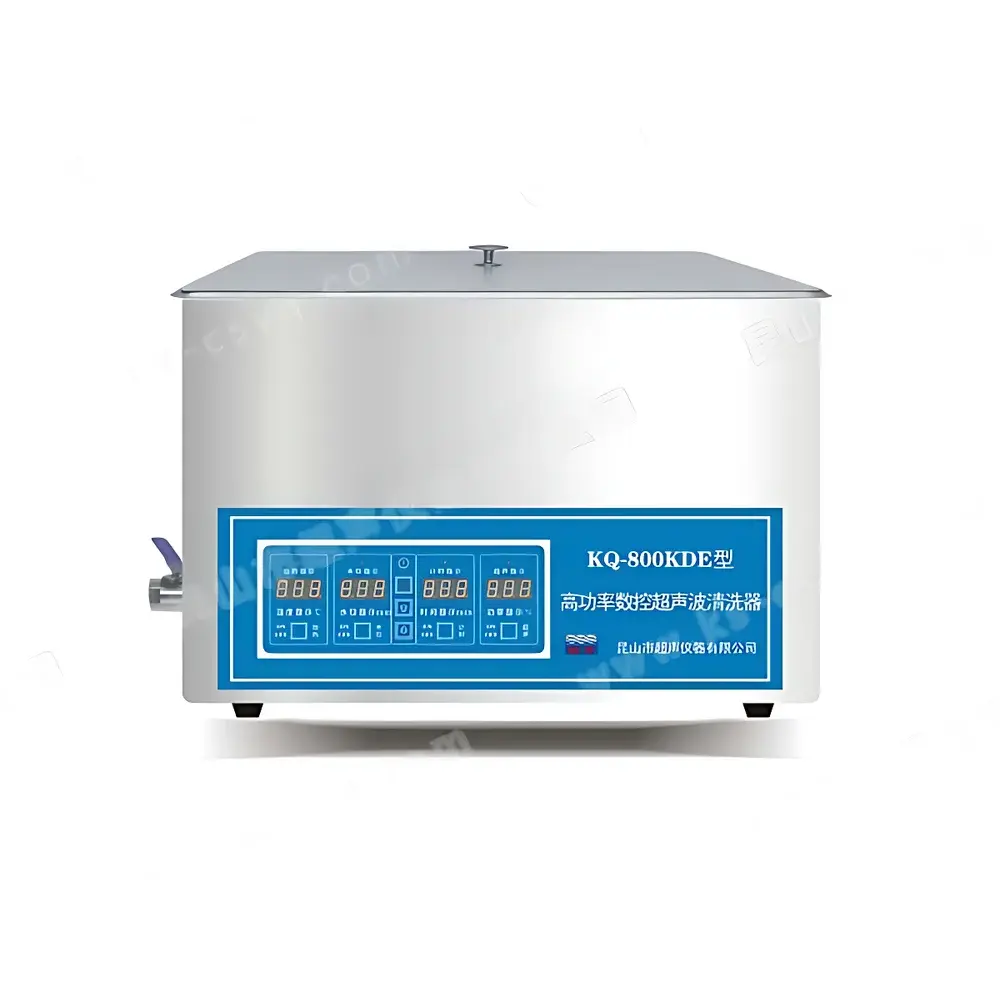

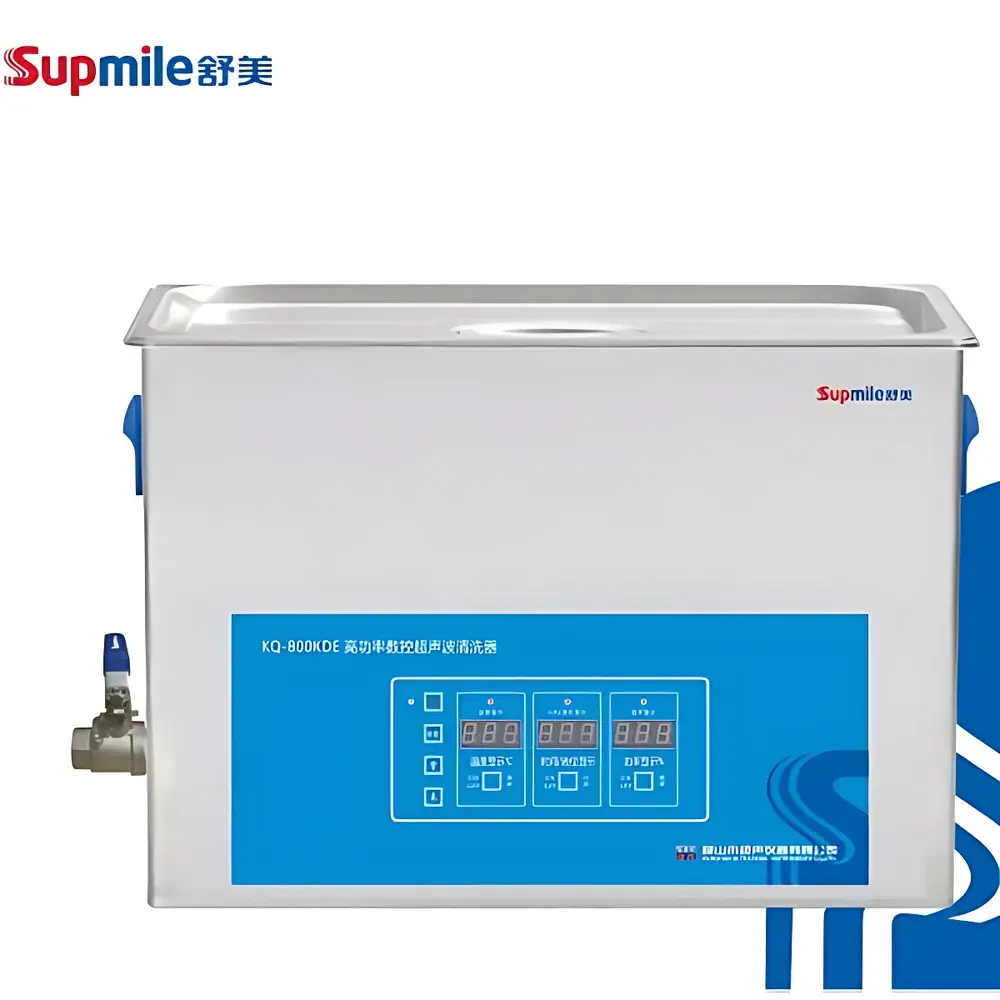

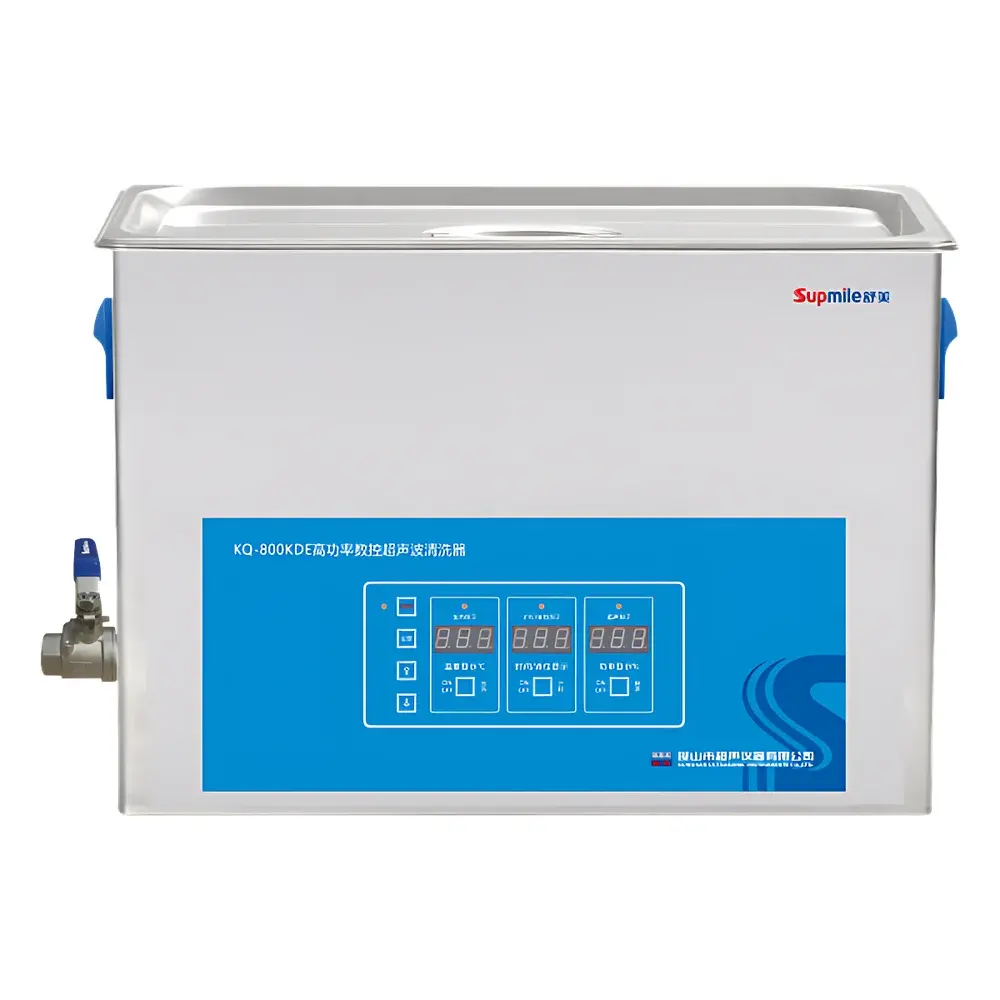

Shumei KQ-800KDE Desktop High-Power Digital Ultrasonic Cleaner

Overview

The Shumei KQ-800KDE is a high-power, microprocessor-controlled desktop ultrasonic cleaner engineered for reproducible, high-efficiency cleaning of precision laboratory components, optical elements, surgical instruments, electronic assemblies, and analytical sample preparation vessels. It operates on the principle of cavitation-induced mechanical agitation—generated by piezoelectric transducers vibrating at a fixed frequency of 40 kHz—to dislodge particulate contaminants, organic residues, and biofilms from submerged surfaces. With a nominal ultrasonic output of 800 W and a robust 22.5 L stainless steel tank constructed entirely from ASTM A240 304 grade material, the KQ-800KDE delivers uniform energy distribution across large or multi-part loads. Its integrated heating system (800 W) enables temperature-assisted cleaning protocols critical for removing waxy, viscous, or thermally labile residues—supporting validated workflows in QC laboratories, medical device reprocessing units, and semiconductor R&D environments.

Key Features

• Microcontroller-based digital interface with real-time display of ultrasonic power (%), bath temperature (°C), elapsed time (min), and liquid level status
• Adjustable ultrasonic intensity (40–100% in 10% increments) to optimize energy delivery for delicate vs. heavily soiled substrates
• Precise thermostatic control (10–80 °C, ±1 °C accuracy) with independent heating element and PID feedback loop
• Programmable timer (1–480 minutes) with auto-shutdown and audible end-of-cycle alert
• Comprehensive safety architecture: low-water cutoff, overtemperature shutdown, overvoltage/overcurrent protection, and continuous self-diagnostic monitoring
• Acoustically insulated lid with ergonomic latch mechanism to reduce ambient noise and prevent solvent evaporation
• Standard accessories include 304 stainless steel mesh basket, support rack, manual drain valve, and fill port with level indicator

Sample Compatibility & Compliance

The KQ-800KDE accommodates a wide range of sample geometries—including glassware (vials, cuvettes, chromatography columns), metal tools (tweezers, forceps, biopsy punches), ceramic substrates, and polymer-based microfluidic devices—without risk of surface pitting or etching when operated within recommended parameters. Its 304 stainless steel tank complies with ISO 8502-3 for corrosion resistance in aqueous cleaning media. While not certified to FDA 21 CFR Part 11 out-of-the-box, the device supports GLP/GMP-aligned documentation practices through its non-volatile memory that retains last-used settings and operational logs. The unit meets IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards), and its electrical design conforms to GB 4793.1–2007 (equivalent to IEC 61010-1) for laboratory equipment safety.

Software & Data Management

The KQ-800KDE features embedded firmware with persistent parameter memory—retaining user-defined power, temperature, and timing configurations across power cycles. Though it lacks Ethernet or USB data export capabilities, all operational states (including fault codes, runtime, and thermal history) are displayed in real time and logged locally via LED indicators and status icons. For regulated environments, users may integrate the cleaner into broader validation protocols using external data loggers connected to the analog temperature output (0–5 V DC proportional to bath temperature). The interface supports multilingual label overlays (English, Spanish, German) via optional firmware update kits—facilitating deployment in multinational research facilities.

Applications

• Cleaning HPLC, GC, and ICP-MS sample introduction components (injector needles, autosampler vials, nebulizers)
• Decontamination of reusable surgical and dental instruments prior to sterilization
• Removal of photoresist, flux residue, and polishing compounds from MEMS and PCB substrates
• Pre-analytical preparation of environmental filters, soil cores, and biological tissue specimens
• Surface activation and degassing of solvents prior to spectroscopic or electrochemical analysis
• Routine maintenance of quartz crystal microbalances (QCM), AFM probes, and optical mirrors

FAQ

Is the ultrasonic power output calibrated and traceable to national standards?
The transducer assembly is factory-tuned to deliver nominal 800 W at 40 kHz; however, no NIST-traceable calibration certificate is included. Users requiring metrological verification may perform acoustic power measurement per ASTM E1065 using a calibrated hydrophone.
Can this unit be used with flammable solvents such as acetone or ethanol?
No. The KQ-800KDE is rated for aqueous and water-miscible solutions only. Operation with volatile organic solvents poses fire hazard and voids warranty due to absence of explosion-proof enclosure or intrinsically safe circuitry.
What maintenance is required for long-term reliability?
Routine tasks include descaling the tank every 2–4 weeks (depending on water hardness), inspecting the transducer bonding layer for delamination, and verifying seal integrity of the drain valve. Annual inspection of thermal fuses and power supply capacitors is recommended for continuous-use installations.
Does the unit support external trigger input for synchronized operation with other lab instruments?
No. The KQ-800KDE has no TTL, relay, or RS-232 control interface. All operations are initiated and managed exclusively via front-panel controls.
How does the low-level liquid protection function?
An integrated conductive probe detects electrolyte continuity between two fixed points in the tank base. If solution volume falls below the minimum operating level (≈12 L), the system disables ultrasonics and heating, displays “LO” on the screen, and activates an audible alarm until refilled.
