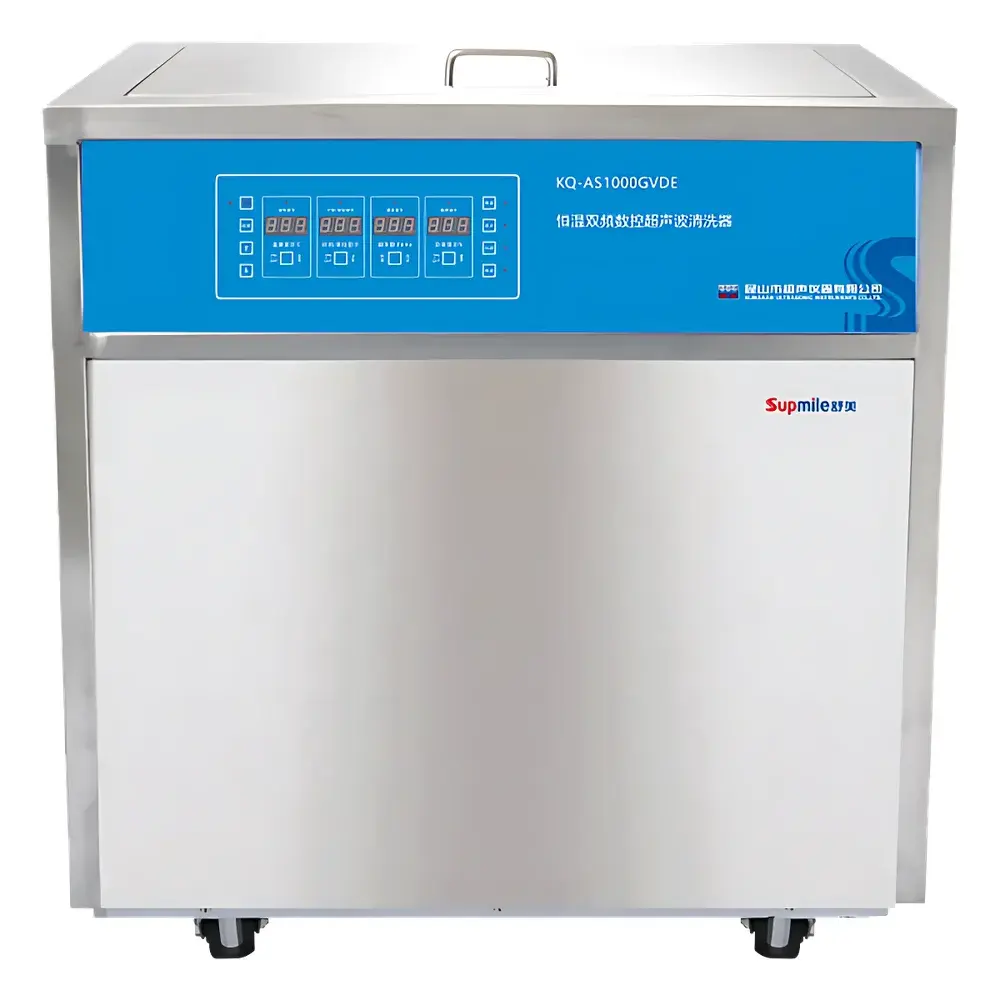

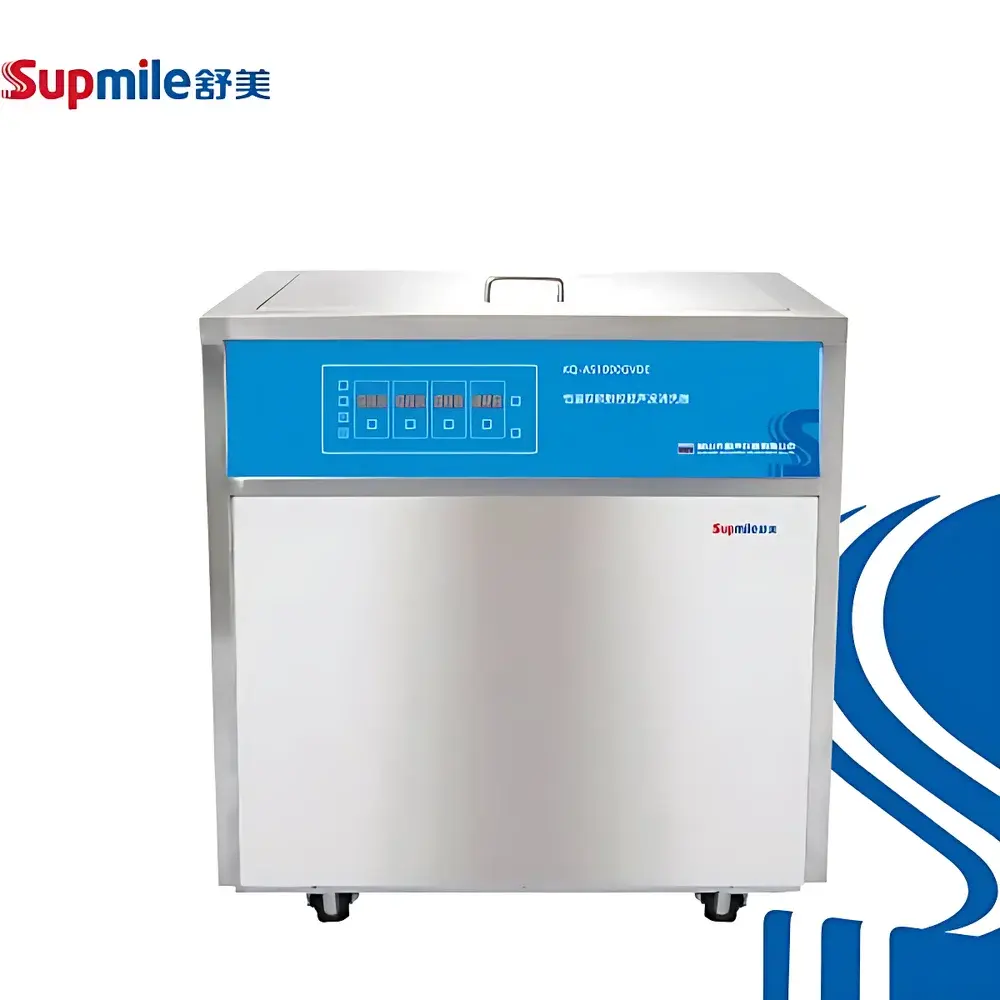

Shumei KQ-AS1000GVDE Dual-Frequency Programmable Temperature-Controlled Ultrasonic Cleaner

Overview

The Shumei KQ-AS1000GVDE is a dual-frequency, microprocessor-controlled ultrasonic cleaner engineered for precision cleaning, degassing, and surface preparation in regulated laboratory, pharmaceutical, and quality control environments. It operates on the principle of acoustic cavitation—where high-frequency sound waves generate transient microbubbles in liquid media that collapse violently upon reaching resonance, producing localized shockwaves and microstreaming capable of dislodging particulate contaminants, organic residues, and biofilms from complex geometries. Its dual-frequency capability (45 kHz and 80 kHz) enables selective optimization: lower frequency delivers higher energy per cavitation event—ideal for robust removal of heavy particulates and machining oils—while the higher frequency offers finer, more uniform cavitation distribution suited for delicate optics, MEMS devices, and precision instrumentation components. The integrated thermoregulation system maintains bath temperature within ±2 °C of setpoint across the full 0–80 °C range, ensuring process repeatability for temperature-sensitive applications such as enzymatic decontamination or solvent-assisted extraction.

Key Features

• Dual-frequency ultrasonic generation (45 kHz / 80 kHz) with user-defined switching intervals (0–999 s), enabling adaptive cleaning protocols for heterogeneous sample loads.
• 1000 W total ultrasonic power output, continuously adjustable from 40% to 100% in 1% increments for fine-tuned energy delivery and reduced sample erosion.
• Programmable temperature control (0–80 °C) supported by 3000 W heating and 1000 W active cooling modules—critical for maintaining thermal stability during extended cycles or exothermic cleaning chemistries.
• Electrically actuated noise-reduction lid with interlocked safety cutoff, reducing operational sound pressure levels to ≤65 dB(A) at 1 m distance.
• Full digital interface with real-time display of bath temperature (setpoint and actual), ultrasonic power level, selected frequency, elapsed time, liquid level, and fault status codes.
• Comprehensive protection suite including low-level liquid detection, over-temperature lockout, over-voltage/over-current monitoring, and dry-run prevention—ensuring compliance with IEC 61000-6-2/6-4 EMC and IEC 61010-1 safety standards.
• 304 stainless steel tank and housing construction with electropolished interior surfaces, resistant to corrosion from aqueous, alkaline, and mild organic solvents.

Sample Compatibility & Compliance

The KQ-AS1000GVDE accommodates a broad spectrum of laboratory substrates—including glassware (vials, cuvettes, pipettes), metal components (surgical instruments, calibration standards), ceramic filters, polymer-based microfluidic chips, and semiconductor wafers—without compromising structural integrity. Its 72 L capacity supports batch processing of large-volume fixtures or multi-rack configurations. All electronic controls conform to GLP/GMP documentation requirements: parameter settings are retained in non-volatile memory, and operation logs—including start/stop timestamps, temperature profiles, and power modulation history—can be exported via USB for audit trail generation. While not certified for ISO 13485 or FDA 21 CFR Part 11 out-of-the-box, the system’s deterministic behavior, hardware-enforced safety interlocks, and traceable parameter logging provide a foundation for site-specific validation under ASTM D2603 (Standard Test Method for Sonic Shear Stability of Lubricants) or USP particulate matter testing workflows.

Software & Data Management

The embedded microcontroller executes deterministic real-time scheduling with no external PC dependency. All operational parameters—including frequency selection, power ramping profiles, temperature ramp/soak sequences, and timer-based stage transitions—are programmable and stored in EEPROM with write-cycle endurance exceeding 100,000 cycles. A dedicated USB port enables firmware updates and secure export of cycle execution reports in CSV format. Optional RS-485 Modbus RTU interface (available upon request) supports integration into centralized laboratory information management systems (LIMS) or supervisory control and data acquisition (SCADA) platforms for remote monitoring and automated workflow triggering.

Applications

• Precision cleaning of HPLC autosampler vials, GC liners, and mass spectrometry ion sources prior to analysis.
• Removal of solder flux, oxide layers, and polishing compounds from PCB assemblies and metrology artifacts.
• Preparation of reference standards and calibration materials requiring particle-free surfaces per ISO 14644-1 Class 5 cleanroom protocols.
• Cell culture flask and bioreactor component decontamination using validated aqueous enzymatic solutions.
• Supporting ASTM E1245 (Standard Practice for Determining the Inclusion or Second-Phase Constituent Content of Metals) through consistent ultrasonic dispersion of metallographic specimens.

FAQ

Is the KQ-AS1000GVDE suitable for use with flammable solvents?

No. This unit is designed exclusively for aqueous and water-miscible cleaning solutions. Flammable or volatile organic solvents require explosion-proof certified equipment meeting ATEX or IECEx directives.
Can the dual-frequency mode operate simultaneously at both 45 kHz and 80 kHz?

No. Frequency selection is sequential and programmable; the system alternates between the two frequencies based on user-defined dwell times, not concurrent emission.
Does the unit include validation documentation for IQ/OQ/PQ protocols?

The base configuration includes a factory calibration certificate covering temperature accuracy and timer linearity. Full qualification support—including template protocols, sensor traceability records, and performance verification test scripts—is available as an optional service package.
What maintenance is required for long-term reliability?

Routine inspection of transducer coupling integrity, periodic replacement of filtration cartridges (every 6 months under continuous use), and annual verification of temperature sensor calibration against NIST-traceable references are recommended.
Is remote monitoring or Ethernet connectivity supported?

Standard configuration includes USB and optional RS-485 Modbus RTU. Ethernet or Wi-Fi interfaces are not integrated but may be added via third-party industrial gateways compatible with Modbus TCP.
