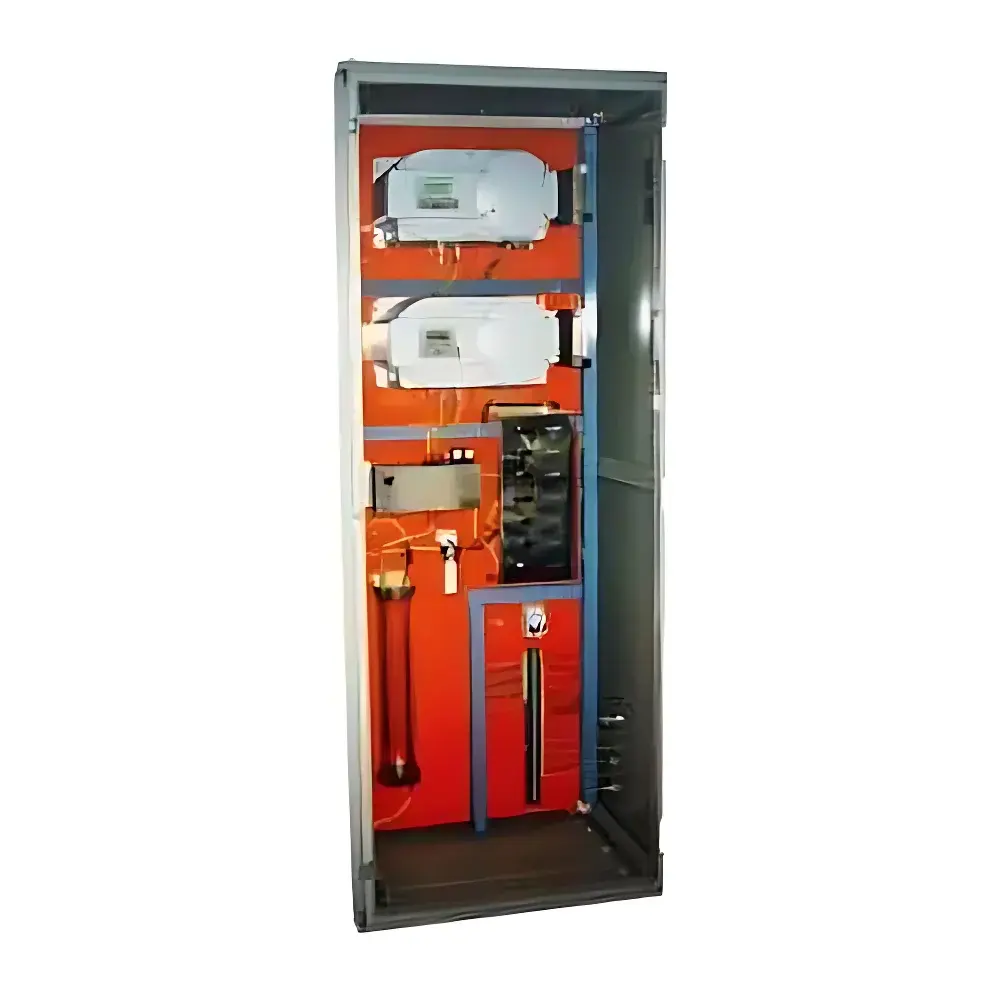

SIELINS XLZ-901 Petrochemical Process Analytical Monitoring System

Overview

The SIELINS XLZ-901 Petrochemical Process Analytical Monitoring System is an engineered-in-place solution designed for continuous, real-time compositional and physical property analysis in demanding upstream, midstream, and downstream petrochemical process environments. It operates on the principle of integrated process analytical technology (PAT), combining robust in-situ or extractive sampling with modular, application-specific analyzers—including but not limited to gas chromatography (GC), Fourier-transform infrared spectroscopy (FTIR), tunable diode laser absorption spectroscopy (TDLAS), and density/viscosity transducers—configured to meet zone-specific hazardous area requirements. The system is purpose-built to address the analytical challenges inherent in high-temperature, high-pressure, moisture-saturated, corrosive, and fouling-prone process streams—such as crude distillation unit (CDU) overheads, fluid catalytic cracking (FCC) regenerator flue gas, hydroprocessing reactor effluents, and amine solvent loops—where conventional lab-based analysis introduces unacceptable time lags and operational risk.

Key Features

• Explosion-proof certified probe assemblies (certified to IECEx/ATEX Zone 1/21 and GB/T 3836 standards) for direct in-line or sidestream insertion into Class I Division 1 or Zone 0/1 hazardous locations
• Multi-stage sample conditioning system featuring heated trace lines (up to 200 °C), coalescing filters, particulate removal (down to 1 µm), corrosion-resistant wetted materials (Hastelloy C-276, Inconel 625, PFA-lined components), and automatic moisture separation with condensate purge logic
• Modular analyzer integration architecture supporting up to four concurrent analytical technologies within a single rack-mounted enclosure, with hot-swappable modules and redundant power/data interfaces
• Real-time data acquisition and control interface compliant with OPC UA (IEC 62541) and Modbus TCP protocols, enabling seamless integration into DCS, SIS, and APC platforms
• Self-diagnostics and predictive maintenance alerts based on flow stability, pressure drop across filters, heater current draw, and calibration drift monitoring
• Structural design conforming to ASME B31.4/B31.8 piping codes and API RP 500/505 classification guidelines for hydrocarbon service

Sample Compatibility & Compliance

The XLZ-901 accommodates highly heterogeneous process streams including sour gas (H₂S, CO₂, mercaptans), wet hydrocarbon vapors (C₁–C₁₀), amine-rich aqueous solutions, heavy naphtha fractions, and residue streams containing suspended coke fines or catalyst particles. Its sample handling subsystem maintains thermodynamic integrity through temperature-controlled transport and phase stabilization, minimizing fractionation or adsorption losses. All wetted materials are selected per NACE MR0175/ISO 15156 for sour service compatibility. The system supports compliance with ISO 8573-1 (compressed air quality), ASTM D7622 (on-line hydrocarbon analysis), and IEC 61511 functional safety requirements when deployed in Safety Instrumented Functions (SIFs). Documentation packages include FAT/SAT reports, loop diagrams, hazardous area classification drawings, and material traceability records aligned with ASME Section II Part A/B.

Software & Data Management

Embedded firmware and host-level software provide full lifecycle data governance: from raw sensor output acquisition at 100 Hz sampling resolution, through chemometric preprocessing (baseline correction, peak deconvolution, multivariate calibration), to validated result reporting with audit-trail-enabled change history. The system supports 21 CFR Part 11-compliant electronic signatures, role-based access control (RBAC), and configurable alarm management per ISA-18.2. Historical trend archives are stored in time-series databases compatible with PI System and Ignition SCADA environments. Calibration verification routines follow ASTM E2655 and ISO/IEC 17025 traceability frameworks, with certificate generation including uncertainty budgets and reference standard traceability to NIST or CNAS-accredited labs.

Applications

• Real-time optimization of fractionation column cut points via online GC-based boiling point distribution analysis
• Continuous monitoring of H₂S and total sulfur species in Claus tail gas for regulatory compliance (EPA 40 CFR Part 60, Subpart JJJJ)
• In-situ viscosity and density measurement of heavy feedstocks to adjust heater outlet temperatures and prevent coking
• Ammonia and MEA/MDEA concentration tracking in gas treating units to maintain solvent regeneration efficiency
• Fouling index calculation from particle count and water content data for predictive maintenance scheduling of heat exchangers and reactors
• Closed-loop control input for advanced process control (APC) models in FCC and hydrocracking units

FAQ

Is the XLZ-901 certified for use in Zone 0 hazardous areas?

Yes—probe assemblies and analyzer enclosures are independently certified to IECEx Ex d IIC T4 Gb and GB/T 3836.1–2021 Ex d IIC T4 Gb for continuous operation in Zone 0 gas atmospheres.
Can the system integrate third-party analyzers such as Agilent or Thermo Fisher GC modules?

Yes—the open architecture supports analog (4–20 mA, 0–10 V), digital (RS-485, Ethernet/IP), and fieldbus (Foundation Fieldbus H1) inputs; OEM-specific communication drivers are available upon request.
What level of cybersecurity hardening is implemented?

The system complies with IEC 62443-3-3 SL2 requirements: secure boot, TLS 1.2+ encrypted communications, disabled unused ports/services, and configurable firewall rules via embedded Linux OS.
Does it support automated calibration with certified reference gases or liquids?

Yes—integrated calibration manifold supports dual-point auto-calibration using NIST-traceable standards; frequency and validation criteria are configurable per ISO/IEC 17025 internal procedure templates.
What documentation is provided for regulatory audits?

Full GxP-aligned documentation package includes IQ/OQ/PQ protocols, calibration certificates, hazardous area certification files, cyber security assessment report, and version-controlled firmware/software release notes.
