Silicon Non-Diffracting Substrate (Si Substrate for XRD Background Minimization)

Overview

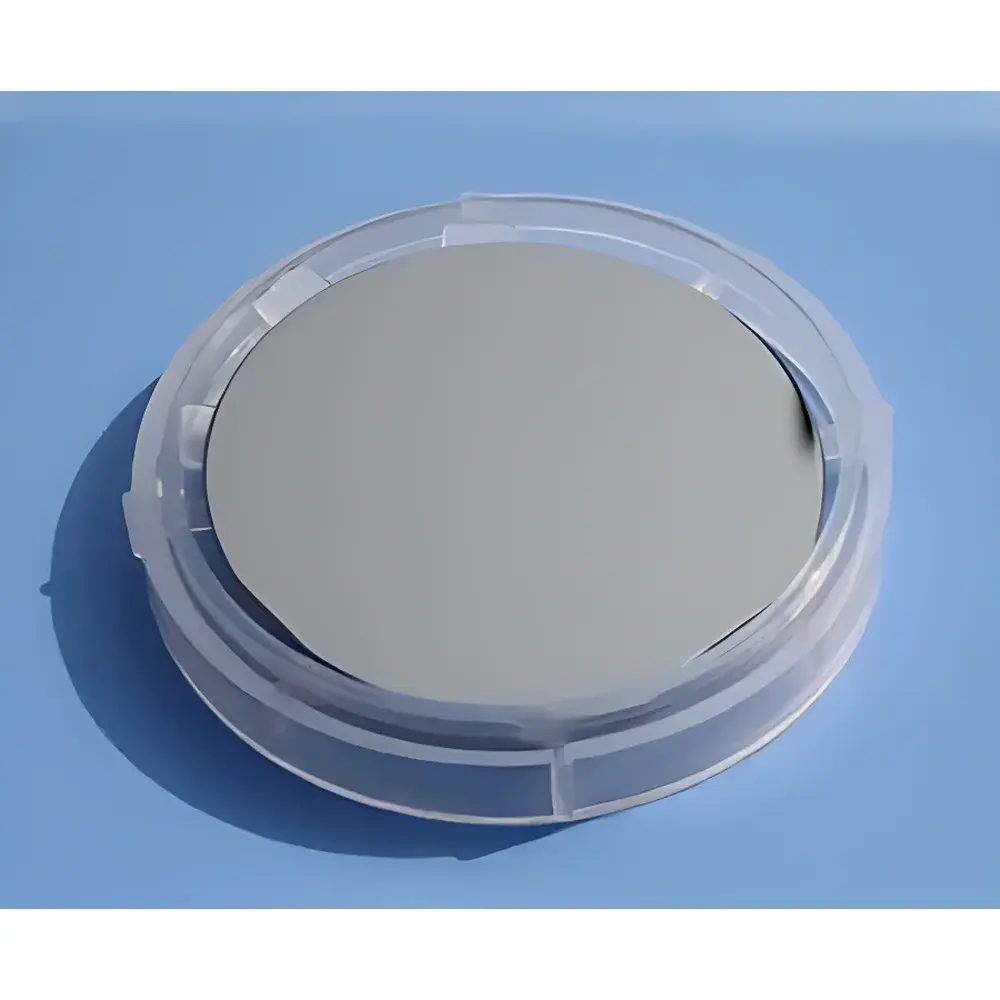

The Si Non-Diffracting Substrate is a high-purity, single-crystal silicon wafer engineered specifically for X-ray diffraction (XRD) applications where minimal intrinsic scattering background is critical. Unlike conventional substrates—such as glass, alumina, or silicon nitride—that introduce parasitic Bragg peaks or broad amorphous halos, this substrate leverages the well-defined, low-Z atomic structure and near-perfect crystallinity of Czochralski-grown silicon to produce a virtually featureless XRD pattern over standard 2θ ranges (5°–80°). Its P-type boron doping ensures stable electrical resistivity and thermal uniformity during in-situ heating or cooling stages, while maintaining lattice integrity under vacuum and inert-atmosphere environments typical of synchrotron beamlines and laboratory diffractometers.

Key Features

• Ultra-low XRD background: No detectable Si(111), Si(220), or higher-order reflections below 2θ = 10° when used with Cu-Kα radiation (λ = 1.5418 Å), enabling unambiguous identification of weak diffraction signals from thin films, nanomaterials, or amorphous phases.
• Precise dimensional tolerances: Thickness uniformity ±0.05 mm; diameter/edge tolerance ±0.1 mm; parallelism <5 µm across full surface area—ensuring consistent sample alignment and incident beam geometry.
• Controlled surface metrology: Double-side polished variants exhibit <15 Å RMS surface roughness (measured by AFM over 5 × 5 µm² area), minimizing diffuse scattering and improving peak signal-to-noise ratio in grazing-incidence XRD (GIXRD) and reflectivity measurements.
• Cleanroom-certified handling: Processed, inspected, and packaged in ISO Class 6 (Class 1000) cleanrooms; final vacuum sealing performed in ISO Class 5 (Class 100) laminar flow hoods using electrostatic-dissipative, low-outgassing polyethylene bags compliant with SEMI F20-0201 standards.
• Thermal and mechanical stability: Coefficient of thermal expansion (CTE) of 2.6 × 10⁻⁶ K⁻¹ (25–300 °C); flexural strength >700 MPa; suitable for integration into temperature-controlled stages (−150 °C to +800 °C) without warping or delamination.

Sample Compatibility & Compliance

This substrate is compatible with a wide range of deposition and characterization techniques, including sputtering, PLD, MBE, ALD, spin-coating, and drop-casting. Its native oxide-free surface (HF-last etch available upon request) supports direct epitaxial growth of III–V and II–VI semiconductors, perovskites, and 2D materials. The material meets ASTM F1596-21 specifications for silicon wafers used in analytical instrumentation and conforms to SEMI MF1530 for particle contamination limits (<10 particles ≥0.3 µm per cm²). It is routinely employed in laboratories operating under GLP and ISO/IEC 17025-accredited quality systems, and its traceability documentation supports audit readiness for FDA 21 CFR Part 11-compliant data workflows when paired with validated XRD software platforms.

Software & Data Management

While the substrate itself is a passive component, its performance directly impacts data fidelity in automated XRD systems (e.g., Bruker D8 ADVANCE, Rigaku SmartLab, PANalytical Empyrean). When integrated into sequential or continuous scan protocols, it enables reliable baseline subtraction, robust Rietveld refinement of low-intensity phases, and accurate determination of crystallite size via Scherrer analysis. Metadata—including lot number, polishing type, surface roughness certificate, and cleanroom packaging log—is supplied digitally in CSV and PDF formats, supporting LIMS integration and electronic lab notebook (ELN) traceability. All certificates comply with ISO/IEC 17025 clause 7.6.2 on measurement traceability and uncertainty reporting.

Applications

• Reference substrate for quantitative phase analysis (QPA) of battery cathode composites (e.g., NMC, LFP) and solid electrolytes.
• Support for in-situ/operando XRD studies of catalyst evolution under reactive gas atmospheres (H₂, O₂, CO).
• Baseline calibration standard in powder diffraction round-robin studies coordinated by the International Centre for Diffraction Data (ICDD).
• Substrate for thin-film strain mapping via high-resolution XRD (HR-XRD) rocking curve analysis.
• Platform for synchrotron-based pair distribution function (PDF) experiments requiring ultra-low background scattering.

FAQ

Is this substrate suitable for use with synchrotron radiation sources?

Yes—its low atomic number, high crystalline perfection, and absence of grain boundaries make it ideal for high-flux, high-resolution synchrotron XRD and SAXS experiments.
Can I request custom dimensions or doping profiles?

Custom geometries (e.g., rectangular slits, beveled edges) and alternative dopants (e.g., phosphorus for N-type) are available under OEM agreement with minimum order quantities.
What surface finish is recommended for GIXRD of organic semiconductor thin films?

Double-side polished substrates with <10 Å RMS roughness are strongly recommended to suppress interfacial diffuse scattering and improve q_z resolution.
Do you provide certification of surface cleanliness (e.g., TOF-SIMS or XPS data)?

Yes—certificates of analysis (CoA) include residual carbon content (<5 × 10¹³ atoms/cm²) and native oxide thickness (<0.4 nm), verified by ellipsometry and XPS per ASTM E1599-20.
How should the substrate be handled post-opening to maintain integrity?

Use class 100 cleanroom gloves and tweezers; store unused wafers in nitrogen-purged desiccators; avoid ultrasonic cleaning unless specified in your process protocol.
