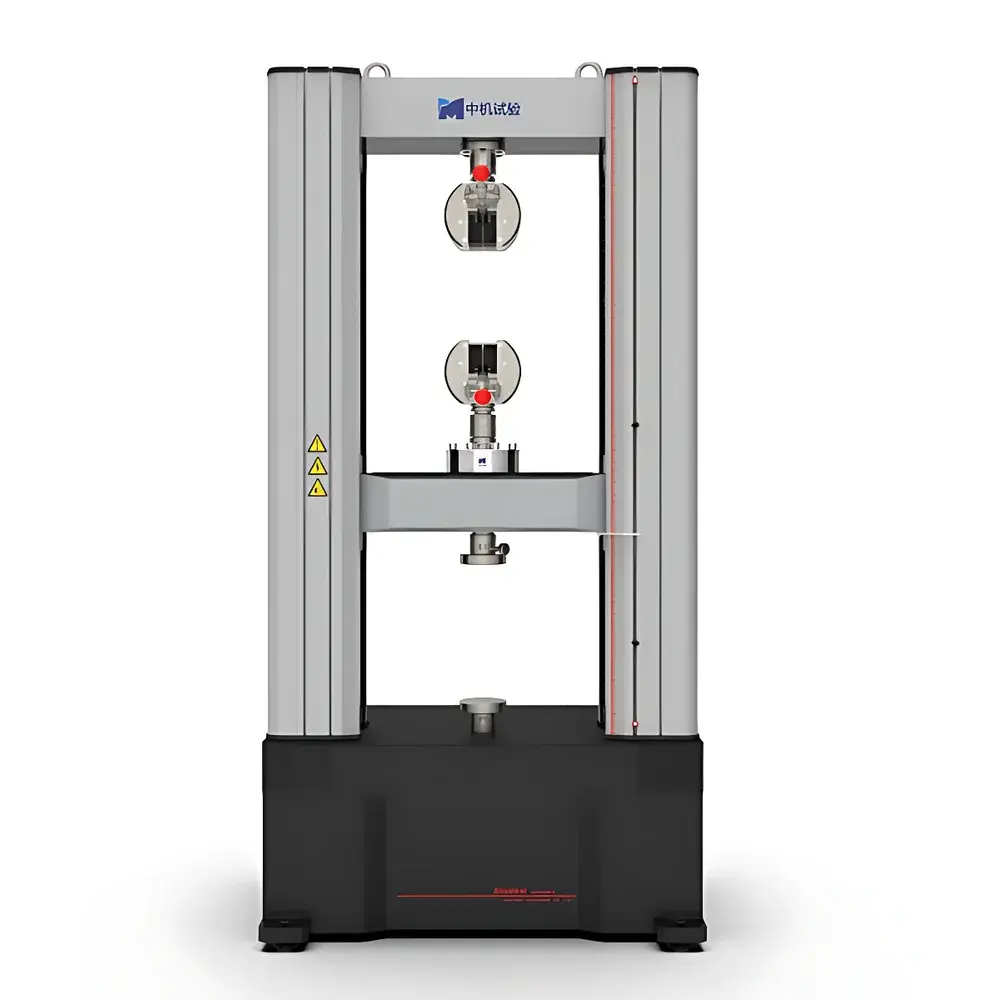

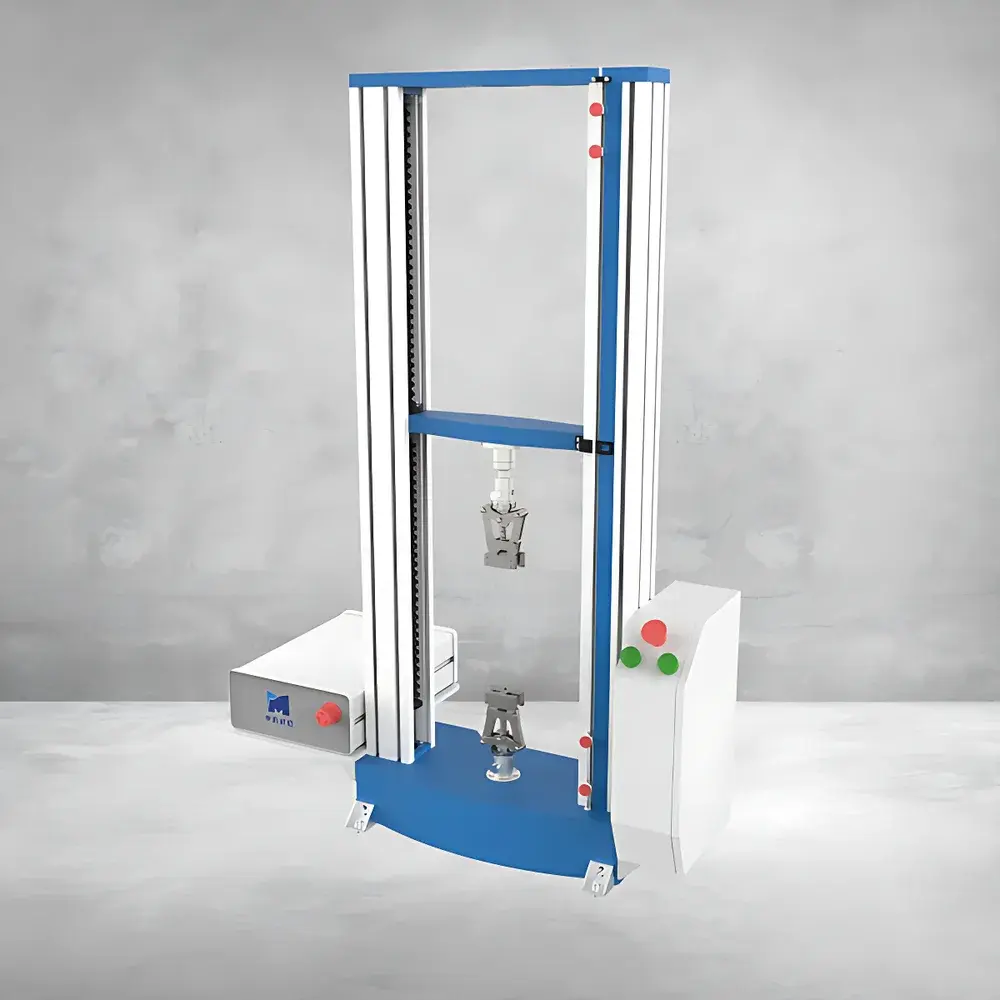

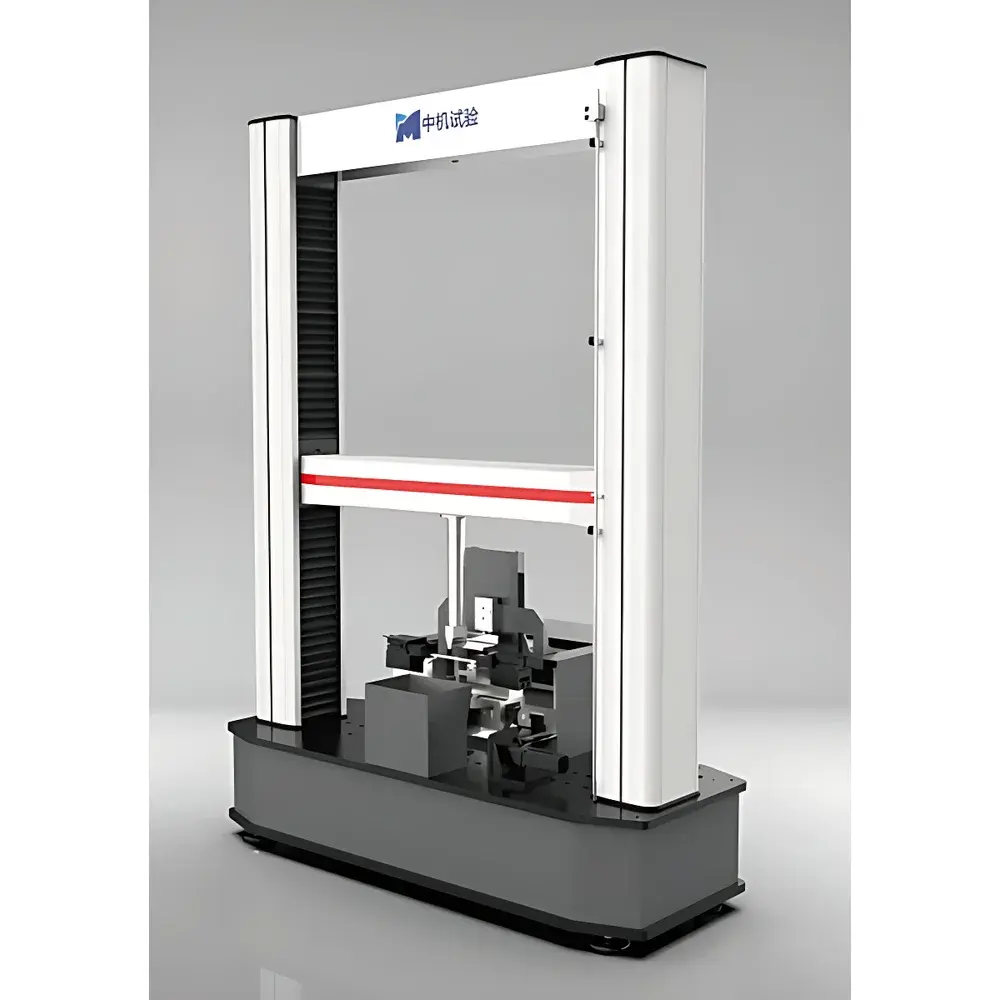

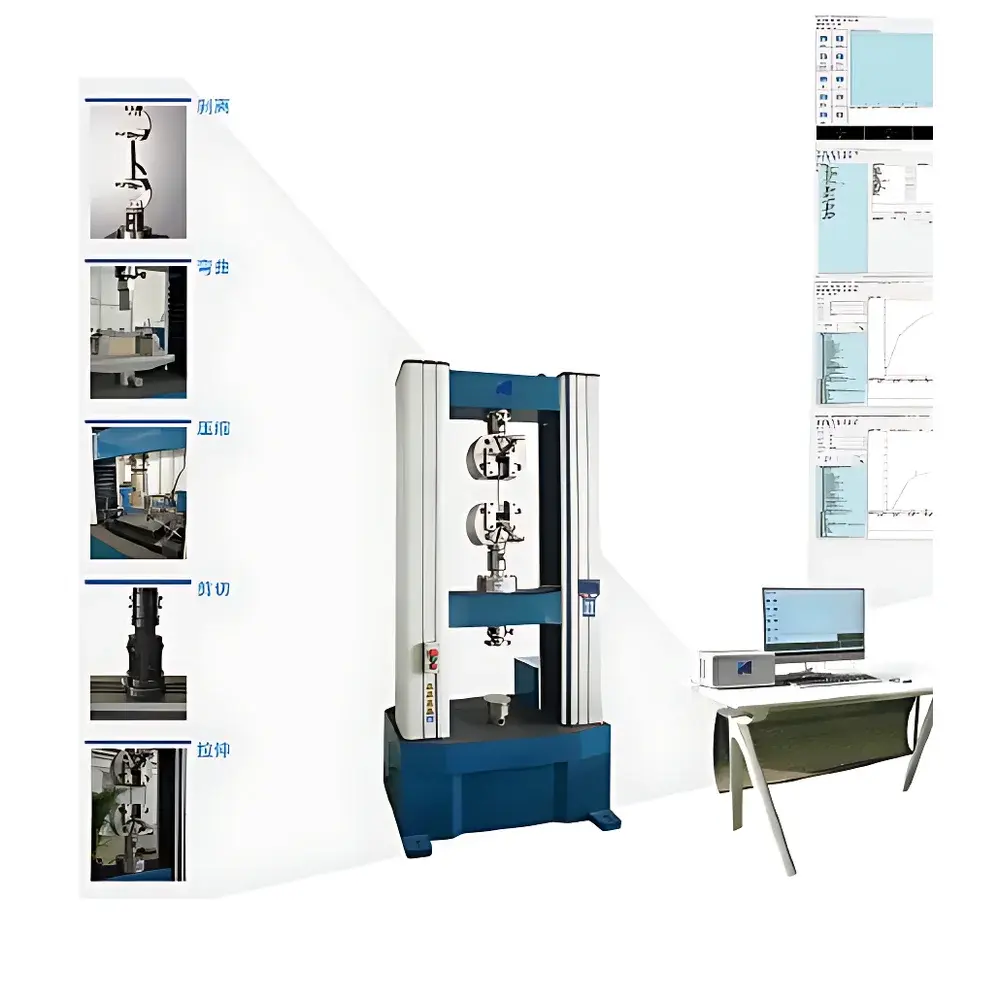

SINOTEST DF Series Electronic Universal Testing Machine
| Brand | SINOTEST |
|---|---|
| Origin | Jilin, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model Series | DF Series |
| Instrument Type | Electronic Universal Testing Machine |
| Price Range | USD 7,000 – 14,000 (FOB China) |
Overview
The SINOTEST DF Series Electronic Universal Testing Machine is a high-precision, servo-controlled mechanical testing system engineered for static tensile, compression, flexural, shear, peel, and tear characterization of engineering materials. Based on the fundamental principles of force transduction and displacement measurement via load cell feedback and high-resolution encoder-based crosshead positioning, the DF Series delivers traceable, repeatable mechanical property data in accordance with international standard test protocols. Its modular architecture supports both room-temperature and elevated-temperature configurations (with optional environmental chambers), enabling full compliance with ASTM E8/E8M, ISO 6892-1, GB/T 228.1, EN 10002-1, JIS Z 2241, and other widely recognized material testing standards. Designed for laboratory, quality control, and R&D environments, the system integrates robust mechanical construction with real-time digital control to ensure long-term dimensional stability and metrological integrity across thousands of test cycles.
Key Features
- High-rigidity TPHS frame structure—available in dual-column or quad-column configurations—to minimize deflection and maximize axial alignment during high-load testing.
- Precision AC servo motor coupled with preloaded ground ball screws for smooth, backlash-free crosshead motion and accurate strain rate control (0.001–500 mm/min).
- Advanced closed-loop controller featuring 100 kHz sampling rate, 24-bit A/D conversion, and adaptive PID tuning for dynamic load and displacement regulation.
- Automatic sensor recognition system that detects and configures load cells (ranging from 50 N to 300 kN) without manual calibration input.
- Integrated safety architecture including dual-stage overload protection (mechanical + electronic), crosshead travel limit switches, emergency stop circuitry, and software-enforced test boundaries.
- Modular accessory interface supporting standardized wedge-action grips, pneumatic clamps, hydraulic fixtures, extensometers (contact and non-contact), environmental chambers, and video extensometry systems.
Sample Compatibility & Compliance
The DF Series accommodates specimens ranging from sub-millimeter biomedical sutures to 300 mm-diameter structural composites. It is routinely deployed for mechanical evaluation of metallic alloys (e.g., aerospace-grade Ti-6Al-4V, AA7075), fiber-reinforced polymers (CFRP, GFRP), elastomers (natural rubber, silicone), thermoplastics (PEEK, PC), textiles (woven/nonwoven fabrics), wood-based panels, concrete cores, adhesives, foams, and ceramic matrix composites. All hardware and firmware are designed to support GLP/GMP-aligned workflows, including audit-trail-enabled user authentication, electronic signature capability (per FDA 21 CFR Part 11), and calibration certificate traceability to NIST or CNAS-accredited laboratories. Test method execution adheres strictly to ISO/IEC 17025 requirements for accredited testing laboratories.
Software & Data Management
The proprietary SINOTEST TestMaster™ software provides intuitive test setup, real-time visualization, and automated report generation in PDF, Excel, and XML formats. It includes pre-loaded templates for over 120 ASTM, ISO, GB, EN, and JIS methods—including tensile (ASTM D638, ISO 527), compression (ASTM D695, ISO 604), flexure (ASTM D790, ISO 178), peel (ASTM D903), and shear (ASTM D5868). Raw data is stored in encrypted SQLite databases with time-stamped metadata (operator ID, calibration status, environmental conditions). The software supports multi-user role-based access control, version-controlled method libraries, and export-ready datasets compatible with third-party statistical analysis tools (e.g., JMP, Minitab, MATLAB). Optional API integration enables direct data ingestion into LIMS or MES platforms.
Applications
- Mechanical qualification of aerospace fasteners and landing gear components per AMS and SAE specifications.
- Conformance testing of automotive composites under ISO 527-4 and ASTM D3039 for crashworthiness validation.
- Quality assurance of medical device polymers (e.g., PTFE vascular grafts, polyurethane catheters) per ISO 10993-12 and ASTM F2129.
- Characterization of battery electrode coatings and separator films under controlled humidity and temperature.
- Structural validation of civil engineering materials—including reinforced concrete, masonry units, and timber joints—per ASTM C39, EN 12390-3, and GB/T 50081.
- Research-grade constitutive modeling of viscoelastic biomaterials using cyclic loading protocols and digital image correlation (DIC) synchronization.
FAQ
What load capacity options are available for the DF Series?
Standard configurations range from 5 kN to 300 kN; custom load frames up to 500 kN can be engineered upon request.
Is the system compatible with third-party extensometers?
Yes—the DF Series supports analog and digital inputs from major OEMs including ZwickRoell, Instron, and MTS via standardized LVDT and strain gauge interfaces.
Can the system perform high-temperature tensile tests?
When paired with certified furnace chambers (up to 1200°C) and high-temp extensometers, the DF Series meets ASTM E21 and ISO 204 requirements for elevated-temperature mechanical testing.
Does the software support multi-language UI and reporting?
TestMaster™ offers English, German, French, Spanish, Japanese, and Simplified Chinese language packs; reports auto-generate in the selected interface language.
What documentation is provided for regulatory audits?
Each system ships with Factory Acceptance Test (FAT) report, IQ/OQ documentation package, calibration certificates (traceable to national standards), and 21 CFR Part 11 compliance statement.
