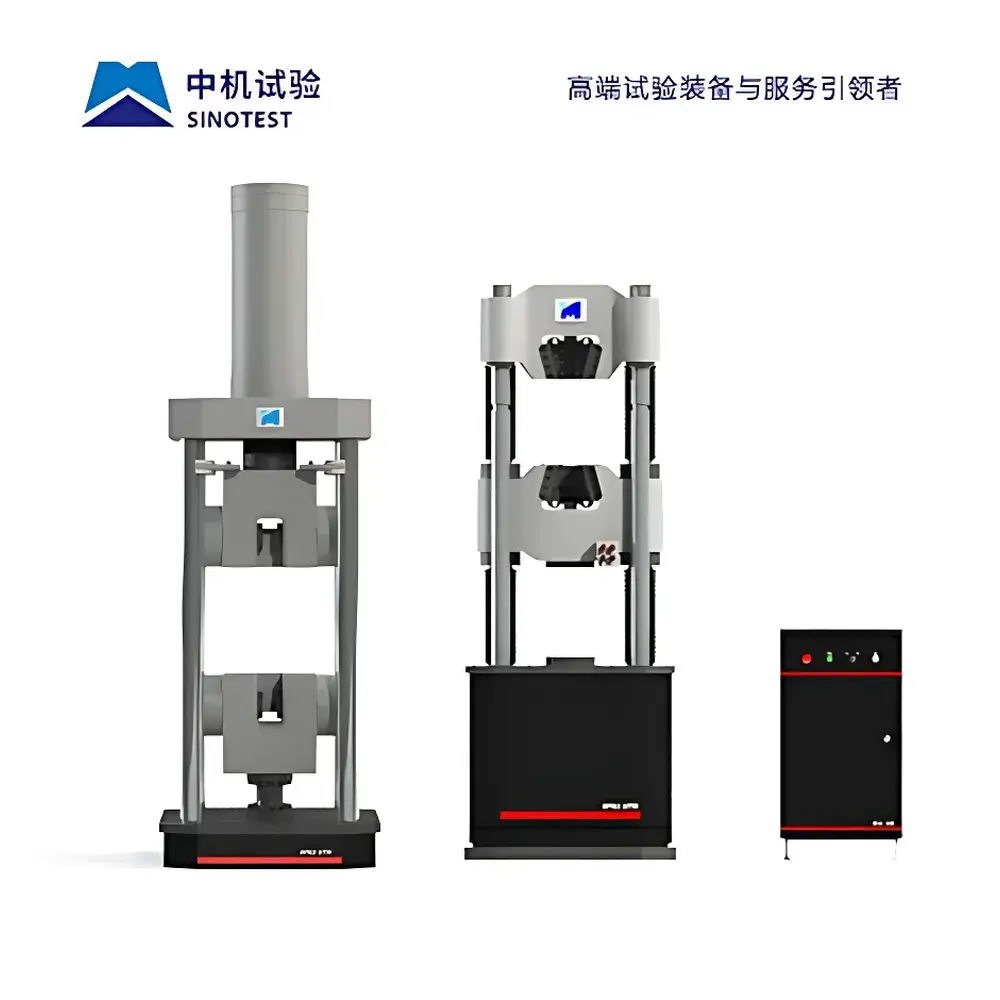

SINOTEST DF61 Series Hydraulic Universal Testing Machine

Overview

The SINOTEST DF61 Series Hydraulic Universal Testing Machine is an industrial-grade electro-hydraulic servo system engineered for high-force static mechanical testing of structural and engineering materials under controlled loading conditions. Based on the Couette-type hydraulic actuation principle and governed by closed-loop feedback from high-stability load cells, displacement transducers, and extensometers, the DF61 delivers traceable force accuracy per GB/T 16826 (equivalent to ISO 7500-1 Class 0.5) and repeatability better than ±0.5% of full scale across its 300 kN to 2000 kN capacity range. Its rigid two-column or four-column monolithic frame—fabricated from high-tensile steel and preloaded to eliminate parasitic deformation—ensures minimal deflection during high-load compression of concrete cylinders or tensile rupture of prestressed steel strands. Designed for integration into QC laboratories, construction material certification centers, and national metrology institutes, the DF61 meets the structural integrity and calibration traceability requirements of GB/T 2611 and JJG 139, supporting both routine compliance verification and research-grade mechanical property characterization.

Key Features

• Heavy-duty load frame with precision-machined guide columns and hardened crosshead surfaces for long-term alignment stability under cyclic loading
• Integrated hydraulic power unit featuring low-noise vane pump, pressure-compensated flow control valves, and temperature-stabilized oil reservoir to minimize thermal drift
• Digital closed-loop controller operating at ≥1 kHz sampling rate, enabling simultaneous force, displacement, and strain regulation with configurable ramp rates and hold profiles
• Modular test fixture interface compliant with ISO 26203-1 and ASTM E4, accommodating wedge-grip systems for metallic rods, compression platens for concrete cubes (150 mm × 150 mm × 150 mm), bend supports per GB/T 232, and specialized fixtures for GB/T 242 tube flaring and GB/T 3098 fastener tension testing
• Real-time overload protection via dual-stage pressure relief and software-defined safety thresholds, certified to GB 5226.1 electrical safety standards
• Calibration-ready architecture with NIST-traceable load cell options (0.5% or 0.25% accuracy classes) and optional extensometer inputs supporting ISO 9513-compliant strain measurement

Sample Compatibility & Compliance

The DF61 Series accommodates a broad spectrum of standardized and non-standard specimens without reconfiguration. Typical sample categories include hot-rolled deformed bars (GB/T 1499.2), 7-wire prestressed steel strands (GB/T 5224), high-strength bolts (GB/T 3098.1), welded joints per GB/T 2651, cast concrete cylinders (GB/T 50081), natural rock cores, and seamless carbon steel tubes (GB/T 8162). All test configurations comply with mandatory Chinese national standards for construction material evaluation and are fully compatible with international equivalents—including ASTM E9 (compression), ASTM E8/E8M (tension), ASTM C39 (concrete compression), and ISO 6892-1 (metal tensile testing). The system’s mechanical design and control firmware support GLP audit trails and optional 21 CFR Part 11–compliant electronic signatures when paired with validated software modules.

Software & Data Management

Bundled TestMaster™ v4.2 software provides ISO/IEC 17025-aligned test sequence definition, real-time curve overlay (stress–strain, load–displacement, creep compliance), and automated report generation in PDF/XLS formats conforming to GB/T 228.1 Annex A reporting templates. Raw data export includes time-stamped ASCII files with metadata (operator ID, calibration certificate numbers, environmental conditions). The software architecture supports role-based access control, electronic audit logs with immutable timestamps, and database-backed storage for longitudinal trend analysis across batches or material lots. Optional API integration enables direct linkage to LIMS platforms (e.g., Thermo Fisher SampleManager, LabVantage) and ERP systems via RESTful web services.

Applications

• Mechanical qualification of reinforcing steels and prestressing tendons for bridge and high-rise infrastructure projects
• Compressive strength validation of ready-mix concrete batches prior to formwork removal
• Transverse bending evaluation of composite laminates and railcar structural components
• Shear resistance assessment of bolted connections in steel-framed buildings
• Expansion behavior quantification of metal tubing during hydroforming process development
• Fracture toughness precursor testing (e.g., crack mouth opening displacement—CMOD) using clip-gauge-enabled fixtures
• Long-term creep and relaxation studies on polymer-modified asphalt binders under sustained compressive loads

FAQ

What is the maximum allowable test speed for a 2000 kN DF61 configuration under force control mode?

Typical crosshead speed ranges from 0.005 mm/min to 100 mm/min, adjustable in real time via software; maximum speed is load-dependent and limited by hydraulic flow capacity and thermal management constraints.
Does the DF61 support automatic specimen alignment correction during tensile testing?

Yes—optional self-aligning grips with spherical seating and load-axis centering mechanisms reduce bending moments to <1.5% of applied axial load, meeting ISO 5893 alignment tolerances.
Can the system be retrofitted with digital image correlation (DIC) hardware?

The machine frame includes standardized mounting rails and synchronization I/O ports (TTL trigger, encoder pulse output) compatible with commercial DIC systems such as Correlated Solutions VIC-2D and LaVision StrainMaster.
Is third-party calibration certification available for export markets?

Yes—factory calibration certificates issued by CNAS-accredited labs (ISO/IEC 17025) are provided; optional UKAS or DAkkS-certified calibration can be arranged through authorized partners.
How is software validation handled for regulated environments (e.g., construction QA/QC under GB 50204)?

TestMaster™ offers IQ/OQ documentation packages, version-controlled release notes, and change control logs; full GxP validation support—including risk assessment (ICH Q9) and requirement traceability matrices—is available upon request.
