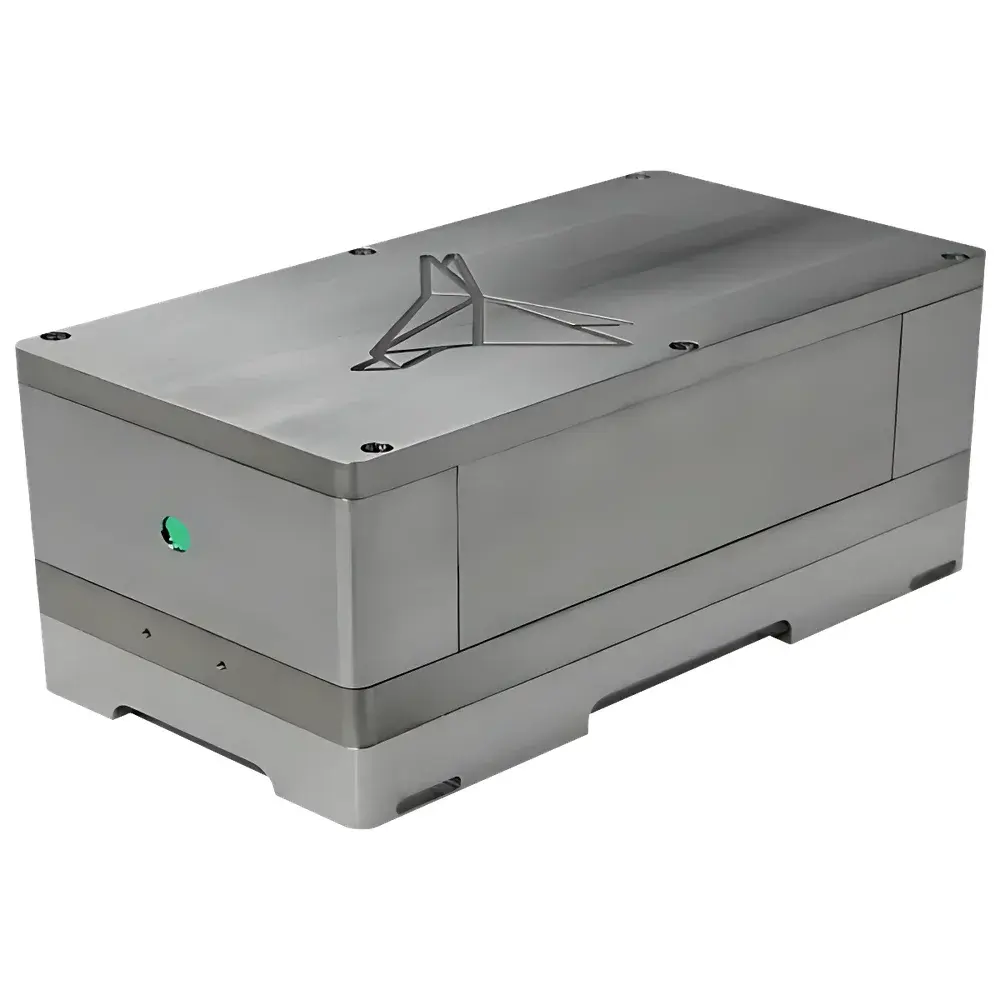

Skylark Lasers 532NX Single-Frequency Continuous-Wave C-DPSS Laser
| Brand | Skylark Lasers |
|---|---|
| Origin | United Kingdom |
| Model | 532NX |
| Wavelength | 532 nm |
| Output Power | up to 2000 mW |
| Spectral Linewidth | ≤ 0.5 MHz |
| Power Stability (8 h, P-P) | ≤ 1% |
| Spectral Stability (8 h) | ±0.2 pm |
| Intensity Noise (10 Hz–10 MHz) | ≤ 0.1% RMS |
| Beam Mode | TEM₀₀ |
| Coherence Length | > 100 m |
| Polarization Ratio | ≥ 100:1 (vertical) |
| Beam Diameter (exit) | 0.7–1.1 mm |
| Beam Divergence | 1.0 mrad (diffraction-limited) |
| Beam Pointing Stability | ≤ 5 µrad/°C |
| Warm-up Time | 5–30 min |
| Power Consumption | < 200 W |
| Operating Temperature | 18–30 °C |
| Storage Temperature | 0–50 °C |
| Humidity | 0–50% RH (non-condensing) |
| Laser Head Dimensions | 240 × 150 × 100 mm |
| Controller Dimensions | 245 × 170 × 54 mm |
| Beam Height | 65 mm |
Overview
The Skylark Lasers 532NX is a compact, diode-pumped solid-state (C-DPSS) single-frequency continuous-wave (CW) laser engineered for demanding scientific and industrial applications requiring exceptional spectral purity, long coherence length, and high amplitude stability. Based on Skylark’s proprietary BRaMMS (Broadband Resonator with Monolithic Mode Selection) platform, the 532NX delivers up to 2000 mW of output power at 532 nm while maintaining true single-longitudinal-mode (SLM) operation. Its fundamental architecture leverages intracavity frequency-doubling of a Nd:YVO4 or Nd:YAG oscillator, stabilized via monolithic non-planar ring oscillator (NPRO) or etalon-based intra-cavity filtering—ensuring intrinsic suppression of mode-hopping and side-mode emission. This enables sub-MHz linewidths (< 0.5 MHz), coherence lengths exceeding 100 meters, and spectral drift below ±0.2 pm over 8-hour continuous operation—critical for interferometric metrology, heterodyne detection, and quantum optical experiments where phase noise and temporal coherence directly impact measurement fidelity.
Key Features
- True single-frequency CW output at 532 nm with guaranteed SLM operation and < 0.5 MHz spectral linewidth
- Ultra-low intensity noise: ≤ 0.1% RMS (10 Hz – 10 MHz), enabling high-sensitivity scattering and lock-in detection
- Exceptional long-term stability: ≤ 1% peak-to-peak power variation and ±0.2 pm wavelength drift over 8 hours
- Diffraction-limited TEM00 beam profile with M² < 1.05, beam divergence of 1.0 mrad, and pointing stability ≤ 5 µrad/°C
- Integrated thermal management architecture supporting fan-assisted air cooling or optional water-cooled TEC stabilization
- Compact modular design: laser head (240 × 150 × 100 mm) and separate controller (245 × 170 × 54 mm) with USB 2.0 interface and remote diagnostics capability
- Vertical linear polarization with polarization extinction ratio ≥ 100:1, optimized for polarimetric and electro-optic modulation setups
Sample Compatibility & Compliance
The 532NX is designed for integration into ISO/IEC 17025-accredited laboratories and regulated environments where traceability and operational consistency are essential. While not inherently FDA 21 CFR Part 11-compliant as a standalone instrument, its digital control interface supports audit-trail-capable software integration when deployed within validated systems (e.g., in GLP-compliant Raman or particle sizing platforms). The laser meets IEC 60825-1:2014 Class 3B safety requirements with integrated interlock circuitry, key-switch enable, and emission indicator. All optical and electronic subsystems conform to CE marking directives (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU). Thermal design ensures stable performance across ambient temperatures from 18–30 °C, with humidity tolerance up to 50% RH (non-condensing)—suitable for controlled cleanroom or metrology lab environments.
Software & Data Management
The 532NX is operated via Skylark’s cross-platform control software (Windows/macOS/Linux), providing real-time monitoring of output power, temperature setpoints, pump diode current, and internal thermistor readings. The software implements configurable logging (CSV export), automated warm-up sequencing, and programmable power ramping to minimize thermal transients. For system integrators, a documented ASCII-based serial command protocol (over USB virtual COM port) enables seamless incorporation into LabVIEW, Python, or MATLAB automation frameworks. Optional external analog modulation input (0–10 V) supports direct integration with arbitrary waveform generators for intensity shaping. Remote diagnostic telemetry—including fault code reporting, lifetime pump diode usage tracking, and thermal gradient analytics—facilitates predictive maintenance and compliance documentation for QA/QC workflows.
Applications
- Raman spectroscopy: High spectral brightness and narrow linewidth enhance signal-to-noise ratio in confocal and micro-Raman systems, especially for low-concentration or weak-scattering samples
- Brillouin scattering: Long coherence length (>100 m) and ultra-stable frequency enable precise acoustic phonon detection in optical fibers and transparent materials
- Holography & interferometry: Sub-picometer wavelength stability supports sub-nanometer displacement resolution in digital holographic microscopy and gravitational wave detector test benches
- Quantum optics: Used in cold atom trapping (MOTs), optical lattice loading, and squeezed light generation due to low phase noise and high polarization purity
- Flow cytometry & bioimaging: Stable TEM00 output enables diffraction-limited focusing in high-throughput cell sorting and super-resolution STED implementations
- Photolithography & optical metrology: Integrated into wafer inspection tools and laser Doppler vibrometers requiring deterministic beam parameters and minimal pointing jitter
FAQ
What cooling options are supported?
The 532NX supports passive conduction cooling (via integrated heatsink), fan-assisted air cooling (standard), or optional water-cooled TEC stabilization using a compact closed-loop chiller—enabling < ±0.05 °C thermal regulation for maximum spectral stability.
Is fiber coupling available as a factory option?
Yes. Skylark offers OEM-grade multimode (≥95% coupling efficiency) and single-mode (≥70% coupling efficiency) fiber launch modules with FC/APC or SMA905 connectors, fully aligned and tested prior to shipment.
Can output power be modulated externally?
Yes. An optional acousto-optic modulator (AOM) package provides analog intensity modulation up to 200 kHz bandwidth, compatible with TTL or 0–10 V input signals.
Does the laser support remote power adjustment during operation?
Yes. Real-time power tuning from 0–100% is achievable via USB software commands or analog voltage input, with built-in soft-start logic to prevent thermal shock to the gain medium.
What is the typical warm-up time to achieve full specification stability?
Full spectral and power stability is achieved within 15 minutes under nominal ambient conditions (22 ± 1 °C); the system remains within spec after 5 minutes for less stringent applications.
