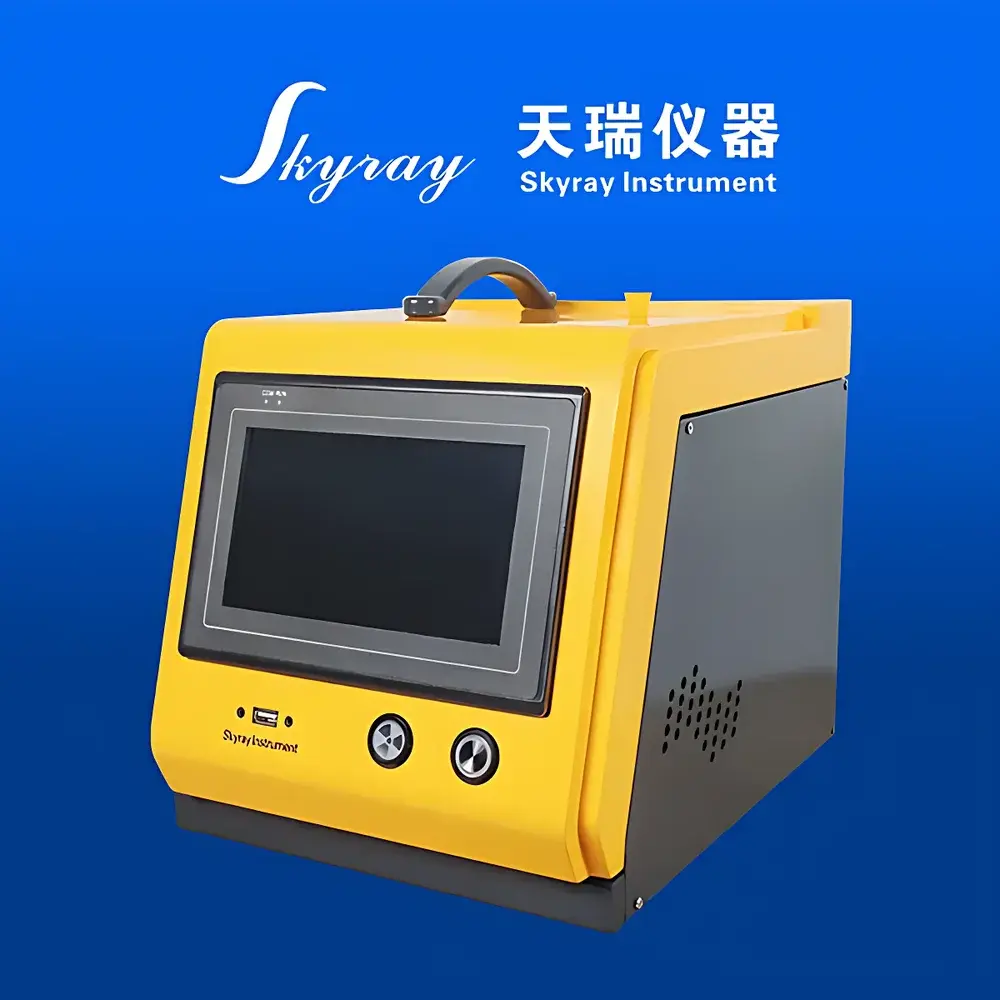

SkyRay Instrument EDX3300S Energy Dispersive X-Ray Fluorescence Sulfur Analyzer
| Brand | SkyRay Instrument |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | EDX3300S |
| Configuration | Benchtop/Floor-standing |
| Industry Application | Energy & Petrochemicals |
| Energy Resolution | 125 eV |
| Repeatability (RSD) | <5% |
| Detector | FAST-SDD (Silicon Drift Detector) |
Overview
The SkyRay Instrument EDX3300S is a high-performance, benchtop/floor-standing energy dispersive X-ray fluorescence (EDXRF) sulfur analyzer engineered for precise, rapid, and non-destructive quantification of total sulfur in liquid hydrocarbon fuels—including gasoline, diesel, jet fuel, lubricating oils, marine bunker fuels, and crude oil fractions. It operates on the fundamental principle of X-ray fluorescence spectroscopy: primary X-rays from a microfocus tube excite sulfur atoms (Kα line at 2.307 keV) in the sample; emitted characteristic X-rays are collected by a high-efficiency FAST-SDD detector and spectrally resolved to determine sulfur concentration via fundamental parameter (FP) calibration. Unlike wavelength-dispersive (WDXRF) systems, the EDX3300S leverages optimized excitation geometry and advanced spectral deconvolution algorithms to achieve sub-ppm detection capability without vacuum pumping or chemical digestion—making it ideal for routine QC/QA in refinery laboratories, terminal testing facilities, and field-deployed compliance verification.
Key Features
- High-sensitivity FAST-SDD detector with 125 eV energy resolution at Mn Kα (5.895 keV), enabling robust separation of sulfur peaks from overlapping Cl, Ar, and background continuum.
- Patented full-capacity polycapillary optic system that monochromatizes and focuses the X-ray tube’s characteristic radiation—enhancing peak-to-background ratio and lowering limit of detection (LOD) to 0.5 mg/kg (ppb level) for sulfur in low-viscosity fuels.
- No vacuum requirement: analysis conducted under ambient air atmosphere, eliminating pump-down time and mechanical maintenance associated with evacuated chambers.
- Zero-consumable operation: no gas purge, no filters, no electrodes—reducing cost of ownership and operational downtime.
- Optimized 60–300 s acquisition protocol: balances statistical counting precision with throughput, supporting >50 samples per shift in regulated production environments.
- Ruggedized industrial chassis with integrated touchscreen interface and onboard thermal management—designed for continuous operation in ambient lab or controlled field environments (15–30 °C, 30–70% RH).
Sample Compatibility & Compliance
The EDX3300S accepts standard 10–20 mL disposable polypropylene or quartz sample cups—no filtration, dilution, or derivatization required. It is validated for use with transparent to mildly turbid liquid fuels meeting ASTM D4057 sampling protocols. Regulatory alignment includes full method equivalence to ASTM D7039 (Standard Test Method for Sulfur in Gasoline and Diesel Fuel by Monochromatic Wavelength Dispersive X-ray Fluorescence Spectrometry), GB 252–2015 (Ordinary Diesel Fuel), and GB 17411–2015 (Marine Fuel Oil). The instrument supports GLP-compliant data integrity through audit-trail-enabled software (see Software section), and its measurement uncertainty profile meets ISO/IEC 17025 requirements for accredited fuel testing laboratories.
Software & Data Management
Controlled via SkyRay’s proprietary QuantScan™ v4.2 software, the EDX3300S delivers automated calibration curve generation (linear and quadratic FP models), real-time spectral fitting with matrix correction, and batch reporting compliant with ISO 8258 (Shewhart control charts) and ASTM E29 (significant figures). All raw spectra, processing parameters, user actions, and timestamped results are logged with immutable digital signatures—fully satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with network authentication and role-based access control. Export formats include CSV, PDF analytical reports, and XML for LIMS integration (ASTM E1467, ASTM E1578).
Applications
- Refinery process monitoring: inline sulfur tracking at hydrotreater outlets and blending racks.
- Fuel quality assurance: pre-shipment verification against Euro 5/6, China VI, IMO 2020 (0.50% m/m), and Tier 3 gasoline specifications.
- Research & development: catalyst poisoning studies, additive interaction screening, and feedstock sulfur speciation correlation.
- Third-party certification: independent testing labs performing contract analysis for regulatory agencies and trading partners.
- Field deployment: mobile labs conducting roadside fuel audits or port-of-entry inspections using battery-powered operation (optional).
FAQ
Does the EDX3300S require helium purge or vacuum for sulfur analysis?
No. It operates under ambient air conditions with no gas consumption or evacuation cycle.
Can it analyze viscous fuels such as heavy fuel oil (HFO) or bitumen?
Yes—when preheated to 40–60 °C and homogenized, provided sample cup geometry ensures consistent meniscus height and surface flatness.
How is calibration traceability maintained?
Certified reference materials (CRMs) traceable to NIST SRM 2721 (Sulfur in Diesel Fuel Oil) or equivalent ISO 8217 CRMs are used; calibration validity is verified daily using control charting per ASTM D6299.
Is method validation support available for laboratory accreditation?
Yes—SkyRay provides IQ/OQ documentation packages, measurement uncertainty budgets per GUM (JCGM 100), and technical assistance for ISO/IEC 17025 scope expansion.
What maintenance intervals are recommended?
Annual detector resolution verification and X-ray tube output stability check; no scheduled replacement parts within first 5 years under normal usage.
