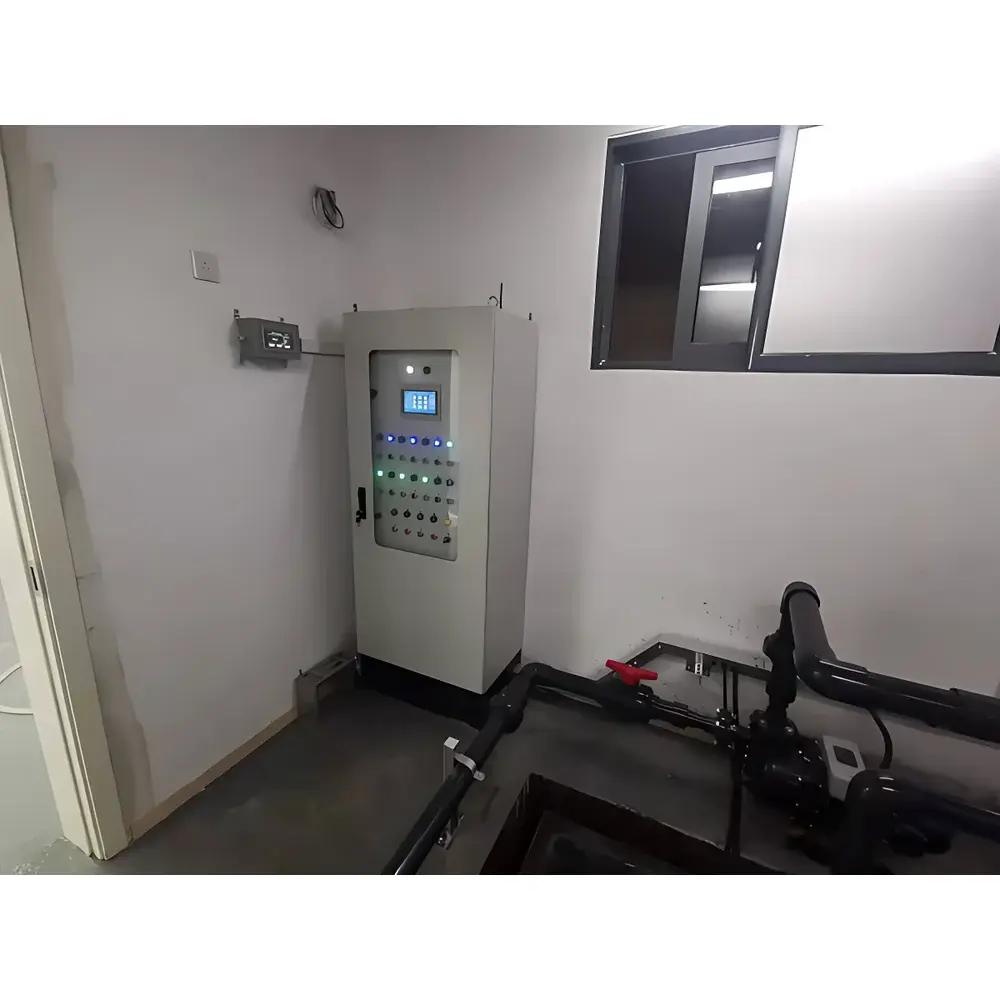

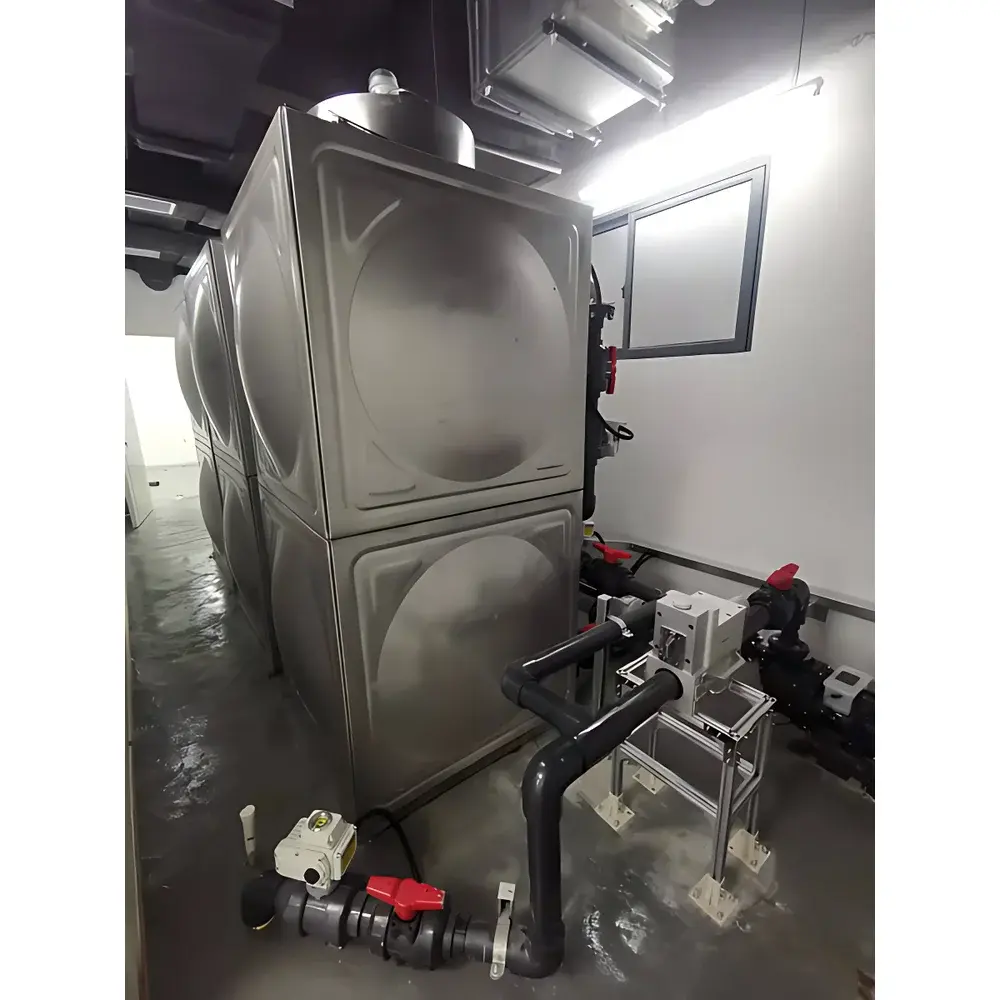

SMACH ERM202 In-Line Wastewater Radioactivity Monitor

Overview

The SMACH ERM202 In-Line Wastewater Radioactivity Monitor is an engineered solution for continuous, real-time gamma spectrometric monitoring of artificial radionuclides in flowing liquid effluents—specifically designed for integration into pipe networks at nuclear facilities, radiopharmaceutical production sites, research reactors, and municipal wastewater treatment plants subject to regulatory discharge limits. Unlike portable survey meters or laboratory-based gamma spectrometers, the ERM202 operates on the principle of in-situ scintillation spectroscopy: gamma photons emitted by radionuclides such as ¹³⁷Cs, ⁶⁰Co, ¹²⁵I, and ⁹⁹mTc interact with a thallium-doped sodium iodide (NaI(Tl)) crystal, generating light pulses proportional to photon energy. These pulses are digitized and processed via a high-stability multichannel analyzer (2048-channel MCA), enabling nuclide identification and quantitative activity calculation per unit volume (Bq/L). The instrument’s geometry—optimized for laminar flow through a shielded stainless-steel流通池 (flow cell)—ensures consistent detection efficiency and minimal self-absorption artifacts across variable flow rates and turbidity conditions.

Key Features

• High-sensitivity NaI(Tl) scintillation detector (φ30 × 25 mm) with integrated photomultiplier tube and digital pulse processing ASIC
• Real-time spectral acquisition and analysis: full gamma spectrum captured and stored every reporting interval (configurable 1–150 min)
• Automatic temperature compensation algorithm mitigates thermal drift in gain and resolution—critical for unattended operation in non-climate-controlled environments
• Dual-alarm architecture: independent thresholds for radionuclide-specific activity concentration (e.g., ¹³⁷Cs > X Bq/L) and ambient dose equivalent rate (µSv/h)
• Robust mechanical design: 304 stainless steel wetted components; 50 mm lead shielding embedded within flow cell walls to suppress background and improve signal-to-noise ratio
• Stable spectral baseline via ⁴⁰K auto-stabilization—leveraging naturally occurring potassium-40 in the detector housing as internal reference peak
• RS485 serial interface compliant with Modbus RTU protocol for seamless integration into SCADA, DCS, or facility-wide radiation safety management systems

Sample Compatibility & Compliance

The ERM202 is validated for aqueous matrices including treated and untreated wastewater, coolant loops, decontamination effluents, and low-activity liquid waste streams. It does not require sample digestion, filtration, or chemical pre-concentration. Its performance adheres to fundamental requirements outlined in IEC 62327 (hand-held and portable spectrometers), ISO 20042 (radiation protection instrumentation for environmental monitoring), and supports compliance with national discharge regulations referencing IAEA Safety Standards Series No. GSR Part 3. While not certified for GLP or 21 CFR Part 11 out-of-the-box, its audit-ready data logging—including timestamped spectra, calibration metadata, and alarm event logs—facilitates traceability required under ISO/IEC 17025-accredited environmental testing laboratories.

Software & Data Management

The ERM202 outputs raw and processed spectral data via Modbus registers, enabling third-party software integration (e.g., LabVIEW, Ignition SCADA, custom Python-based dashboards). On-device storage retains up to 200,000 complete gamma spectra (each 2048-channel), preserving full spectral fidelity for retrospective re-analysis. All spectra include embedded acquisition parameters: live time, real time, high voltage setting, temperature reading, and system status flags. Firmware supports remote firmware updates and configuration changes via secure serial command set. Data export formats include CSV (peak centroid, net area, uncertainty) and binary-compatible .CNF files compatible with standard gamma analysis tools (e.g., Genie 2000, GammaVision).

Applications

• Continuous effluent monitoring at nuclear power plant discharge points per regulatory license conditions
• Radiopharmaceutical manufacturing QC: real-time verification of ⁹⁹mTc or ¹⁸F-labeled compound waste stream activity prior to release
• Emergency response deployment at suspected contamination sites—rapid installation onto existing piping without process interruption
• Long-term surveillance of legacy sites with uranium/thorium-bearing drainage (e.g., rare earth processing, phosphate mining)
• Research reactor coolant loop integrity verification via detection of activation products (e.g., ⁵⁶Mn, ²⁴Na)
• Municipal wastewater utilities implementing early-warning systems for illicit medical or industrial radioactive source disposal

FAQ

What radionuclides can the ERM202 identify and quantify?
It detects and quantifies gamma-emitting artificial radionuclides with energies between 48 keV and 3 MeV, including but not limited to ¹³⁷Cs, ⁶⁰Co, ¹²⁵I, ⁹⁹mTc, ¹¹¹In, and activation products such as ⁵⁶Mn and ²⁴Na. Identification relies on characteristic photopeaks and library-matching algorithms—not isotopic separation.
Is the flow cell compatible with high-pressure or corrosive wastewater?
The 304 stainless steel flow cell is rated for nominal line pressures up to 1.0 MPa and resists general corrosion in pH 4–9 aqueous media. For highly acidic, alkaline, or chloride-rich streams, optional passivation or Hastelloy C-276 lining is available upon request.
How is energy calibration maintained over time?
The system performs automatic gain stabilization using the 1461 keV gamma line from naturally occurring ⁴⁰K in the detector housing—no external calibration sources required during routine operation.
Does the ERM202 meet regulatory requirements for legally defensible discharge reporting?
While instrument validation must be performed per site-specific QA/QC protocols (including daily background checks and quarterly multi-nuclide standard verification), the ERM202 provides metrologically traceable measurements aligned with ISO 20042 and IEC 62327—forming the technical basis for compliant reporting when integrated into an auditable data governance framework.
