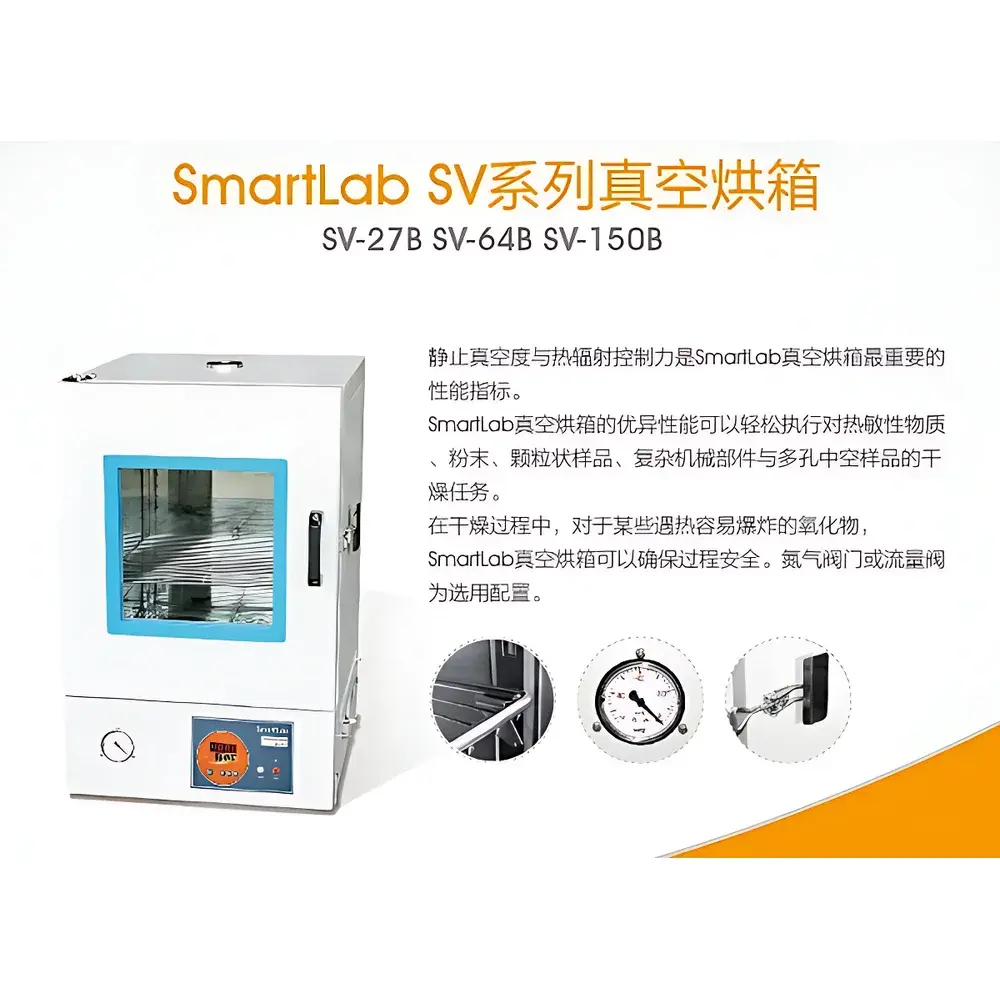

SmartLab SV-64B Vacuum Drying Oven

Overview

The SmartLab SV-64B Vacuum Drying Oven is an engineered solution for precision-controlled thermal processing under reduced pressure environments. Operating on the fundamental principle of lowering the boiling point of solvents and moisture via vacuum application—thereby enabling drying at significantly lower temperatures than atmospheric ovens—the SV-64B eliminates thermal degradation risks for heat-sensitive materials. Its design adheres to core engineering tenets of thermal stability, vacuum integrity, and process repeatability. The oven achieves a base vacuum level up to 760 mmHg (absolute), compatible with standard two-stage rotary vane vacuum pumps (not included). The microprocessor-driven PID temperature controller ensures dynamic compensation across load variations, while the SUS304 stainless steel chamber—combined with high-density rock wool insulation—delivers exceptional thermal retention and uniformity (±0.05°C) within the 400 × 400 × 400 mm working zone.

Key Features

• High-fidelity temperature regulation: PID auto-tuning algorithm with real-time deviation correction, supported by calibrated Type K thermocouple feedback positioned at the chamber center
• Robust vacuum architecture: Dual-point door compression system with high-temperature silicone gasket (rated to 300°C), ensuring leak rates <5 × 10⁻³ mbar·L/s under steady-state conditions
• Thermally optimized chamber: Seamless SUS304 interior with radiused corners minimizes particle entrapment and facilitates cleaning per ISO 14644 cleanroom protocols
• Integrated diagnostics: Self-checking firmware monitors heater continuity, sensor integrity, over-temperature events, and mains voltage fluctuations—logging all faults with timestamped event codes
• Modular utility interface: Standardized 1/4″ NPT port for optional nitrogen purging; configurable analog output (0–10 VDC) for external vacuum or temperature data acquisition
• Compliance-ready construction: CE-marked per EN 61000-6-3 (EMC) and EN 61000-6-4 (immunity); electrical safety certified to EN 61010-1

Sample Compatibility & Compliance

The SV-64B accommodates heterogeneous sample geometries—including fine powders, granular pharmaceutical intermediates, sintered metal components, porous ceramic substrates, and multi-cavity polymer assemblies—without compromising drying homogeneity. Its low-temperature vacuum capability aligns with ASTM E145-22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) and supports GLP-compliant workflows when paired with validated vacuum pump systems and calibrated thermocouples traceable to NIST standards. For regulated industries, the oven’s deterministic control logic and non-volatile fault logging support audit readiness under FDA 21 CFR Part 11 (when integrated with compliant LIMS or ELN platforms). Optional nitrogen purge functionality enables inert-atmosphere drying per USP requirements for oxidation-prone APIs.

Software & Data Management

While the SV-64B operates as a standalone instrument with embedded touchscreen HMI, its RS-485 (Modbus RTU) and optional Ethernet interface enable integration into centralized laboratory automation networks. Third-party SCADA or MES platforms can retrieve real-time temperature/vacuum setpoints, actual values, and alarm status via standardized register mapping. All configuration parameters—including ramp/soak profiles, maximum dwell time, and safety limits—are password-protected and stored in EEPROM with write-cycle endurance >100,000 cycles. Audit trail generation requires external software; however, the unit provides raw timestamped data streams suitable for CSV export upon request.

Applications

• Pharmaceutical R&D: Residual solvent removal from lyophilized formulations without polymorphic transition
• Materials science: Debinding of green ceramic bodies prior to sintering; moisture extraction from MOF frameworks
• Electronics manufacturing: Outgassing of conformal coatings and PCB assemblies to prevent delamination during reflow
• Academic research: Controlled dehydration of biological tissues for SEM sample preparation
• Quality control labs: Moisture content validation per ISO 554 and ASTM D2298 for polymer pellets and battery electrode slurries

FAQ

What vacuum level can the SV-64B achieve without an external pump?
The unit does not include a built-in vacuum pump; it requires connection to an externally mounted rotary vane or diaphragm pump. With a properly sized pump (e.g., 2–4 m³/h capacity), the chamber reaches ≤10 Pa (0.075 mmHg) within 15 minutes.
Is the temperature uniformity specification verified per ASTM E2207?
Yes—uniformity testing follows ASTM E2207 Annex A1 methodology using nine calibrated thermocouples placed on a 3×3 grid at working height. Reported ±0.05°C is the maximum deviation observed across three consecutive 30-minute stabilization cycles.
Can the oven be validated for GMP environments?
The SV-64B supports IQ/OQ protocols through its deterministic control architecture and accessible calibration points. PQ must be performed in situ with user-defined loads and acceptance criteria aligned with ICH Q5C and EU Annex 15.
Are replacement shelves available with different load ratings?
Standard shelves are rated for 15 kg uniformly distributed load. Custom perforated or wire-mesh shelves with 25 kg rating are available under part number SL-SV64-HR (lead time: 4 weeks).
Does the nitrogen purge option include flow metering?
The base nitrogen inlet is a simple on/off valve. A calibrated mass flow controller (0–5 L/min range, ±1% FS accuracy) is offered as accessory kit N2-MFC-SV64 and integrates seamlessly with the oven’s control logic.
