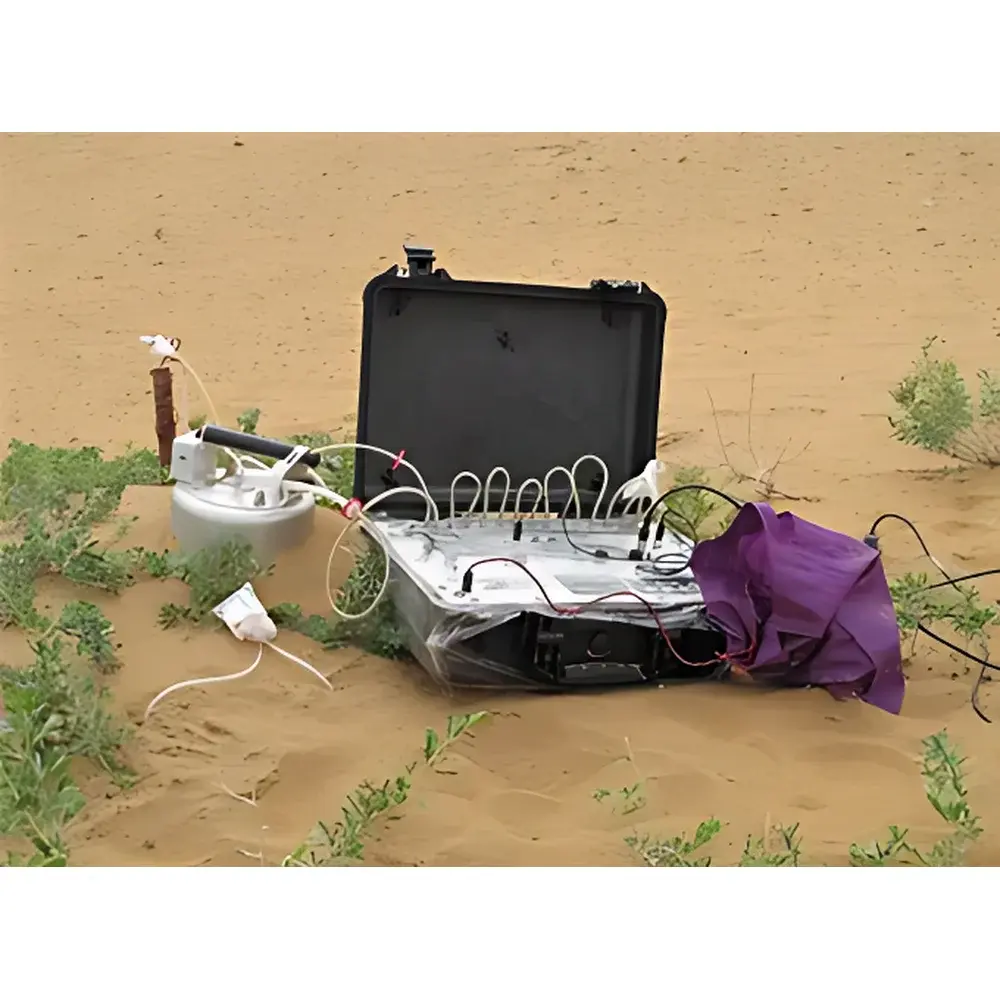

SoilBox-FMS Portable Soil Respiration Measurement System

Overview

The SoilBox-FMS Portable Soil Respiration Measurement System is an integrated, field-deployable platform engineered for high-fidelity quantification of soil-atmosphere gas exchange fluxes. It operates on the principle of closed-chamber or open-path differential gas analysis, combining real-time, multi-gas sensing with precision flow control and automated baseline referencing to deliver trace-level accuracy in CO₂, O₂, and H₂O vapor measurements. Designed for rigorous environmental biogeochemistry research, the system enables direct calculation of net ecosystem exchange (NEE), soil respiration (R_s), root respiration (R_r), heterotrophic respiration (R_h), and animal-mediated CO₂ efflux—critical parameters in carbon cycle modeling, climate feedback assessment, and ecological restoration monitoring. Its architecture adheres to the physical constraints and calibration rigor required for compliance with ISO 14064-1 (greenhouse gas quantification) and ASTM D6739 (soil gas flux measurement protocols), supporting reproducible data acquisition under variable field conditions.

Key Features

• Integrated dual-channel gas routing with programmable baseline referencing: simultaneous sampling of ambient air (baseline) and chamber headspace ensures drift-corrected, high-precision flux calculations per ASTM E2658.
• Triple-sensor gas analysis module: NDIR-based CO₂ analyzer (0–5% range, <0.001% hr⁻¹ zero drift), electrochemical fuel-cell O₂ sensor (0–100%, replaceable cartridge, 2-year typical lifetime), and platinum capacitive H₂O sensor (0–100% RH, temperature/pressure compensated).
• Microprocessor-controlled mass flow regulation: thermal feedback loop maintains setpoint flow (10–1500 mL/min) within ±2% across ambient temperatures (3–50°C), enabling both closed-chamber accumulation and open-flow steady-state flux modes.
• 14-channel universal data logger: supports up to six PT100/thermistor temperature probes and eight dielectric soil moisture sensors (0–1 θ_FC, ±3% accuracy), all synchronized with gas data at user-defined intervals (0.1 s to 1 h).
• High-resolution 7-inch capacitive touchscreen interface: displays real-time CO₂, O₂, H₂O, barometric pressure (30–110 kPa), relative humidity, analog input traces, SD card usage, and timestamped acquisition status without external PC dependency.
• Expandable multi-point capability via optional RM-8 multiplexer: eight gas ports (including dedicated baseline channel), <50 ms switching latency, push/pull flow direction support, and cascading configuration for 16- or 24-channel deployments within localized plots (≤10 m²).

Sample Compatibility & Compliance

The SoilBox-FMS accommodates standard aluminum soil chambers (20 cm ID × 20 cm height) with low-thermal-inertia design, minimizing chamber-heating artifacts during long-term deployment. Optional transparent and opaque chambers enable concurrent net photosynthesis (P_net) and dark respiration (R_dark) partitioning in vegetated systems. All gas pathways are constructed from inert, low-permeability fluoropolymer tubing; sensor housings meet IP54 ingress protection standards. The system supports GLP-compliant metadata tagging (operator ID, location GPS, chamber ID, soil depth) and generates audit-ready binary logs compatible with US EPA Method TO-15 and ISO 17025-accredited laboratories. Firmware implements automatic pressure/temperature compensation per ISO 8573-1, and calibration certificates traceable to NIST SRMs are provided with each sensor module.

Software & Data Management

The included Windows-native SoilFlux Pro software provides real-time visualization, automated flux regression (linear/nonlinear fitting per Chamber Flux Protocol v2.1), and batch processing of time-series datasets. Raw data export is supported in CSV, HDF5, and NetCDF-4 formats—enabling integration with R (fluxnetr), Python (pymc3, xarray), or MATLAB workflows. The embedded 32 GB microSD card logs all sensor outputs, analog inputs, and system diagnostics with timestamp precision ≤10 ms. Data security complies with FDA 21 CFR Part 11 requirements: electronic signatures, role-based access control, and immutable audit trails for all parameter changes or calibration events. Remote firmware updates and script-driven autonomous operation (e.g., sunrise-triggered diel cycles) are configurable via USB-C or RS-232.

Applications

• Carbon budgeting in restored wetlands and afforested sites, including CH₄ co-emission profiling using the optional NDIR methane analyzer (0–10%, 1 ppm resolution).
• Q₁₀ determination of soil microbial respiration across controlled-temperature gradient transects (e.g., 5–35°C), supporting IPCC AR6 Tier 2 soil carbon turnover models.
• Ecotoxicological assessment of pesticide impacts on soil macrofauna respiration rates, serving as a functional biomarker for regulatory soil health indices (ISO 11269-2).
• Long-term monitoring of landfill cover gas oxidation efficiency via O₂ depletion/CO₂ production stoichiometry (respiratory quotient RQ = ΔCO₂/ΔO₂).
• In situ validation of eddy-covariance tower data through spatially distributed point measurements using the RM-8 multiplexer network.

FAQ

What gas species can be measured simultaneously?
CO₂, O₂, and H₂O vapor are measured concurrently by default. CH₄ is available as an externally mounted NDIR module with independent signal processing.
Is the system suitable for continuous unattended operation?
Yes—field-rated for 72-hour continuous logging on internal Li-ion battery (optional), with SD card storage supporting >12 months of 10-second-interval data at full channel count.
How is atmospheric pressure variability compensated during flux calculation?
An integrated piezoresistive barometer (30–110 kPa, ±1% accuracy, 1 Pa resolution) feeds real-time corrections into the ideal gas law conversion applied to all gas concentration outputs.
Can the SoilBox-FMS calculate respiratory quotient (RQ) and Q₁₀?
Yes—RQ is derived automatically from stoichiometric ratios of CO₂ efflux and O₂ influx; Q₁₀ is computed via Arrhenius regression across ≥3 temperature steps using built-in temperature-controlled chamber accessories.
What calibration standards are required for field deployment?
Zero gas (N₂) and span gas (certified CO₂/N₂ mixture, e.g., 1000 ppm) are recommended before each campaign; O₂ sensor requires periodic air-saturation verification per ASTM D8258.
