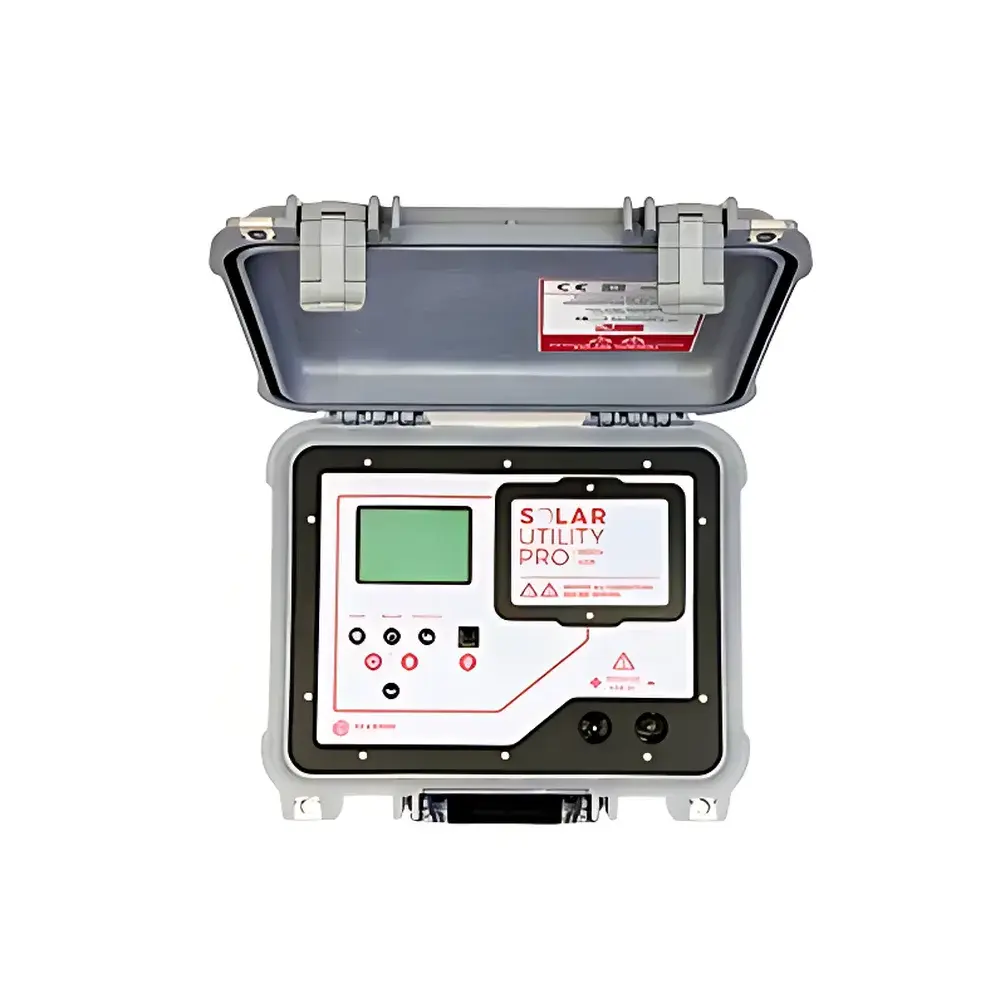

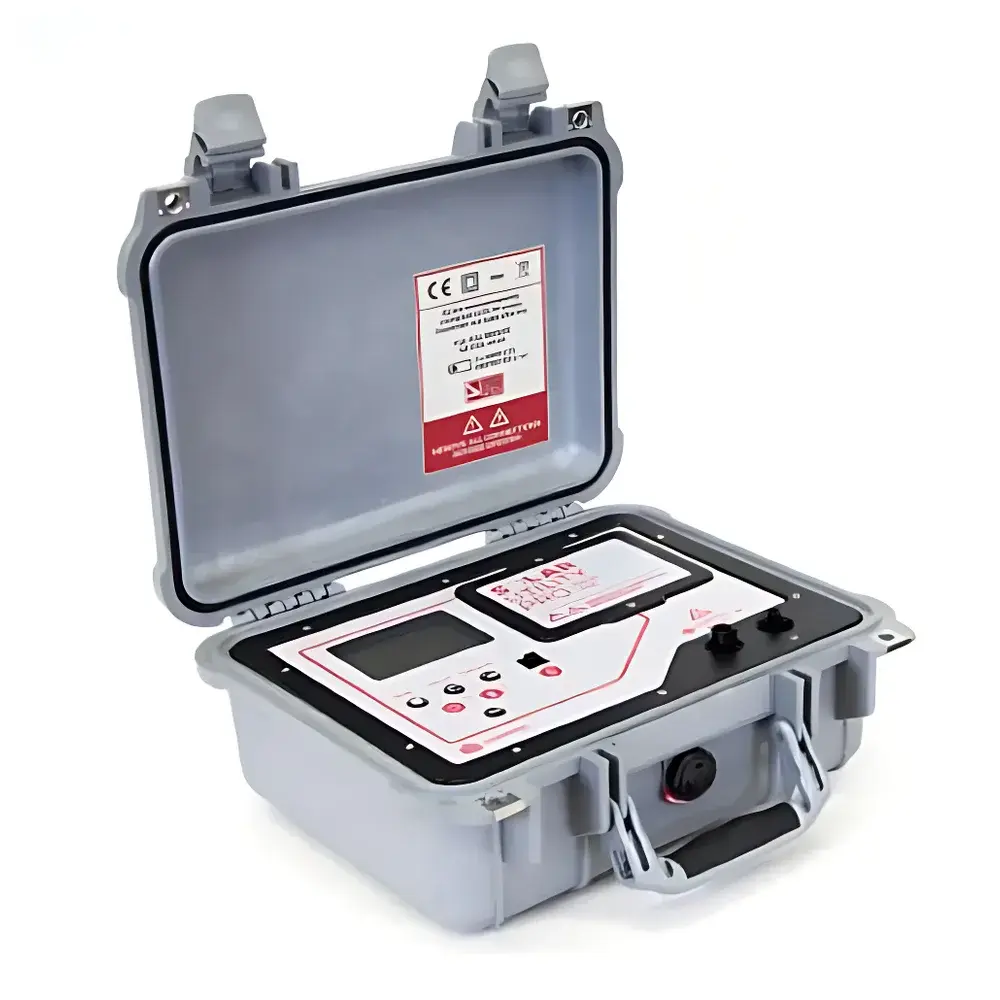

Solar Utility Pro 1500V Photovoltaic String Tester by Seaward
| Brand | Seaward |
|---|---|
| Origin | United Kingdom |
| Model | Solar Utility Pro |
| Voltage Range | Up to 1500 V DC |
| Current Range | Up to 40 A DC |
| Automation Level | Fully Automatic |
| Compliance | IEC 62446-1, IEC 61587, EN 61000-6-3 |
| Data Storage | Internal memory for up to 999 CSV-formatted test records |
| Interface | Integrated display with real-time IV curve preview |
| Accessories Included | 1.5 m MC4-to-alligator-clip conversion lead, rugged carry case, USB-C data export port |
Overview
The Solar Utility Pro is a fully automated, portable photovoltaic (PV) string tester engineered by Seaward — a UK-based manufacturer specializing in certified solar commissioning and maintenance instrumentation. Designed explicitly for utility-scale and commercial PV installations deploying 1500 V DC system architectures, this instrument performs rapid, field-deployable open-circuit voltage (Voc) and short-circuit current (Isc) measurements across parallel-connected strings without requiring physical disconnection. Its architecture implements precision low-impedance shunt-based current sensing and high-stability 16-bit ADC voltage acquisition, enabling traceable, repeatable measurements under variable irradiance and thermal conditions. Unlike legacy testers constrained by 1000 V limits, the Solar Utility Pro meets the evolving safety and performance requirements of modern high-voltage PV plants — supporting both pre-commissioning verification and periodic performance validation in accordance with IEC 62446-1 and UL 1703.
Key Features
- Fully automatic measurement sequence initiated via single-button operation — no manual range selection or calibration steps required.
- Simultaneous Voc and Isc capture at up to 1500 V DC and 40 A DC, with built-in overvoltage/overcurrent protection compliant with CAT III 1500 V safety rating.
- Integrated real-time IV curve preview on high-contrast backlit LCD, allowing immediate visual assessment of string health and mismatch anomalies.

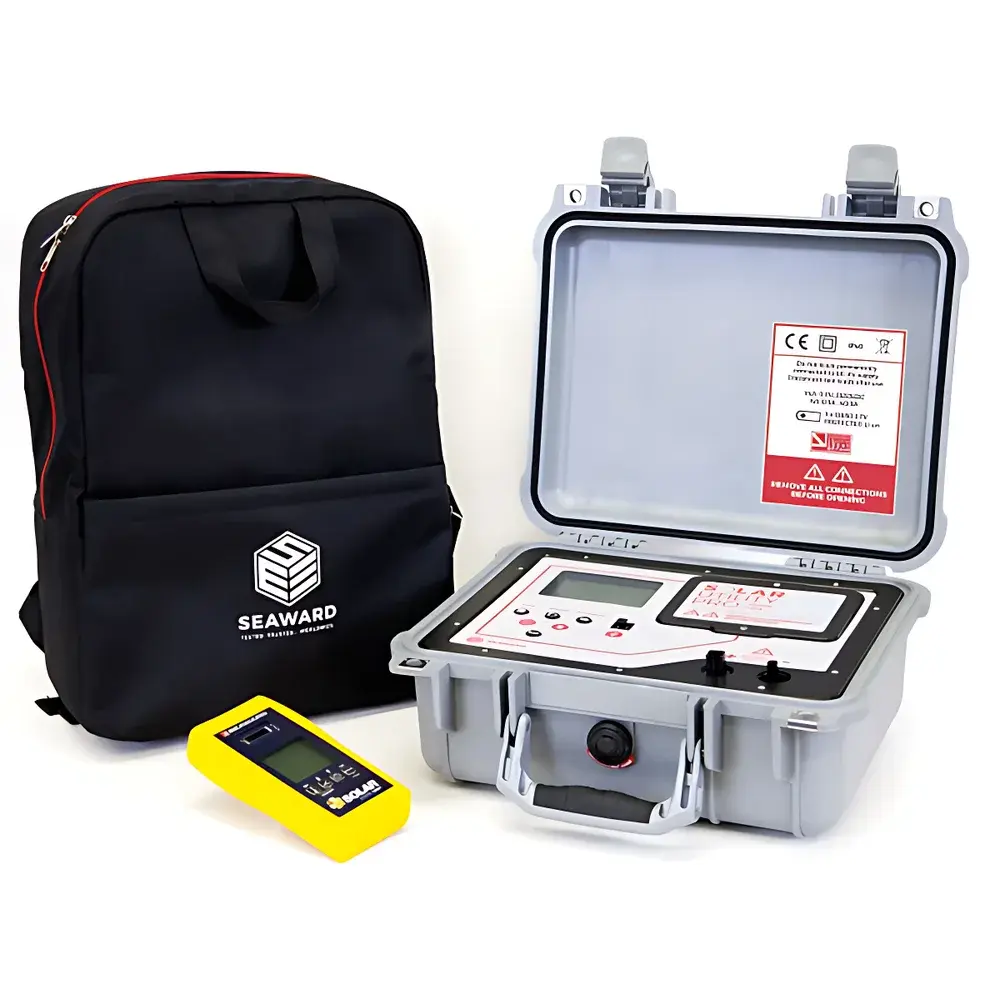

- Seamless interoperability with the Seaward Solar Survey 200R pyranometer and environmental sensor module — enabling synchronized irradiance (W/m²), module temperature (°C), and ambient temperature (°C) logging alongside electrical parameters.
- Ruggedized IP65-rated enclosure with reinforced rubber bumpers, designed for extended field use in desert, rooftop, and ground-mount environments.
- USB-C interface for direct CSV file export; no proprietary software required for basic data retrieval.
Sample Compatibility & Compliance
The Solar Utility Pro is validated for use with crystalline silicon (c-Si), thin-film (CdTe, CIGS), and bifacial PV modules operating within standard 1500 V DC system configurations. It supports both single-string and multi-string parallel testing — eliminating the need to isolate individual strings during combiner box-level commissioning. The instrument conforms to international standards including IEC 62446-1 (grid-connected PV system documentation, commissioning tests, and inspection), IEC 61587 (electromechanical components for electronic equipment), and EN 61000-6-3 (EMC emission requirements for industrial environments). Its measurement uncertainty is traceable to UKAS-accredited reference cells and calibrated sources, satisfying third-party audit requirements under ISO/IEC 17025 and utility interconnection agreements.
Software & Data Management
Data is stored internally in industry-standard CSV format — each record includes timestamp, Voc, Isc, Pmax (calculated), irradiance, module temperature, ambient temperature, and GPS-derived location metadata (when paired with optional GNSS module). No cloud dependency or subscription model is required: files are exported directly via USB-C to any Windows/macOS/Linux host. While Seaway’s free SolarLog Viewer application provides enhanced visualization (e.g., normalized performance ratio comparison, string-by-string deviation heatmaps), raw CSVs integrate natively with SCADA platforms, CMMS systems, and PV monitoring dashboards (e.g., SolarEdge, Fronius, PowerBI). Audit trails support GLP/GMP-aligned workflows, with immutable timestamping and user ID tagging enabled via optional password-protected access levels.
Applications
- Pre-commissioning verification of string integrity and polarity prior to inverter energization.
- Routine performance validation during O&M campaigns — identifying degradation trends, PID effects, or soiling-induced losses.
- Root-cause analysis of underperforming arrays using comparative IV curve overlay and fill factor diagnostics.
- Documentation generation for utility interconnection applications, insurance claims, and warranty validation per manufacturer specifications.
- Training and certification assessments for NABCEP PVIP and ISPQ-accredited technicians.
FAQ
Does the Solar Utility Pro require external power or batteries?
No — it operates from an integrated rechargeable Li-ion battery pack rated for ≥8 hours of continuous testing (typical field usage: 120+ string tests per charge). A universal AC adapter and vehicle 12 V DC charging cable are included.
Can it measure strings with bypass diodes active?
Yes — its dynamic load profiling algorithm compensates for partial shading and bypass diode conduction, delivering accurate Isc values even when one or more substrings are shaded.
Is firmware update supported in the field?
Yes — updates are delivered via signed .bin files through the USB-C interface; version history and checksum verification are displayed in-system prior to installation.
What safety certifications does it hold?
It carries CE, UKCA, and RoHS markings, and is independently verified to IEC 61010-1 CAT III 1500 V pollution degree 2 — suitable for use inside combiner boxes and DC switchgear enclosures.
How is measurement traceability maintained?
Each unit ships with a UKAS-accredited calibration certificate valid for 12 months; recalibration services are available through Seaward’s authorized service centers in EMEA, North America, and APAC regions.
