SONO-VARIO Online Fast Moisture Analyzer

Overview

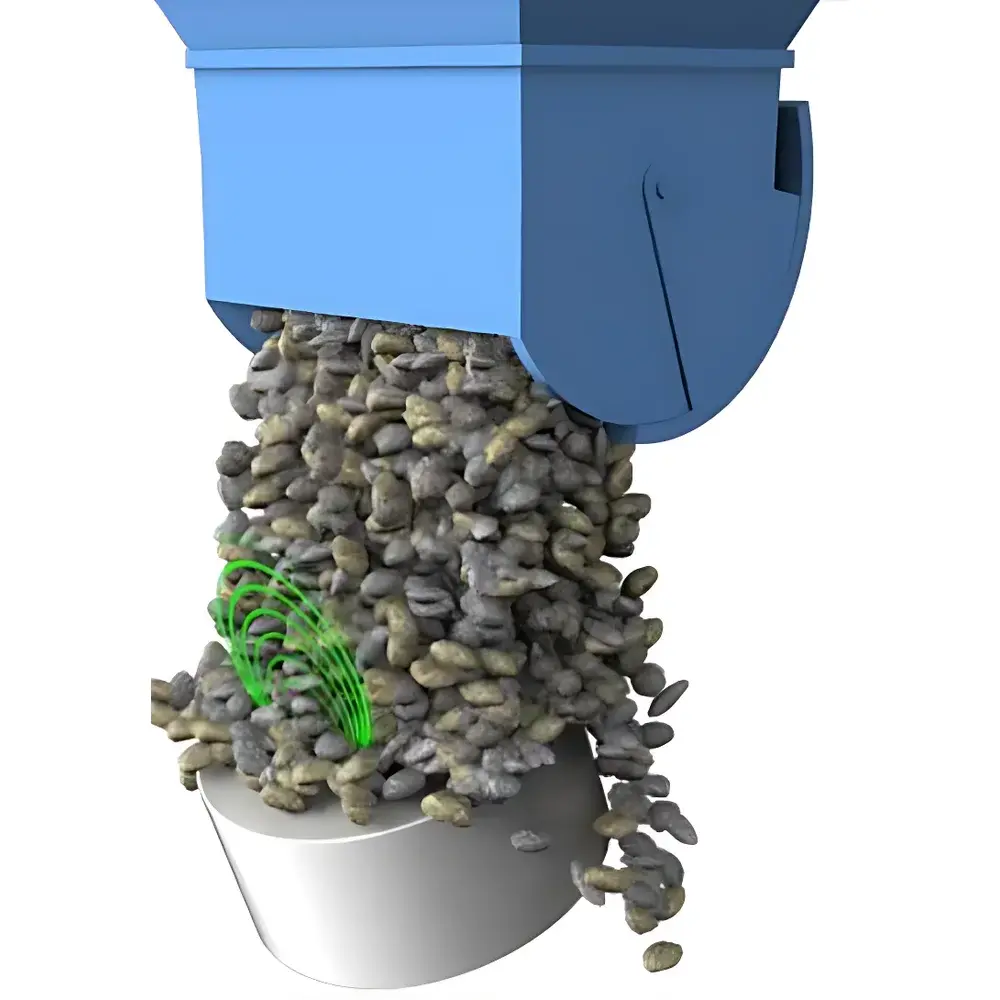

The SONO-VARIO Online Fast Moisture Analyzer is an industrial-grade, real-time dielectric moisture sensor engineered for continuous, non-invasive measurement of volumetric water content and bulk electrical conductivity in free-flowing or compacted granular solids. Unlike conventional capacitance or resistive sensors, the SONO-VARIO employs a time-domain reflectometry (TDR)-enhanced capacitive sensing architecture—often referred to as TRIME® technology—to generate a stable electromagnetic field that penetrates the material matrix without physical contact with internal surfaces. This design eliminates drift caused by surface fouling, particle size variation, condensation, or mechanical compaction during feed discharge—critical limitations observed in silo-mounted or insertion-type probes. The device operates on the principle that the relative permittivity (dielectric constant) of a solid matrix increases predictably with increasing water content; by precisely resolving this parameter across a defined measurement volume (~30–50 mm spherical zone), the analyzer delivers high-reproducibility moisture data within seconds. It is specifically optimized for dynamic process environments including concrete batching plants, aggregate processing lines, soil stabilization systems, and industrial drying conveyors.

Key Features

• TRIME®-based TDR-capacitive sensing: Immune to particle-size distribution shifts, surface moisture films, and ambient humidity fluctuations
• Dual independent 0(4)–20 mA analog outputs configurable per measurement mode (e.g., moisture % and EC simultaneously)
• Self-compensating wear detection: Automatic correction of signal offset due to ceramic window abrasion—no recalibration required after probe wear
• Six embedded measurement modes: CA (fast continuous averaging), CF (slow floating average), CS (high-speed instantaneous sampling >100 Hz), CC (cumulative moisture mass calculation), CH (instantaneous mode without summation), CK (mixer-optimized averaging with 0.1% repeatability)
• Robust probe construction: Standard model features stainless steel body with sintered alumina ceramic window; Xtrem variant uses hardened tool steel and silicon nitride (Si₃N₄) ceramic for extreme abrasion resistance
• Integrated onboard signal preprocessing: Adjustable digital filtering, temperature compensation, and real-time linearization using up to 15 application-specific calibration curves
• Industrial connectivity: Native support for Modbus TCP over Ethernet; optional ProfiBus DP or CANopen modules available via expansion interface

Sample Compatibility & Compliance

The SONO-VARIO is validated for reliable operation across heterogeneous, abrasive, and electrically conductive solid matrices—including natural sand, crushed stone, expanded clay, limestone fines, foundry sand, coal blends, compost, sewage sludge, and food-grade granules. Its dielectric measurement approach remains stable under variable bulk density conditions (e.g., vibrated vs. gravity-fed flow) and is unaffected by moderate salinity (EC ≤12 dS/m). While not certified to IEC 61508 or SIL standards out-of-the-box, the device meets EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU when installed with appropriate fieldbus isolation. Firmware supports audit-trail logging and timestamped data export—enabling alignment with GLP-compliant documentation workflows in QA/QC laboratories and GMP-aligned production facilities. Calibration traceability follows ISO/IEC 17025 guidelines when performed using NIST-traceable reference materials and validated gravimetric protocols.

Software & Data Management

Data acquisition and configuration are managed via the AZ-SonoConfig desktop utility (Windows), which provides secure firmware updates, probe commissioning, curve editing, and real-time waveform visualization. All measurement modes, analog output scaling, alarm thresholds, and bus addressing parameters are stored in non-volatile memory. When integrated into SCADA or DCS platforms, the SONO-VARIO transmits timestamped, unit-normalized values (e.g., % v/v moisture, dS/m EC, °C temperature) with sub-second latency. Optional cloud gateway modules enable MQTT-based telemetry to AWS IoT Core or Azure IoT Hub, supporting predictive maintenance analytics and historical trend analysis. Raw TDR waveforms can be exported for advanced validation against ASTM D5790 (standard test method for determining water content of soils by dielectric methods).

Applications

• Concrete precast and ready-mix batching: Real-time W/C ratio control via closed-loop water dosing systems
• Aggregates and mining: On-belt moisture feedback for crusher feed optimization and stockpile homogenization
• Soil remediation and landfill capping: In-situ monitoring of moisture migration in engineered barriers
• Industrial drying and thermal processing: Feedback control of rotary dryers, fluidized beds, and belt dryers handling mineral powders
• Wastewater biosolids handling: Monitoring moisture evolution during dewatering, composting, and pelletization
• Food and feed processing: Continuous verification of grain, flour, and pellet moisture prior to packaging or extrusion

FAQ

Does the SONO-VARIO require periodic recalibration?
No—its TRIME® architecture includes automatic drift compensation for ceramic window wear. However, annual verification against gravimetric reference samples is recommended for critical applications.
Can it measure frozen or saturated materials?
It measures volumetric water content up to saturation point, but performance degrades below 0 °C due to dielectric property shifts in ice; optional high-temp variants do not extend low-temperature capability.
Is the probe suitable for pressurized vessels?
The standard probe is rated for atmospheric pressure only. For pressurized hoppers or reactors, custom flanged mounting kits with pressure-rated seals must be specified at order stage.
How is temperature compensation handled?
An integrated Pt1000 RTD sensor provides simultaneous temperature measurement; all moisture and EC algorithms apply real-time, material-specific thermal correction coefficients.
What is the minimum detectable moisture change?
Under stable conditions and using Mode CA or CF, resolution is ≤0.1% v/v for sand-like media with density ≥1.4 g/cm³—subject to installation geometry and material homogeneity.
