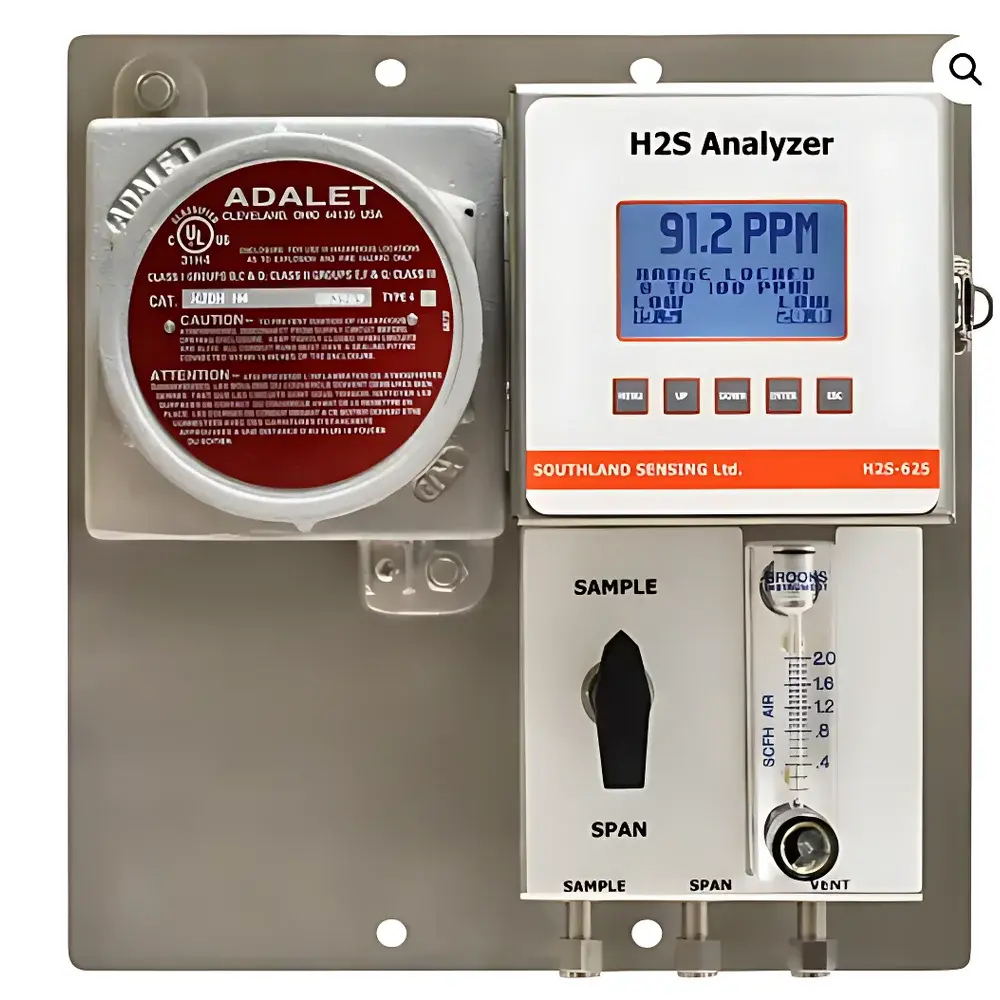

Southland H2S-625 Intrinsically Safe Online Hydrogen Sulfide Analyzer

Overview

The Southland H2S-625 is an intrinsically safe, continuous-duty online hydrogen sulfide (H₂S) analyzer engineered for reliable, low-maintenance operation in hazardous industrial environments. It employs a precision electrochemical fuel cell sensor — a proven transduction principle based on the controlled oxidation of H₂S at a catalytic working electrode, generating a current linearly proportional to gas concentration. This measurement architecture delivers high selectivity, long-term baseline stability, and minimal zero drift under dynamic process conditions. Designed specifically for Class I, Division 1, Groups B, C, and D locations per NEC/CEC standards, the H2S-625 meets stringent safety requirements for deployment in natural gas transmission, biogas upgrading, landfill gas recovery, sour gas processing, and refinery off-gas monitoring. Its robust mechanical construction, wide operating temperature range (0–50 °C), and modular sensor design ensure consistent performance across fluctuating ambient and sample stream conditions without routine recalibration or consumable replacement.

Key Features

• Intrinsically safe certification compliant with UL 913 (7th ed.) and CSA C22.2 No. 157 for Class I, Div. 1, Groups B, C, D
• Three interchangeable sensor modules (H2S-1x, H2S-2x, H2S-3x) supporting 12 total measurement ranges from 0–10 ppm to 0–10,000 ppm H₂S
• Electrochemical sensor with no electrolyte replenishment, electrode cleaning, or membrane replacement required during normal service life
• Large backlit LCD display with intuitive menu navigation — full local configuration and real-time diagnostics accessible without external PC or software
• Dual fully configurable relay outputs for alarm, shutdown, or control signaling (SPDT, 5 A @ 250 VAC resistive)
• Analog output options: 4–20 mA (2-wire or 4-wire) or 1–5 VDC, scalable to any selected range
• Wide power input compatibility: 12–24 VDC (loop-powered option available) or 100–240 VAC, 50/60 Hz
• Sample flow rate tolerance: 0.25–5.0 SCFH; inlet pressure range: 0.1–50 psi (gauge); vent-to-atmosphere exhaust

Sample Compatibility & Compliance

The H2S-625 is optimized for dry, non-condensing gas streams typical of natural gas pipelines, amine-treated gas effluents, biogas after desulfurization, and vented refinery sour water stripper off-gas. Cross-sensitivity data are characterized per ISO 12032 and reported as equivalent H₂S response: methyl mercaptan (40 ppm), carbon monoxide (4 ppm), hydrogen (1 ppm), sulfur dioxide (18 ppm) — enabling informed correction in multi-component environments. The analyzer complies with applicable sections of ANSI/ISA-12.12.01 for hazardous location equipment and supports traceability under GLP/GMP frameworks via audit-ready calibration logs stored in non-volatile memory. Optional RS485 Modbus RTU interface enables integration into DCS/SCADA systems with timestamped data logging and remote parameter adjustment.

Software & Data Management

All configuration, calibration history, alarm event logs, and sensor diagnostics are managed locally via the front-panel interface. The embedded firmware stores ≥12 months of hourly min/max/average concentration data and up to 500 discrete alarm events with timestamps and cause codes. Calibration routines follow ASTM D5502-19 protocols for electrochemical gas analyzers, including zero and span verification with certified NIST-traceable standard gases. While no PC-based software is required for operation, optional configuration utilities support batch export of historical data in CSV format for QA/QC reporting and regulatory submissions (e.g., EPA Method 204, API RP 14E).

Applications

• Natural gas gathering, transmission, and city gate monitoring for pipeline specification compliance (e.g., GPA 2145, ISO 8573-6)
• H₂S removal efficiency verification upstream and downstream of amine scrubbers, iron sponge beds, or biological desulfurization units
• Landfill and anaerobic digester biogas quality assurance prior to CHP or grid injection
• Refinery flare gas and sour water stripper overhead monitoring per OSHA PEL and NIOSH REL limits
• Chemical manufacturing process vents where H₂S is a byproduct or intermediate
• Emergency response and confined space entry pre-screening in oilfield service operations

FAQ

What is the expected service life of the electrochemical sensor?
The sensor is rated for 12 months of continuous operation under specified environmental and sample conditions. Actual lifespan may vary depending on cumulative exposure to high H₂S concentrations, humidity extremes, or interfering gases.
Can the analyzer be calibrated in the field without specialized tools?
Yes — zero and span calibration can be performed using standard gas cylinders and the built-in calibration wizard. No proprietary hardware or laptop is required.
Is the H2S-625 suitable for use in wet or corrosive gas streams?
It is intended for dry, non-condensing samples. For high-humidity or acidic gas applications, Southland recommends pairing the analyzer with an optional heated sample conditioning system and particulate/moisture filtration.
Does the unit support remote diagnostics or predictive maintenance alerts?
While not cloud-connected, the device provides real-time sensor health indicators (e.g., baseline voltage, load resistance, temperature compensation status) and stores diagnostic flags for trending in maintenance logs.
How is compliance with explosion protection standards verified?
Each unit ships with a certified label affixed per UL 913 and includes a Certificate of Conformity referencing the specific test report number issued by an accredited Nationally Recognized Testing Laboratory (NRTL).
