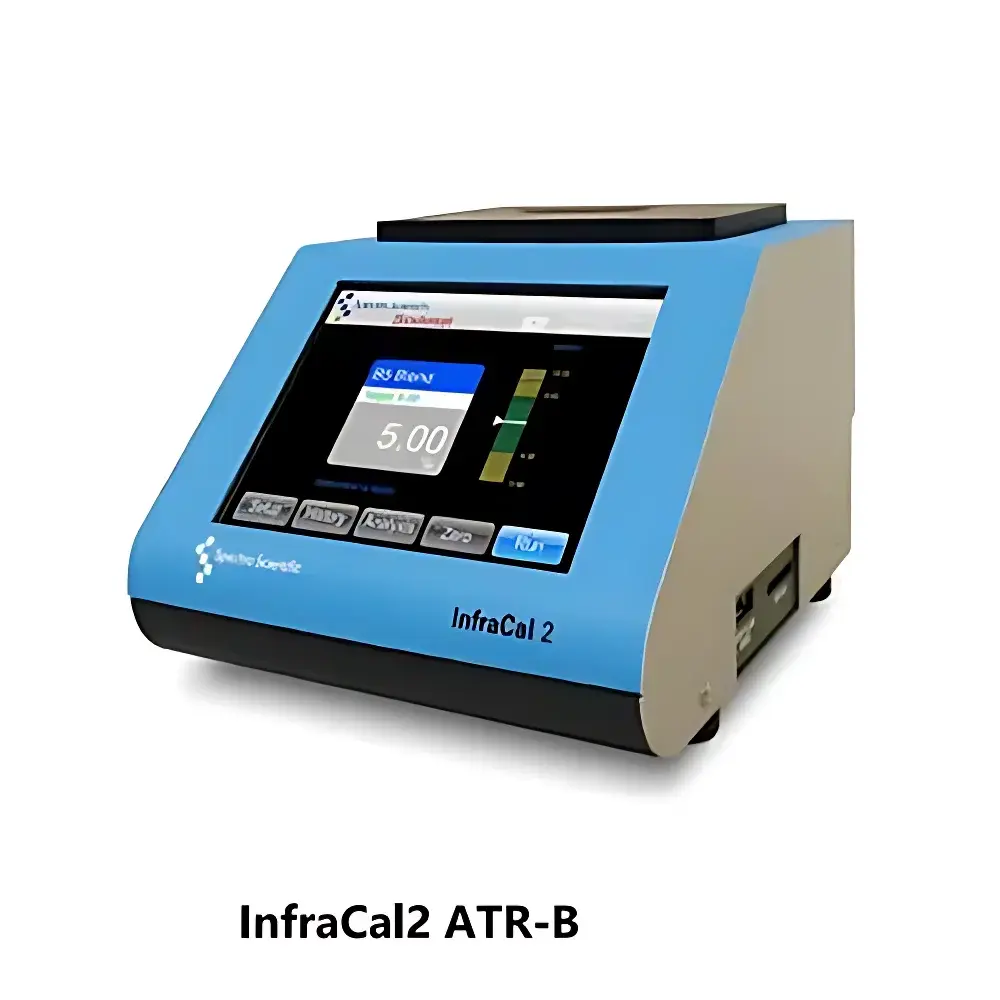

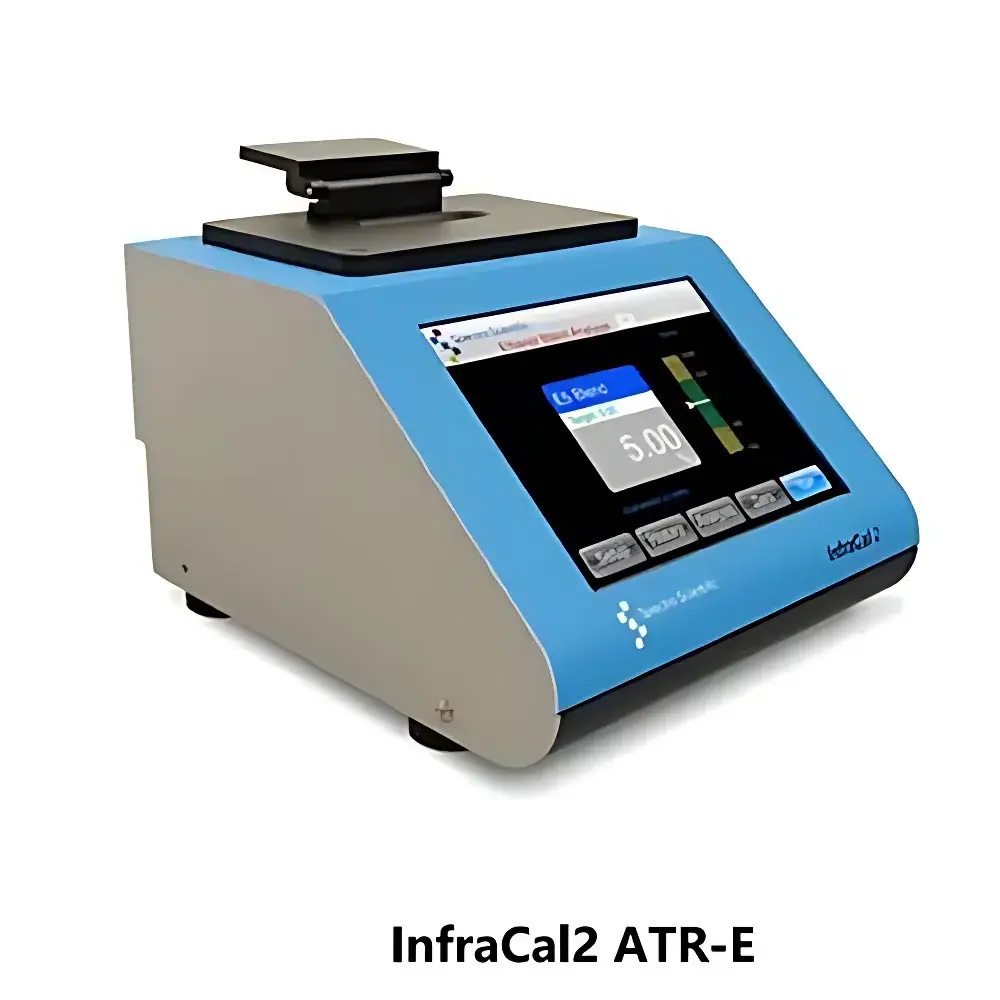

Spectro Scientific InfraCal 2 Biofuel Analyzer

Overview

The Spectro Scientific InfraCal 2 Biofuel Analyzer is a field-deployable, fixed-filter near-infrared (NIR) absorption spectrometer engineered for rapid, quantitative determination of biodiesel (FAME) in diesel fuel and ethanol in gasoline. Unlike dispersive or Fourier-transform instruments, the InfraCal 2 employs a dual-wavelength, ratio-metric detection architecture centered on characteristic C–O and C=O vibrational absorption bands—specifically 5.83 µm (1715 cm⁻¹) for biodiesel and 3.41 µm (2930 cm⁻¹) for ethanol—enabling selective, interference-resistant quantification without spectral deconvolution. Its design prioritizes operational robustness in non-laboratory environments: it requires no optical realignment, purge gas, or temperature stabilization, and delivers repeatable results across ambient conditions ranging from 5 °C to 40 °C. The analyzer operates independently of external computing infrastructure, making it suitable for mobile quality assurance at fuel terminals, retail dispensing sites, and regulatory inspection points.

Key Features

• Compact, ruggedized housing rated IP54 for dust and splash resistance, with shock-absorbing elastomer bumpers and MIL-STD-810G compliant drop tolerance (1.2 m onto concrete).
• Integrated touchscreen interface with intuitive icon-driven workflow—no keyboard or mouse required; all calibration, measurement, and data review functions accessible via tap-and-swipe navigation.
• Onboard rechargeable lithium-ion battery providing ≥6 hours of continuous operation between charges; battery status and estimated runtime displayed in real time.
• Multi-language firmware supporting English, Spanish, French, and Arabic—configured per user session without firmware reload.
• Password-protected access levels: Operator mode (measurement only), Supervisor mode (calibration curve editing), and Administrator mode (system configuration, memory wipe, language reset).
• No consumables beyond laboratory-grade isopropanol or acetone for cell cleaning; no filters, lamps, or detector replacements over typical service life (>5 years).

Sample Compatibility & Compliance

The InfraCal 2 accepts liquid hydrocarbon fuel samples directly—no dilution, derivatization, or filtration required. Compatible matrices include ASTM D975 diesel, ASTM D396 heating oil, ASTM D4814 gasoline, and ASTM D7467 blended biodiesel (B5–B20). It complies with the measurement principles outlined in ASTM D7371 (biodiesel in diesel) and ASTM D5798 (ethanol in gasoline), and supports audit-ready documentation for EPA, CARB, and EU RED II verification protocols. Internal data logging records analyst ID, GPS-derived location (when paired with optional Bluetooth GNSS module), timestamp (ISO 8601 format), and measurement ID—each entry cryptographically signed to prevent post-acquisition modification. All stored data meet GLP traceability requirements for chain-of-custody integrity.

Software & Data Management

Data are stored in a secure, non-volatile internal memory partition (≥10,000 test records). Each record includes raw absorbance ratios, calculated concentration (% v/v), operator ID, instrument serial number, calibration ID, and environmental metadata (ambient temperature, battery voltage). Export occurs via USB 2.0 interface to standard FAT32-formatted USB flash drives; exported files follow CSV format with UTF-8 encoding and include header rows compliant with LIMS ingestion standards. No proprietary software installation is required—data files open natively in Excel, LibreOffice Calc, or statistical platforms such as JMP or R. Audit trail logs capture all calibration changes, password resets, and memory deletions with timestamps and authenticated user IDs—fully aligned with FDA 21 CFR Part 11 electronic record requirements when deployed in regulated QA/QC environments.

Applications

• Fuel terminal operators performing incoming inspection of biodiesel-blended diesel deliveries prior to tank transfer.
• Distribution fleet managers verifying ethanol content in reformulated gasoline (RFG) before dispatch to high-altitude or cold-climate regions where phase separation risk increases.
• Engine OEMs conducting in-field fuel screening during durability testing to ensure compliance with Tier 4 Final and Euro VI fuel specification limits.
• State and federal regulatory agencies executing roadside fuel sampling programs under EPA Enforcement Response Policy (ERP) Section 3.2.
• Renewable fuel producers validating blend accuracy during batch certification prior to RIN generation under the U.S. Renewable Fuel Standard (RFS2).

FAQ

Does the InfraCal 2 require annual factory recalibration?
No. The fixed-filter optical path and thermoelectrically stabilized detector eliminate drift-related recalibration needs. Users perform performance verification using supplied reference standards (e.g., certified B5 and E10 check standards) quarterly or per internal QA protocol.
Can the instrument measure both biodiesel and ethanol in the same sample?
No. The InfraCal 2 operates in dedicated modes: “Biodiesel in Diesel” or “Ethanol in Gasoline.” Cross-matrix measurement is not supported due to fundamental differences in IR absorption backgrounds and interferent profiles.
Is method validation documentation available for regulatory submission?
Yes. Spectro Scientific provides a complete IQ/OQ protocol package—including linearity, precision (repeatability and intermediate precision), limit of detection (LOD), and ruggedness assessment data—aligned with ICH Q2(R2) guidelines for adoption into site-specific validation plans.
What happens if the touchscreen becomes unresponsive?
A hardware reset sequence (press and hold Power + Volume Down for 8 seconds) restores full functionality without data loss; firmware recovery mode is accessible via USB connection to a Windows PC using Spectro’s certified utility.
Are calibration curves transferable between instruments?
Calibration files are serialized to individual instrument MAC addresses and cannot be loaded onto other units—ensuring measurement integrity and preventing unauthorized curve substitution.
