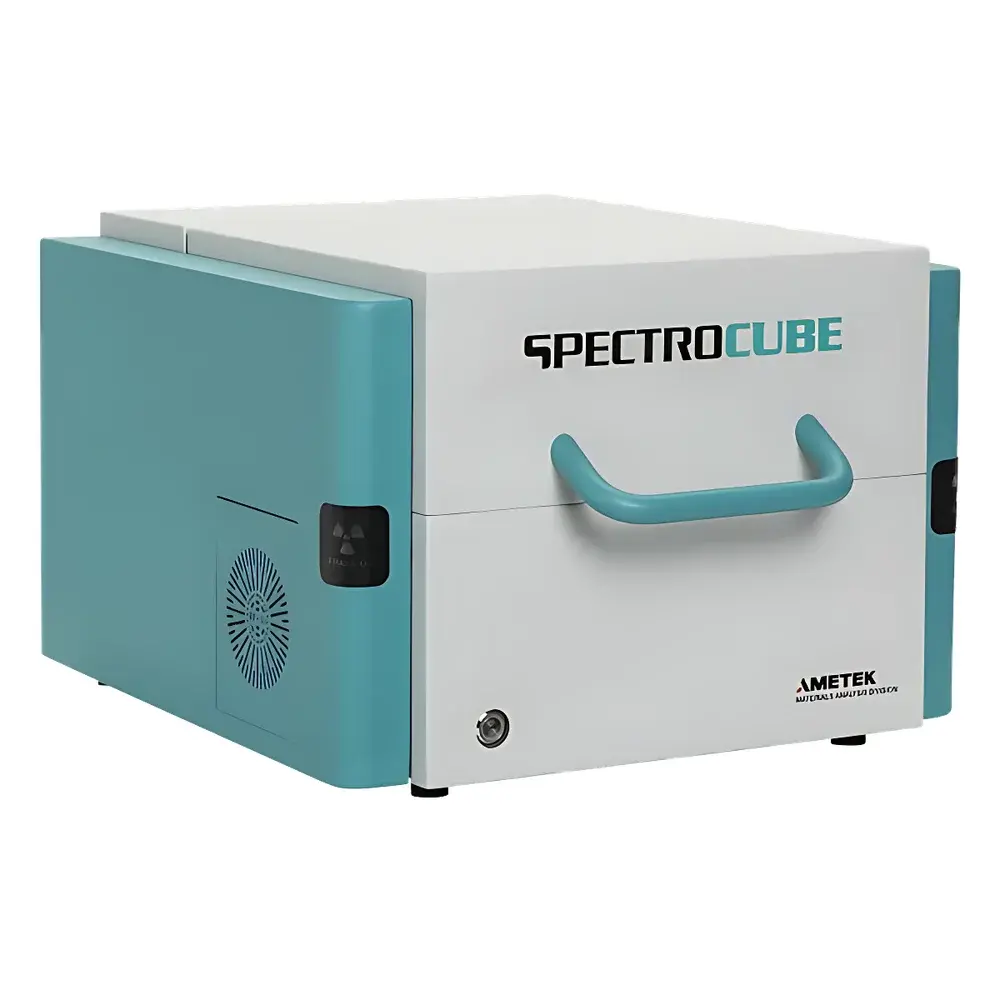

SPECTRO SPECTROCUBE Energy Dispersive X-Ray Fluorescence Spectrometer (Petrochemical-Optimized)

Overview

The SPECTRO SPECTROCUBE is a purpose-engineered energy dispersive X-ray fluorescence (ED-XRF) spectrometer designed specifically for routine elemental analysis in petrochemical laboratories. Operating on the fundamental principle of X-ray fluorescence—where primary X-rays excite atoms in a sample, inducing emission of characteristic secondary X-rays—the instrument delivers rapid, non-destructive, and matrix-tolerant quantification of elements from sodium (Na) to uranium (U). Its optimized excitation geometry, high-efficiency SDD detector, and proprietary spectral deconvolution algorithms enable robust performance across diverse petroleum matrices including gasoline, diesel, jet fuel, lubricating oils, crude oil, and used engine oils. Unlike wavelength-dispersive systems, the SPECTROCUBE achieves turnaround times under 60 seconds per sample without compromising detection sensitivity or precision—making it ideal for high-throughput compliance testing against global sulfur specifications (e.g., ASTM D2622, ISO 8754, UOP 325) and trace metal monitoring in refinery feedstocks.

Key Features

• High-resolution silicon drift detector (SDD) with <130 eV energy resolution at Mn Kα, ensuring clear separation of overlapping peaks (e.g., S Kα/Pb Mα, V Kβ/Cr Kα) in complex hydrocarbon matrices.
• Dual-voltage X-ray tube (up to 50 kV / 1 mA) with selectable anode materials (Rh or Pd), enabling optimal excitation for light elements (Na–Cl) and heavy metals (Ni, V, Fe, Ca, Zn) in a single measurement.
• Automated sample positioning and beam collimation system minimizing scatter contribution and enhancing signal-to-background ratio for low-Z element detection.
• Ruggedized benchtop or floor-standing chassis engineered for continuous operation in industrial lab environments; vibration-isolated optical path and thermally stabilized detector housing ensure long-term spectral stability.
• Pre-calibrated, application-specific method packages for ASTM D2622 (sulfur in fuels), ASTM D5185 (additive metals in lubricants), ASTM D6443 (Ca, Zn, P, Mg in engine oils), and custom crude oil screening protocols.

Sample Compatibility & Compliance

The SPECTROCUBE accepts liquid samples in standard 30 mm or 40 mm diameter XRF cups with Mylar or Polyimide film windows. Solid catalysts, particulate filters, and dried residues can be analyzed using optional sample holders with pressure-sealed cavities. All methods are validated per ASTM E1621 and ISO 18507 for precision, accuracy, and linearity across the full quantification range (0.1 ppm–99.99%). The system supports GLP/GMP-compliant workflows via user access control, electronic signatures, audit trail logging, and full 21 CFR Part 11 readiness when integrated with SPECTRO’s optional LabX software suite. Regulatory alignment includes compliance with EPA Method 6200, ISO 13702 (offshore oil analysis), and EN 1407 (used lubricating oil testing).

Software & Data Management

Controlled by SPECTRO’s LabX™ PC-based software, the SPECTROCUBE provides intuitive workflow navigation, real-time spectral visualization, and automated peak identification using fundamental parameters (FP) and empirical calibration models. Data integrity safeguards include automatic metadata tagging (operator ID, timestamp, instrument conditions), version-controlled method libraries, and encrypted database storage. Export formats include CSV, XML, and PDF reports compliant with LIMS integration standards (ASTM E1482, ASTM E2500). Optional modules support trend analysis, statistical process control (SPC) charting, and automated pass/fail flagging against configurable specification limits—critical for refinery QC release decisions.

Applications

• Sulfur quantification in transportation fuels per Tier 3, Euro 5/6, and China VI regulatory thresholds (down to 1 ppm).
• Wear metal analysis (Fe, Cu, Al, Cr, Pb, Sn) and additive element monitoring (Ca, Zn, P, Mg, Ba) in new and in-service lubricants.
• Ni/V/Fe determination in crude oil to assess catalyst poisoning risk and optimize desalting operations.
• Chlorine and silicon screening in feedstocks to prevent corrosion and fouling in distillation units.
• Multi-element screening of catalysts, slurry oils, and refinery waste streams for environmental reporting and process optimization.

FAQ

Is the SPECTROCUBE suitable for analyzing sulfur in ultra-low-sulfur diesel (ULSD)?

Yes. With its optimized low-energy response and high-count-rate SDD, the SPECTROCUBE achieves sub-ppm detection limits for sulfur in diesel matrices, fully meeting ASTM D2622 requirements for ULSD certification.
Can it analyze solid catalyst samples without digestion?

Yes. The instrument supports direct analysis of pressed pellets or loose powders using dedicated holders; quantitative results require matrix-matched calibration standards or FP correction for particle size and density effects.
Does it require helium purge for light element analysis?

No. The vacuum-compatible chamber and optimized tube spectrum allow reliable Na–Cl quantification in air mode; helium flush is optional for enhanced Mg–Al sensitivity.
How is calibration maintained across shifts and operators?

LabX enforces method locking, calibration verification checks (using certified reference materials), and automatic drift correction via internal standard monitoring—ensuring inter-operator reproducibility ≤0.1% RSD.
What service and support options are available globally?

SPECTRO offers factory-certified installation, annual performance verification (per ISO/IEC 17025), remote diagnostics, and on-site preventive maintenance contracts through its authorized service network in North America, EMEA, and APAC regions.
