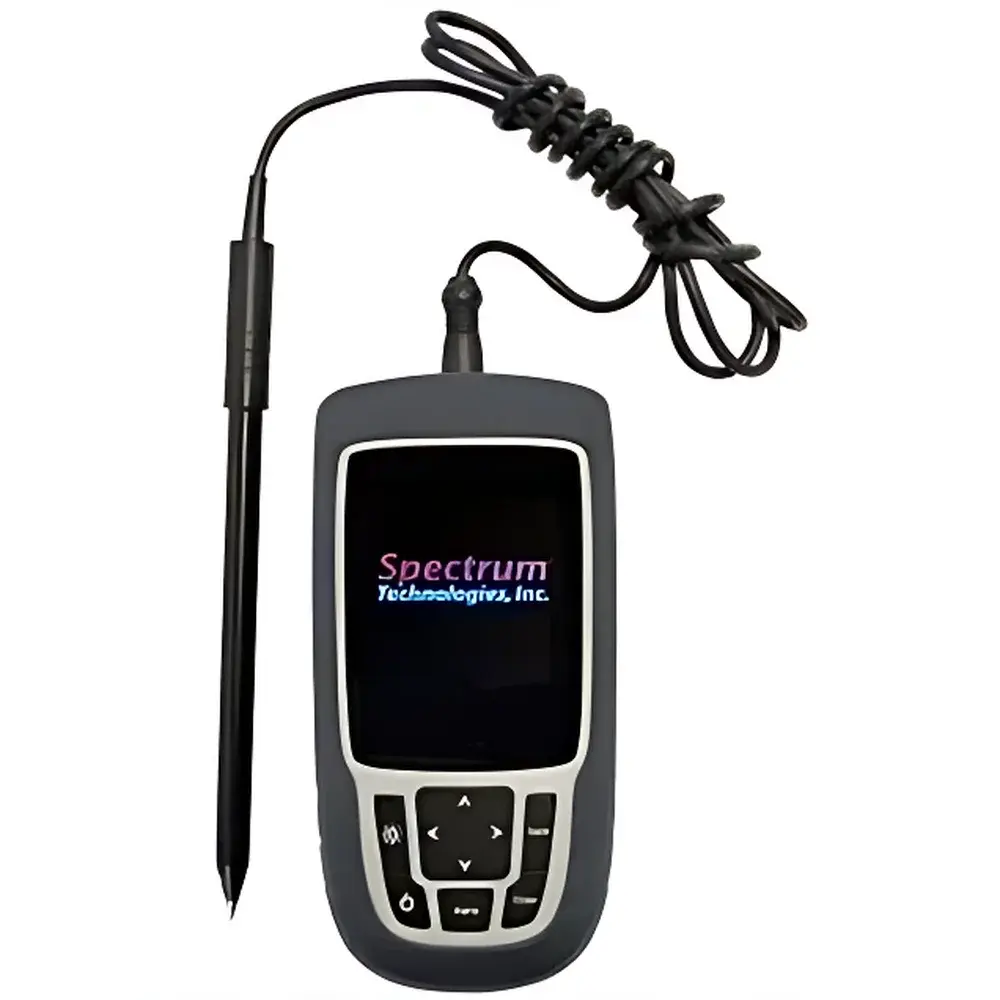

Spectrum PH400 & PH600 In-Situ Soil pH Meter

Overview

The Spectrum PH400 and PH600 In-Situ Soil pH Meters are field-deployable, direct-insertion electrochemical instruments engineered for rapid, reliable measurement of soil pH in undisturbed field conditions. Based on potentiometric principle using a ruggedized combination pH electrode with integrated temperature compensation (ATC), these meters eliminate the need for soil slurry preparation or laboratory extraction—enabling real-time, non-destructive assessment of soil acidity at multiple depths. Designed specifically for environmental monitoring, agronomic research, and precision land management, the PH400 and PH600 comply with standard methodologies referenced in ASTM D4972 (Standard Test Method for pH of Soils) and ISO 10390:2022 (Soil quality — Determination of pH). Their operational range spans pH 0.0 to 14.0 with ±0.1 pH accuracy at 25 °C, supporting both routine field surveys and long-term soil health monitoring programs.

Key Features

• Rugged IP65-rated enclosure ensures dust-tight operation and protection against low-pressure water jets—validated for continuous outdoor use in humid, dusty, or rain-prone environments.
• Internally mounted shock-absorbing rubber gasket system isolates sensitive electronics from mechanical vibration during transport or insertion into compacted soil profiles.
• Sealed USB-C port with silicone gasket and battery compartment featuring dual-layer EPDM rubber sealing gasket prevent moisture ingress under variable ambient humidity (10–95% RH, non-condensing).
• 3.2-inch full-color TFT LCD with adjustable backlight intensity supports legible readings under direct sunlight or low-light canopy conditions.
• On-device intelligent calibration wizard guides users through single-point (pH 7.0) or two-point (pH 4.01/7.01 or 7.01/10.01) calibration using NIST-traceable buffer solutions—no external software required.
• Lightweight (PH400: 285 g; PH600: 310 g) and ergonomically contoured housing enables extended handheld operation and minimizes operator fatigue during multi-site sampling campaigns.
• Auto-power-off after 10 minutes of inactivity; replaceable AA alkaline batteries provide ≥150 hours of continuous measurement runtime.

Sample Compatibility & Compliance

The PH400 and PH600 are validated for direct insertion into mineral soils (sandy, loamy, clayey), organic substrates (peat, compost), and horticultural growing media (coir, perlite blends) with moisture content ≥15% w/w. Electrode tip geometry (PH400: 12 mm Ø × 150 mm L conical probe; PH600: 10 mm Ø × 200 mm L tapered probe) allows penetration into moderately compacted soils without pre-aeration. Both models meet IEC 60529 for ingress protection and conform to RoHS 3 and REACH Annex XVII material restrictions. Calibration traceability aligns with NIST SRM 186, and data acquisition protocols support GLP-compliant field documentation when paired with optional GPS-enabled logging accessories.

Software & Data Management

Data export is supported via USB-C interface to Windows/macOS platforms using Spectrum’s free SoilMetrics Desktop v3.2 application (v3.2.1 certified for FDA 21 CFR Part 11 compliance with audit trail, electronic signature, and role-based access control). Field measurements are timestamped, geotagged (when connected to external Bluetooth GNSS receiver), and stored in .CSV and .XML formats compatible with LIMS integration. Firmware updates are delivered via secure HTTPS endpoint with SHA-256 signature verification.

Applications

• Long-term soil acidification monitoring in forested watersheds and acid-sensitive ecosystems (e.g., Appalachian hardwood stands, boreal peatlands).
• Site-specific lime requirement mapping for variable-rate agricultural lime application in row-crop and orchard systems.
• Validation of bioremediation efficacy in metal-contaminated soils where pH governs heavy metal speciation and phytoavailability.
• Greenhouse substrate pH stability tracking across propagation, vegetative, and flowering growth stages.
• Curriculum-aligned field exercises in undergraduate soil science, environmental chemistry, and sustainable agriculture courses.
• Regulatory compliance sampling for EPA Region 4 and USDA-NRCS soil health indicator reporting frameworks.

FAQ

What is the recommended electrode maintenance protocol for sustained accuracy in high-organic soils?
Rinse the electrode tip with deionized water after each measurement; soak in 0.1 M HCl for 2 minutes weekly if used in humic-rich or clay-dense matrices. Store immersed in pH 4.01 storage solution.
Can the PH400/PH600 be used in saturated or flooded soils?
Yes—provided the electrode tip remains fully submerged in the soil-water matrix and the instrument body remains above the water line. Avoid submerging the housing beyond IP65 rating limits.
Does the device support automatic temperature compensation across the full operating range?
Yes—integrated Pt1000 RTD sensor provides continuous ATC from 0 °C to 50 °C with ±0.3 °C accuracy, applying the standard Nernstian slope correction per ISO 7888.
Is calibration verification possible in the field without buffer solutions?
No—field calibration requires NIST-traceable pH 4.01 and/or 7.01 buffers. However, post-measurement drift checks can be performed using a portable pH reference standard kit (sold separately).
How does the PH600 differ functionally from the PH400?
The PH600 features an extended probe length (200 mm vs. 150 mm), enhanced depth-of-field calibration memory (up to 200 profiles vs. 100), and optional Bluetooth 5.2 connectivity for wireless data streaming to mobile devices running Spectrum FieldLink app.
