Stresstech Rollscan 250 Barkhausen Noise Analyzer

Overview

The Stresstech Rollscan 250 Barkhausen Noise Analyzer is a portable, high-sensitivity electromagnetic non-destructive testing (NDT) instrument engineered for quantitative assessment of surface and near-surface integrity in ferromagnetic components. It operates on the physical principle of the Barkhausen effect—where abrupt, stochastic jumps in magnetic domain wall motion generate measurable voltage pulses in a pickup coil during controlled magnetization. These pulse amplitude, frequency distribution, and envelope characteristics correlate directly with microstructural anomalies including grinding burns, localized soft spots, residual stress gradients, decarburization, and tempering inconsistencies. Unlike destructive acid etching or time-intensive metallography, the Rollscan 250 delivers repeatable, traceable, and operator-independent results without altering part geometry or surface condition. Its design targets mission-critical applications in aerospace, power generation, and precision manufacturing where surface integrity directly governs fatigue life, fretting resistance, and operational safety.

Key Features

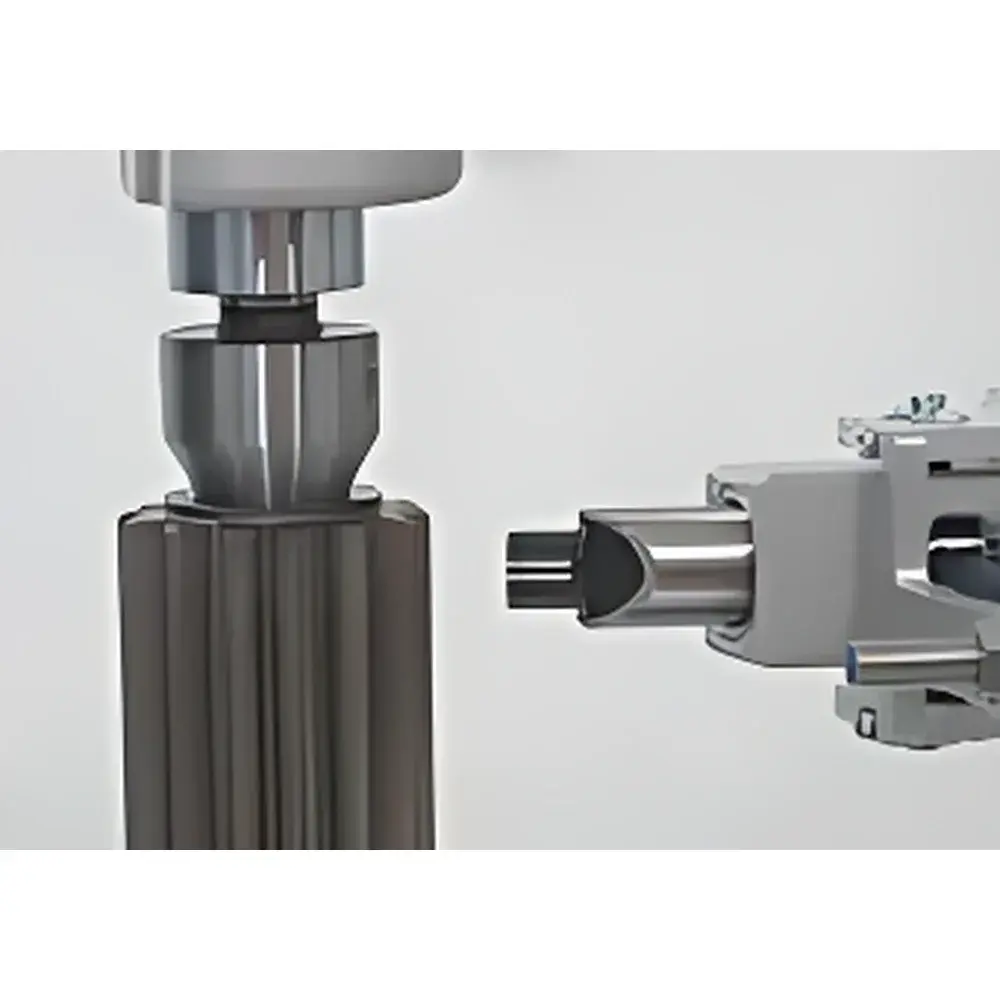

• Multi-channel architecture supporting simultaneous acquisition from up to four independently configurable sensor heads—enabling rapid scanning of complex geometries such as crankshaft journals, cam lobe flanks, bearing raceways, and turbine blade roots.
• Ruggedized industrial housing rated IP54, qualified for continuous operation in shop-floor environments with ambient temperatures from −10 °C to +50 °C and moderate vibration exposure.
• Modular probe system with application-specific sensor variants: pencil-type for tight radii, flat-scan for planar surfaces, and contour-following probes for curved or stepped features.
• Real-time signal processing engine with adaptive noise suppression, automatic gain control, and hardware-based peak detection—ensuring stable baseline performance across varying material permeability and lift-off conditions.
• Integrated calibration verification routine compliant with ISO 24681 Annex B, enabling in-situ validation prior to each measurement sequence.

Sample Compatibility & Compliance

The Rollscan 250 is validated for use on low- to medium-carbon steels, case-hardened alloys (e.g., 100Cr6, 16MnCr5), martensitic stainless steels, and tool steels exhibiting sufficient coercivity and domain mobility. It is not applicable to austenitic stainless steels, aluminum, titanium, or non-ferromagnetic coatings. All measurement protocols adhere to ISO 24681:2022 (Non-destructive testing — Barkhausen noise testing — General principles) and align with ASTM E3097’s guidance on electromagnetic acoustic transduction methodology. For regulated industries, optional software modules support full audit trail logging, electronic signatures, and 21 CFR Part 11 compliance—including user access controls, data immutability enforcement, and change history tracking.

Software & Data Management

ViewScan v5.x serves as the unified analysis platform, providing synchronized waveform visualization, statistical parameter mapping (e.g., RMS noise amplitude, pulse count density, spectral centroid), and spatial overlay onto CAD-derived component schematics. Raw time-domain signals are stored in HDF5 format with embedded metadata (operator ID, timestamp, probe ID, calibration status). Batch reporting supports customizable templates aligned with internal QA checklists or external standards such as EN 10204 3.1. Export formats include CSV, PDF, and XML for integration into enterprise LIMS or MES systems. Automated pass/fail classification can be configured using multi-parameter thresholds derived from reference specimens or historical process capability studies.

Applications

• Detection of grinding-induced thermal damage in gear teeth, bearing races, and camshafts—replacing hazardous acid etch procedures mandated by legacy OEM specifications (e.g., Rolls-Royce RRES 90061, GEK 32435).
• Verification of heat treatment uniformity in batch-forged crankshafts and connecting rods, identifying localized soft zones caused by insufficient quench severity or tempering deviation.
• In-process monitoring of surface integrity after shot peening or roller burnishing—quantifying compressive stress depth profiles via correlated Barkhausen parameter shifts.
• Root cause analysis of premature rolling contact fatigue failures in wind turbine main shaft bearings and railway axle boxes.
• Research-grade microstructure characterization in academic metallurgy labs investigating phase transformation kinetics under cyclic loading.

FAQ

What materials can be tested with the Rollscan 250?
Ferromagnetic steels only—specifically those with measurable coercivity and domain wall mobility. Austenitic stainless steels, aluminum, copper, and titanium are incompatible.
Does the system require surface preparation before measurement?
No mechanical or chemical preparation is needed. However, surfaces must be free of thick oxide layers, heavy grease, or conductive debris that may attenuate magnetic coupling.
Can the Rollscan 250 quantify residual stress magnitude?
It does not provide absolute stress values in MPa. Instead, it detects relative changes in magnetic anisotropy linked to stress gradients and microstructural degradation—requiring correlation with destructive reference methods for calibration.
Is third-party certification available for measurement traceability?
Yes. Stresstech provides NIST-traceable calibration certificates for sensor heads and system-level verification reports issued by accredited laboratories per ISO/IEC 17025.
How is operator training delivered?
Stresstech offers on-site or virtual instructor-led courses covering measurement protocol development, ViewScan workflow configuration, and interpretation of Barkhausen parameter trends in context of metallurgical failure modes.
