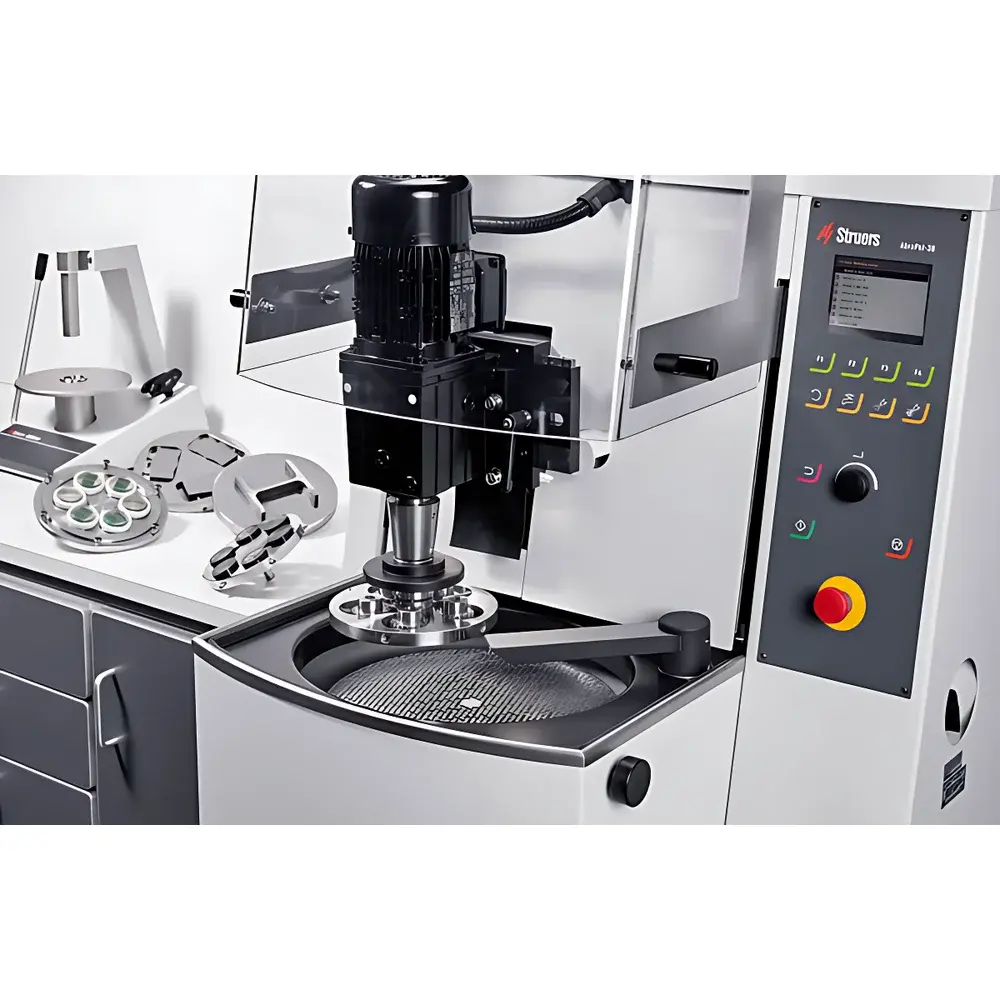

Struers AbraPol-30 High-Capacity Semi-Automatic Grinding and Polishing System

Overview

The Struers AbraPol-30 is a high-capacity, semi-automatic grinding and polishing system engineered for precision material preparation in metallurgical, geological, ceramic, and advanced materials laboratories. Designed around the Couette flow principle and controlled mechanical abrasion, it delivers reproducible surface removal rates through regulated rotational motion, precise slurry delivery, and real-time feedback via integrated removal rate sensing. Its robust cast-iron and stainless-steel architecture ensures minimal vibration and long-term dimensional stability—critical for maintaining planarity and edge retention across large-diameter specimens. The AbraPol-30 accommodates specimen holders up to 200 mm (8″) in diameter on a single 350 mm (14″) grinding/polishing plate, making it ideal for high-throughput labs processing bulk samples, castings, or large-area composites where consistency and operator safety are non-negotiable.

Key Features

• Single 350 mm (14″) grinding/polishing plate with variable-speed motor (40–600 rpm), enabling optimized removal kinetics for coarse grinding, fine grinding, and final polishing stages

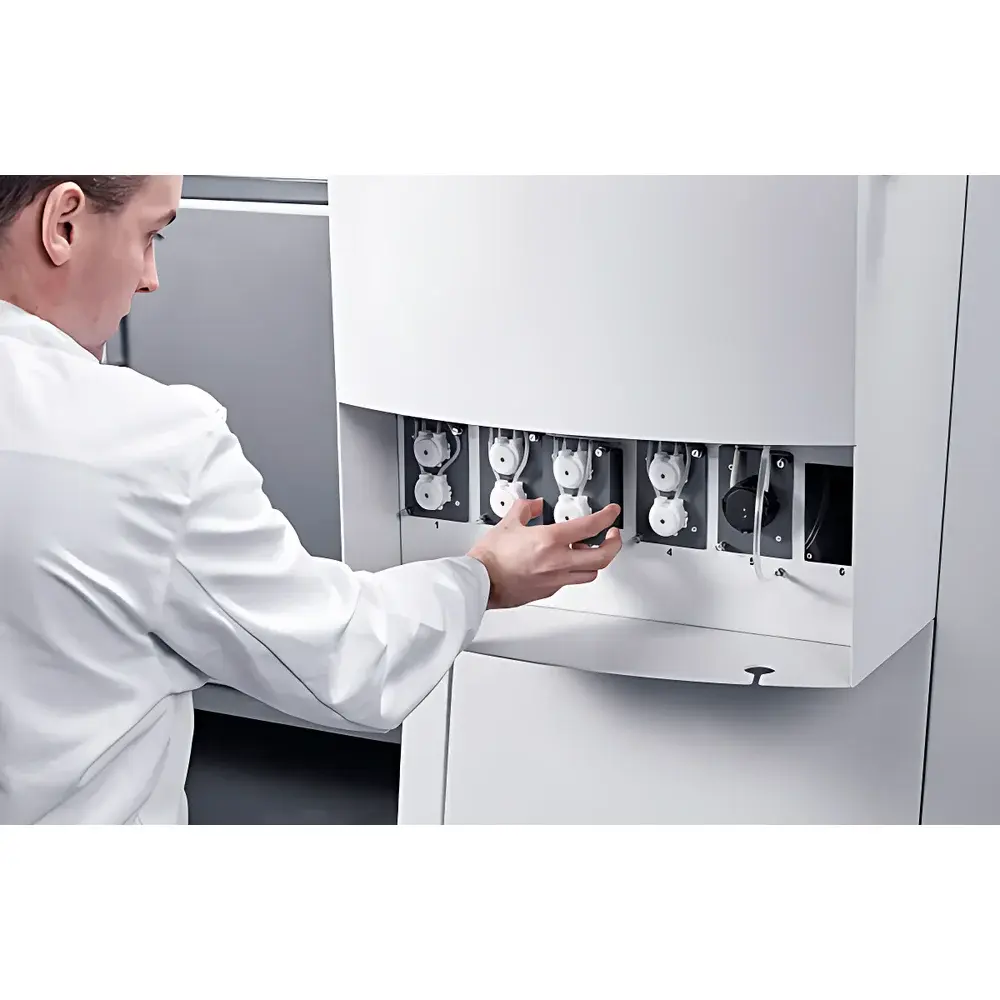

• Dual independent fluid dispensing system for simultaneous, metered delivery of diamond suspension and lubricant—ensuring uniform distribution, reduced thermal buildup, and extended consumable life
• Integrated removal rate sensor providing real-time feedback on material removal velocity; data logged for method validation and GLP-compliant reporting
• Full-height transparent polycarbonate safety shield with interlocked door mechanism, compliant with EN 61000-6-2 (EMC) and EN ISO 12100 (machine safety)
• Intuitive color touchscreen interface with icon-driven navigation, multi-level user access control (operator, supervisor, administrator), and preloaded method templates aligned with ASTM E3, ISO 14577, and EN 1071-3 standards

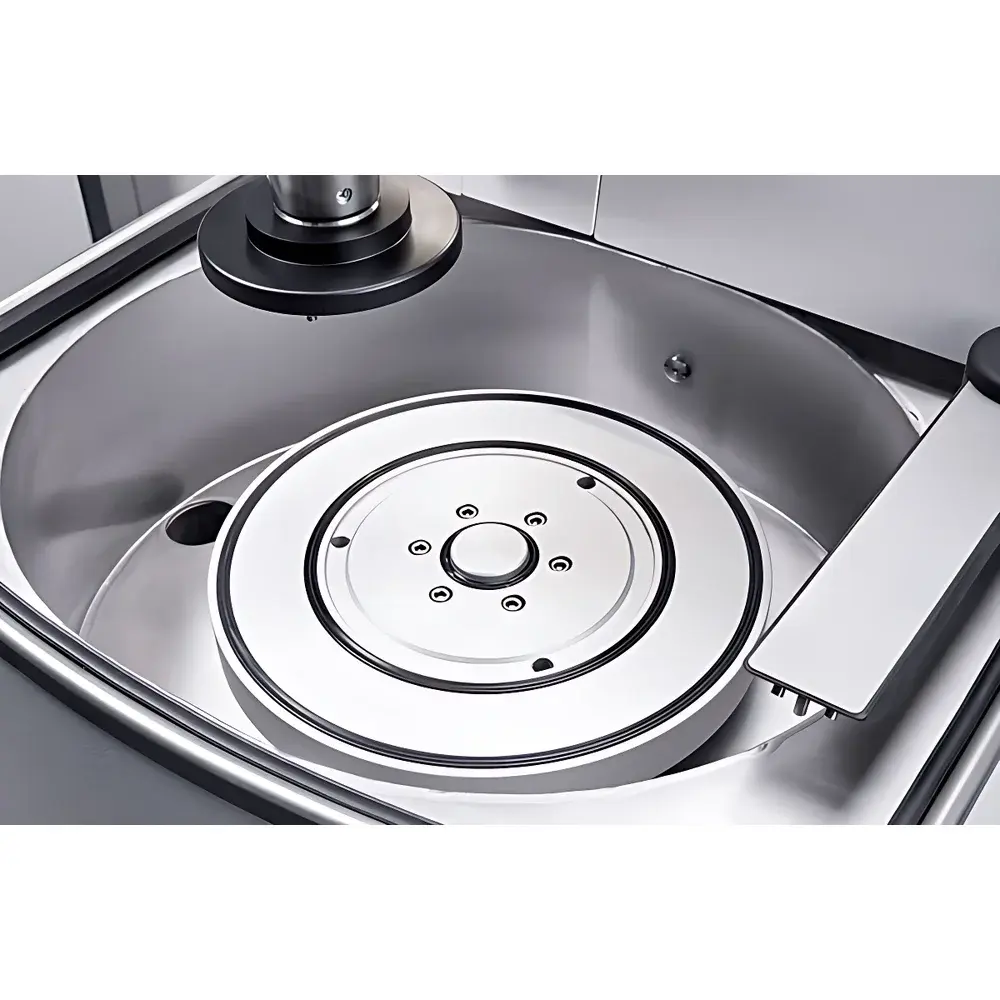

• Heavy-duty stainless-steel bowl assembly with lifetime corrosion warranty; vibration-damped base structure supporting stable operation at maximum torque loads

Sample Compatibility & Compliance

The AbraPol-30 is validated for use with metallic alloys (ferrous and non-ferrous), sintered carbides, ceramics, geological thin sections, and polymer-matrix composites. Specimen holders up to 200 mm in diameter—mounted in standard Struers DAP, AccuPress, or VibroMet fixtures—are fully supported. All fluid-handling components meet FDA-compliant material specifications (USP Class VI elastomers, 316L stainless steel wetted parts). The system supports audit-ready documentation per ISO/IEC 17025 and is compatible with laboratory quality management systems requiring traceability under ISO 9001 and GMP Annex 11. Optional upgrade kits enable compliance with USP Analytical Instrument Qualification (AIQ) protocols.

Software & Data Management

Struers’ LabMaster software (v5.2+) integrates natively with the AbraPol-30 via Ethernet or USB, enabling remote method deployment, real-time parameter monitoring, and export of timestamped removal rate curves, speed profiles, and fluid volume logs in CSV and PDF formats. All user actions—including method edits, login/logout events, and emergency stops—are recorded with immutable timestamps and operator IDs, satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures. Data encryption (AES-256) and role-based access control ensure secure handling of proprietary preparation protocols. Backups synchronize automatically to network drives or cloud repositories configured per institutional IT policy.

Applications

• Preparation of large-section metallographic specimens for automated image analysis (e.g., grain size quantification per ASTM E112)
• Routine polishing of turbine blade cross-sections, brake disc substrates, and additive-manufactured components prior to SEM-EDS or microhardness testing
• High-volume geological core sample preparation for petrographic microscopy and XRF mapping
• Controlled thinning of ceramic matrix composites for TEM lamella extraction
• Standardized polishing of battery electrode cross-sections for porosity and coating adhesion assessment per ISO 18562-3

FAQ

What specimen holder sizes are supported on the AbraPol-30?
The system is optimized for specimen holders up to 200 mm (8″) in diameter, mounted on Struers’ standardized DAP or AccuPress fixtures.
Is the AbraPol-30 compatible with automated fluid dispensing for oxide suspensions?
Yes—optional Struers Oxide Pump Unit (OPU) integrates seamlessly for metered delivery of colloidal silica, alumina, or other oxide-based polishing slurries.
Does the system support external cooling loop integration?
Yes—the AbraPol-30 includes dedicated ports for connection to external chillers or recirculating cooling baths (e.g., Lauda RP895), with temperature monitoring via optional PT100 probe.
Can removal rate data be exported for statistical process control (SPC)?
Yes—raw sensor output and calculated removal rates are exportable in time-series format for SPC charting in Minitab, JMP, or custom LIMS platforms.
What maintenance intervals are recommended for the dual-fluid dispensing system?
Struers recommends quarterly calibration of peristaltic pumps and biannual inspection of fluid path seals; full service documentation is accessible via LabMaster’s built-in maintenance scheduler.
