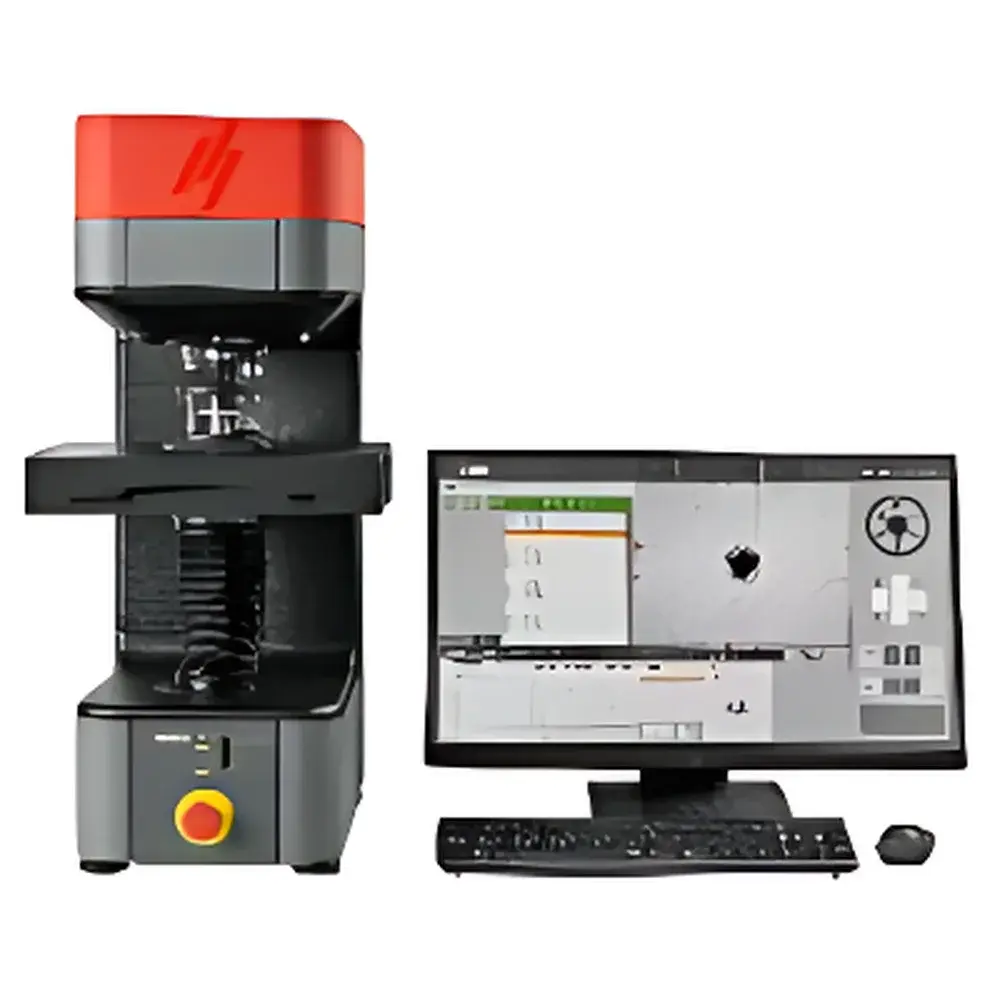

Struers DuraVista-40 Automated Vickers Hardness Tester

Overview

The Struers DuraVista-40 is an advanced, software-controlled automated hardness testing system engineered for high-precision micro- and macro-hardness evaluation in metallurgical, aerospace, automotive, and quality assurance laboratories. It operates on the fundamental principles of indentation hardness measurement—specifically, Vickers (HV), Knoop (HK), and Brinell (HBW) methods—where a precisely calibrated diamond or carbide indenter is applied under controlled load to a prepared specimen surface. The resulting impression geometry is optically measured using a high-resolution digital imaging system, and hardness values are calculated per ISO 6507, ASTM E384, ASTM E10, and ISO 6506 standards. Designed for reproducibility and operator independence, the DuraVista-40 integrates motorized motion control, real-time image analysis, and closed-loop load application to minimize human variability and ensure traceable, auditable results compliant with GLP and GMP frameworks.

Key Features

• Motorized 6-position turret enabling rapid, repeatable switching between Vickers, Knoop, and Brinell indenters—including optional dual-scale configurations for cross-method correlation studies.
• Wide dynamic load range from 0.1 gf (micro-load regime) to 62.5 kgf (macro-load regime), supporting applications from thin coatings and IC interconnects to heavy-duty castings and weldments.
• 18 MP high-resolution measurement camera with integrated auto-focus and real-time edge detection algorithms for sub-micron impression delineation and automatic diagonal measurement.
• Motorized Z-axis with adaptive force feedback and collision avoidance logic—preventing damage to both indenter and specimen during coarse approach or stage repositioning.
• 27-inch full-HD touchscreen interface running DuraSoft PC software, providing intuitive workflow navigation, method configuration, and on-screen result validation without external peripherals.
• Optional panoramic camera module for wide-field overview imaging, enabling precise region-of-interest (ROI) selection prior to automated grid-based hardness mapping across large or irregular samples.

Sample Compatibility & Compliance

The DuraVista-40 accommodates specimens up to 250 mm in height and 300 mm in width, including mounted metallographic samples, raw billets, turbine blades, and additive-manufactured components. Sample preparation follows standard metallographic protocols (grinding, polishing, etching), with surface flatness requirements aligned with ISO 6507-1 Annex A. All hardness measurements are traceable to national metrology institutes via Struers’ factory calibration certificates, and the system supports user-performed verification per ISO/IEC 17025 requirements. Data integrity meets FDA 21 CFR Part 11 criteria when configured with DuraSoft’s audit trail, electronic signature, and role-based access modules—making it suitable for regulated environments requiring documentation for QA/QC release or supplier qualification.

Software & Data Management

DuraSoft PC is a Windows-based control and analysis platform offering method templates, customizable test sequences, multi-level user permissions, and automated report generation in PDF, Excel, or XML formats. Measurement data—including load, dwell time, impression dimensions, hardness value, location coordinates, and image thumbnails—are stored in a relational database with timestamped metadata. Batch processing supports statistical analysis (e.g., Cpk, histogram, trend charts) and export to LIMS or MES systems via ODBC or RESTful API integration. Calibration logs, maintenance records, and instrument usage history are retained for internal audits and regulatory inspections.

Applications

• Case depth profiling of carburized and nitrided steel components using sequential micro-Vickers loads.
• Hardness gradient analysis across dissimilar metal welds and clad materials.
• Quality control of sintered PM parts, where Brinell and Vickers methods validate density and homogeneity.
• Thin-film and PVD/CVD coating evaluation using 10–100 gf loads with Knoop indentation for anisotropic materials.
• Failure analysis labs performing comparative hardness mapping before and after thermal cycling or fatigue testing.
• Research institutions conducting ISO-compliant interlaboratory round-robin studies on reference materials.

FAQ

Does the DuraVista-40 support ASTM E384-compliant Knoop testing at low loads?

Yes—its 0.1 gf minimum load capability, combined with high-resolution imaging and calibrated Knoop pyramids, enables compliant microhardness testing per ASTM E384 Section 7.2.
Can the system perform hardness mapping across non-planar surfaces?

While optimized for flat, polished specimens, optional Z-height compensation routines and panoramic ROI targeting allow limited topographic adaptation—however, true 3D surface mapping requires integration with coordinate measuring machine (CMM) workflows.
Is DuraSoft software validated for 21 CFR Part 11 compliance?

Yes—when deployed with enabled audit trail, electronic signatures, and password-protected user roles, DuraSoft meets the electronic record and signature requirements outlined in 21 CFR Part 11.
What maintenance intervals are recommended for the motorized turret and Z-axis drive?

Struers recommends biannual preventive maintenance by certified service engineers, including torque calibration verification, optical path cleaning, and mechanical backlash assessment per the service manual SM-DV40-EN.
