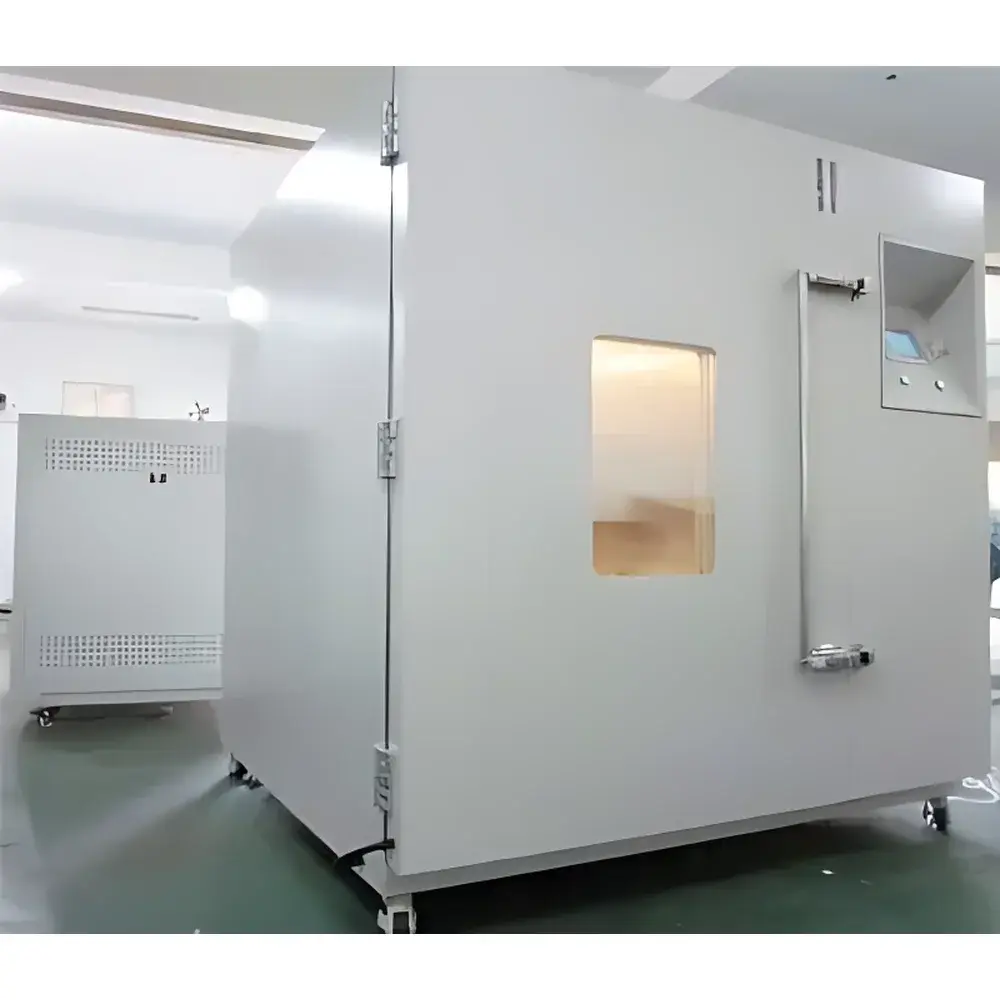

Suying SY/DW Series Low Temperature Test Chamber
| Brand | Suying |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Models | SY/DW-100, SY/DW-250, SY/DW-500, SY/DW-800, SY/DW-1000 |
| Temperature Range Options | RT to –20 °C, –40 °C, –60 °C, or –70 °C |
| Internal Dimensions (W×D×H, mm) | 450×450×500 to 1000×1000×1000 |
| Temperature Uniformity | ±2 °C |
| Temperature Fluctuation | ±0.5 °C |
| Heating Rate | 1.0–3.0 °C/min |
| Cooling Rate | 0.7–1.0 °C/min |
| Control Resolution | ±0.1 °C |
| Power Supply | AC 380 V ±10%, 50 ±0.5 Hz, 3-phase 4-wire |
| Safety Protections | Over-temperature, over-current, compressor high-pressure, motor overload, leakage, and short-circuit protection |
Overview
The Suying SY/DW Series Low Temperature Test Chamber is an engineered environmental simulation system designed for rigorous thermal stress testing under controlled sub-ambient conditions. Based on forced-air convection and dual-stage (single-stage or cascade) refrigeration architecture, it delivers stable, repeatable low-temperature environments essential for evaluating the functional integrity, material stability, and long-term reliability of electronic components, automotive ECUs, aerospace materials, polymer composites, and battery systems. Compliant with IEC 60068-2-1 (Cold Test), MIL-STD-810H Method 502.7, and GB/T 2423.1–2008 (Environmental Testing – Part 2: Tests – Test A: Cold), this chamber supports qualification testing across R&D labs, QC departments, military standards laboratories, and ISO/IEC 17025-accredited test facilities. Its robust mechanical design, precision PID-controlled thermoregulation, and traceable thermal performance make it suitable for applications requiring documented thermal profiles and audit-ready operational records.
Key Features
- High-precision temperature control using imported LED digital PID + SSR microcomputer controller with ±0.1 °C setpoint and display resolution.
- Stainless steel (SUS304) mirror-finish interior chamber and phosphated, electrostatically sprayed carbon steel exterior for corrosion resistance and cleanroom-compatible surface integrity.
- Large observation window with embedded heating element and tempered glass to prevent frosting, ensuring uninterrupted visual monitoring during extended low-temperature operation.
- Standard 50 mm diameter test port on left side wall, configurable with optional 25 mm or 100 mm variants for signal/power line feedthrough—compatible with external data acquisition systems and sensor interfaces.
- Cascade refrigeration system featuring original French Tecumseh (Tecumseh) hermetic compressors, polyurethane rigid foam insulation (≥100 mm thickness), and multi-blade centrifugal fan assembly for uniform airflow distribution (±2 °C uniformity across working volume).
- Independent heating and cooling circuits minimize cross-interference, improve thermal response time, extend component service life, and reduce maintenance frequency.
- Comprehensive safety suite including over-temperature cutoff, compressor high-pressure shutdown, motor thermal overload protection, earth leakage detection, and short-circuit interruption.
Sample Compatibility & Compliance
The SY/DW chamber accommodates a broad range of sample types—from PCB assemblies and lithium-ion pouch cells to elastomeric seals, optical lenses, and structural adhesives—without compromising thermal homogeneity or measurement fidelity. Internal dimensions range from 450 L (SY/DW-100) to 1000 L (SY/DW-1000), supporting both single-unit validation and batch-level environmental screening. All models meet mandatory requirements for GLP-compliant thermal testing workflows, including full traceability of setpoints, real-time logging of chamber air temperature (via PT100 platinum resistance sensors), and optional printer output for hard-copy audit trails. The system’s adherence to GB/T 2423.1–2008 and alignment with ASTM D3418 (thermal transitions of polymers) and USP (cold storage validation) enables direct integration into regulated quality systems operating under FDA 21 CFR Part 11 and ISO 9001 frameworks.
Software & Data Management
While the base configuration utilizes a stand-alone microcontroller interface, optional RS485/RS232 communication modules enable seamless integration with LabVIEW, MATLAB, or custom SCADA platforms for remote parameter programming, real-time telemetry streaming, and automated report generation. Controller firmware supports programmable ramp-soak profiles, timer-based start/stop sequences (0.1 h to 999.9 h), and password-protected parameter locking to prevent unauthorized modifications—critical for SOP-driven laboratory environments. Optional thermal mapping accessories (e.g., 9-point PT100 probe arrays) facilitate IQ/OQ validation per ISO 14644-3 and support annual recalibration verification against NIST-traceable reference standards.
Applications
- Electronics reliability assessment: cold-start behavior of automotive infotainment systems, solder joint integrity under thermal cycling, and semiconductor parametric drift at –40 °C.
- Material science research: cryogenic embrittlement evaluation of engineering plastics, low-temperature coefficient of thermal expansion (CTE) measurements, and phase transition analysis in shape-memory alloys.
- Battery development: discharge capacity retention, internal resistance variation, and electrolyte freezing point determination for Li-ion, solid-state, and sodium-ion chemistries.
- Military and aerospace qualification: MIL-STD-810H cold soak compliance testing of avionics enclosures, UAV power modules, and satellite subsystems.
- Pharmaceutical cold chain validation: stability testing of biologics, lyophilized formulations, and cold-chain packaging under accelerated low-temperature aging protocols.
FAQ
What temperature ranges are available for the SY/DW series?
Standard configurations support operation from ambient (RT) down to –20 °C, –40 °C, –60 °C, or –70 °C, depending on model selection and refrigeration stage configuration.
Is the chamber suitable for continuous 24/7 operation?
Yes—the SY/DW series is engineered for unattended long-duration testing, featuring redundant safety controls, low-noise fan motors rated for >50,000 hours MTBF, and thermal management optimized for stable baseline operation at minimum setpoints.
Can I integrate third-party sensors or DAQ systems?
Absolutely—standard 50 mm test ports accommodate shielded thermocouple, voltage, or current leads; optional analog/digital I/O modules support synchronized multi-channel environmental monitoring.
Does the system support calibration documentation and traceability?
Factory calibration certificates (traceable to national metrology institutes) are provided with each unit; optional IQ/OQ documentation packages and on-site validation support are available upon request.
What maintenance intervals are recommended?
Compressor oil and refrigerant levels should be verified annually; air filters require cleaning every 3 months; full preventive maintenance—including condenser coil inspection, PID tuning verification, and sensor calibration—is advised every 12–18 months based on usage intensity.
