Suying YP-SD / SDP / GSD / GSP Series Drug Stability Testing Chambers (150L, 250L, 500L, 1000L)

Overview

The Suying YP-SD, SDP, GSD, and GSP Series Drug Stability Testing Chambers are engineered for precision-controlled environmental simulation in pharmaceutical development and quality assurance. These chambers comply with internationally recognized stability testing protocols—including ICH Q1A(R3) through Q1E, WHO Technical Report Series No. 953 Annex 2, and the Chinese Pharmacopoeia (2010 Edition)—to support long-term, accelerated, intermediate, high-temperature, and photostability studies. Each unit operates on the principle of balanced heating/humidification and direct-expansion refrigeration to maintain thermodynamic equilibrium across the working chamber. The system’s core function is to replicate defined climatic conditions—such as the WHO-recommended long-term condition (25°C ±2°C / 60% RH ±5% RH) or the ICH-accelerated condition (40°C ±2°C / 75% RH ±5% RH)—with high reproducibility over extended durations (≥5 years continuous operation validated).

Key Features

• Robust stainless steel interior (SUS304B mirror-finish) resistant to corrosion, acids, and routine cleaning agents—ensuring compliance with GMP hygiene standards.
• Optimized air circulation design featuring centrifugal blower and multi-directional ducted airflow, achieving ≥90% spatial uniformity for temperature and humidity per ISO 16770:2017 Annex B.
• Large-view double-glazed vacuum-insulated observation window with magnetic door seal and low-emissivity coating, minimizing thermal leakage while enabling non-intrusive sample monitoring.

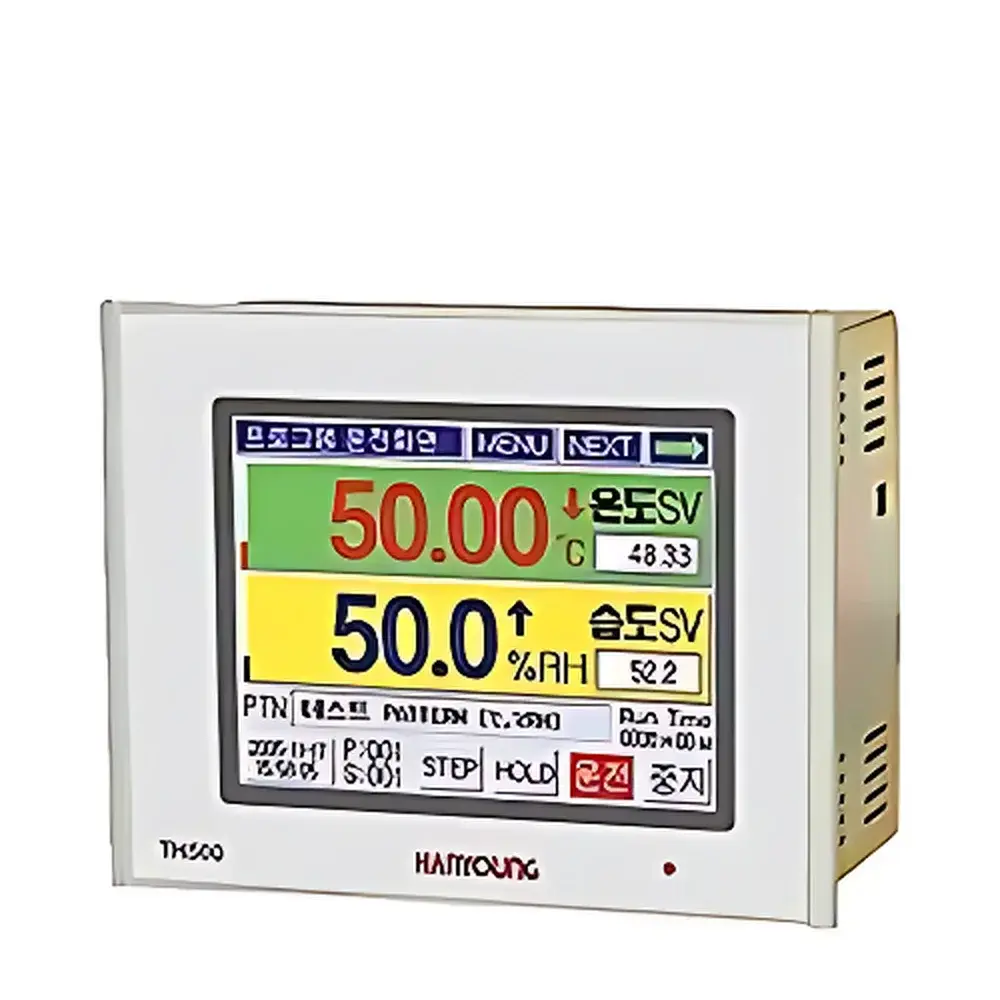

• Programmable touchscreen controller (imported Fuji-based architecture) with PID auto-tuning, real-time data logging, and 0.1°C / 0.1% RH resolution for both setpoint and feedback display.
• Danfoss hermetic compressors (model LBP series) integrated with finned evaporators, air-cooled condensers, and desiccant filters—delivering stable cooling performance from –25°C to +55°C ambient operating range.
• Modular lighting system with adjustable 0–8000 lx output (±500 lx accuracy), calibrated against NIST-traceable lux meters; optional UV-A/B modules available for ICH Q1B photostability compliance.

Sample Compatibility & Compliance

Chambers accommodate diverse pharmaceutical dosage forms—including tablets, capsules, injectables, ointments, and biologics—in standardized trays (2 standard shelves included; custom rack configurations available). Internal dimensions scale precisely with volume class (e.g., 600 × 405 × 620 mm for 150L units), ensuring optimal sample density without compromising airflow integrity. All models meet GB 10586-2006 “Electrical Equipment for Environmental Testing—General Requirements” and align with Annex 15 of the EU GMP Guide for qualification of stability equipment. Full 3Q validation packages (IQ/OQ/PQ) are provided, including calibration certificates traceable to CNAS-accredited laboratories and documentation supporting FDA 21 CFR Part 11 electronic record integrity requirements.

Software & Data Management

Data acquisition utilizes embedded microprocessor control with time-stamped logging at user-defined intervals (1 min to 24 h). Export formats include CSV and PDF reports compatible with LIMS integration. Audit trail functionality records all parameter changes, user logins, alarm events, and calibration actions—fully compliant with ALCOA+ principles. Remote monitoring via Ethernet or RS485 interface supports centralized fleet management across multiple sites. Optional cloud-based dashboard enables real-time deviation alerts, trend analysis, and automated report generation aligned with ICH M4 regulatory submission standards.

Applications

• ICH-compliant long-term stability studies (25°C/60% RH, 30°C/65% RH) and accelerated testing (40°C/75% RH, 50°C/ambient RH).
• Photostability assessment per ICH Q1B: daylight exposure (1.2 million lux·hr), near-UV exposure (200 watt·hr/m²), and forced degradation under controlled irradiance.
• Intermediate condition evaluation (30°C/65% RH) for tropical climate registration dossiers.
• Excipient compatibility screening and formulation robustness testing under variable hygrothermal stress.
• Reference standard storage under certified environmental conditions meeting USP and Ph. Eur. 2.2.47 requirements.

FAQ

What regulatory standards does this chamber support?
It conforms to ICH Q1A–Q1E, WHO TRS 953 Annex 2, Chinese Pharmacopoeia (2010 Ed.), GB 10586-2006, and supports full 21 CFR Part 11 compliance when configured with audit-trail-enabled software.
Is 3Q validation included with purchase?
Yes—Suying provides complete IQ/OQ/PQ documentation packages, including installation verification, operational boundary mapping, and performance qualification under loaded conditions.
Can the chamber operate continuously for extended periods?
All units are factory-validated for ≥43,800 hours (5 years) of uninterrupted operation under nominal load, with redundant safety systems (compressor overheat, high-limit thermostat, phase failure, and low-humidity shutoff).
How is temperature and humidity uniformity verified?
Uniformity is measured per ISO 16770:2017 using 9-point sensor mapping (3×3 grid) at three vertical levels; results are documented in PQ reports showing ≤±0.5°C and ≤±0.5% RH deviations.
Are custom configurations available for multi-zone testing?
Yes—dual- and triple-compartment variants (YP-GSD, YP-TSD) enable simultaneous independent control of temperature, humidity, and illumination in separate zones for comparative stability trials.
