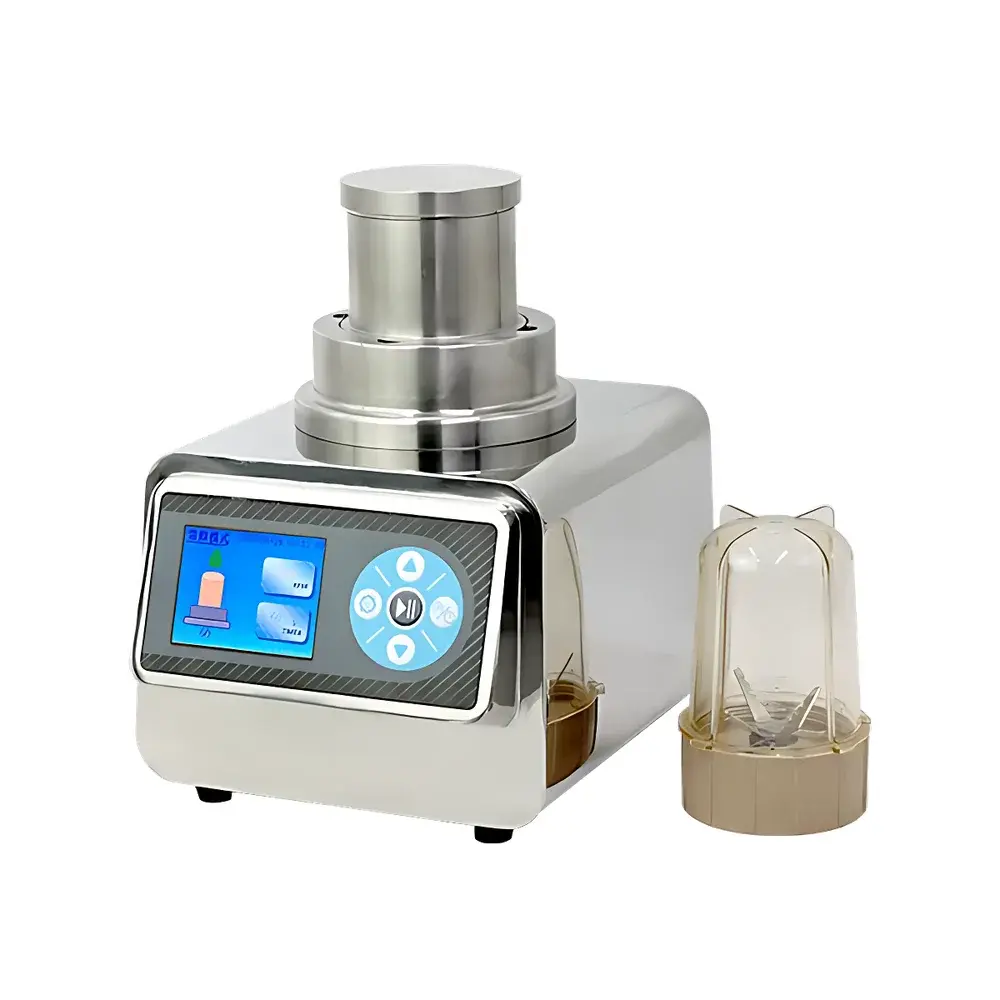

Tailin HTY-763 High-Speed Digital Homogenizer

Overview

The Tailin HTY-763 High-Speed Digital Homogenizer is a benchtop mechanical homogenization system engineered for rapid, reproducible disruption of biological, pharmaceutical, and environmental samples during preparatory workflows. It operates on the principle of high-shear rotor-stator interaction: a rotating stainless-steel probe generates intense hydrodynamic forces—including cavitation, turbulence, and shear stress—within the sample matrix, effectively lysing cells, emulsifying suspensions, or dispersing particulates in liquid media. Designed for routine use in QC laboratories, R&D facilities, and GLP-compliant environments, the HTY-763 delivers consistent energy input across variable sample viscosities and volumes, supporting standardized protocols for nucleic acid extraction, protein solubilization, tissue homogenization, and microbial suspension preparation.

Key Features

• High-performance 400 W brushless motor enabling stable operation across the full speed range (1,000–20,000 rpm) with minimal thermal drift and low acoustic noise
• Digital speed and time control via a 3.5-inch color LCD interface, offering real-time parameter feedback and intuitive navigation without physical dials or analog switches
• Electropolished stainless-steel housing and probe assembly compliant with ISO 14644-1 Class 5 cleanroom-compatible surface finish standards; resistant to corrosion from organic solvents, alcohols, and aqueous buffers
• Programmable one-touch operation: users may store up to three custom protocols (speed, duration, ramp profile) for repeatable execution without manual reconfiguration
• Integrated thermal protection circuitry automatically interrupts power when internal motor temperature exceeds safe operational thresholds (≥75 °C), preventing coil degradation and ensuring long-term reliability
• Modular probe compatibility: accepts standard Ø10 mm and Ø12 mm stainless-steel generator probes (not included), validated for use with both 300 mL and 500 mL conical polypropylene or glass homogenization vessels

Sample Compatibility & Compliance

The HTY-763 accommodates a broad spectrum of sample types—including soft animal tissues (liver, spleen), plant material (leaves, roots), bacterial pellets, yeast cultures, and viscous suspensions (e.g., soil extracts, sludge homogenates)—provided vessel geometry and probe immersion depth adhere to manufacturer-recommended guidelines (minimum liquid level: 25 mm above probe tip). All wetted components meet USP Class VI biocompatibility requirements. The instrument’s design supports alignment with ISO/IEC 17025 method validation frameworks and is routinely deployed in laboratories maintaining compliance with FDA 21 CFR Part 11 (when paired with audit-trail-enabled LIMS integration), EU GMP Annex 11, and Chinese GMP Chapter 9 documentation practices.

Software & Data Management

While the HTY-763 operates as a standalone unit without embedded PC connectivity, its digital control architecture enables traceable parameter logging via external recording systems. Timestamped speed/time settings can be manually documented or captured using third-party lab notebook software. For regulated environments, users may integrate the device into electronic record workflows by coupling it with barcode-scanned protocol cards or RFID-tagged vessel identifiers—ensuring operator accountability and procedural fidelity. Firmware supports factory reset and password-protected configuration lock to prevent unauthorized parameter modification during shift handovers.

Applications

• Routine tissue homogenization prior to ELISA, Western blot, or qPCR analysis
• Preparation of uniform cell lysates for proteomic profiling and metabolite extraction
• Dispersion of nanomaterials and liposomal formulations in preclinical formulation development
• Homogenization of environmental samples (water, sediment, biofilm) for microbiological enumeration per ISO 16266 and EPA Method 1603
• Batch-wise emulsification of oil-in-water systems in cosmetic and food-grade quality control testing

FAQ

Is the HTY-763 suitable for sterile processing?
Yes—when used with autoclavable stainless-steel probes and disposable polypropylene vessels, the system supports aseptic technique. The electropolished housing resists microbial adhesion and permits validated cleaning with 70% ethanol or 0.5% sodium hypochlorite.
Can the HTY-763 be operated continuously?
No. Duty cycle is limited to ≤3 minutes per run with ≥5 minutes cooling interval between cycles to maintain thermal stability and motor longevity.
What safety certifications does the unit hold?
It complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and carries CE marking under the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU).
Are spare probes and vessels available through Tailin?
Yes—original equipment manufacturer (OEM) probes (HTY-P10, HTY-P12), 300 mL and 500 mL PP vessels (HTY-V300, HTY-V500), and silicone gasket kits are stocked and distributed globally via authorized channels.
Does the HTY-763 support variable ramp-up/down profiles?
No—it provides fixed-speed operation only. Ramp functionality is not implemented in firmware; speed transitions are instantaneous upon activation.
