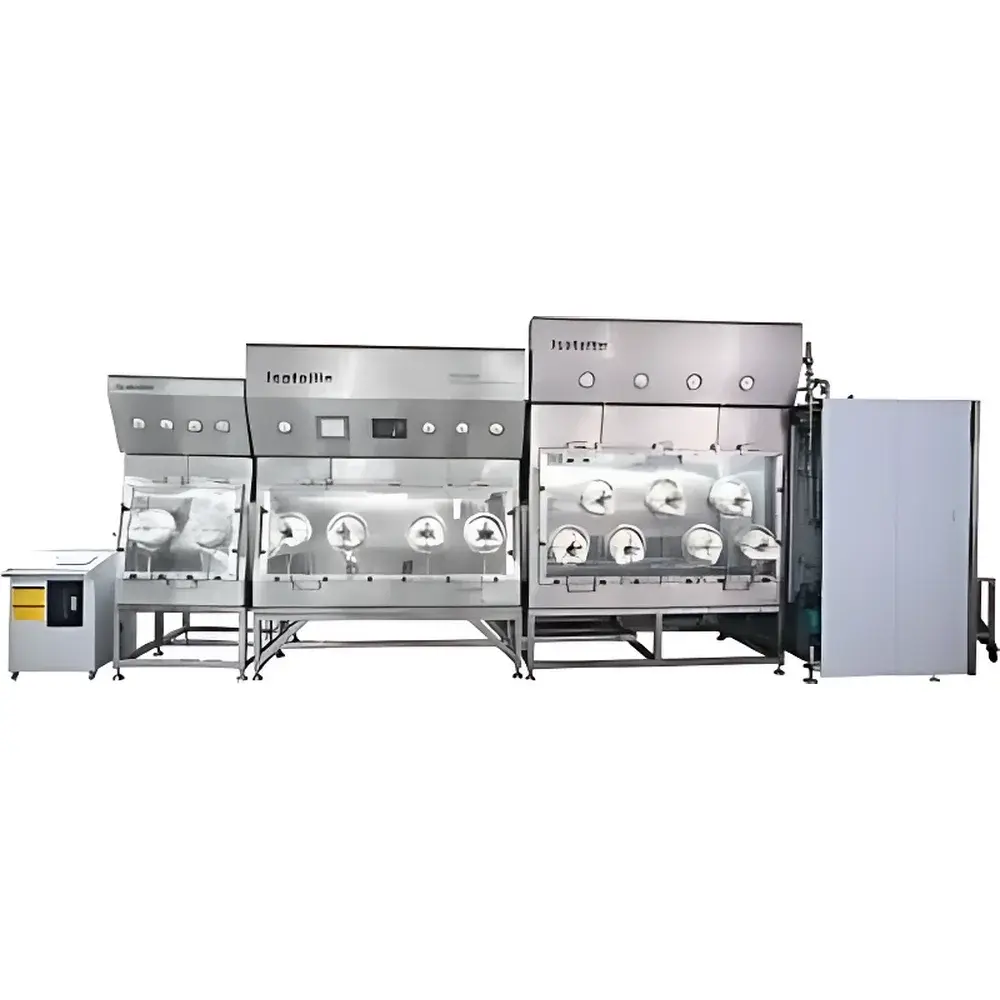

Tailin RABS Series Production-Grade Restricted Access Barrier System (RABS)

Overview

The Tailin RABS Series is a production-grade Restricted Access Barrier System engineered for aseptic pharmaceutical manufacturing environments. It operates on the principle of physical separation between operators and critical process zones via rigid wall construction, glove ports, and controlled air handling—maintaining ISO Class 5 (Grade A) laminar airflow within the working chamber while isolating personnel from product contact surfaces. Unlike open cleanroom operations, RABS systems provide an intermediate level of containment between traditional cleanrooms and full isolators, offering enhanced operator protection, reduced environmental intervention, and improved process reproducibility. Designed in strict alignment with Annex 1 (2022 revision) of the EU GMP Guidelines and consistent with the requirements outlined in China’s 2010 GMP Annex IV on Isolation Technology, the system supports continuous operation under Grade D background environments while sustaining internal Grade A conditions during high-risk aseptic interventions such as filling, weighing, sampling, and powder handling.

Key Features

• Rigid acrylic or stainless-steel chamber construction with integrated HEPA-filtered unidirectional airflow (≥90% velocity uniformity across working plane)
• Double-glove port configuration with ergonomic wrist seals and optional glove integrity monitoring
• Integrated SIP (Steam-in-Place) and CIP (Clean-in-Place) interfaces compatible with common pharmaceutical utility skids
• Modular design enabling seamless integration with fillers, lyophilizers, vial washers, and automated weighing stations
• Real-time differential pressure monitoring between chamber and background environment (±1 Pa resolution)
• Interlocked access doors with validated decontamination cycles (H₂O₂ vapor or VHP-compatible)
• Compliance-ready architecture supporting audit trails, electronic signatures, and configurable alarm thresholds per FDA 21 CFR Part 11 and EU Annex 11 requirements

Sample Compatibility & Compliance

The Tailin RABS accommodates diverse pharmaceutical unit operations including liquid aseptic filling (vials, syringes, cartridges), sterile powder dispensing, aseptic sampling of bulk intermediates, and containment of potent compounds (OEL ≤ 10 µg/m³). All materials in contact with product or process gases meet USP Class VI and EP 3.1.9 biocompatibility standards. The system is validated to support ISO 14644-1 Class 5 (≤3,520 particles ≥0.5 µm/m³) within the working zone under dynamic operational conditions. Documentation packages include IQ/OQ/PQ protocols aligned with ASTM E2500-13 and ICH Q5A(R2) principles. Design verification confirms conformance with EN ISO 14644-3:2019 for airborne particle testing and EN 1822-1:2019 for HEPA filter efficiency classification (H14).

Software & Data Management

Embedded control software provides centralized management of environmental parameters (temperature, RH, differential pressure, airflow velocity), cycle logging, and event-driven data capture. All operational records—including door openings, glove change logs, decon cycle parameters, and alarm history—are timestamped, user-identified, and stored with immutable audit trails. The system supports OPC UA connectivity for integration into MES/SCADA platforms and includes configurable electronic signature workflows compliant with ALCOA+ data integrity principles. Optional 21 CFR Part 11 compliance modules enable role-based access control, biometric authentication, and electronic record archiving with SHA-256 hashing.

Applications

• Aseptic liquid filling of parenteral dosage forms (e.g., monoclonal antibodies, vaccines, small-molecule injectables)
• Sterile powder dispensing for lyophilized products and combination therapies
• Containment of highly potent active pharmaceutical ingredients (HPAPIs) during milling, blending, and micronization
• Aseptic sampling of bioreactor harvests and purification intermediates
• Controlled weighing of cytotoxic or genotoxic compounds under defined OEL limits
• Integration with automated inspection systems for post-fill visual examination in Grade A environments

FAQ

What regulatory standards does the Tailin RABS comply with?
The system is designed to meet EU GMP Annex 1 (2022), China GMP 2010 Annex IV, USP , and ISO 14644 series requirements. Full validation documentation supports FDA, EMA, and NMPA inspections.
Can the RABS be integrated with existing filling lines?
Yes—modular frame design and standardized flange interfaces (ISO-KF, DN25–DN100) allow direct coupling with major OEM fillers, stoppering units, and cappers. Mechanical and electrical interface specifications are provided during early-stage engineering collaboration.
Is hydrogen peroxide (VHP) decontamination supported?
Standard configurations include VHP-compatible gasketing, sensor protection, and material selection (e.g., electropolished 316L SS, fluorosilicone seals). Cycle development and mapping services are available upon request.
What level of operator training is required?
Tailin provides comprehensive FAT/SAT protocols, SOP development support, and on-site operator qualification programs aligned with PIC/S TR 13 guidelines.
Does the system support remote monitoring and predictive maintenance?
Optional IoT-enabled gateways provide encrypted MQTT telemetry for cloud-based dashboard visualization and anomaly detection using time-series analytics on motor current, filter delta-P, and glove leak trends.
