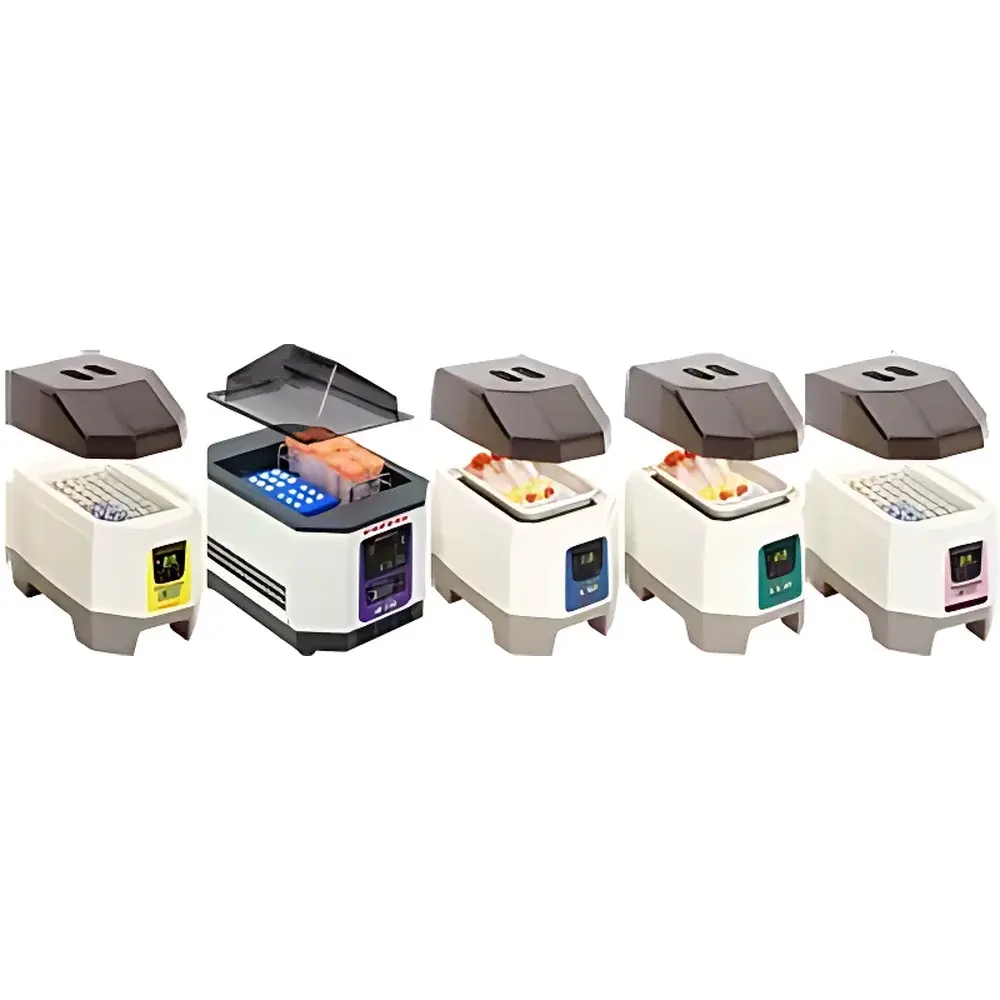

TAITEC e-Bucket Series Mini Peltier Thermoblock

Overview

The TAITEC e-Bucket Series Mini Peltier Thermoblock is a compact, solid-state temperature control platform engineered for precise thermal management of small-volume biological and biochemical samples in benchtop laboratory environments. Unlike conventional water baths or compressor-based chillers, the e-Bucket series employs thermoelectric (Peltier) technology to deliver rapid, bidirectional temperature regulation—enabling both heating and cooling without refrigerants, moving parts, or external coolant circulation. This architecture eliminates reliance on fluorocarbons, aligning with global environmental standards such as the Montreal Protocol and EU F-Gas Regulation. The system’s modular design supports multiple configurations—including fixed-temperature cooling (EIB), low-range cooling (ECB), high-range heating (EHB), full-range thermoregulation (ETB), and high-capacity water bath operation (WTB)—each optimized for specific molecular biology workflows including enzymatic reactions, plasmid transformation, serum inactivation, and pH-sensitive calibration procedures.

Key Features

• Compact footprint: EIB/ECB/EHB/ETB models measure only 170 × 240 × 220 mm—designed for B5-sized benchtop integration; WTB model accommodates A4-format placement with expanded thermal mass.
• Peltier-driven thermal control: Enables fast ramp rates (e.g., 14 minutes to reach target temperature from ambient) and stable setpoint maintenance without compressors, glycol loops, or noise-generating fans.
• Multi-platform sample compatibility: Accepts interchangeable modules—Magic Beads™ trays (for uniform dry-block-like performance), hybrid aluminum blocks (optimized for tube stability and thermal transfer), dual-surface aluminum blocks (for simultaneous top/bottom contact), and deep-well aluminum blocks (WTB-specific, for larger vessels).
• Digital precision interface: LED display with real-time temperature readout; intuitive push-button controls for setpoint adjustment and mode selection.
• Comprehensive safety architecture: Integrated thermal fuse, microprocessor-monitored overheat protection, and electronic overvoltage/overcurrent safeguards ensure compliance with IEC 61010-1 for laboratory electrical equipment.

Sample Compatibility & Compliance

The e-Bucket series supports standard microcentrifuge tubes (0.2–2.0 mL), PCR strips, 96-well plates (with compatible aluminum inserts), and serological tubes up to 15 mL (WTB model). Its temperature uniformity profile meets ISO 13485-relevant thermal stability requirements for routine QC applications in diagnostic and research labs. While not certified for GMP manufacturing environments per se, its traceable temperature control, reproducible ramp profiles, and absence of consumable refrigerants make it suitable for GLP-aligned workflows—including enzyme kinetics validation, heat-shock transformation protocols (e.g., E. coli DH5α), and serum complement inactivation at 56°C. The system complies with JIS C 61010-1 and conforms to RoHS Directive 2011/65/EU regarding hazardous substance restrictions.

Software & Data Management

The e-Bucket series operates as a standalone analog-digital hybrid instrument with no embedded data logging or PC connectivity. Temperature setpoints and status are managed via front-panel controls and visual indicators only. For laboratories requiring audit trails or electronic records under FDA 21 CFR Part 11 or ISO/IEC 17025, external validation-grade data loggers (e.g., calibrated thermistors paired with compliant acquisition software) may be deployed alongside the unit. TAITEC provides full technical documentation—including operating manuals, electrical schematics, and calibration verification guidelines—to support IQ/OQ protocol development and internal validation processes.

Applications

• Enzymatic reactions requiring strict thermal control (e.g., restriction digests, ligations, reverse transcription) — excluding EIB-fixed cold mode where dynamic regulation is unnecessary.
• Competent cell preparation: Heat-shock transformation (42°C for 45 sec, EHB/ETB) and ice-cold incubation (EIB/ECB).
• Serum inactivation at 56°C for 30 minutes (WTB model with water medium ensures homogeneous thermal distribution across multiple vials).
• pH electrode calibration and buffer equilibration at precisely defined temperatures (e.g., 25°C or 37°C), leveraging WTB’s water-based thermal inertia for minimal drift.
• Replacement for traditional ice buckets in cold-sensitive workflows—offering consistent sub-ambient temperatures without condensation or manual ice replenishment.

FAQ

Does the e-Bucket series support temperature ramping or programmable profiles?
No. The unit maintains a single user-defined setpoint continuously; it does not offer multi-step ramp-hold sequences or time-based programming.
Can the WTB model operate without water?
Yes—but thermal uniformity and stability are significantly reduced. Water is required to achieve ±0.2°C accuracy and optimal heat distribution; dry operation (e.g., with aluminum blocks alone) reverts accuracy to ±1°C.
Is the Magic Beads™ tray autoclavable?
No. Magic Beads™ are polymer-based phase-change materials and must not be exposed to steam sterilization or temperatures exceeding 80°C.
What is the maximum ambient temperature for reliable operation?
TAITEC specifies continuous operation up to 30°C ambient; performance degrades above this threshold due to Peltier efficiency limitations.
Are replacement Peltier modules available for field service?
Yes—TAITEC offers authorized spare parts and certified technician support through regional distributors; end-user replacement is not recommended due to thermal interface alignment requirements.
