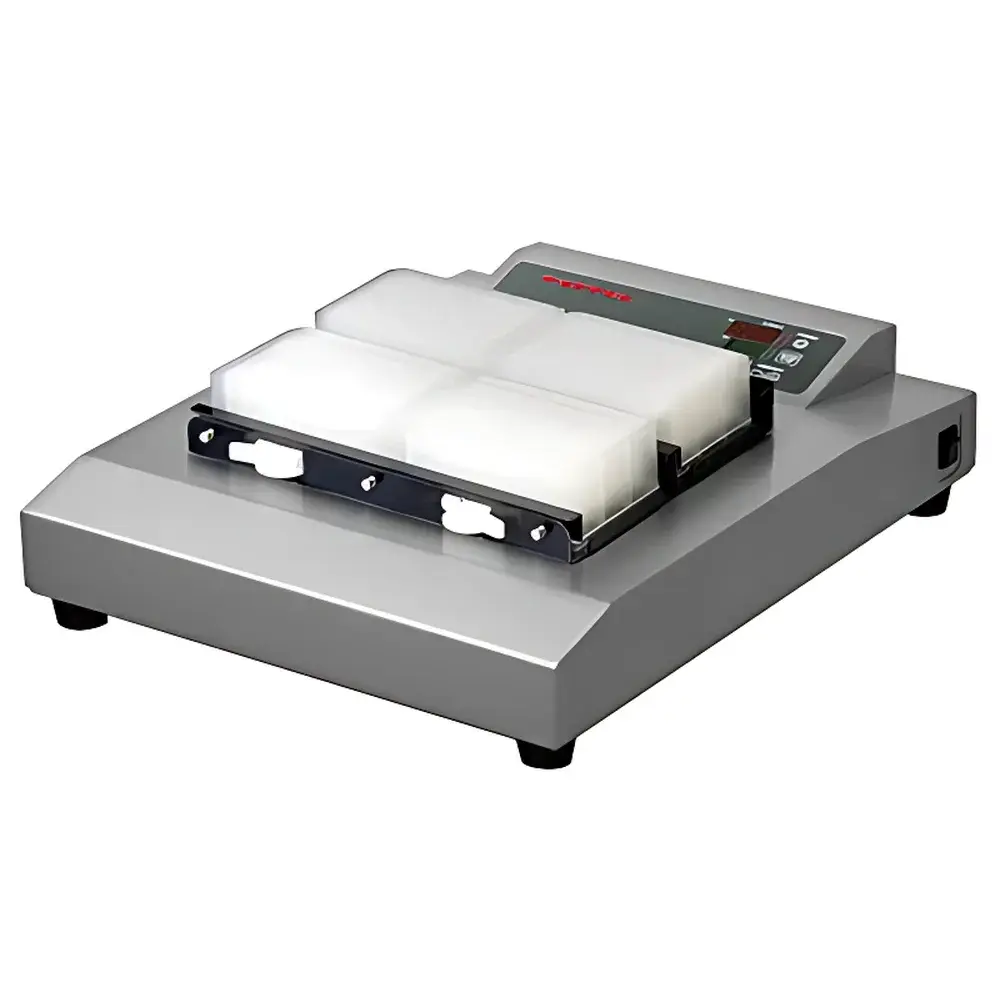

TAITEC MaxMixer EVR-034 Advanced Horizontal Orbital Shaker

Overview

The TAITEC MaxMixer EVR-034 is an advanced horizontal orbital shaker engineered for high-precision, low-variance sample agitation in life science and bioprocessing laboratories. Unlike conventional orbital shakers that rely on eccentric drive mechanisms—introducing mechanical resonance, platform wobble, and positional bias—the EVR-034 implements TAITEC’s proprietary NewMax Drive® technology: a dynamically balanced, direct-coupled rotational actuation system that eliminates parasitic vibration transmission to the chassis. This architecture ensures true horizontal orbital motion with sub-millimeter trajectory consistency across the entire platform surface. As a result, the device delivers exceptional well-to-well and plate-to-plate reproducibility in multiwell formats—critical for applications such as high-throughput microbial cultivation (e.g., E. coli, yeast), ELISA assay development, phage display screening, and enzymatic digestion kinetics where inter-replicate variability directly impacts data integrity and statistical power.

Key Features

• NewMax Drive® Core Mechanism: Patented zero-backlash drive train with integrated dynamic counterbalancing, eliminating chassis resonance and enabling stable operation up to 1600 rpm without perceptible noise or displacement.
• Multi-Format Platform Flexibility: Standard configuration supports four 96-well deep-well plates (M·BR-034P platform); optional fixtures enable concurrent use of 0.5 mL, 1.5 mL, or 2.0 mL microtubes (EM-0524/EM-1524), 15 mL conical tubes (V·BR-1816), or 50 mL centrifuge tubes (V·BR-3508).
• Low-Noise & Energy-Efficient Operation: Optimized brushless DC motor and thermally managed electronics achieve ≤45 dB(A) acoustic emission at maximum speed while consuming <15 W under typical load conditions—reducing ambient laboratory noise and operational cost.
• GLP/GMP-Ready Design: Modular construction, non-volatile parameter memory (one preset), traceable firmware versioning, and mechanical safety redundancies (dual-stage overload cutoff, thermal fusing) support full 3Q validation (Installation Qualification, Operational Qualification, Performance Qualification) per ICH Q7 and FDA 21 CFR Part 11-aligned workflows.
• Position-Invariant Agitation Uniformity: Empirical OD₆₀₀ profiling across 384 wells (4 × 96-well plates) demonstrates ≤±2.3% CV for intra-plate and ≤±3.1% CV for inter-plate measurements—significantly improved over legacy shakers exhibiting >8% CV under identical conditions.

Sample Compatibility & Compliance

The EVR-034 is validated for use with standard ANSI/SLAS-compliant 96-well deep-well plates (e.g., BrandTech, Thermo Fisher), polypropylene microtubes (0.5–2.0 mL), and sterile disposable centrifuge tubes (15–50 mL). Its rigid aluminum platform and precision-machined fixture interfaces prevent lateral slippage during high-speed agitation. All materials contacting sample carriers meet USP Class VI biocompatibility requirements. The instrument conforms to IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and EMC Directive 2014/30/EU. Documentation packages—including factory calibration certificates, material declarations, and IQ/OQ protocol templates—are provided to facilitate regulatory submissions in pharmaceutical QC, academic core facilities, and contract research organizations.

Software & Data Management

The EVR-034 operates via an embedded digital controller with LED-based rpm readout and non-volatile memory for one user-defined speed setting. While it does not feature onboard data logging or PC connectivity, its deterministic mechanical behavior and repeatable setpoint accuracy (<±1 rpm repeatability) make it fully compatible with external environmental monitoring systems (e.g., Vaisala viewLinc, DeltaTRAK) and LIMS-integrated lab automation frameworks. For audit-trail compliance in regulated environments, speed parameters and runtime can be recorded manually or via programmable PLC interfaces using dry-contact triggers. Firmware updates are performed via secure USB service port under controlled change management procedures.

Applications

• High-density microbial culture optimization (yeast, E. coli, Bacillus) in deep-well plates with accelerated growth kinetics—achieving OD₆₀₀ = 1.0 in half the time versus prior-generation shakers at reduced rpm.
• Antibody-antigen binding assays requiring uniform mixing across 96-well ELISA plates to minimize edge effects and improve signal-to-noise ratios.
• Phage display library amplification and panning cycles where consistent suspension of bacterial hosts is essential for selection fidelity.
• Enzymatic hydrolysis studies (e.g., cellulase, protease activity) demanding precise kinetic control over substrate–enzyme contact time and shear exposure.
• Biodegradation assays using ASTM D5338-compliant aerobic solid-phase reactors with intermittent agitation protocols.

FAQ

Does the EVR-034 support temperature-controlled operation?
No. The EVR-034 is a non-incubated shaker. For combined shaking and temperature regulation, TAITEC offers the MBR series incubator-shakers.
Can the EVR-034 accommodate 384-well plates?
It is optimized for 96-well deep-well plates. Use of 384-well formats is not validated and may result in reduced mixing uniformity due to altered mass distribution and center-of-gravity dynamics.
Is NewMax Drive® serviceable in the field?
The NewMax Drive® assembly is sealed and calibrated at the factory. Field maintenance is limited to cleaning and visual inspection; internal recalibration requires return to an authorized TAITEC service center.
What safety certifications does the EVR-034 hold?
It complies with IEC 61010-1:2010 (electrical safety) and IEC 61326-1:2013 (EMC), with CE marking for the European Economic Area.
How is 3Q qualification supported?
TAITEC provides IQ/OQ documentation templates, metrology traceability records for speed calibration, and mechanical design files to support PQ protocol development aligned with ISO/IEC 17025 and FDA guidance on equipment qualification.
