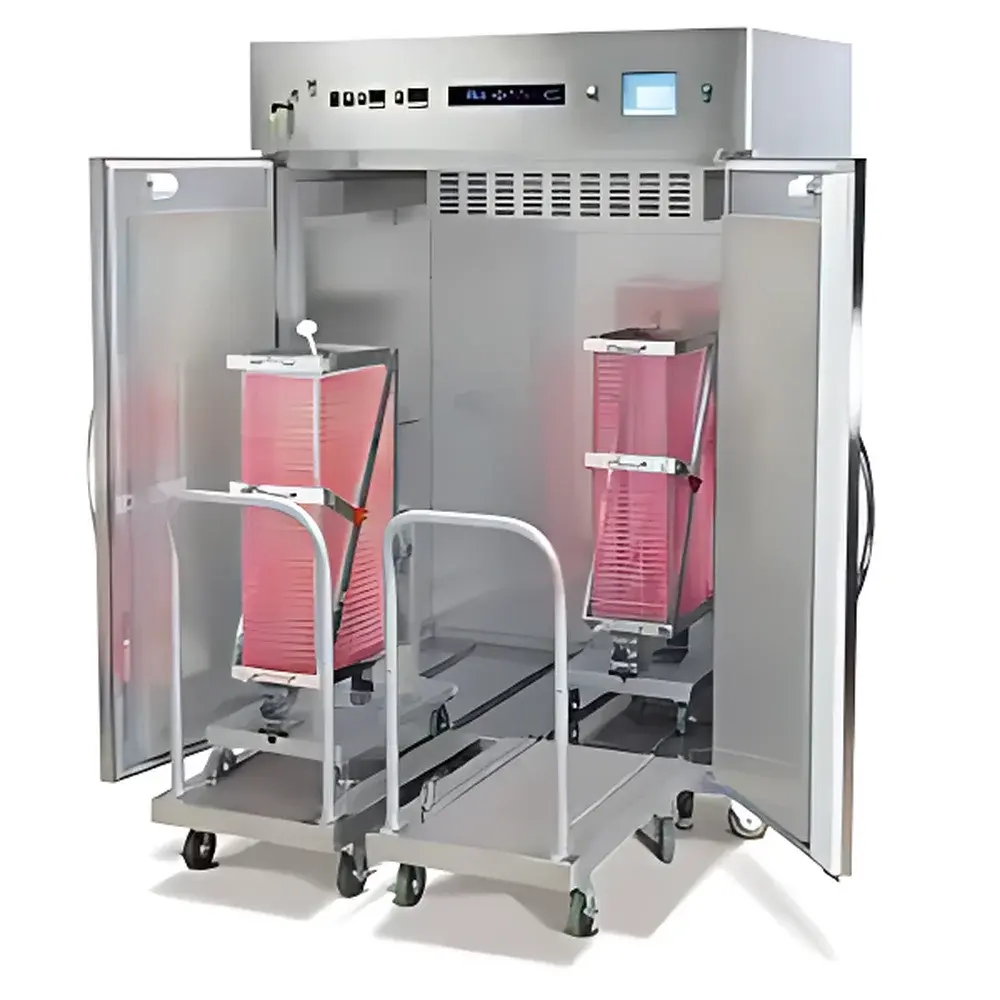

TAITEC MG-1300-2A Large-Scale Forced-Ventilation CO₂ Incubator

Overview

The TAITEC MG-1300-2A is a large-scale, forced-ventilation CO₂ incubator engineered for high-density adherent cell culture in biopharmaceutical manufacturing and translational research settings. Unlike conventional humidified CO₂ incubators, the MG-1300-2A delivers precisely metered, pre-conditioned gas mixtures directly into sealed multilayer culture vessels—bypassing chamber-level humidity control in favor of direct, vessel-integrated environmental regulation. This architecture eliminates condensation-related contamination risks while enabling strict control over dissolved oxygen (DO) and pH within culture media via integrated sensor ports on compatible vessels (e.g., CellMASSter, Thermo Fisher Cell Factory, Corning CellSTACK). The system operates on a dual-gas strategy: CO₂ concentration is maintained using a non-dispersive infrared (NDIR) sensor with closed-loop feedback, while O₂ levels are monitored in real time using a high-stability zirconia electrochemical sensor—critical for hypoxia studies or aerobic bioprocess optimization. Temperature stability is achieved through quadruple-wall air-jacket heating combined with inline gas-line heaters, ensuring thermal consistency both in the chamber and—more critically—within the culture vessel itself (±0.2°C at 37°C, per TAITEC validation under ISO 13408-2 test conditions).

Key Features

• Forced-ventilation architecture supporting two independent 40-layer multilayer culture vessels simultaneously—enabling scalable production of monoclonal antibodies, viral vectors, or recombinant proteins.
• Quadruple-wall air-jacket heating supplemented by inline gas-line heaters ensures rapid thermal equilibration and minimizes temperature gradients across vessel stacks.
• Horizontal-flow fan system enhances chamber-wide thermal uniformity (±0.5°C) and prevents localized turbulence that could disturb delicate monolayers.
• Integrated auto-switching gas manifold enables seamless transition between primary and backup CO₂/O₂ cylinders—eliminating process interruption during cylinder depletion.
• Built-in industrial-grade PC (Windows XP Embedded, 6.5″ resistive touchscreen) logs timestamped operational data: chamber temperature, CO₂ setpoint & measured value, O₂ reading, gas flow rate per channel, and alarm events.
• Stainless steel construction (interior and exterior) meets ISO 14644-1 Class 5 cleanroom compatibility requirements and supports VHP (vaporized hydrogen peroxide) decontamination cycles.

Sample Compatibility & Compliance

The MG-1300-2A is validated for use with forced-ventilation–compatible multilayer vessels only—including TAITEC’s CellMASSter (10- and 40-layer formats), Thermo Fisher Scientific’s Cell Factory™ series, and Corning’s CellSTACK® systems. These vessels feature dedicated gas inlet/outlet ports and optional DO/pH sensor integration points (sensor modules sold separately). The system complies with key regulatory frameworks governing cell-based product development: it supports 21 CFR Part 11–compliant audit trails when paired with validated third-party data management software; its temperature and gas control performance aligns with ISO 13408-2 (sterile processing of biological products) and ASTM E171 (standard specifications for environmental chambers); and its stainless steel build satisfies cGMP facility requirements for equipment qualification (IQ/OQ/PQ). Humidity control is intentionally omitted—consistent with industry best practices for closed-system, gas-perfused culture where moisture is managed at the vessel level.

Software & Data Management

Operational parameters and sensor readings are recorded continuously to the onboard embedded PC and stored in non-volatile memory. Data export is supported in CSV and plain-text TXT formats via USB interface, enabling traceable integration into LIMS or MES platforms. While the native OS (Windows XP Embedded) does not support modern cryptographic signing, the logging architecture includes immutable timestamps, operator ID fields (via optional login module), and cyclic buffer overwrite protection—facilitating GLP-compliant record retention. For full 21 CFR Part 11 compliance, TAITEC recommends pairing the MG-1300-2A with validated third-party electronic lab notebook (ELN) or SCADA solutions that provide electronic signatures, role-based access control, and long-term archival.

Applications

• Large-scale expansion of therapeutic adherent cell lines (e.g., CHO, HEK293, CAP-T, Vero) for upstream bioprocessing.
• Manufacturing of clinical-grade viral vectors (AAV, lentivirus) requiring precise O₂/CO₂ modulation during transduction phases.
• Process development and comparability studies for multilayer vessel-based platforms under Q5A(R2) and ICH guidelines.
• Long-term culture of primary human cells (e.g., MSCs, iPSC-derived lineages) where microenvironmental stability directly impacts differentiation fidelity.
• Biobanking of high-value cell stocks under controlled, low-perturbation conditions—minimizing manual handling and contamination risk.

FAQ

Does the MG-1300-2A support humidity control?
No. It is designed exclusively for forced-ventilation, closed-vessel applications where humidity is regulated at the vessel level—not the chamber. This eliminates condensation, reduces contamination risk, and improves process robustness.
Can I use standard T-flasks or Petri dishes in this incubator?
No. The MG-1300-2A is incompatible with open or non-vented cultureware. Only multilayer vessels with dedicated gas inlet/outlet ports (e.g., CellMASSter, Cell Factory, CellSTACK) are supported.
What is the validation status of the ±0.2°C vessel internal temperature specification?
This value was verified per ISO 13408-2 Annex C using calibrated thermocouples placed within the central well of a loaded 40-layer CellMASSter vessel at 37°C/5% CO₂, ambient +25°C, after 24-hour stabilization.
Is the built-in PC upgradeable to Windows 10 or later?
No. The embedded system uses a fixed Windows XP Embedded image optimized for real-time logging and hardware interfacing. Firmware updates are provided exclusively by TAITEC Japan for critical stability or security patches.
Are DO and pH sensors included with the incubator?
No. Dissolved oxygen and pH probes—and their signal conditioning modules—are optional accessories. They must be purchased separately and installed directly on compatible multilayer vessels.
