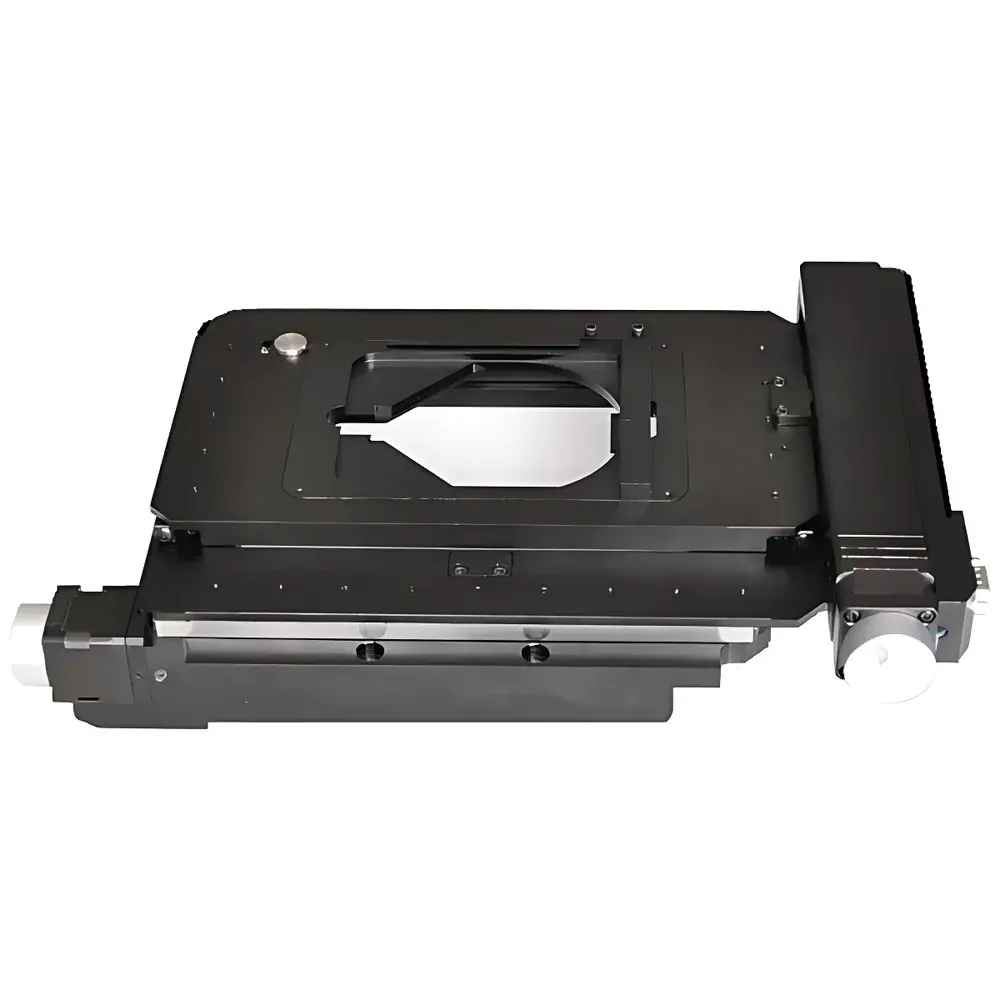

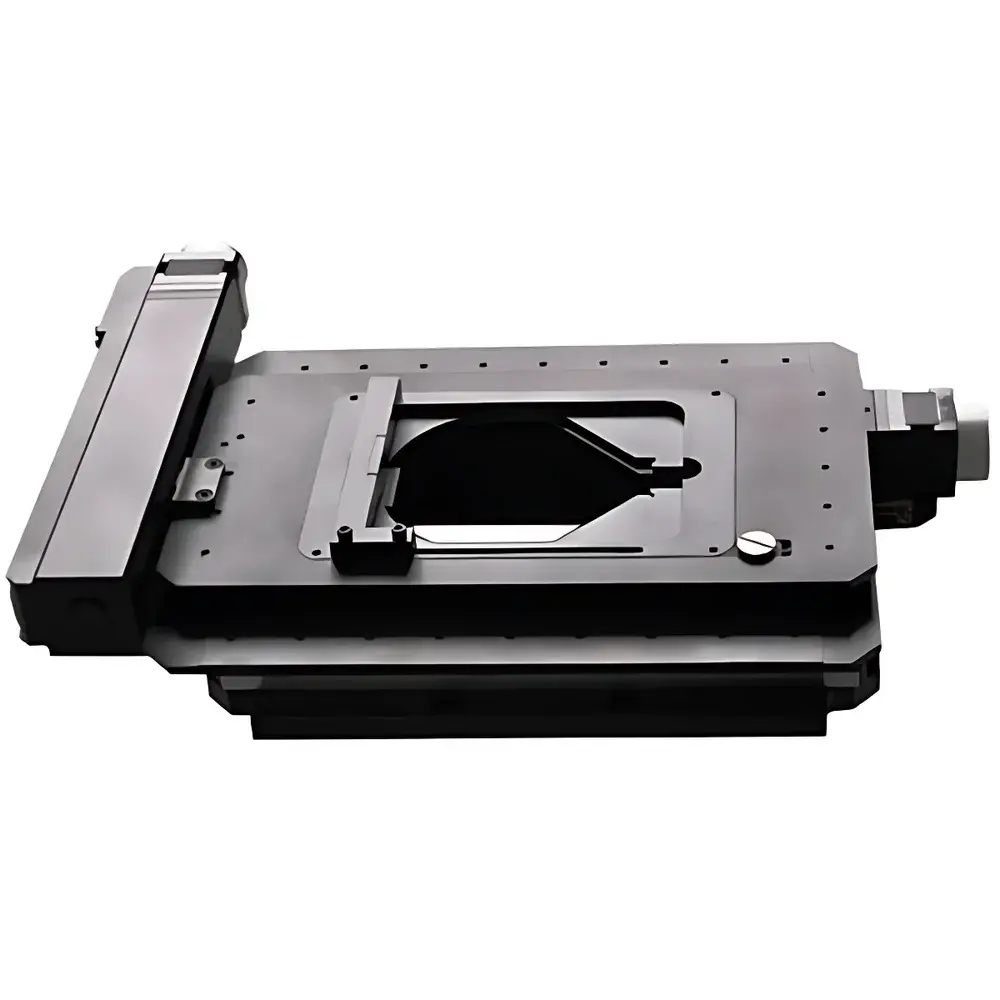

Tansi ACCUR2000 Motorized Inverted Microscope Translation Stage

Overview

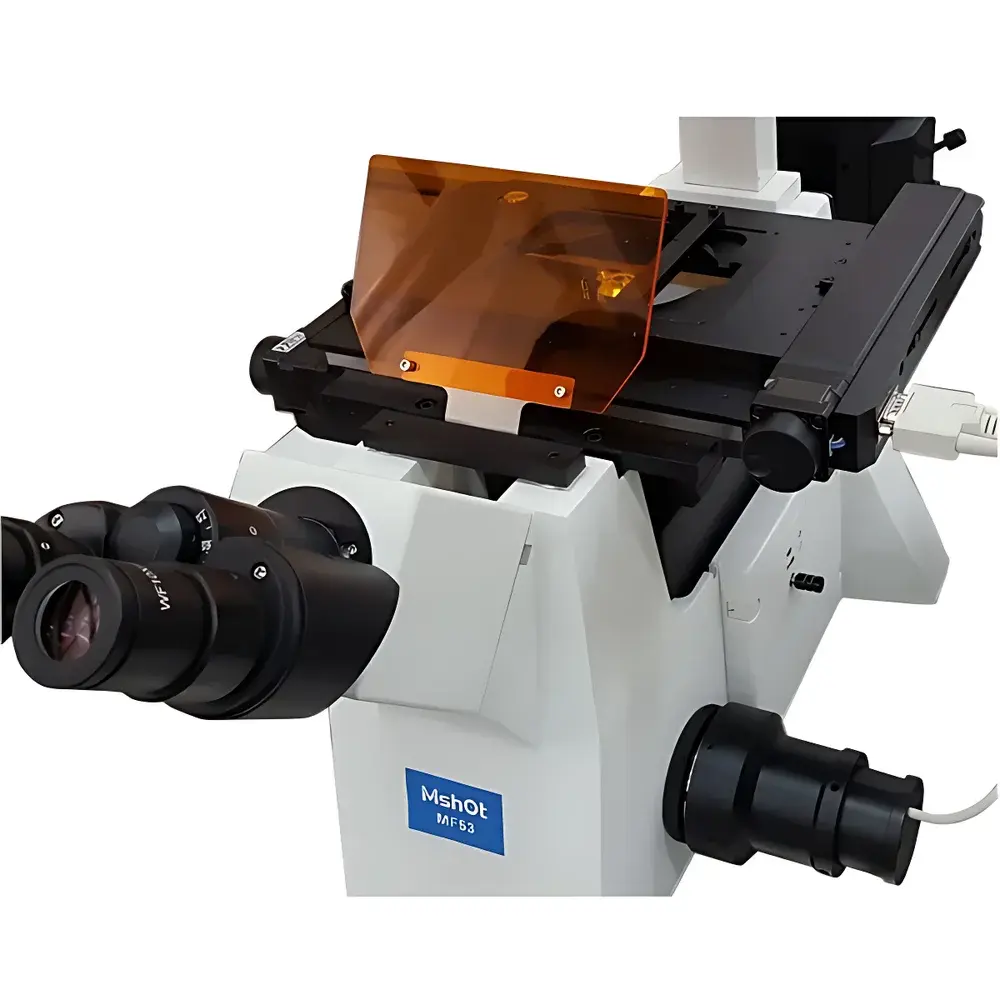

The Tansi ACCUR2000 Motorized Inverted Microscope Translation Stage is an engineered precision motion control solution designed for high-fidelity automation of inverted optical microscopy workflows. Built upon a robust kinematic architecture, the stage employs a dual-axis (X–Y) stepper motor–driven translation system coupled with precision-ground lead screws and preloaded anti-backlash nuts to eliminate mechanical hysteresis and ensure sub-micron repeatability. Its core operational principle relies on open-loop step-synchronous positioning—optimized for stability, low acoustic emission, and long-term thermal drift resistance—making it suitable for time-lapse imaging, multi-field-of-view stitching, automated cell tracking, and routine QC inspection in regulated laboratory environments. The stage integrates seamlessly with major inverted microscope platforms—including Zeiss Axio Observer, Leica DMi8, Nikon Ti2-E, and Olympus IX83—via standardized mounting interfaces and mechanical adaptors, enabling retrofit automation without modification to the host instrument’s optical path or structural integrity.

Key Features

• High-rigidity cold-rolled aluminum base platform with optimized mass-to-stiffness ratio for minimal vibration coupling during scanning
• Cross-roller linear bearings providing smooth, low-friction motion with ≤ ±0.5 µm bidirectional repeatability over full travel range
• Adjustable mechanical end-stop switches (X/Y axes) with tool-free repositioning capability to define custom travel limits per experimental setup
• Dual-control interface: RS232 serial communication for PC-based command integration (ASCII protocol), plus ergonomic handheld controller supporting variable-speed jog operation via tilt-sensitive thumbwheel
• Z-axis focus control module compatible with standard microscope fine-focus mechanisms; includes coarse/fine dual-gear focusing handwheel and programmable speed scaling
• Retained manual override functionality—mechanical coupling remains accessible without disassembly, preserving tactile alignment workflow for initial sample positioning

Sample Compatibility & Compliance

The ACCUR2000 accommodates specimen carriers up to 120 mm × 80 mm in footprint and supports total loads up to 1.2 kg—including standard 35 mm Petri dishes, multi-well plates (6–96-well), glass-bottom culture dishes, and custom microfluidic chips. All structural components comply with RoHS Directive 2011/65/EU and meet IEC 61000-6-3 EMI emission limits for laboratory instrumentation. While not certified under ISO 13485 or FDA 21 CFR Part 11, the stage’s deterministic motion behavior, audit-ready position logging (via optional software extension), and traceable firmware revision history support GLP-aligned documentation practices. Mechanical design adheres to ISO 2768-mK general tolerances for machined parts, ensuring interoperability with third-party stage adapters and motorized nosepiece controllers.

Software & Data Management

The included ACCURScan software (v3.2+) provides native support for Windows 10/11 (64-bit) and enables grid-based acquisition, ROI-defined scan sequences, and coordinate mapping with export to TIFF, CSV, and OME-TIFF formats. A documented C/C++ DLL library (ACCURSDK.dll) is supplied for integration into MATLAB, Python (via ctypes), or LabVIEW environments—enabling synchronization with external triggers (e.g., camera exposure, laser shutter, environmental chamber feedback). All position commands generate timestamped ASCII logs; optional configuration enables SHA-256 checksum validation of motion script files to prevent unauthorized parameter injection. No cloud connectivity or telemetry is embedded—data residency remains fully local unless explicitly configured by the user.

Applications

• Automated fluorescence time-series imaging across multiple fields in live-cell assays
• High-throughput screening of drug-treated cell monolayers using phase contrast or DIC
• Correlative light–microscopy workflows requiring precise stage registration between widefield and confocal modalities
• Micro-manipulation support for patch-clamp or microinjection setups where repeatable X–Y–Z coordinate recall is critical
• Calibration verification of objective lens lateral chromatic aberration using NIST-traceable target slides
• Remote-operated teaching labs where instructors require synchronized multi-user stage control via LAN-connected PCs

FAQ

Is the ACCUR2000 compatible with upright microscopes?
No—the ACCUR2000 is mechanically and dimensionally optimized for inverted configurations only. For upright systems, refer to the ACCUR1000 series.
Does the stage support closed-loop feedback or encoder-based positioning?
No—it operates in open-loop mode with verified repeatability; optional add-on linear encoders are available upon request but require custom bracketing and firmware calibration.
Can the RS232 interface be used simultaneously with the handheld controller?
Yes—both interfaces operate independently; concurrent use does not interfere with command priority or motion arbitration.
What is the maximum travel range per axis?
Standard configuration: 110 mm (X) × 75 mm (Y); extended-range variants (up to 150 mm × 100 mm) are available as OEM options.
Is firmware upgrade supported in the field?
Yes—updates are distributed as signed .hex files and applied via the ACCURScan utility using the RS232 interface; version history and MD5 checksums are published with each release.
