TCT Handset HY Portable Ringelmann Smoke Opacity Meter

Overview

The TCT Handset HY Portable Ringelmann Smoke Opacity Meter is an engineered field instrument designed for rapid, standardized visual assessment of smoke opacity from compression-ignition (diesel) engines in accordance with internationally aligned national standards. Unlike traditional manual Ringelmann chart comparison methods, the Handset HY employs digital image acquisition and real-time algorithmic analysis to objectively quantify smoke density against the five-grade Ringelmann scale (Grade 1–5). The system operates on the principle of luminance-based contrast analysis: high-resolution video frames of exhaust plumes are captured under controlled LED illumination, normalized for ambient light variation, and processed using calibrated grayscale mapping to determine opacity equivalence. This approach eliminates subjective observer bias while maintaining full traceability to the physical Ringelmann chart reference—ensuring metrological consistency across operators, locations, and time. The device is purpose-built for regulatory enforcement, roadside inspection, and mobile emissions auditing where portability, speed, and repeatability are critical.

Key Features

• Integrated dual-module architecture: detachable high-sensitivity imaging head and ruggedized Android tablet—enabling one-person operation without compromise on ergonomics or stability.
• Dedicated 8-megapixel imaging sensor (1/3.2″ CMOS) with 85° wide-angle optical path and 0.3-second auto-focus—optimized for dynamic capture of transient diesel plumes at varying distances (0.5–5 m).
• Onboard 8-LED coaxial illumination system delivering uniform spectral output across daylight and low-light conditions—eliminating reliance on ambient lighting and ensuring consistent contrast calibration.
• Real-time embedded processing engine computes Ringelmann grade within ≤1 second per measurement cycle, with automatic timestamping, GPS tagging, and license plate recognition support (OCR optional).

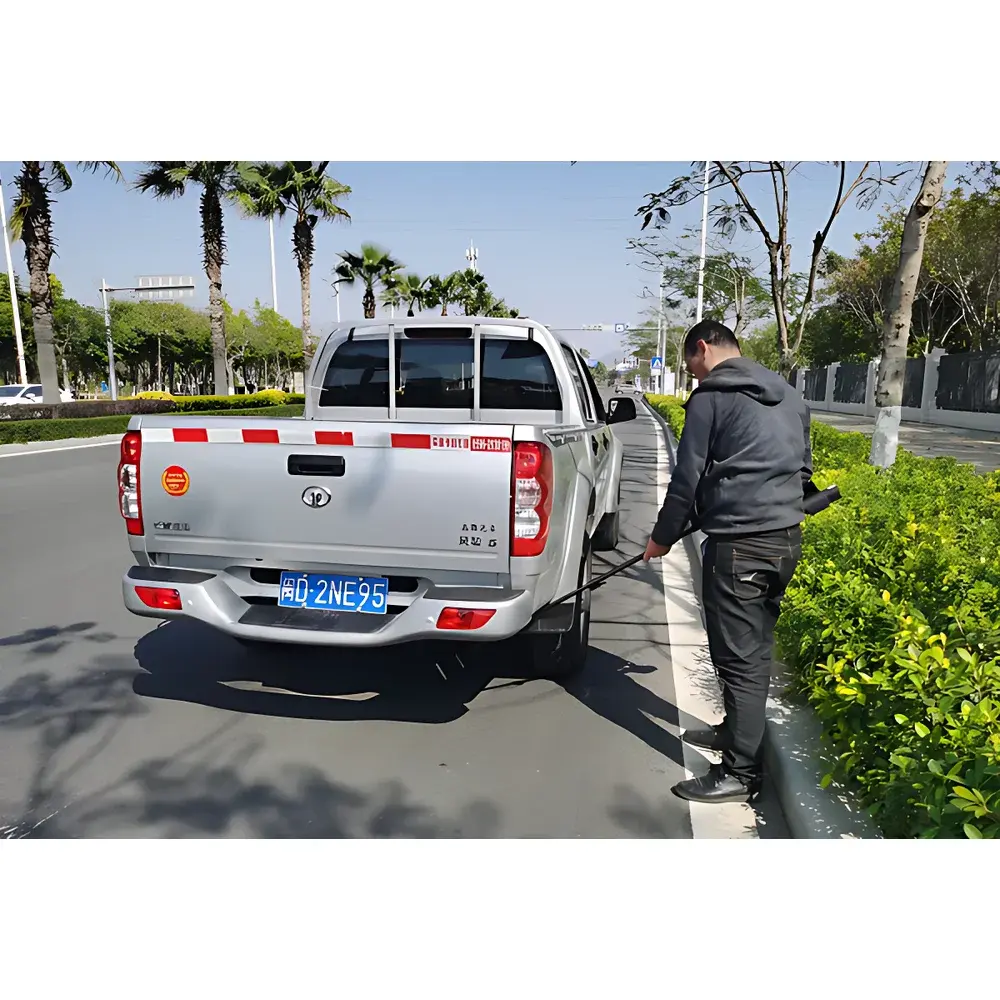

• Extendable telescopic pole (adjustable length up to 2.8 m) positions the camera safely upstream of exhaust flow while maintaining operator distance from hazardous fumes and heat sources.
• Industrial-grade Android tablet featuring multi-core processor, IP65-rated enclosure, 10.1″ HD display, and ≥5-hour continuous runtime—designed for extended outdoor use in variable thermal and humidity environments.
• Compliance-ready firmware with audit-trail logging, user-access controls, and data export in CSV/PDF formats compatible with centralized emissions databases.

Sample Compatibility & Compliance

The Handset HY is validated for opacity evaluation of exhaust emissions from diesel-powered vehicles (light- and heavy-duty), non-road mobile machinery (e.g., construction equipment, agricultural tractors), marine auxiliary engines, and stationary diesel generators. It conforms explicitly to the instrumental requirements specified in Annex D of GB 3847–2018 (“Limits and Measurement Methods for Pollutants from Diesel Engines”) and Annex B of GB 36886–2018 (“Limits and Measurement Methods for Exhaust Smoke from Non-Road Diesel Mobile Machinery”). While not certified to ISO 10054 or ASTM D2156 (which govern laboratory-grade transmissometers), its digital image-based methodology satisfies the performance criteria for field-deployable visual opacity assessment under Chinese national regulatory frameworks. All measurements are referenced to NIST-traceable grayscale calibration targets integrated into the imaging pipeline.

Software & Data Management

The onboard software suite runs natively on Android 11+ and supports GLP-aligned operational protocols. Each measurement record includes embedded metadata: date/time, geolocation (GPS), device serial number, operator ID, environmental temperature/humidity (via optional external sensor), and raw video frame sequence (configurable retention depth). Audit logs capture all user actions—including parameter modifications, calibration events, and data deletions—with immutable timestamps. Data export complies with common environmental reporting formats and integrates via USB or Wi-Fi with municipal air quality management platforms. Firmware updates are delivered over-the-air (OTA) with cryptographic signature verification to ensure integrity and regulatory continuity.

Applications

• Roadside enforcement by environmental protection bureaus conducting random or targeted diesel vehicle inspections.
• Mobile testing campaigns for municipal transport fleets, logistics operators, and public works departments.
• Pre-compliance screening at vehicle inspection stations prior to formal certification testing.
• Field research by academic institutions studying real-world emission behavior under diverse driving cycles and maintenance conditions.
• Monitoring of non-road diesel equipment during construction site audits or port authority emissions control programs.
• Support for Tier II and III implementation of China’s National Air Pollution Prevention Action Plan (2021–2025).

FAQ

Does the Handset HY require annual recalibration?
Yes—users must perform a full optical and grayscale calibration annually using the supplied NIST-traceable reference target; field zero-checks are recommended before each shift.
Can the device operate in rain or high humidity?
The camera head meets IP65 ingress protection; the tablet is rated IP65 when used with its included protective sleeve—making it suitable for outdoor operation in light precipitation and humid environments.
Is video recording stored locally or cloud-synced by default?
All raw video clips are stored locally on the tablet’s encrypted internal storage; cloud synchronization requires explicit configuration and network connectivity.
What training is required for field inspectors?
A 4-hour competency course covering measurement protocol, environmental interference mitigation, and report generation is provided with initial deployment.
Does the system support multilingual UI (e.g., English, Spanish)?
The base firmware supports English and Simplified Chinese; additional language packs can be deployed via custom firmware update upon request.
